SPECIFICATIONS



Available Drill Bit Diameter: 60-300mm/2.36-11.81in



Color: Blue/Orange

DIY Supplies: Plumbing

Displacement: 63CC

Drill Bit Type: Single Blade Bit

Engine Type: Single Cylinder, Air-cooled, 2-stroke

Material: Cast Iron, Aluminum, Alloy Steel, Rubber

Power: 2.2kW

Type: Other



Description



This digging machine is an ideal tool for agricultural, horticultural, and forestry workers. It is made of high-quality materials as well as fine craftsmanship, which is very sturdy and durable. The high-power engine with a hard drill bit can make your digging work more efficient and easier. Meanwhile, the complete kit makes this product easy to use. It will be your ideal choice to reduce labor intensity for you.





Key Features



Outstanding Performance: The 2.2kW high-power, 8800 ± 300rpm high-speed two-stroke engine can provide you with strong power. When used in conjunction with a single-edged and high-hardness drill bit (11.81 in), it can achieve fast drilling and improve work efficiency.



Flexible Movement: High-quality rubber tire has a good anti-skid effect. The single-wheel design makes it flexible to move, even in complicated terrains such as mountains, slopes, and sand to help you complete drilling tasks easily.





Long Endurance:With a large capacity fuel tank (0.34 gal) and a low fuel consumption (544g/kW.h), this engine can work for a long time. It ensures reliable performance without frequent refilling.





Strong and Durable: It is mainly made of high-quality cast iron, aluminum, and alloy steel, and its surface is treated with spray painting technology, making it more wear-resistant and sturdy. Therefore, it can withstand harsh working environments, ensuring the long service life of the equipment.





Easy Operation: Its hand-pull starter allows you to start the machine with ease. The convenient throttle switch and power switch are designed on the same handle, making operation easy and convenient.





Good Heat Dissipation: An outstanding forced air cooling system and dense cooling holes can promptly dissipate heat and cool down the engine, protecting the engine for long-lasting work.





Good Adaptability: It is suitable for drill bits with a diameter of 2.36-11.81 in, which can be replaced according to actual needs to meet the drilling needs of different diameters and increase work flexibility.





Protective Package: The double wrapping of bubble bags and cartons can effectively protect the product in transit.

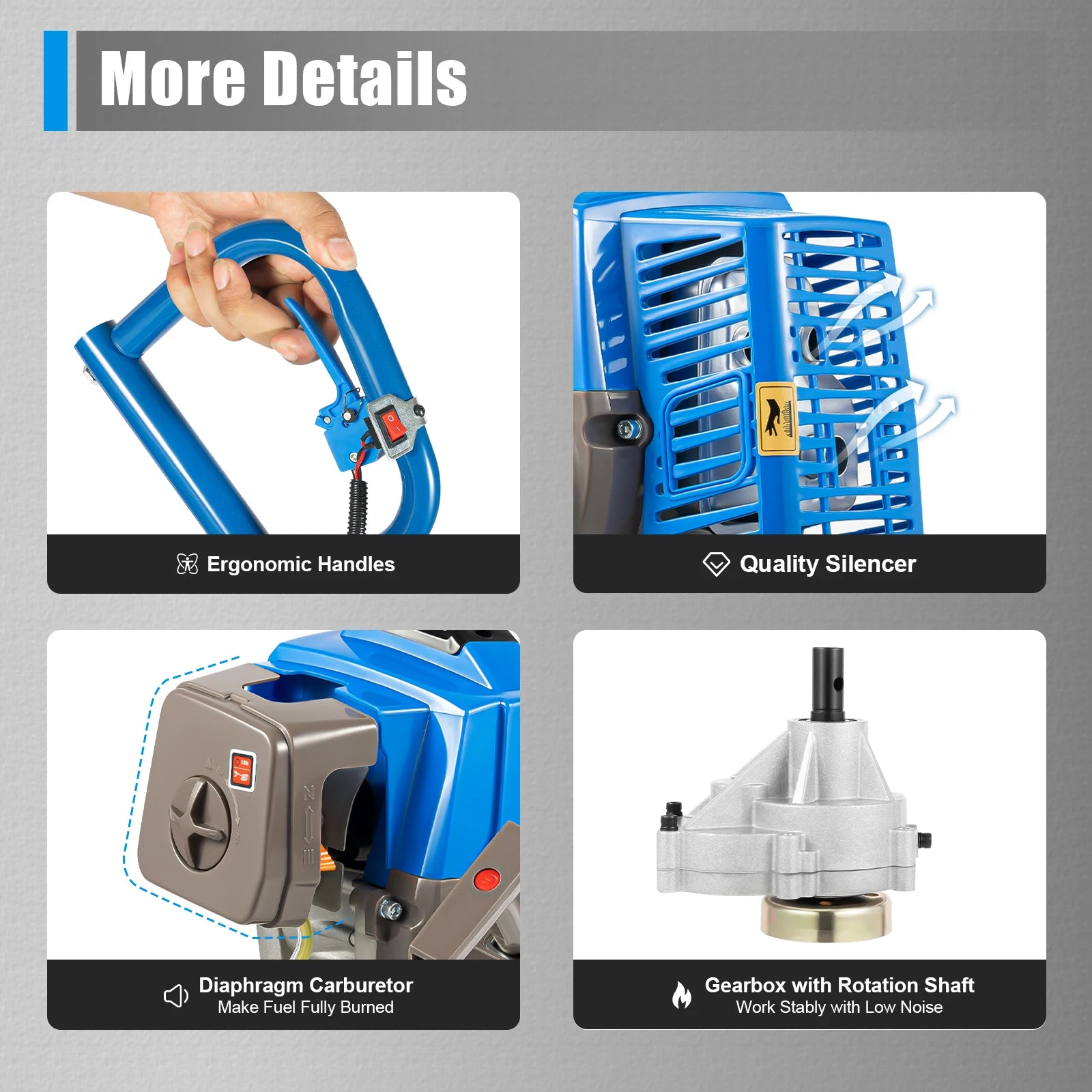

Details



Ergonomic Handles: The ergonomic handles can reduce the fatigue of your hands and arms to provide you with a pleasant experience.



Gearbox with Rotation Shaft: It has high hardness and good sealing, which can ensure the digging machine works stably with low noise.





Quality Silencer: A high-quality silencer can effectively reduce noise(80-115dB) and provide you with a comfortable working environment.





Diaphragm Carburetor: It can make fuel fully burned to avoid fuel waste and save you lots of money.





Application



It is suitable for use on construction sites, in the building industry, on farms and gardens for orchard planting, and for drilling holes quickly in ordinary soil.



Specification



Color: Blue/Orange

Material: Cast Iron, Aluminum, Alloy Steel, Rubber

Process: Painting

Engine Type: Single Cylinder, Air-cooled, 2-stroke

Drill Bit Type: Single Blade Bit

Starting System: Hand-pull Starter

Clutch Type: Centrifugal Clutch

Assembly Required: Yes

Displacement: 63CC

Power: 2.2kW

Speed: 8800±300rpm

Gearbox Reduction Ratio: 30:1

Fuel Mixture Ratio: 25:1 (Gasoline: Two-stroke FC Grade Engine Oil )

Noise: 80-115dB

Fuel Tank Capacity:1.3L/0.34Gal

Fuel Consumption: 544g/Kw.h

Available Drill Bit Diameter: 60-300mm/2.36-11.81in

Bore*Stroke: 48*35mm

Handle Spacing: 51cm/20.1in

Wheel Diameter: 40.5cm/15.9in

Product Overall Length: 169cm/66.5in

Digging Machine Net Weight (Without Drill Bit): 17kg/37.5 lbs

Digging Machine Gross Weight (Without Drill Bit): 19kg/41.9 lbs

Digging Machine Package Size (Without Drill Bit): 81*39.5*35cm/31.9*15.6*13.8inch

Drill Bit Net Weight: 4.6kg/10.1 lbs

Drill Bit Gross Weight: 5.6kg/12.4 lbs

Drill Bit Package Size: 80.5*29.5*29.5cm/31.69*11.61*11.61in

Drill Bit Diameter: 30cm/11.81in

Drill Bit Length: 80.8cm/31.8in



Package Included



1* Digging Machine (Blue or Orange)

1* Drill Bit

1* Fuel Mixing Bottle

1* Product Illustration

2* English Manuals

All Accessories for Assembly



Notes



1. Please note that this product is shipped in two packages. Please be patient as all parts arrive.

2. Please note that it is not suitable for drilling holes in sand and gravel mixed soils, ice, or sandy clay soils.

3. Please add gasoline and engine oil into the fuel tank respectively, cover the rear cover, and shake well. Please use two-stroke FC grade engine oil, otherwise, it will cause damage to the engine.

4. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
