SPECIFICATIONS



Battery Voltage: 48VDC

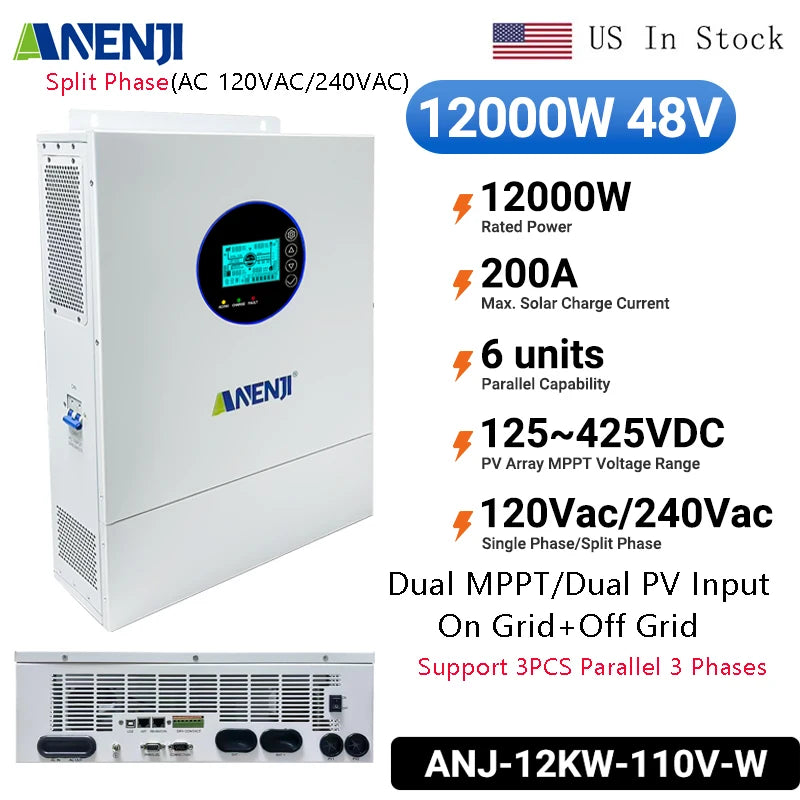

Split Phase 12KW 48V Hybrid Solar Inverter 2 MPPT AC 120VAC 240VAC Pure Sine Wave Off Grid Tie MPPT 200A Solar Charger PV 500VDC Dual PV Input

Certification: CE

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Features: Supports working without batteries,Supports feeding power to the grid function,parallel,Split Phase,3pcs parallel 3 phase 460VAC,2 MPPT,Dual PV input

Floating Charge Voltage: 54VDC

Frequency Range: 50/60HZ Auto sensing



Is Smart Device: Yes

Max MPPT Voltage: 500VDC

Maximum PV Array Open Circuit Voltage: 200A

Maximum PV Array Power: 6000W*2

Maximum charge current: 200A



Output AC Voltage Regulation(Batt.Model): 120/240VAC

Output Current: 220A

Output Frequency: 50/60Hz

Output Type: SINGLE

Overcharge Protection: 58.6V

Rated Power: 12000W

Surge Power: 18000VA

Wave Form: pure sine wave

Weight: 29kg

communication interface: RS485/CAN

is_customized: Yes

output Voltage: 120VAC(L1/N,L2/N)/240VAC(L1/L2)

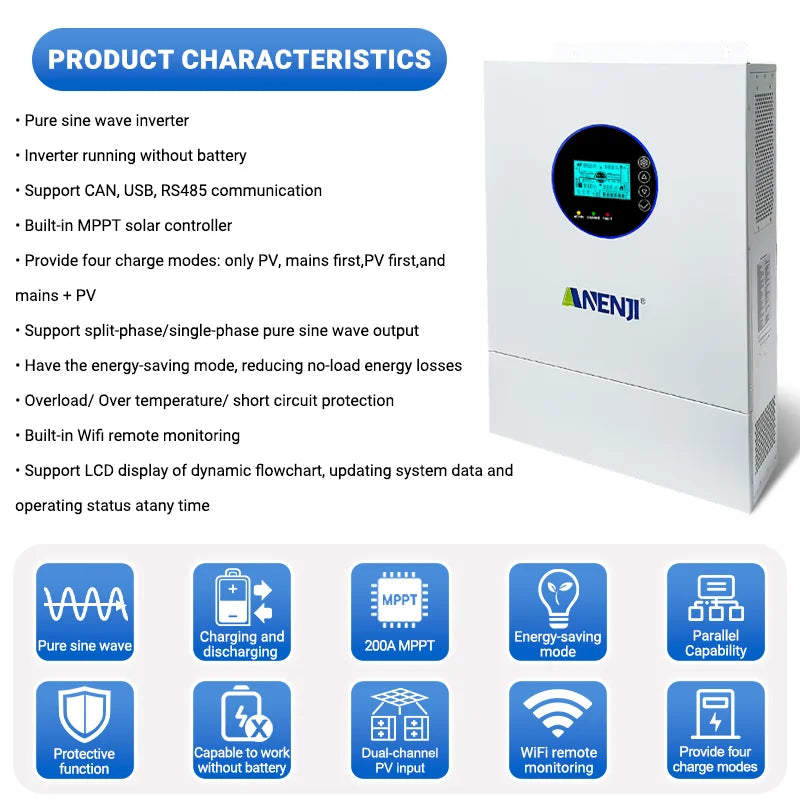

-.Pure sine wave



-Output 120VAC (L1/N,L2/N) / 240VAC (L1/L2)



- Power factor 1.0



- Photovoltaic input voltage 90-500Vdc



- Built-in MPPT 200A



- Works compatible with LifePO4 batteries



-Dual PV input



-WiFi remote monitoring (optional)



-Supports multiple output priorities to optimize battery performance and extend life cycle

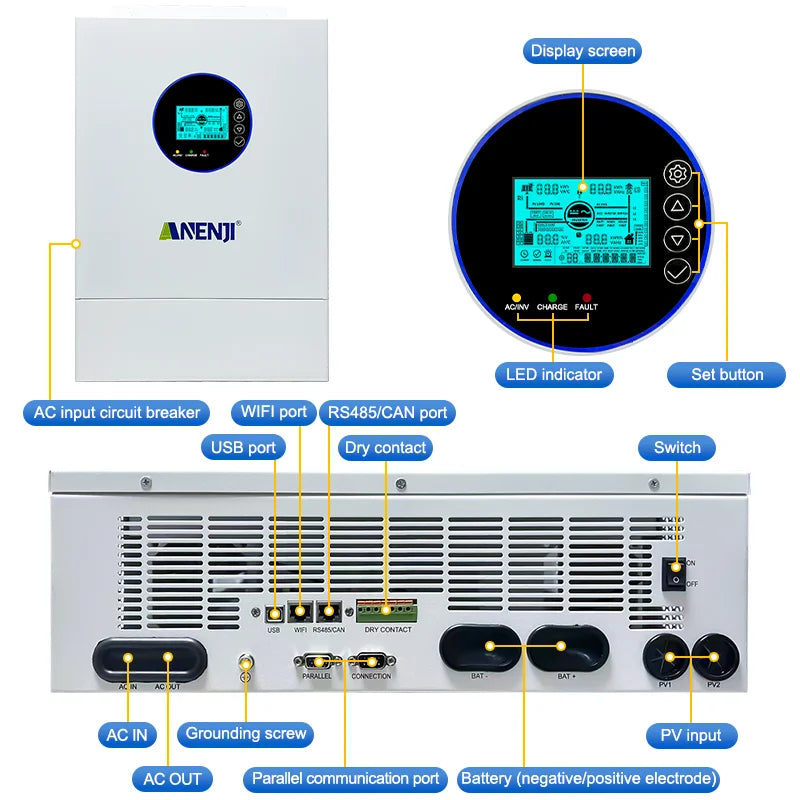

-Supports RS485 communication protocol with dry node interface



-Parallel function



-LCD touch display



-Supports feeding power to the grid function



- Bring PC software to set all functions of the inverter



-Support 3PCS Parallel 3 Phase AC 460V-480VAC



pack:



Solar inverter*1



Instruction manual*1
