SPECIFICATIONS



Power Solar Inverter Off Grid 4KW 24v 110/120v Pure Sine Wave MPPT Solar Charger Power Home Inversor  LCD Display



Certification: CE

Cold Start Voltage: 23.0Vdc

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature1: 6.25 Inch LCD

Feature10: inversor hibrido 48v 110v 220v fase dividida

Feature12: split phase inverter

Feature13: solar panel

Feature14: hybrid inverter 24v

Feature15: mppt

Feature2: Off Grid Hybrid Inverter

Feature3: 140A MPPT Inversores

Feature4: Pure Sine Wave Solar Power Inverter

Feature5: touchable buttons

Feature6: Built-in 150A MPPT

Feature8: solar

High DC Cut-off Voltage: 31Vdc

High DC Recovery Voltage: 29Vdc



Is Smart Device: Yes

Low DC Cut-off Voltage: 21.0vdc

Low DC Warning Return Voltage: 23.0Vdc

Low DC Warning Voltage: 22.0Vdc

Model Number: Inverter 4KW

No Load Power Consumption: <35W

Nominal DC Input Voltage: 24Vdc



Output Frequency: 50HZ 60HZ,60Hz or 50Hz

Output Type: SINGLE

Output Voltage Regulation: 120Vac+/-5%

Output Voltage Waveform: Pure Sine Wave

Overload Protection: 5s@>150% load; 10s@110%~150% load

Peak Efficiency: 94%

Rated Output Power: 4.0KW

Size: 400*250*89mm

Surge Capacity: 2* rated power for 5 seconds

Weight: 8.50KG

is_customized: Yes



SMHA-4KW-U currently does not include WIFI. If you need WIFI, you can click on this link to purchase!

https://www.aliexpress.com/item/1005010788115413.html

Features :
1 off grid solar inverter

2 No battery function available

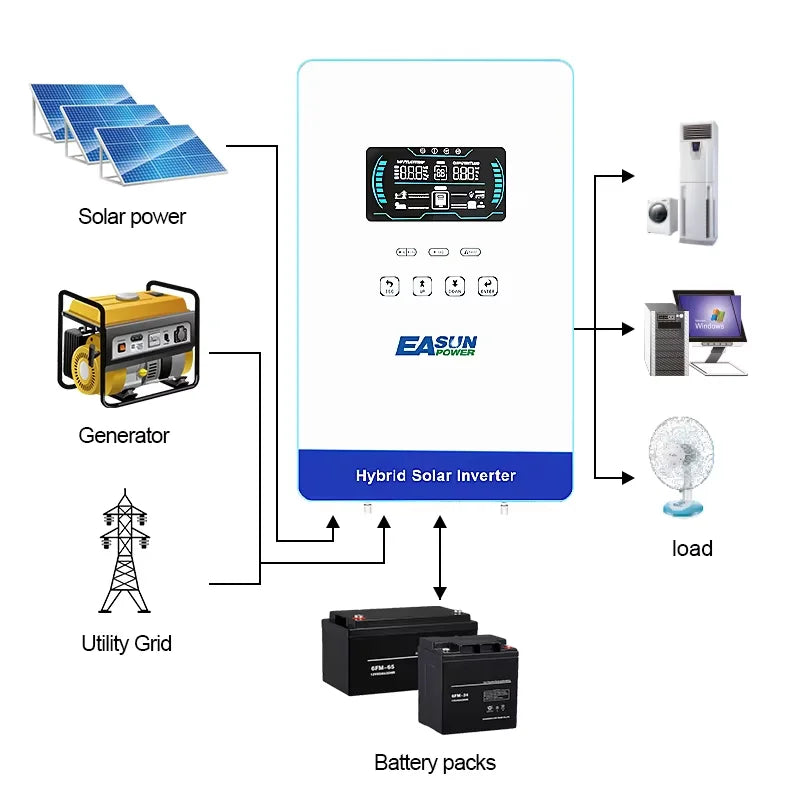

3 SBU mode :utility power,battery and PV power complement each other

4 Pure sine wave solarinverter

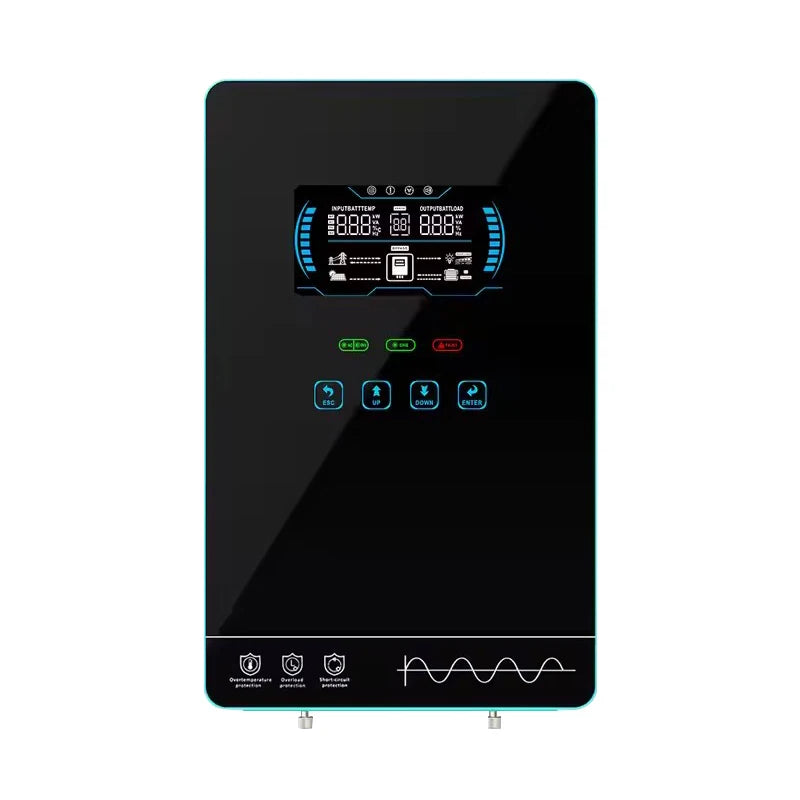

5 Unique glass top cover design with 6.25 inch LCD display and touchable buttons

6 Built-in140A MPPT(Max PV 5600W)solar charger

7 High PV input range from 55V-350Vdc

8 Smart battery charger design for optimized battery performance

9 Configurable AC/Battery input priority via LCD setting

10 Auto restart while PV is recovering

11 Over-load ,overtemperature and output short circuitprotection

12 Cold restart function

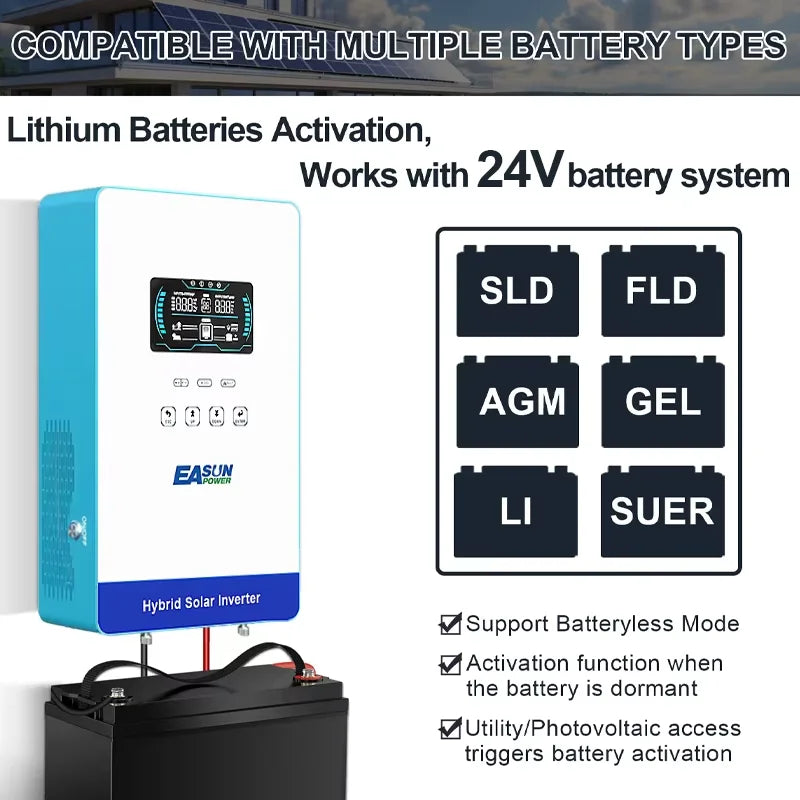

13 Built-in lithium battery automatic activation

14 Communication with RS232/RS485

15 WiFi monitoring function (optional )

16 Anti-dust kit for harsh environment(optional)

17 Restore default Settings with one click
EASUN POWER SMHA series machine specification ：

MODEL	4KW/24V
Rated Power	5600W
PV Charge Current	140A
Efficiency	98.0% max.
Max. PV Array Open Circuit Voltage	350Vdc
PV Array MPPT Voltage Range	55-350Vdc
Standby Power Consumption	2W
Battery Voitage Accuracy	+/-0.3%
PV Voltage Accuracy	+1-2V
Charging Algorithm	3-Step
Safety Certification	CE
Operating Temperature Range	0°C to 55°C
Storage temperature	-15°C~ 60°C
Dimension(D*W*H)，mm	400*250*89mm
Net Weight, kg	8.5kg
Rated Output Power	4.0KW/24V
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	120Vac±5%
Output Frequency	60Hz or 50Hz
