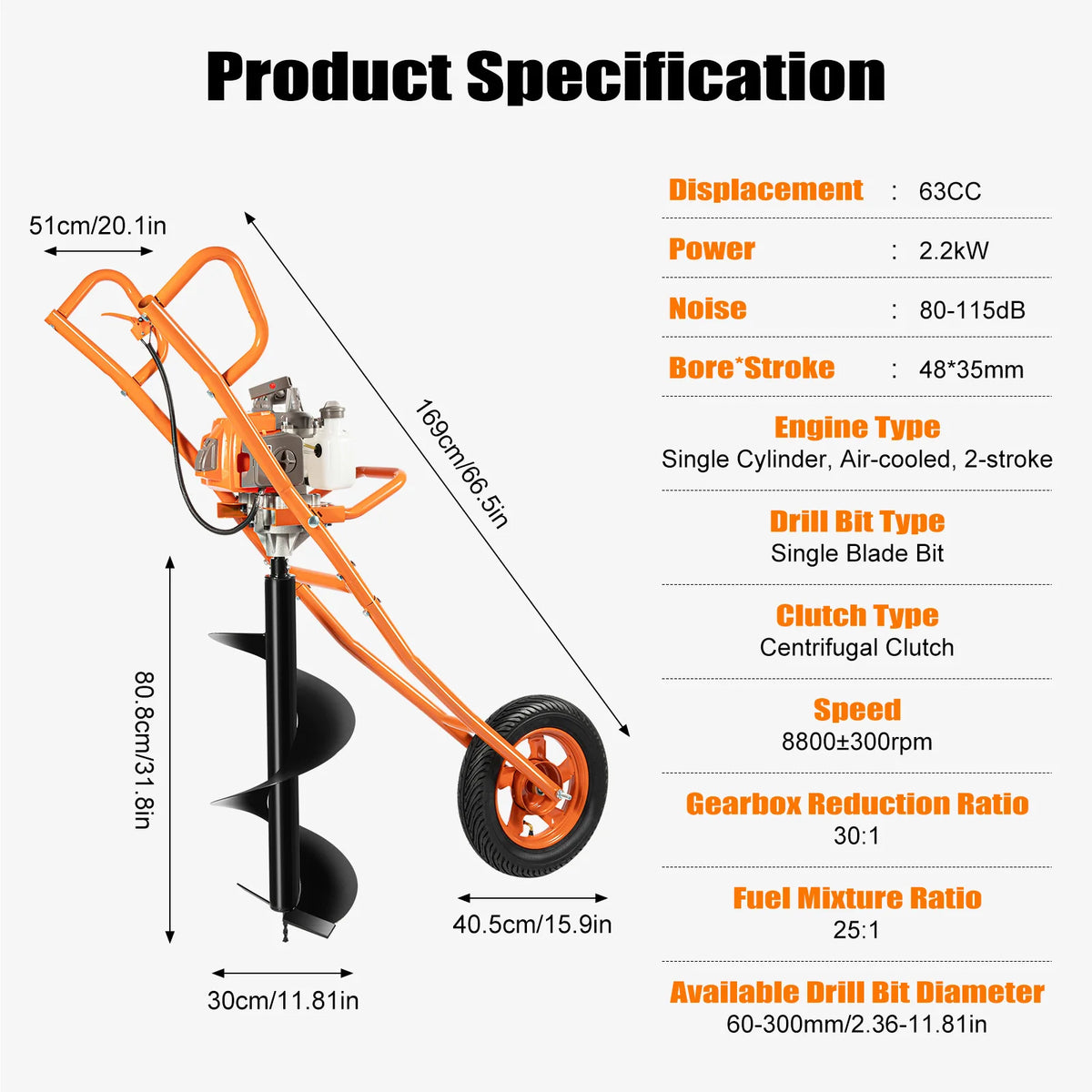

Specification

Color: Orange
Material: Cast Iron, Aluminum, Alloy Steel, Rubber
Process: Painting
Engine Type: Single Cylinder, Air-cooled, 2-stroke
Drill Bit Type: Single Blade Bit
Starting System: Hand-pull Starter
Clutch Type: Centrifugal Clutch
Assembly Required: Yes
Displacement: 63CC
Power: 2.2kW
Speed: 8800±300rpm
Gearbox Reduction Ratio: 30:1
Fuel Mixture Ratio: 25:1 (Petrol: Two-stroke FC Grade Engine Oil )
Noise: 80-115dB
Fuel Tank Capacity:1.3L/0.34Gal
Fuel Consumption: 544g/Kw.h
Available Drill Bit Diameter: 60-300mm/2.36-11.81in
Bore*Stroke: 48*35mm
Handle Spacing: 51cm/20.1in
Wheel Diameter: 40.5cm/15.9in
Product Overall Length: 169cm/66.5in
Digging Machine Net Weight (Without Drill Bit): 17kg/37.5 lbs
Digging Machine Gross Weight (Without Drill Bit): 19kg/41.9 lbs
Digging Machine Package Size (Without Drill Bit): 81*39.5*35cm/31.9*15.6*13.8inch
Drill Bit Net Weight: 4.6kg/10.1 lbs
Drill Bit Gross Weight: 5.6kg/12.4 lbs
Drill Bit Package Size: 80.5*29.5*29.5cm/31.69*11.61*11.61in
Drill Bit Diameter: 30cm/11.81in
Drill Bit Length: 80.8cm/31.8in

Key Features

Outstanding Performance: The 2.2kW high-power, 8800 ± 300rpm high-speed two-stroke engine can provide you with strong power. When used in conjunction with a single-edged and high-hardness drill bit (11.81 in), it can achieve fast drilling and improve work efficiency.

Flexible Movement: High-quality rubber tire has a good anti-skid effect. The single-wheel design makes it flexible to move, even in complicated terrains such as mountains, slopes, and sand to help you complete drilling tasks easily.

Long Endurance: With a large capacity fuel tank (0.34 gal) and a low fuel consumption (544g/kW.h), this engine can work for a long time. It ensures reliable performance without frequent refilling.

Strong and Durable: It is mainly made of high-quality cast iron, aluminum, and alloy steel, and its surface is treated with spray painting technology, making it more wear-resistant and sturdy. Therefore, it can withstand harsh working environments, ensuring the long service life of the equipment.

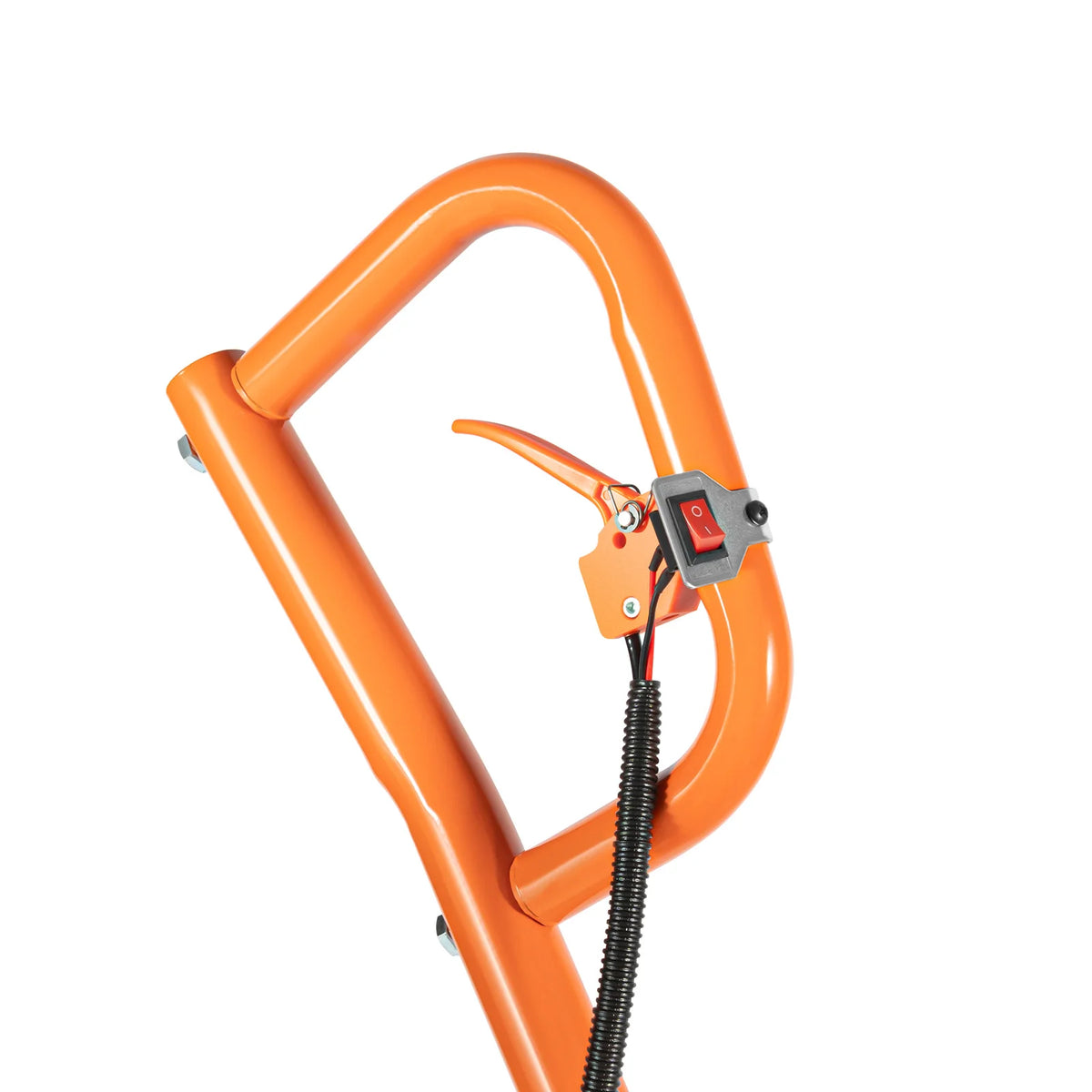

Easy Operation: Its hand-pull starter allows you to start the machine with ease. The convenient throttle switch and power switch are designed on the same handle, making operation easy and convenient.

Good Heat Dissipation: An outstanding forced air cooling system and dense cooling holes can promptly dissipate heat and cool down the engine, protecting the engine for long-lasting work.

Good Adaptability: It is suitable for drill bits with a diameter of 2.36-11.81 in, which can be replaced according to actual needs to meet the drilling needs of different diameters and increase work flexibility.

Application

It is suitable for use on construction sites, in the building industry, on farms and gardens for orchard planting, and for drilling holes quickly in ordinary soil.

Package Included

1* Digging Machine
1* Drill Bit
1* Fuel Mixing Bottle
1* Product Illustration
2* English Manuals
All Accessories for Assembly

Notes

1.Please note that it is not suitable for drilling holes in sand and gravel mixed soils, ice, or sandy clay soils.
2.Please add petrol and engine oil into the fuel tank respectively, cover the rear cover, and shake well. Please use two-stroke FC grade engine oil, otherwise, it will cause damage to the engine.
3.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
