SPECIFICATIONS





Certification: CE

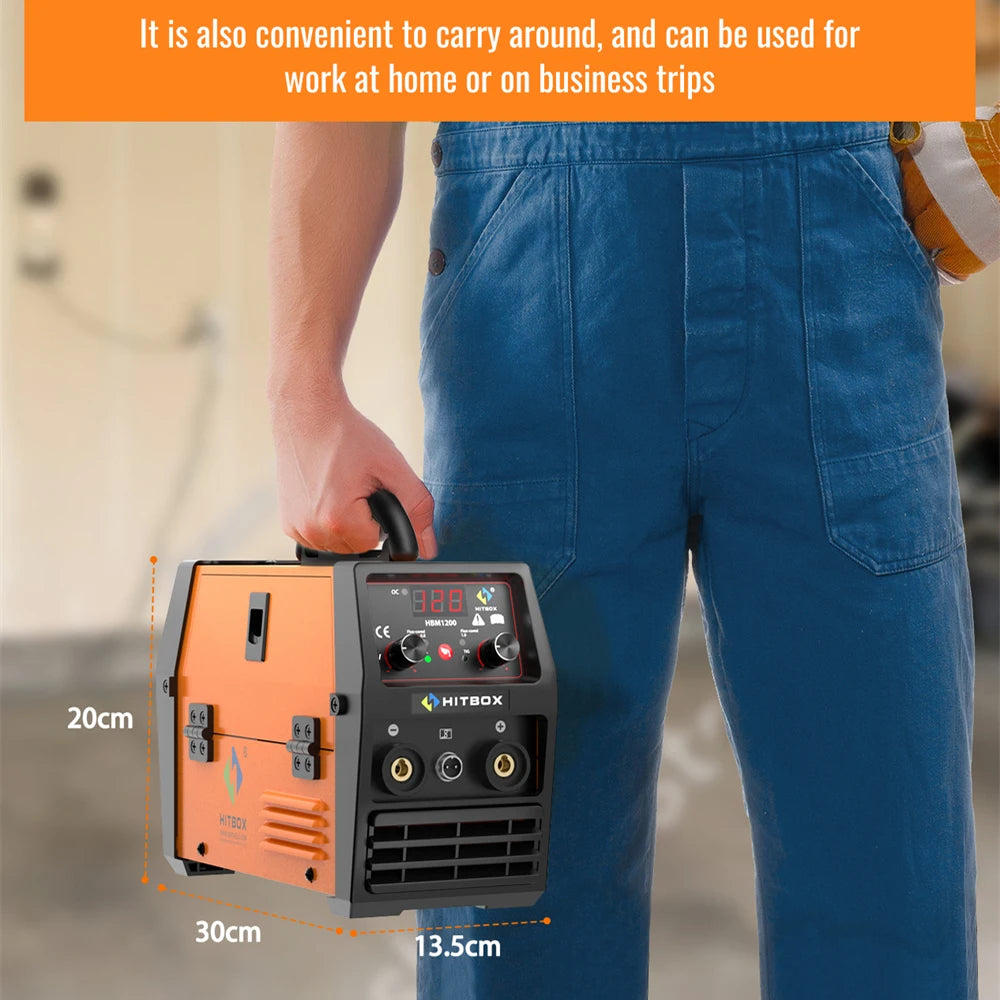

Dimensions: 34*13.6*24.8cm

Is Smart Device: No

Use: Welding

Weight: 6.5

Wire Feeding Speed: 3-18m/min









220V HITBOX Welding Machine HBM1200 With TIG MIG Torch Fit 0.8/1.0mm Welder Wire Gasless Arc Soldering



Instruction:

【3 in 1 MIG Welding】: HITBOX 120A MIG welder has three functions of MIG / MMA / LIFT TIG, work efficiency is 40% higher than traditional ARC molding machines, no need to punch and grind.Tip: Each machine will be tested for welding, and it is normal for the nozzle to have black burn marks.

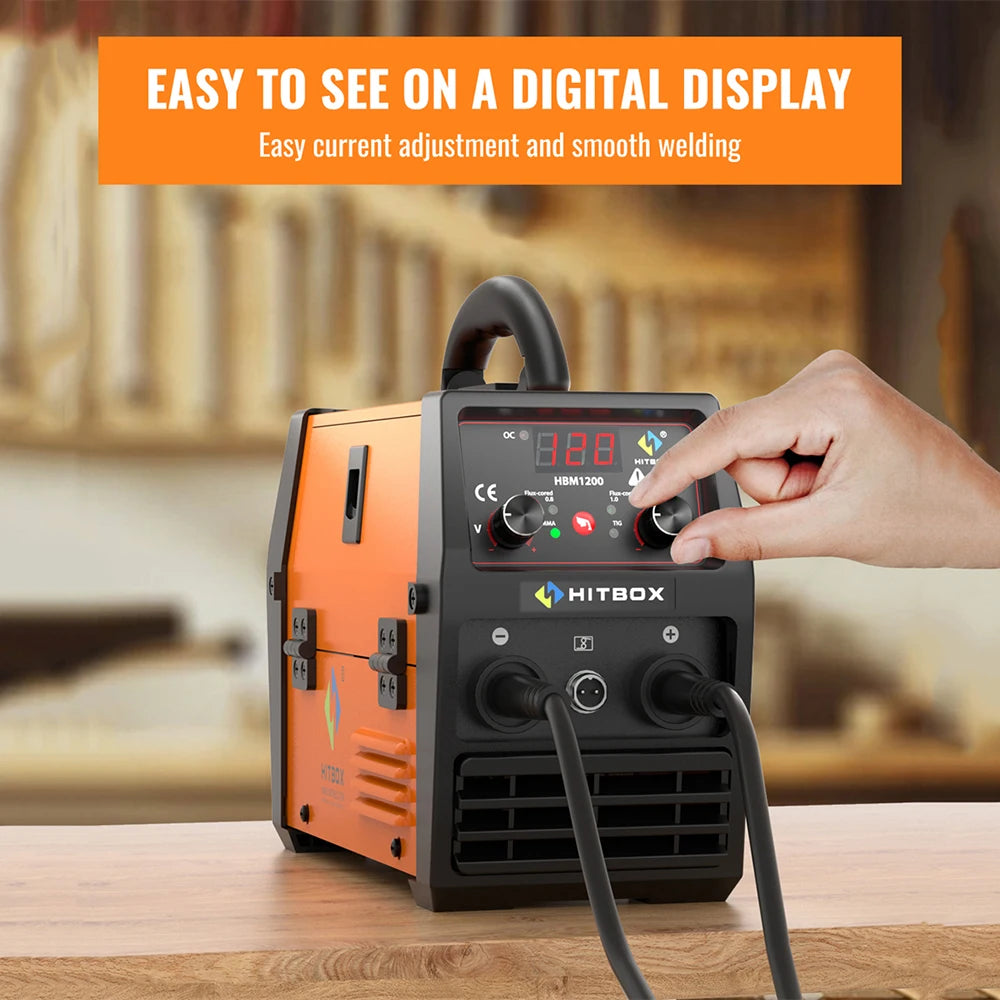

【Excellent Welding Characteristics】: HITBOX HBM1200 mig welder panel is easy to operate.This welder has power settings and adjustable wire feed speed, 20-120A working current is suitable for 0.8-4.0mm metal plate welding.

【Quality and Safety】: HITBOX HBM1200 The efficiency of gasless continuous wire welder 120A@100% 93A@60%.The welding unit is equipped with a cool air radiator, overheat protection and VRD function.Insulation class: F Protection class: IP21.

【Welding Wire】: Equipped with 0.6/0.8mm threaded drive roller.Applicable wire diameter: φ0.8 / φ0.9 / φ1.0 wire (Hint: Install only 1kg).Good helper for airless welding.MMA welding (2.5mm rod) 6013 can be used Very good, also 7018. Applicable profiles: carbon steel, stainless steel.

【1 Year Warranty】 If you have any problems using this welder, please feel free to contact us at the first time.Our 24-hour online customer service will help you deal with it.Just buy HITBOX machines with confidence



Specifications:

Inverter technology: IGBT

Input voltage: AV220±15%V

Frequency: 50/60HZ

Feeding speed adjustment range(m/min): 1.5-16

Welding wire diameter(mm): 0.6/0.8/1.0

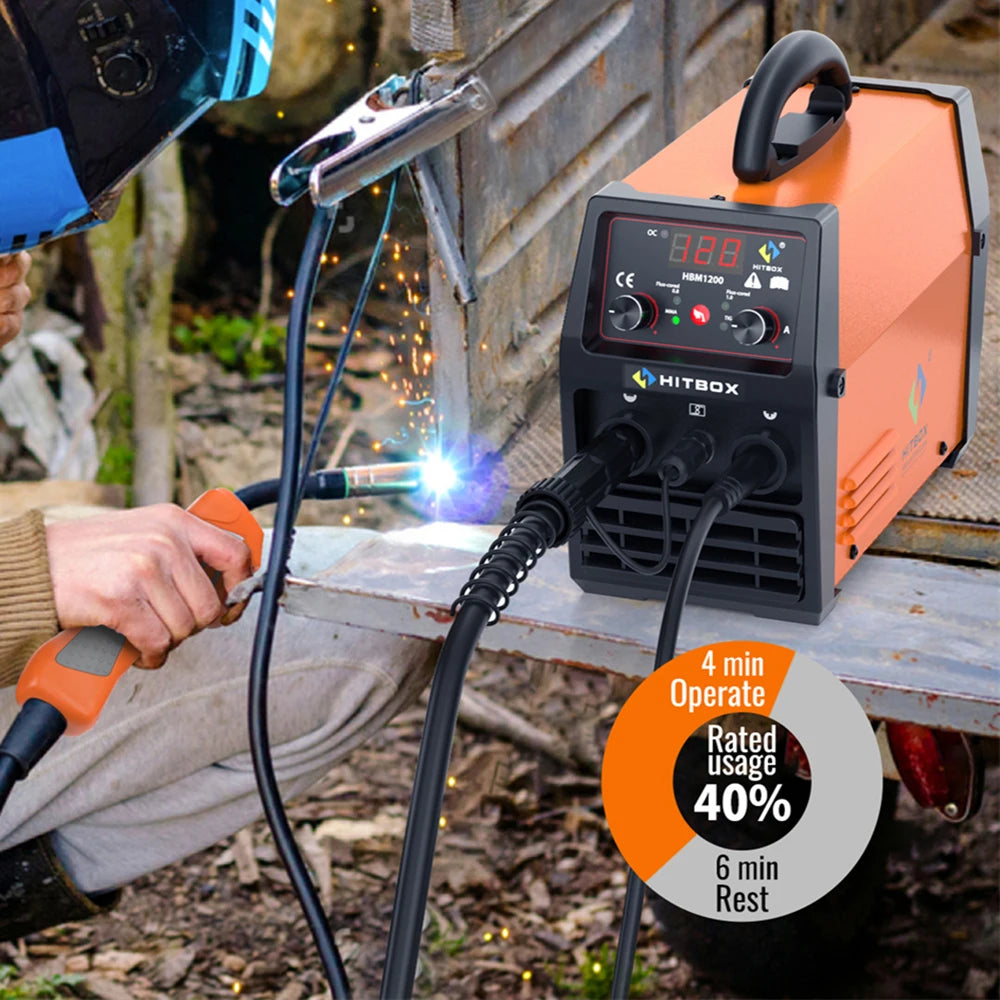

Duty cycle:35%

Efficiency:85%

Net weight:6.5kg

Packing dimension: 350*120*220mm

Use:‎Welded carbon steel/stainless steel

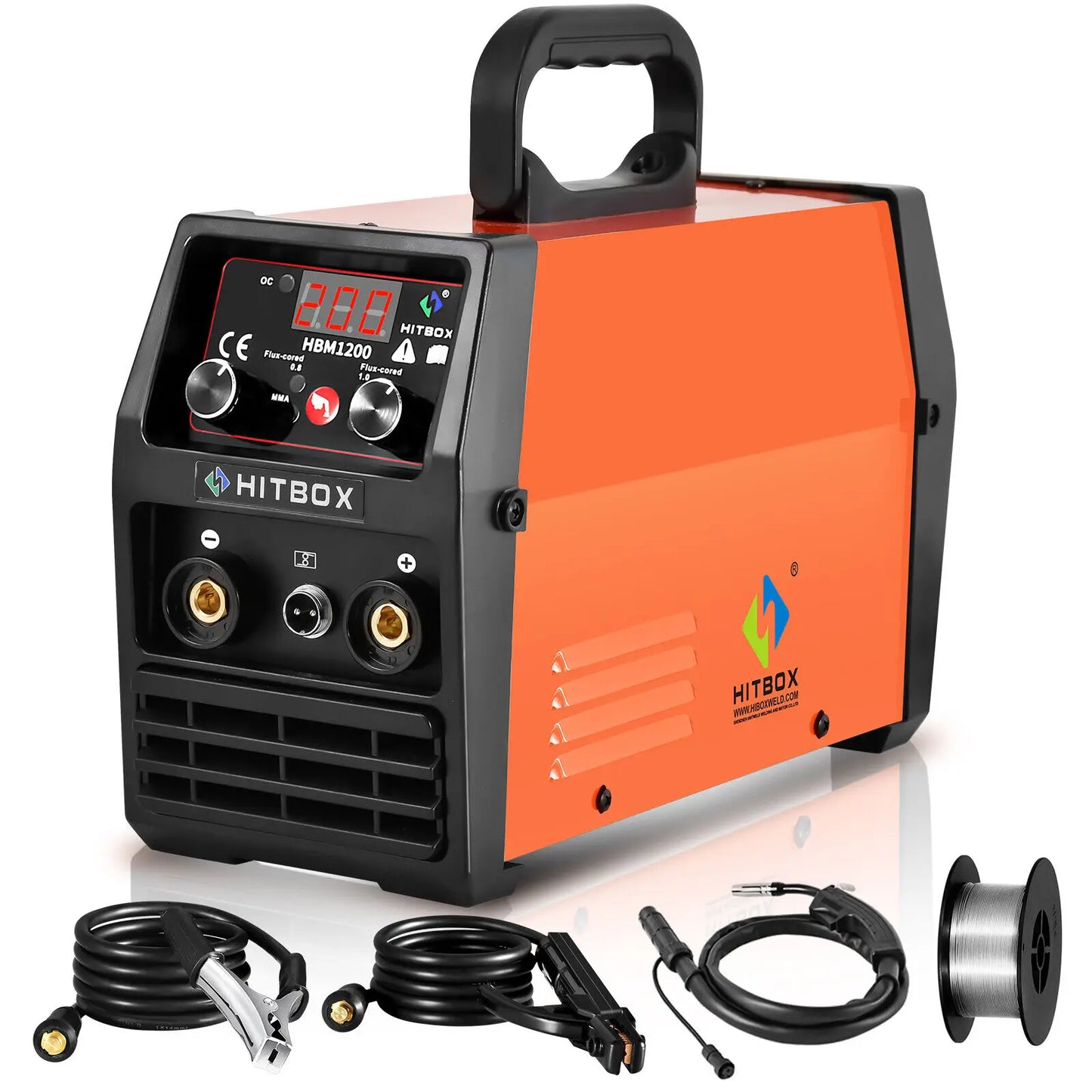

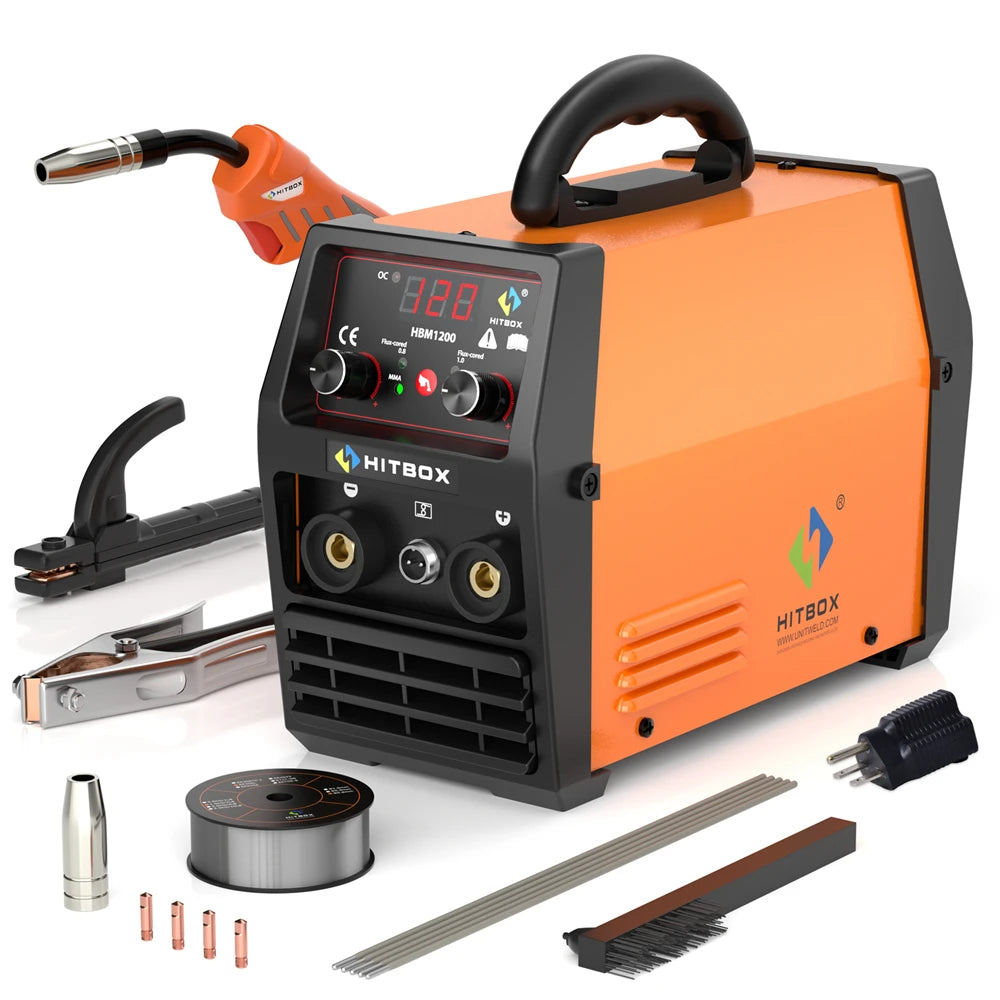

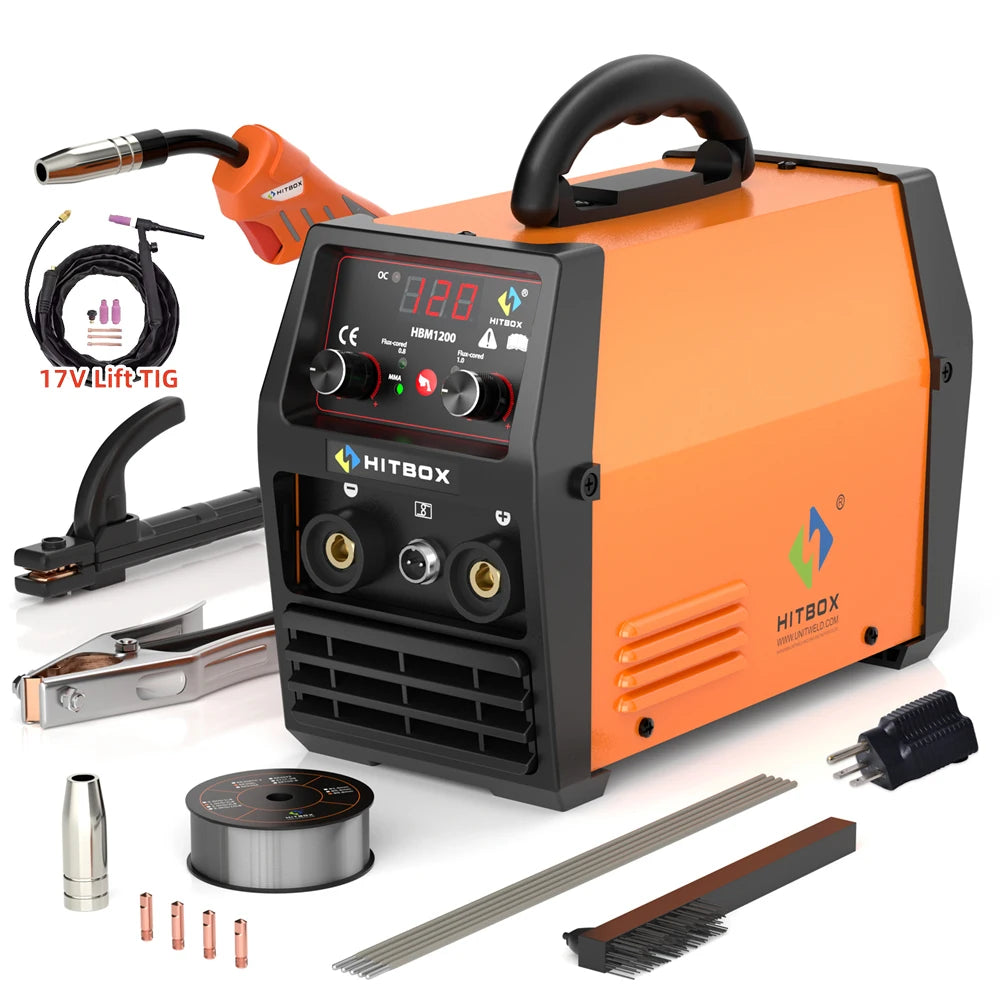

HBM1200 Package list:

1X Mig welder HBM1200

1X 1.8m Earth clamp

1X 1.8m 200A Electrode holder

1X 1.7M MB15 Mig torch

1X Flux cored wire 0.5kg

1X User manual
