SPECIFICATIONS



Applicable bottom bracket: 68-73mm





Certification: CE

Chain Wheel: 42T /44T/46T

Controller Current Limiting: 250W:12A / 500W:15A/ 750W:22A/1000W:30A



Design: Brushless



Maintain Point: France / Spain /Poland /Italy

Max Torque: 80 Nm / 120Nm /160Nm

Motor: Side Hung Motor



TSDZ16 Efficiency: ≥82%

TSDZ16 IP Code: IP X6

TSDZ16 No-load speed: 125rpm

TSDZ16 Size(L*H*W): 225*176*145mm

TSDZ16 Version: 1000W

TSDZ16 Weight: About 6kg

TSDZ2B No-load speed: 95rpm

TSDZ2B Size(L*H*W): 134*156*182mm

TSDZ2B Version: 250W /500W

TSDZ2B Weight: About 3.8kg

TSDZ2B/TSDZ8 Efficiency: ≥80%

TSDZ2B/TSDZ8 IP Code: IP X5

TSDZ8 No-load speed: 125rpm

TSDZ8 Size(L*H*W): 204*170*126mm

TSDZ8 Version: 750W

TSDZ8 Weight: About 4.8kg

Voltage: 48V/36V

Warranty: One Year

Wattage: > 400w



Varstrom xTongsheng TSDZ16 Mid-Drive Motor Kit



—— 1000W Torque-Sensing Powerhouse



2025 Upgraded Version | IPX6 Waterproof | 160Nm Torque



🚀 TSDZ16 Key Features (2025 Upgrade)



    · 1000W Rated Power (1440W Peak) | 160Nm Torque

    · IPX6 Waterproof: Rides safely in rain, mud, or river crossings

    · 82% Efficiency: Optimized battery consumption + extended range

    · 55-60 km/h Top Speed (Off-road/private land use only)

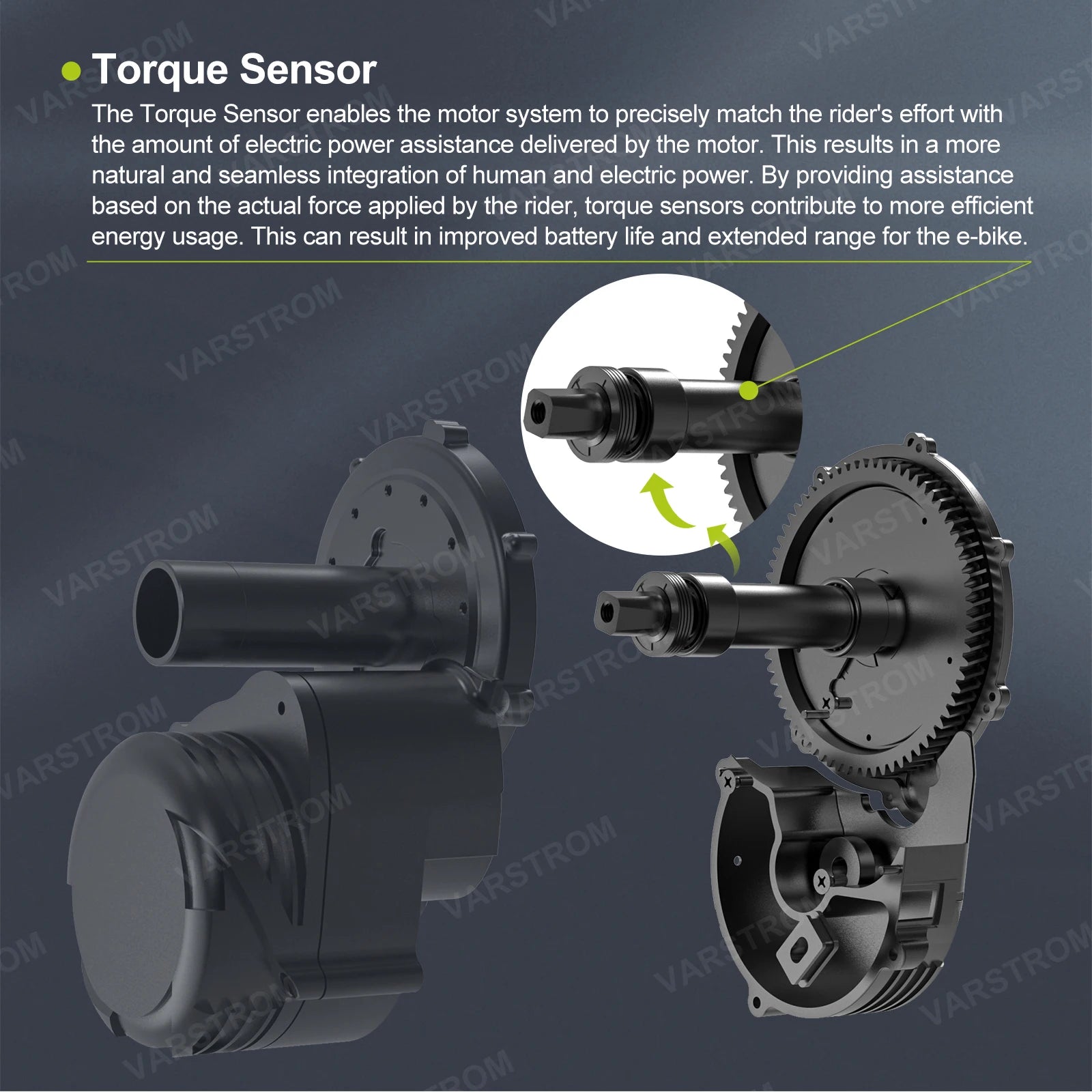

    · Smart Torque Sensor: Auto-adjusts power to your pedaling force

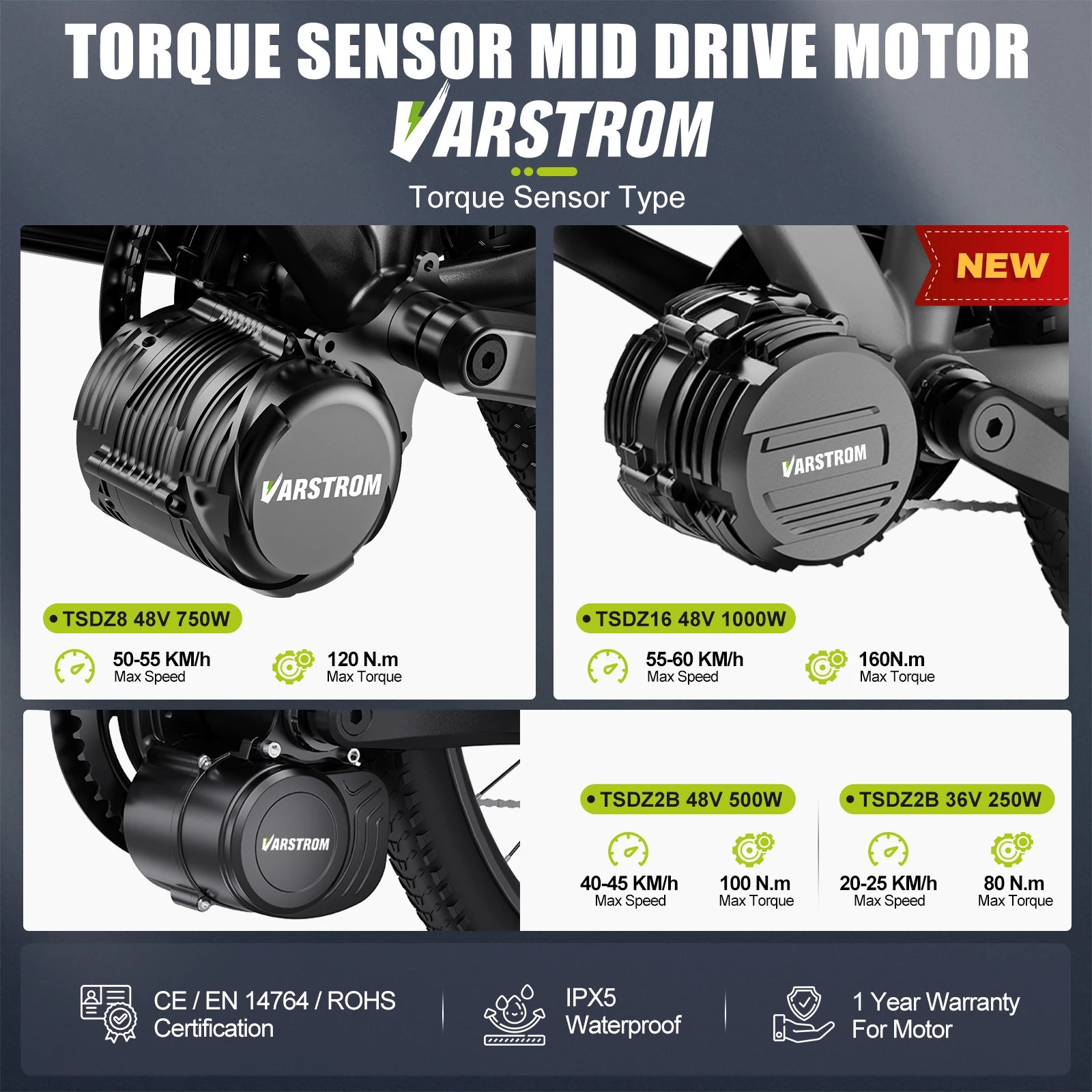

⚙️ Motor Comparison Chart



    Model             Power             Torque             Speed             Waterproof             Weight

————————————————————————————————————————————————————————————

TSDZ2B 36V         250W               80Nm              25-30km/h           IPX5                     3.82kg

————————————————————————————————————————————————————————————

TSDZ2B 48V         500W               80Nm              30-35km/h           IPX5                     3.86kg

————————————————————————————————————————————————————————————

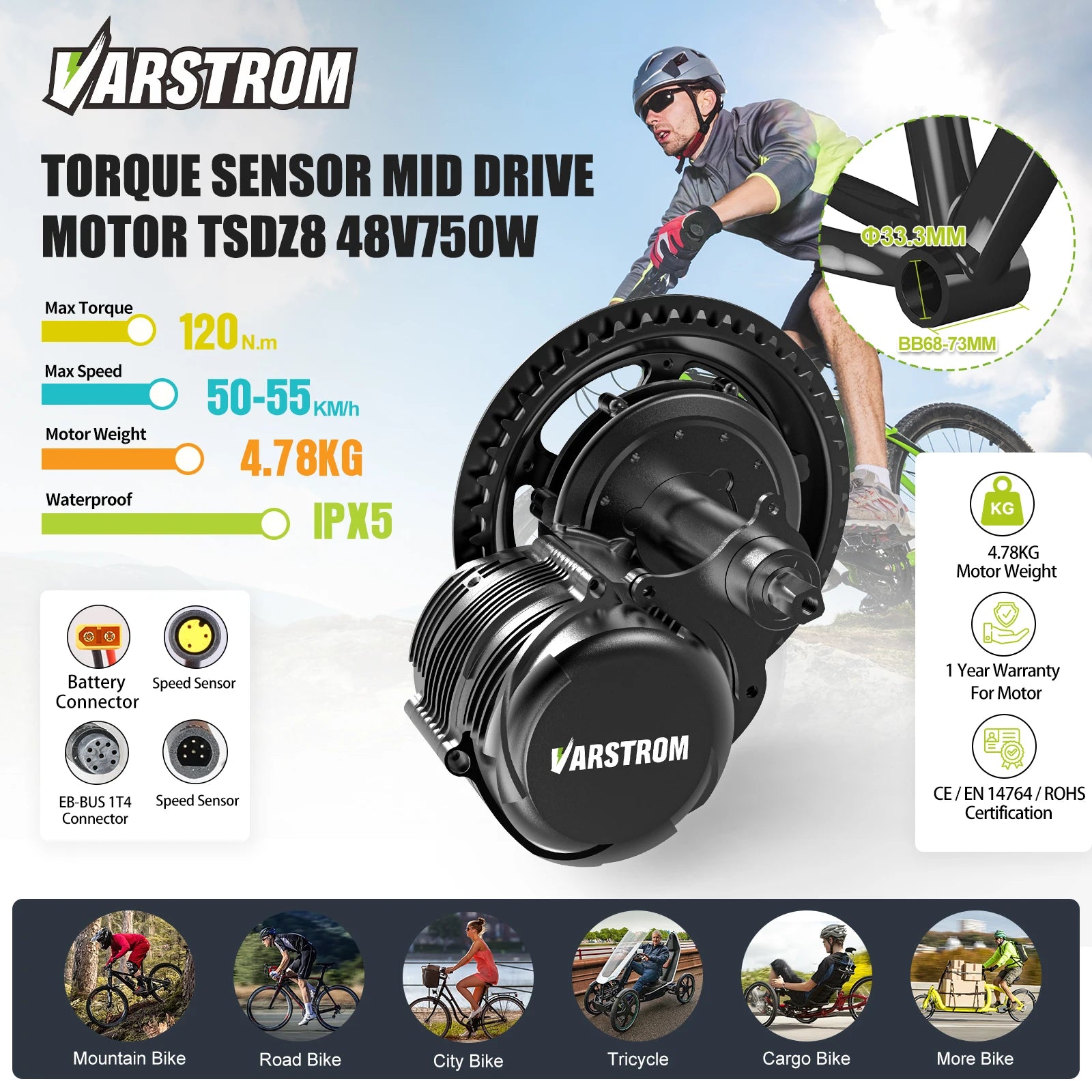

 TSDZ8 48V          750W               120Nm            50-55km/h           IPX5                      4.78kg

————————————————————————————————————————————————————————————

TSDZ16 48V        1000W              160Nm            55-60km/h           IPX6                      6.21kg

————————————————————————————————————————————————————————————



✅ Why Choose TSDZ16?



  · Natural Riding Feel: Torque sensor mimics traditional cycling

  · Hill Crusher: Climbs 30°+ slopes effortlessly

  · Gear Integration: Works with your bike’s existing gears (≥10-speed)

  · Bluetooth Display (EKD01): Navigation + ride data tracking



🛡️ Warranty & Support



  · 1-Year Motor Warranty

  · Local Service Centers: Poland (EU), UK, USA

  · 24/7 Technical Chat Support



🌍 Regional Compliance Guide



Region                      Recommended               Model Legal Note





USA                           TSDZ16 1000W           Off-road/private use only

—————————————————————————————————————————————



⚠️ Critical Notes



   · Carbon Frames/Coaster Brakes Not Supported

   · Only compatible with bicycles featuring a bottom bracket of 68-73mm.

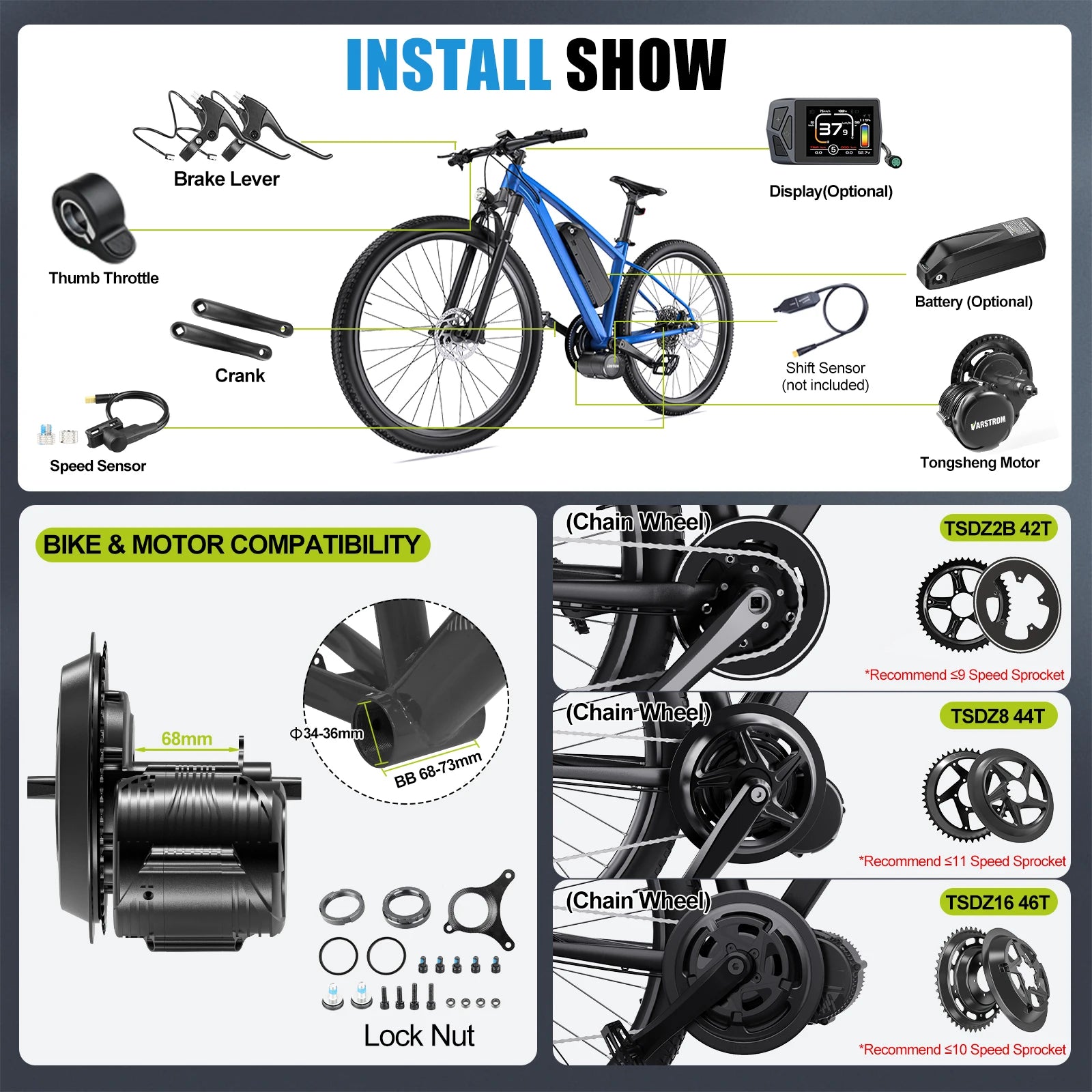

🛠️ Package Includes



· TSDZ16/TSDZ8/TSDZ2B motor unit

   · Speed sensor + line + Thumb Throttle

   · Chainrings + guard (46T/44T/42T) + Crank-arm

   · Power-off Brake lever or Brake sensor

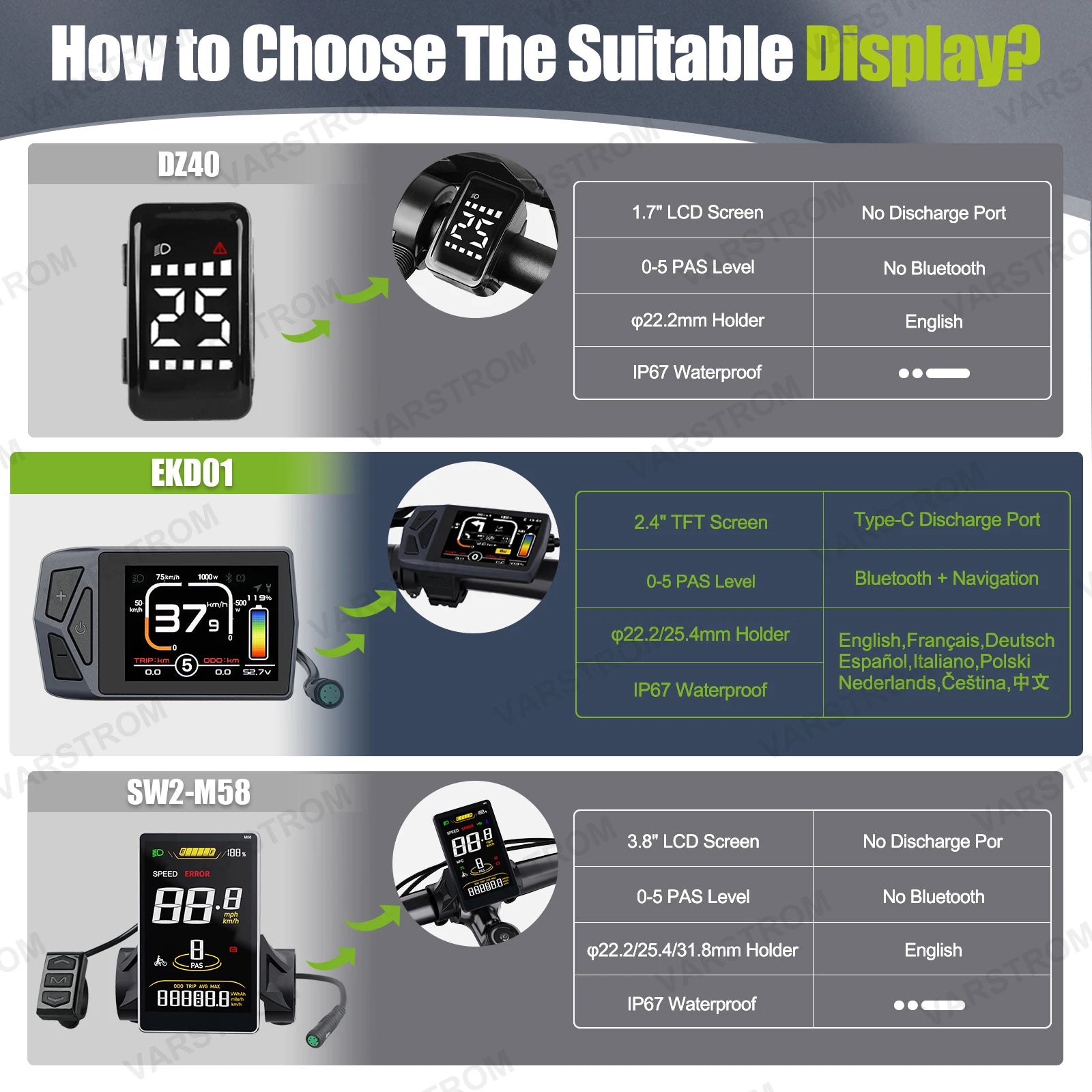

   · DZ40/SW2-M58/EKD01 Display Options

   · Installation tools, etc.....



*Unleash 160Nm torque. IPX6 waterproof. Conquer all terrains with natural ride feel⛰️🚴⚡*Global Warehouse & Service Commitment













🔹 ComprehensiveWarranty& Support



 Motor & Battery:12months quality warranty for motor and battery

 Accessories & Parts:30-daywarranty for quality assurance.
