SPECIFICATIONS

Design: Brushless

Motor: Side Hung Motor

Mounting Position: MID Drive

Voltage: 48V

Wattage: 501 - 1000w

BAFANG Mid-Drive Motor Kit （CAN PROTOCOL）

Convert your bike into a powerful, smart e-bike — easily and reliably

⚡ Engineered to Perform

Powerful ∙ Quiet ∙ Seamlessly Integrated

Compact design blends naturally into most e-bike frames, delivering smooth, responsive handling

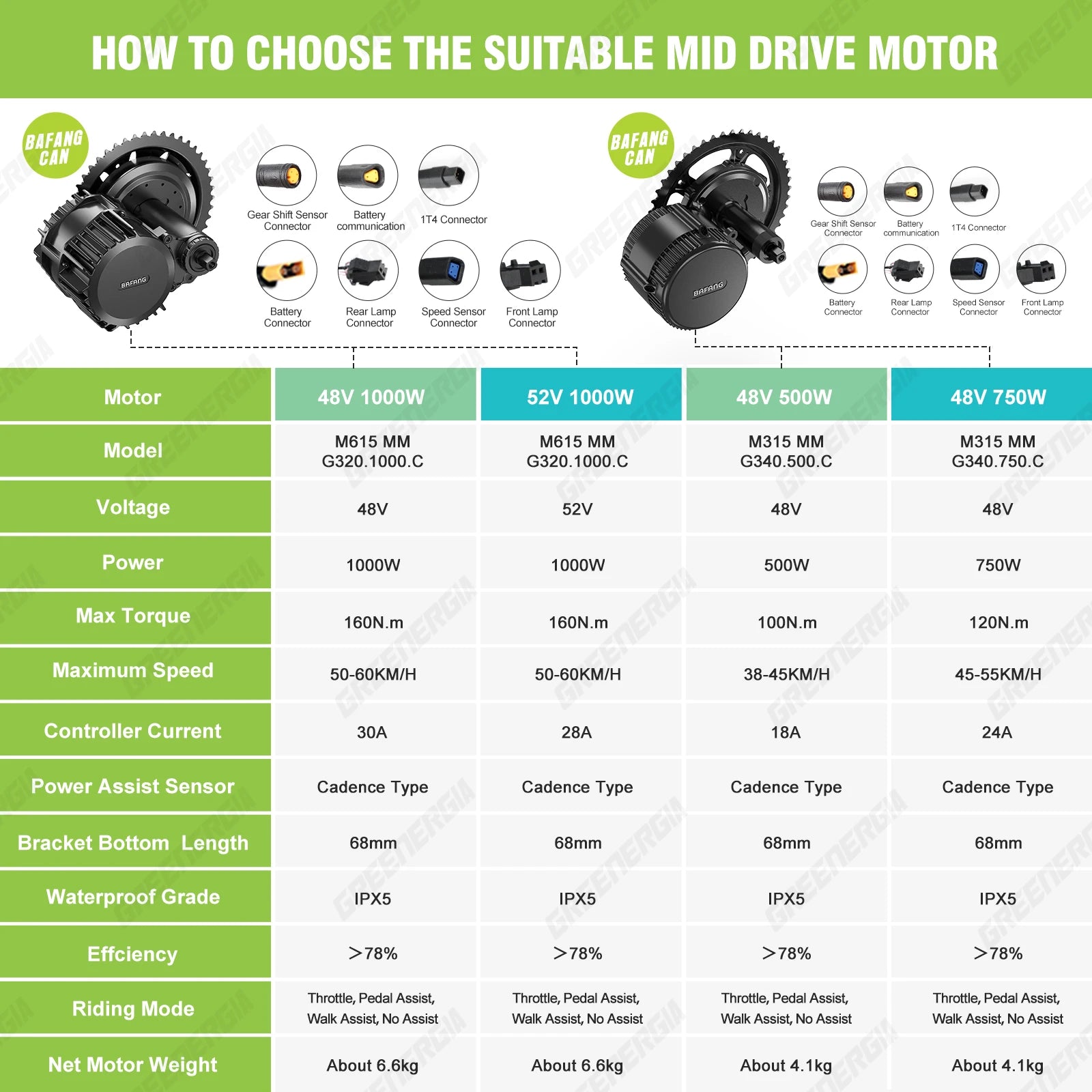

🚀 M615 – Ultimate Power

Rated Power: 1000W

Max Torque: 160 Nm

Best For: eCargo ∙ eSpeed ∙ High-performance builds

Compatibility: Fits 68–73mm bottom brackets

🛣️ M315 – Balanced Performance

Rated Power: 500W/750W

Max Torque: 100 N.m./120 N.m.

Best For: eCity ∙ eTour ∙ eTricycles

Compatibility: Fits 68–73mm bottom brackets

🔧 Match Your Ride. Power Your Journey.

Need help selecting the right motor? Contact us — we guide you through every build.

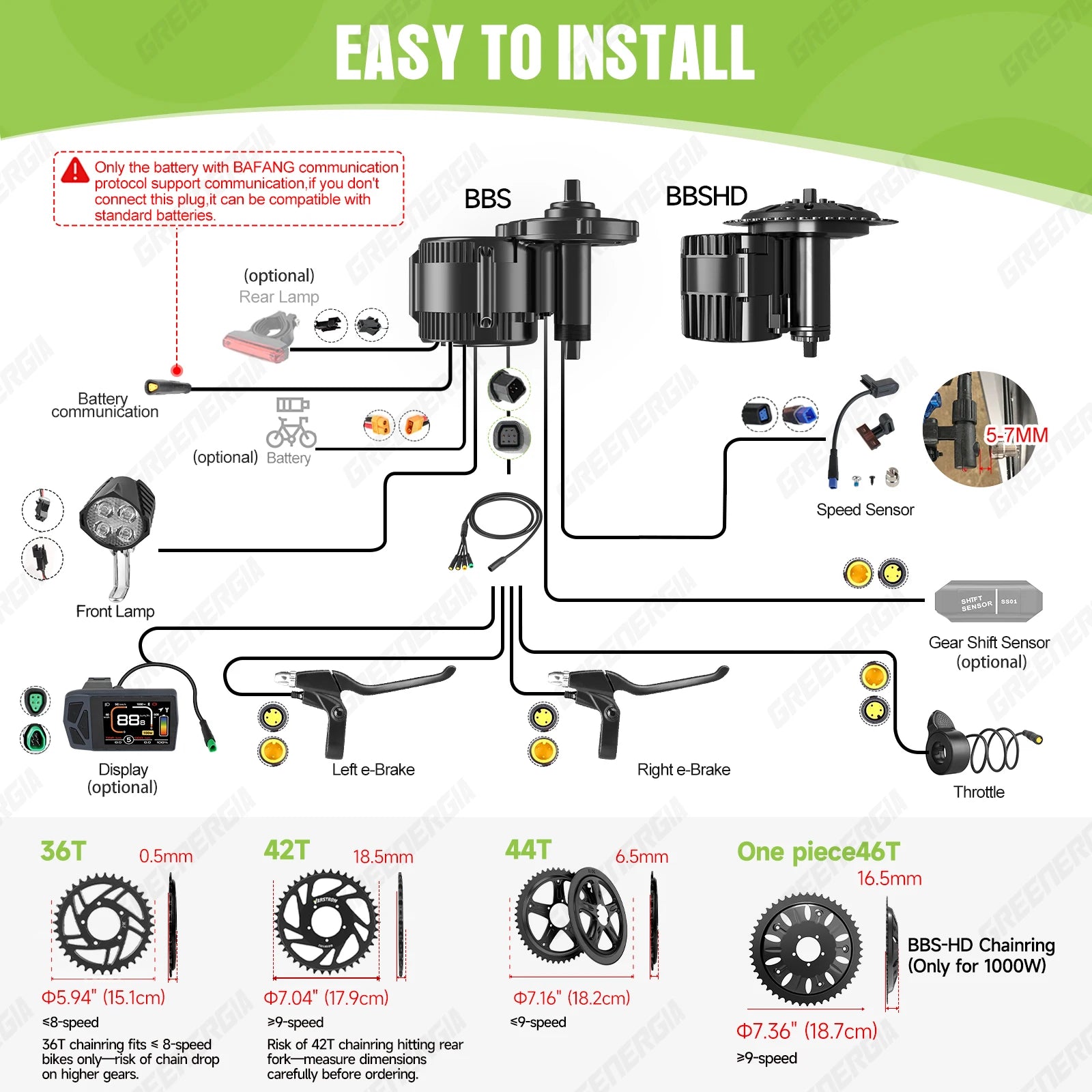

⚡ Easy Installation | Install in 60 Minutes, Ride in No Time.

How Do I Know If the BAFANG BBS OR BBS-HD Fits My Bike?

📏 Check Your Bottom Bracket Use calipers to measure:

✅ Length: 68–73mm

✅ Inner Diameter: 33.5–36mm

🚲 Compatible With:

Mountain bikes | Road bikes | Most city bikes

⚠️ Frame Clearance Note

On smaller or unique frames, check that the chainring does not contact the rear frame.

🔧 BRAKE SYSTEM OPTIONS | Safety Tailored for Your E-Bike

📊 Quick Comparison

Feature | Brake Lever | Brake Sensor

Motor Cutoff | ✅ Built-in | ✅ Add-on

Install Type | Replace lever | Attach to existing lever

Brake Compatibility | Mechanical only| Hydraulic & Mechanical

🎯 How to Choose

Choose the Brake Lever if: You’re building a new e-bike or want a clean, all-in-one setup.

Choose the Brake Sensor if: You already like your current brakes (especially hydraulic) and just need the cutoff function.

Both options provide reliable motor cutoff — it’s about how you want to integrate it into your ride.

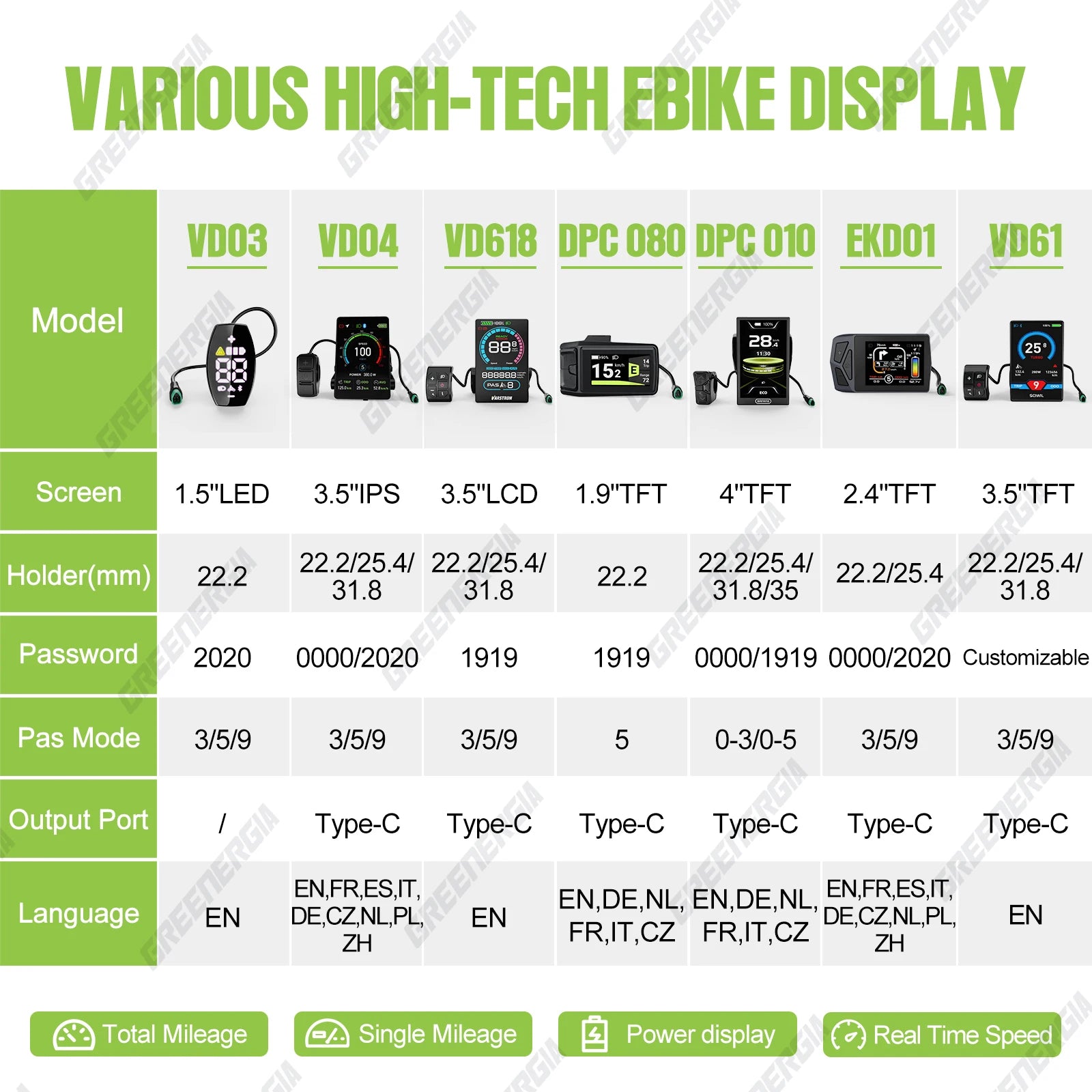

🖥️ LCD Display — Your Smart Ride Companion

Turn every ride into an informed experience — with Bafang motor at your fingertips.

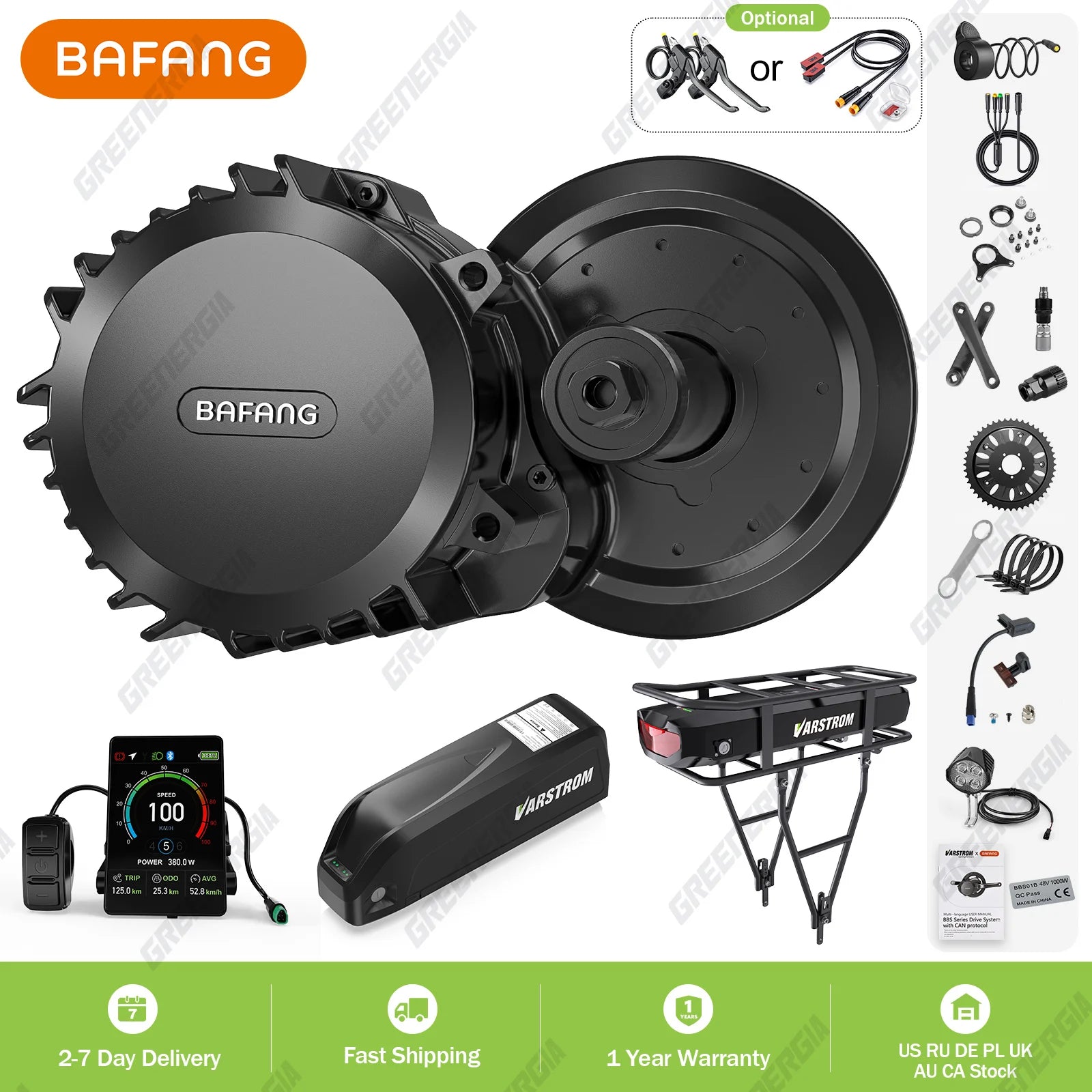

📦 What‘s In the Box — Mid-Drive Kit

1 × Mid-Drive Motor (68mm)

1 × Thumb Throttle

1 × Speed Sensor

1 × 4-in-1 EB-BUS Cable

1 × Display (optional)

1 Pair × Crank Arms

1 × Chainwheel

1 Pair × Brake Levers OR brake sensors

1 × Front Light

1 × Installation Wrench Set

1 × Crank Removal Tool

1 × 36V 250W Sticker

1 × Cable Ties Bundle

1 × User Manual

This motor kit does not include a battery.

✅ Battery is optional.

✅ We recommend ordering it together with your kit.

✅ Choose from various capacities and mounting styles in our store.

Power Your Ride — Greenergy E-Bike Battery Series

⚡ Engineered to Go Farther, Charge Faster, Last Longer

🔋 Smart Performance Design

Lightweight | Fast Charging | Extended Cycle Life

📊 Optimized Energy Efficiency

High-density cells + Advanced BMS for maximum range and reliability

🛠️ Versatile Form Factors

In-Tube Batteries – Sleek, integrated frame design

Rack-Mount Batteries – Flexible rear-carrier installation

Downtube & Universal Models – Fit most e-bike frames and setups

🔋 Battery is optional, please make your selection when ordering.

❌ Without (NO) Battery: Includes motor kits only
