SPECIFICATIONS

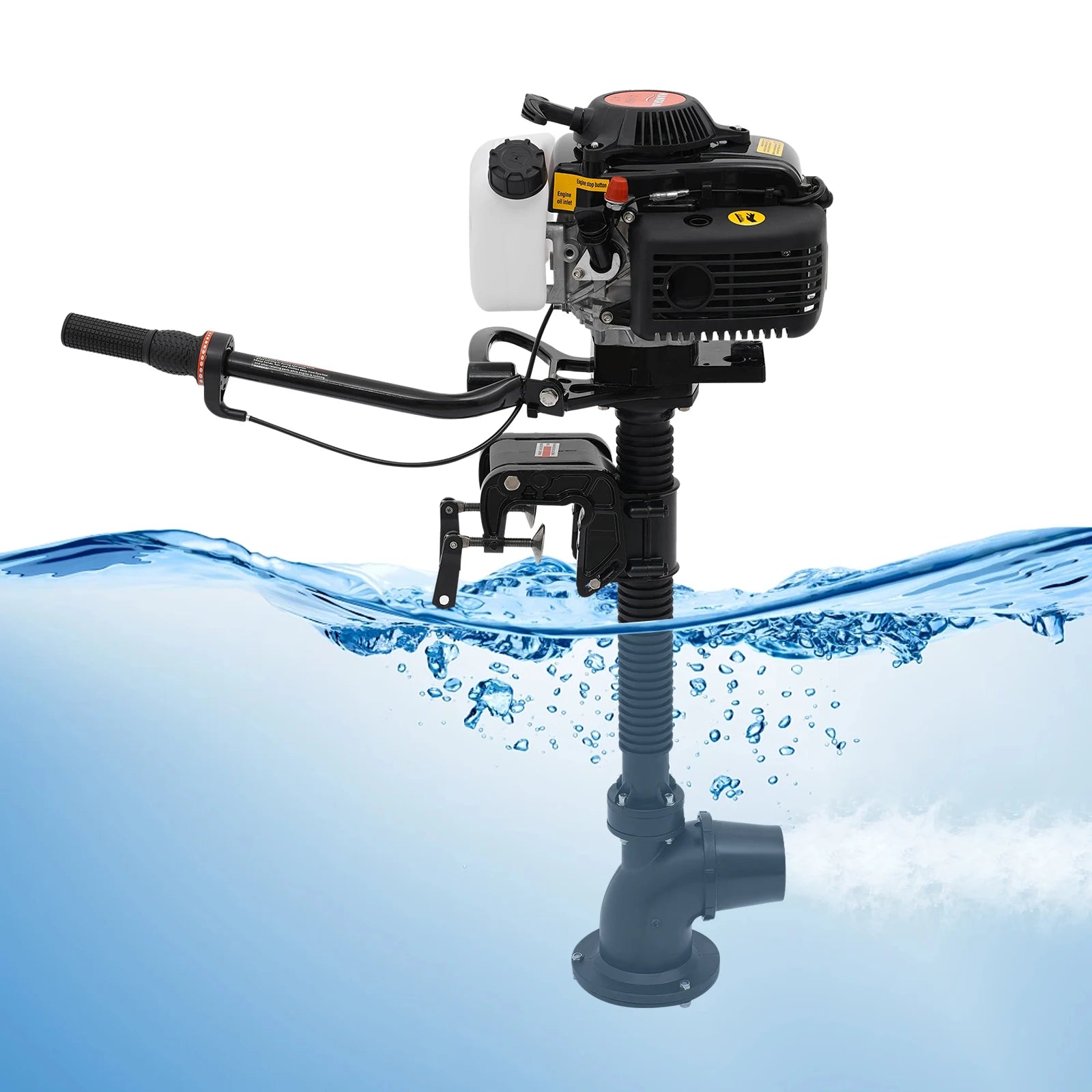

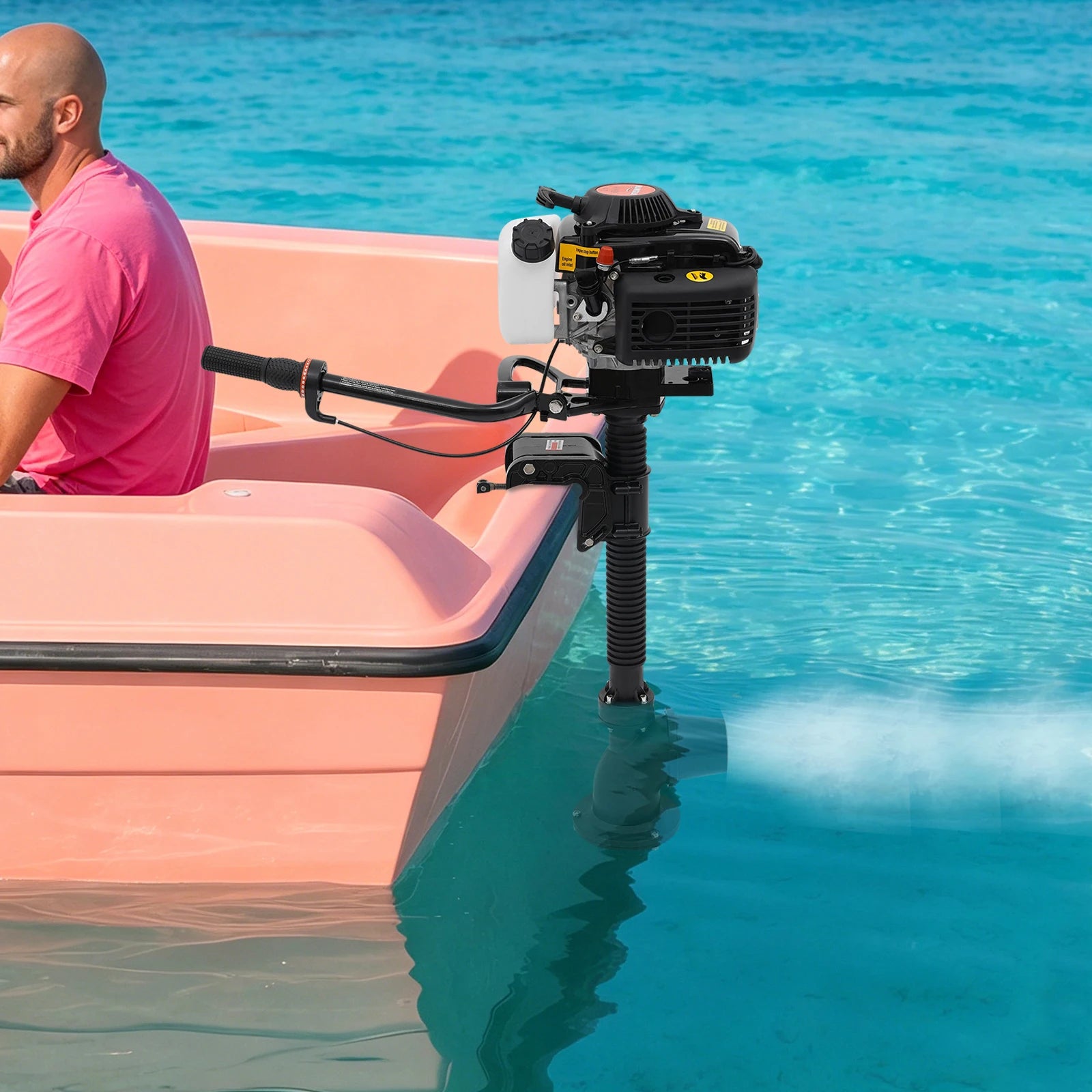

4.0HP 55cc 4 Stroke Jet Pump Outboard Motor 2900W Wind Cooling Marine Engine, 360° Rotatable Fishing Boat Engine For Boats With A Length Of Less Than 13.12ft



Condition: New

Cooling System: Wind Cooling

Displacement: 55cc

Engine: 4 Stroke

Fuel Type: Gasoline



Ignition System: CDI

Lift Type: Manual

Material: Aluminum Alloy, Plastic, and Nylon

Max Output: 2.9kw

Max Speed: 4500-5500 rpm

Model: 4.0 Horsepower Jet Pump

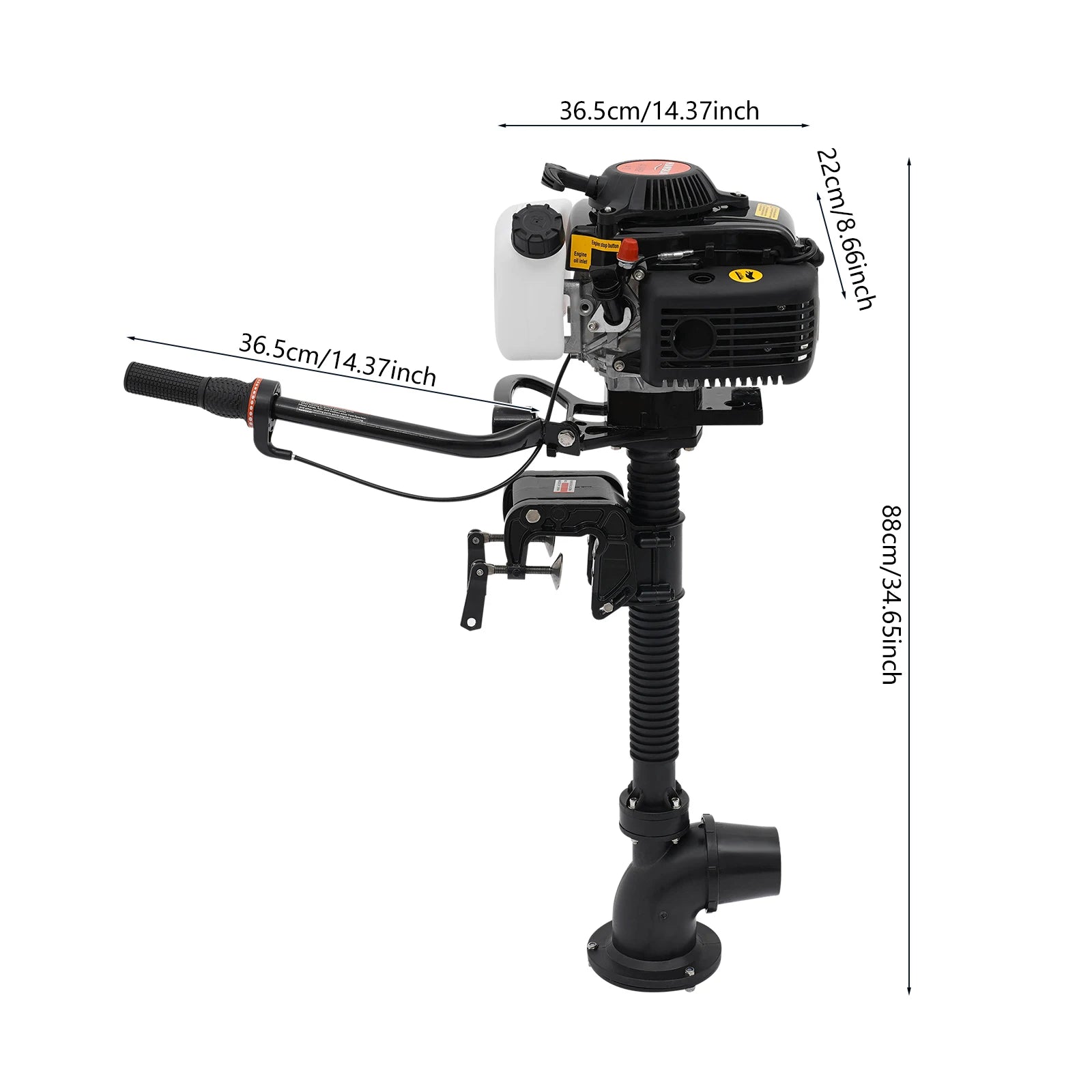

Size: 365*220*855mm/14.37*8.66*36.22in





4.0HP 55cc 4 Stroke Jet Pump Outboard Motor 2900W Wind Cooling Marine Engine, 360° Rotatable Fishing Boat Engine For Boats With A Length Of Less Than 13.12ft





Specification

Material: Aluminum Alloy, Plastic, and Nylon

Surface Treatment: Painting

Model: 4.0 Horsepower Jet Pump

Displacement: 55cc

Style: Modern

Transmission Ratio: 2.08 (27:13)

Number of Cylinders: 1

Gear Shift: Clutch

Lift Type: Manual

Packing Volume: 95*42*29cm/37.40*16.54*11.42in

Ignition System: CDI

Cooling System: Wind Cooling

Control System: Tiller Control

Start Mode: Manual Start

Max Output: 2.9kw

Max Speed: 4500-5500 rpm

Refueling Method: No. 92 Unleaded Gasoline

Gross Weight: 13kg/28.66lbs

Net Weight: 9.7kg/21.38lbs

Size: 365*220*855mm/14.37*8.66*36.22in

Bore*Stroke: 44*33mm/1.73*1.3inch

Recommended Lubricant: Four-stroke Lubricant

Tilt Angle System: Manual Tilt

Standard Fuel Tank: Built-in 1.1L/37.2oz

Number of Items: 1

Assembly Required: Yes

Mount Type: Free Standing

Applicable Boat Length: Less than 4m/13.12ft

Applicable Boat Weight: About 500kg/1102.31lbs

Adapted Stern Board Height: 380-440mm/14.96-17.32inch

Thrust Force: 500kg/1102 lbs

Speed: About 4-6km/2.48-3.7Miles/h (Depending on the Environment, Water Area, and Ship Load, the Speed may Vary)



Key Features

🌟Built to Last: Crafted from premium plastic, nylon, and aluminum alloy, this product is sturdy and withstands wear, impact, and rust, keeping it looking great and working well for years to come.

🌟Crafted with Care: The painted finish gives the product a smoother, shinier surface that stands up to wear, letting you use it for years without a hitch.

🌟Powerful Performance: Boasting a 4.0hp, 55cc 4-stroke engine, 2900W of power, and 4500–5500rpm speed, this unit delivers ample muscle to keep work running smoothly.

🌟Excellent Heat Dissipation Capability: The wind-cooled design and multiple vents on the body quickly lower the machine’s temperature while it’s running, cutting down safety risks and helping it last longer.

🌟Friendly Design: The high-quality carburetor makes thegasoline fully burn when driving. Besides, compared with a two-stroke engine, a four-stroke engine can save more fuel under the same horsepower, so it can also protect the environment to a certain degree.

🌟Variable Speed: It features a step-less speed change function, which allows you to easily control the speed to meet your needs.

🌟Good Performance: The tilt function, 360-degree rotation, CDI ignition system, and head that can realize reverse gear by rotating 180-degree let you easily control and adjust the forward direction.

🌟Elaborate Design: The machine adopts cordless design that is mainly powered by gasoline, which provides more convenience for you to use outdoors.

🌟Simple Installation and Use: The simple structure, detailed manual, ergonomic, anti-slip, and shock-absorbing handle, manual starting device, and complete accessories ensure that you can complete the installation and start using it in a short time.

🌟Complete Kit: The combination of a funnel, a split pin, complete installation tool and storage bag, which provides more convenience for your use and storage, and you do not need to buy extra.

🌟Effortless Cleaning: The smooth surface allows you to easily remove dust and residues with a towel and water.

🌟Ideal Gift: With good performance, this product can be used as a gift for family and friends to make their work or travel easier.



Details



1. Convenient Oil Filler: The generously sized filler opening makes topping up oil a quick and simple task.

2. Semi-Clear Fuel Tank: The 37.2oz tank cuts down on refueling stops, suiting long trips. You can keep an eye on the fuel level and top up whenever you need.



Application

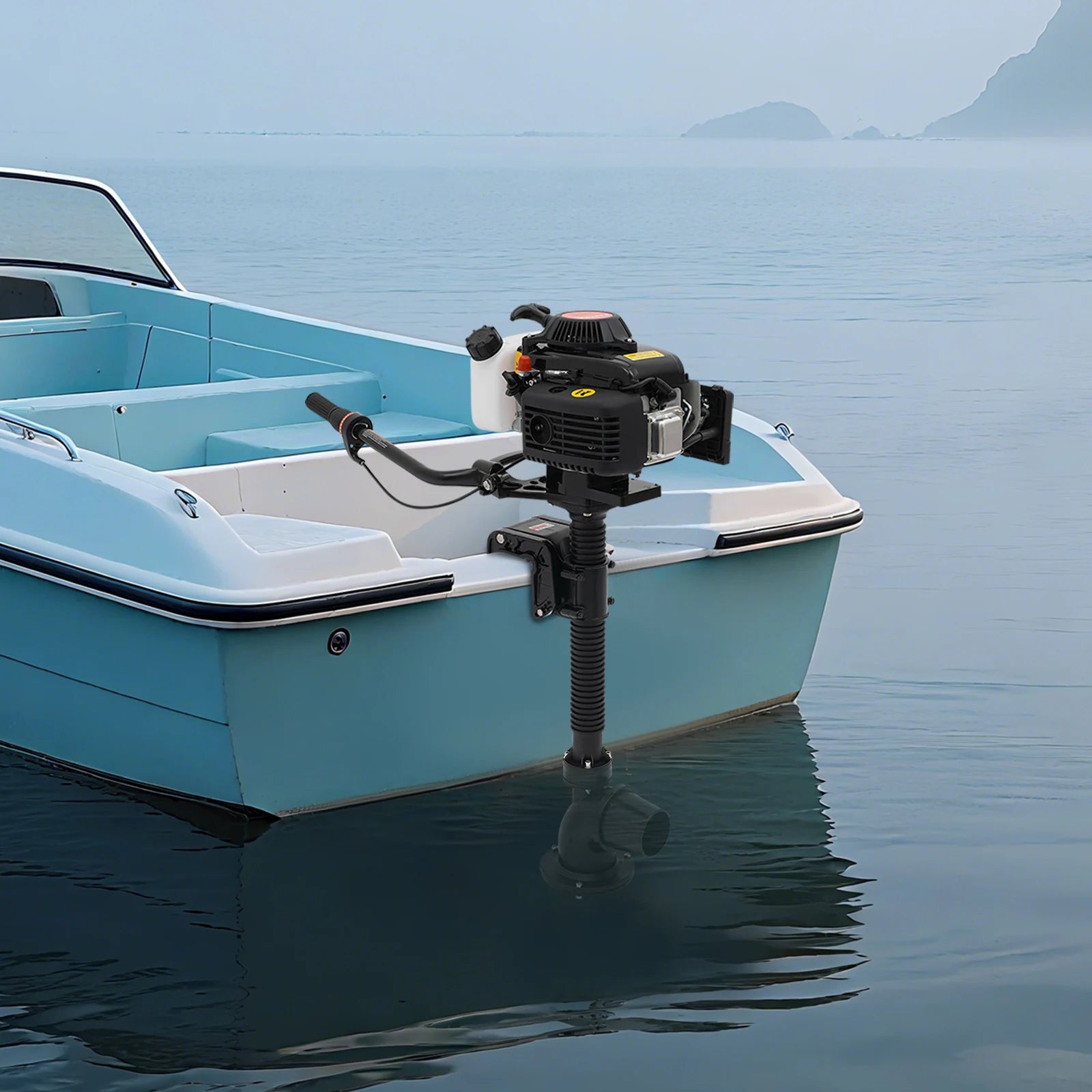

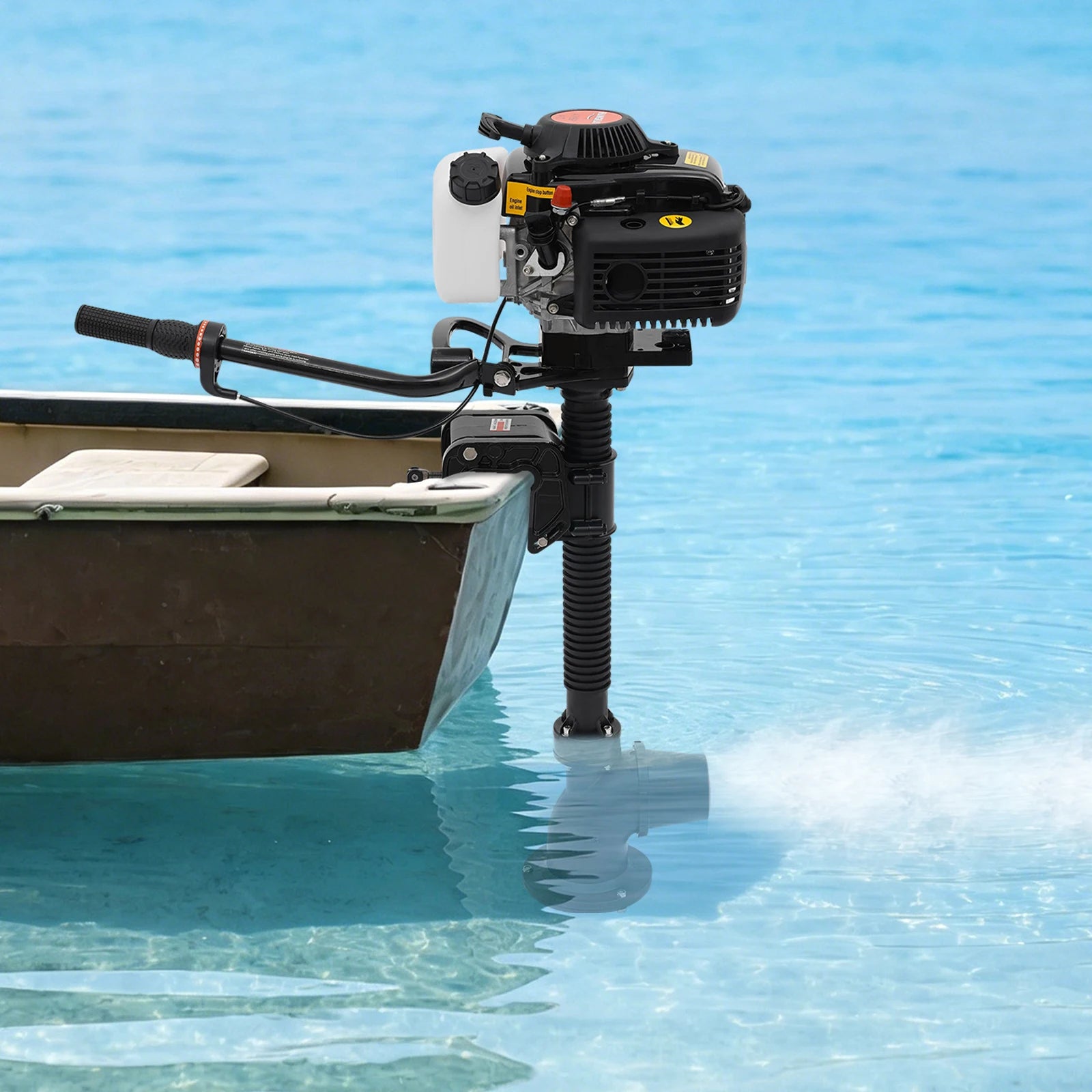

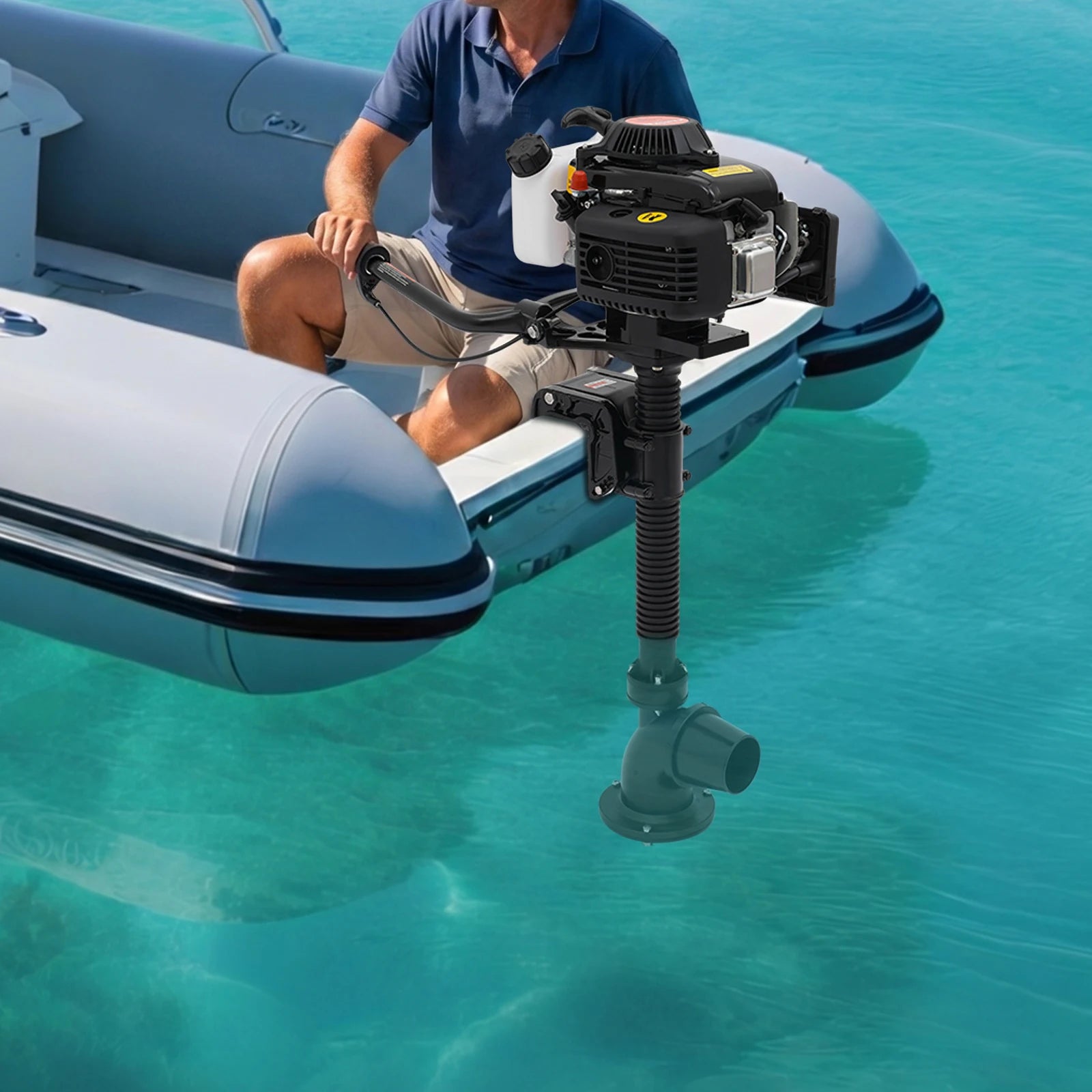

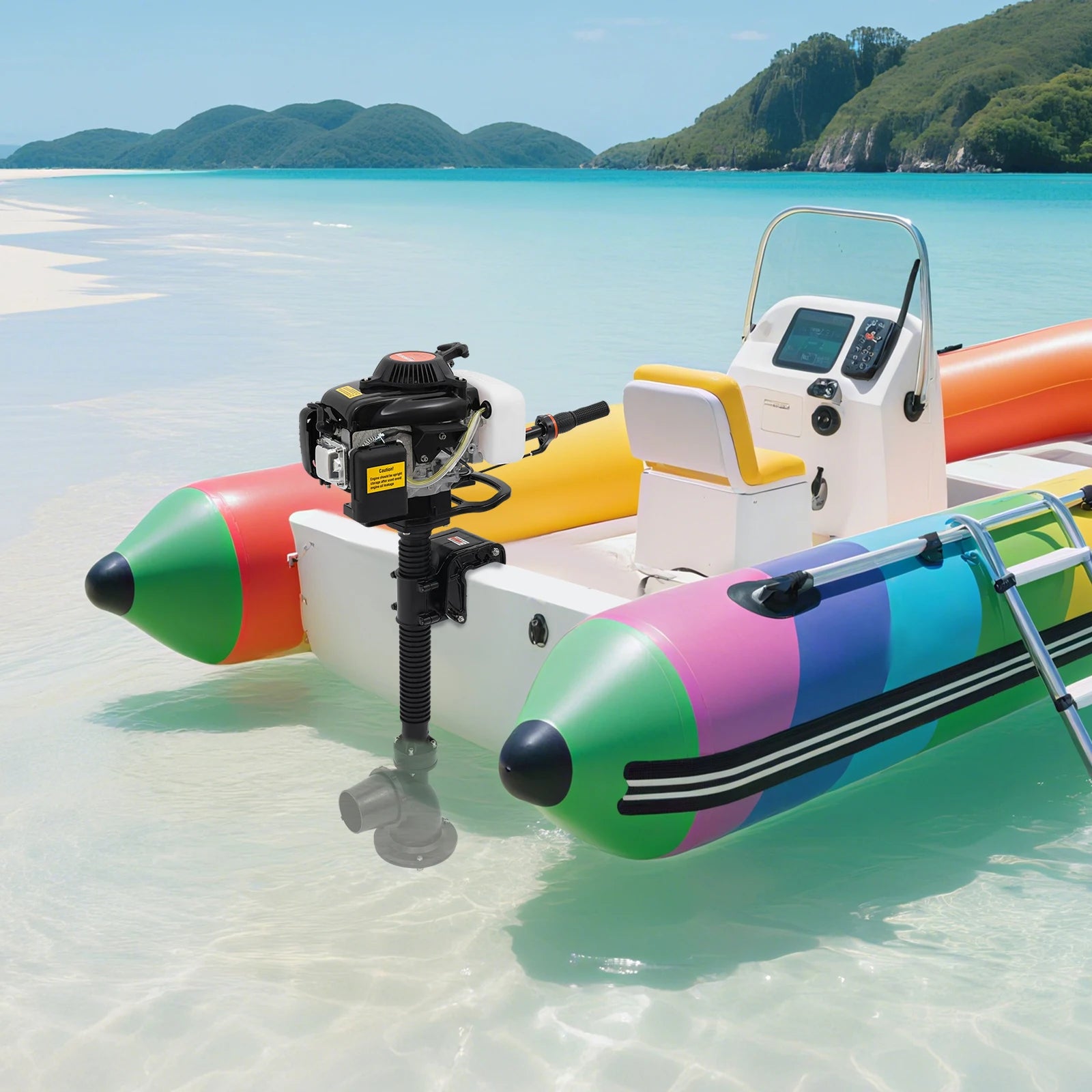

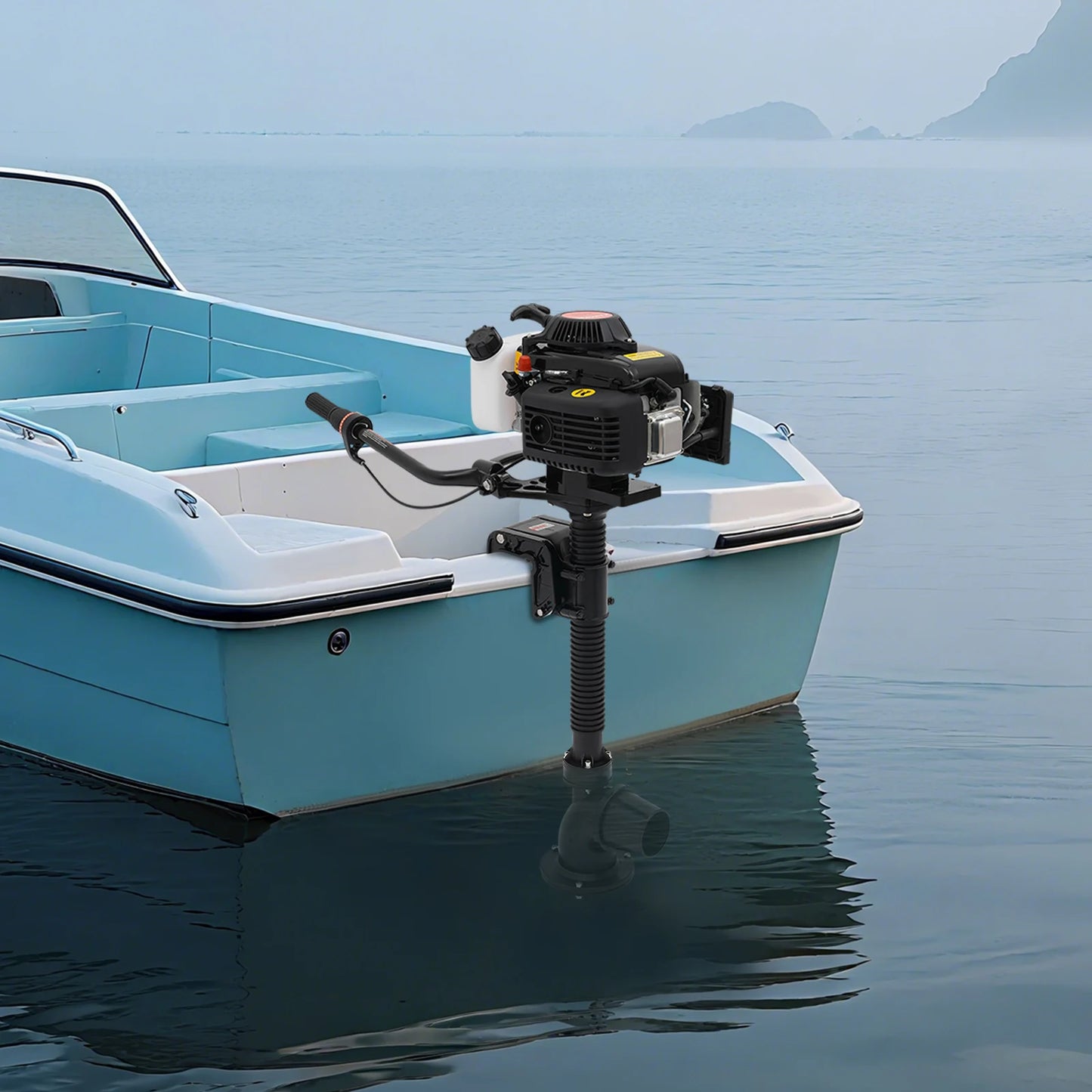

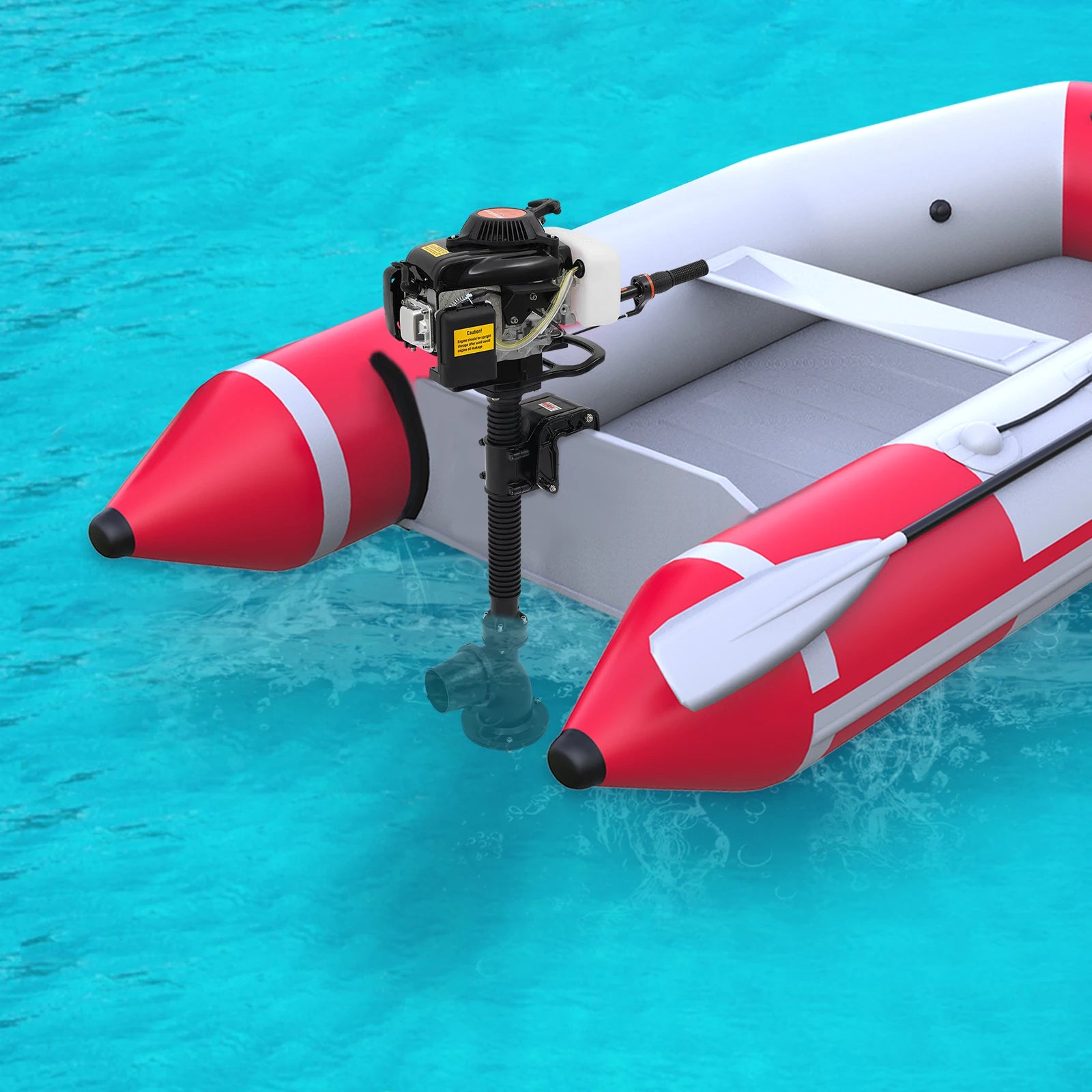

The outboard engine is applicable to all kinds of boats with a length of less than 13.12ft and a weight of about 1102 lbs, such as rubber boats, wooden boats, fishing boats, and the adapted stern board height is 14.96-17.32inch. It can be widely used infreshwater, water sports, water tourism, fishery production, water rescue, and other fields.



Package Included

1* Outboard Engine

1* Tool Kit

1* Split Pin

1* Funnel

1*English Manual



Notes



1. Please install and use it in strict accordance with the instructions, and pay attention to the safety precautions inside.

2. Please do not start the product on shore.

3. Please use four-stroke special engine oil (automobile and motorcycle engine oil), and add oil according to the scale indication on the oil dipstick (the rotating cover), and it is recommended to add about 350ml.

4. Please note that the fuel tank of the four-stroke outboard engine can only be filled with No. 92 unleaded gasoline.

5. Please gently press the oiler on the carburetor until the oil flows to the top of the transparent oil pipe.

6. Machines below 6 horsepower haven't reverse gear and can rotate 360 degrees, and the machine head can rotate 180 degrees to realize reverse gear.

7. The running-in period is about 8-10 hours. Do not drive at high throttle during the running-in period. Change the engine oil and gear oil after the running-in period, and the second change time is about 30 hours.

8. Please note that the driving speed is different depending on the type of boat and the current condition of the load.

9. Please note that the product will produce a certain volume during operation, about the sound of a motorcycle, which is normal.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
