How to Use

1.Turn off the knob and put in the dies.

2.Put in the terminal and turn on the knob.

3.Press the handles repeatedly.

4.Close the handle and remove the mold.

Specification

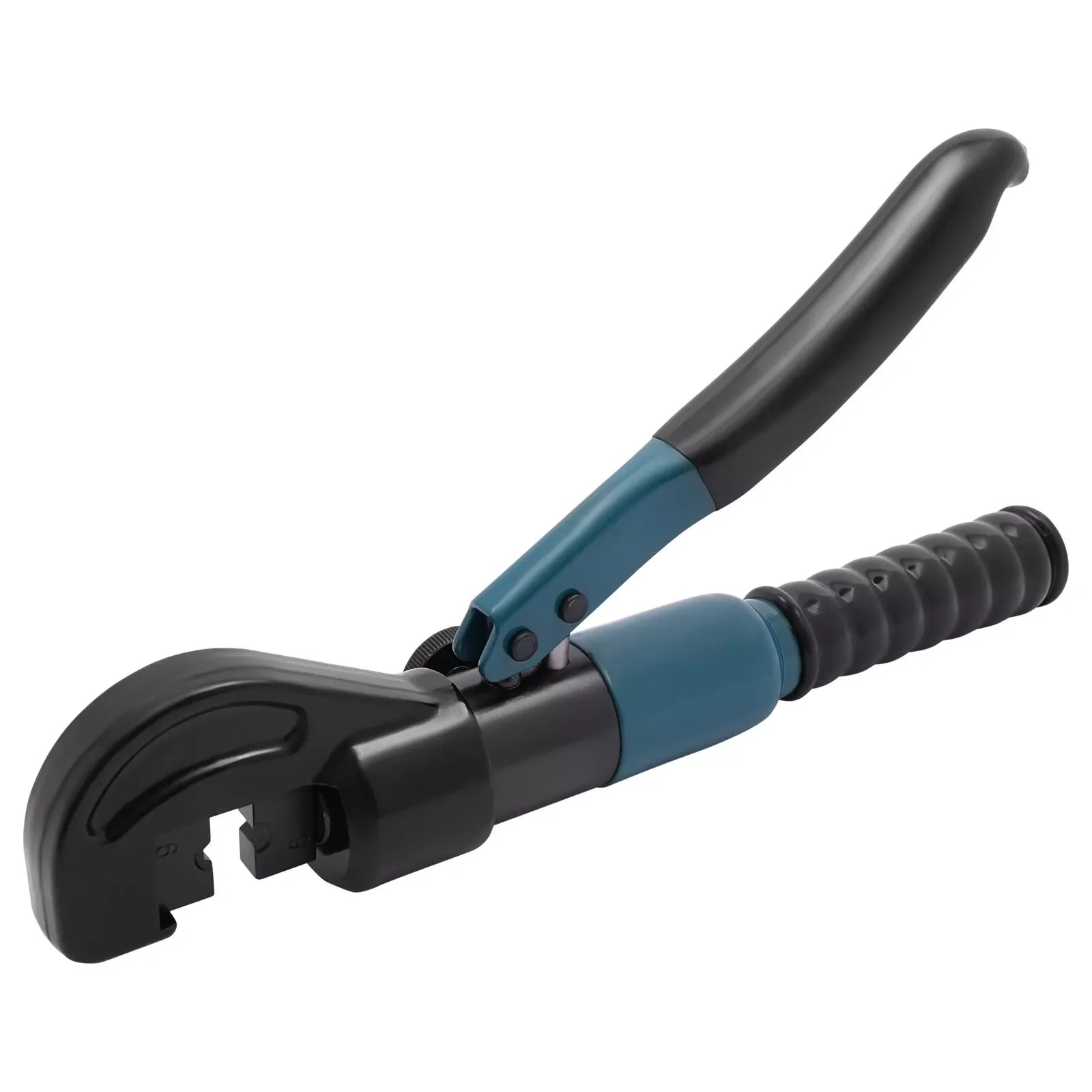

Model: CT25

Material: Steel

Process: Thermal Blackening

Color: Black, Blue

Crimping Form: Hexagonal

Assembly Required: Yes

Operation Mode: Handheld

Applicable Material: Copper Aluminum Terminals

Number of Dies: 1 Pair

Actual Output: 6.3T/13889.12lbs

Stroke: 10mm/0.39in

Crimping Range: Cu 4-70mm²

Die Specification: 1/8"

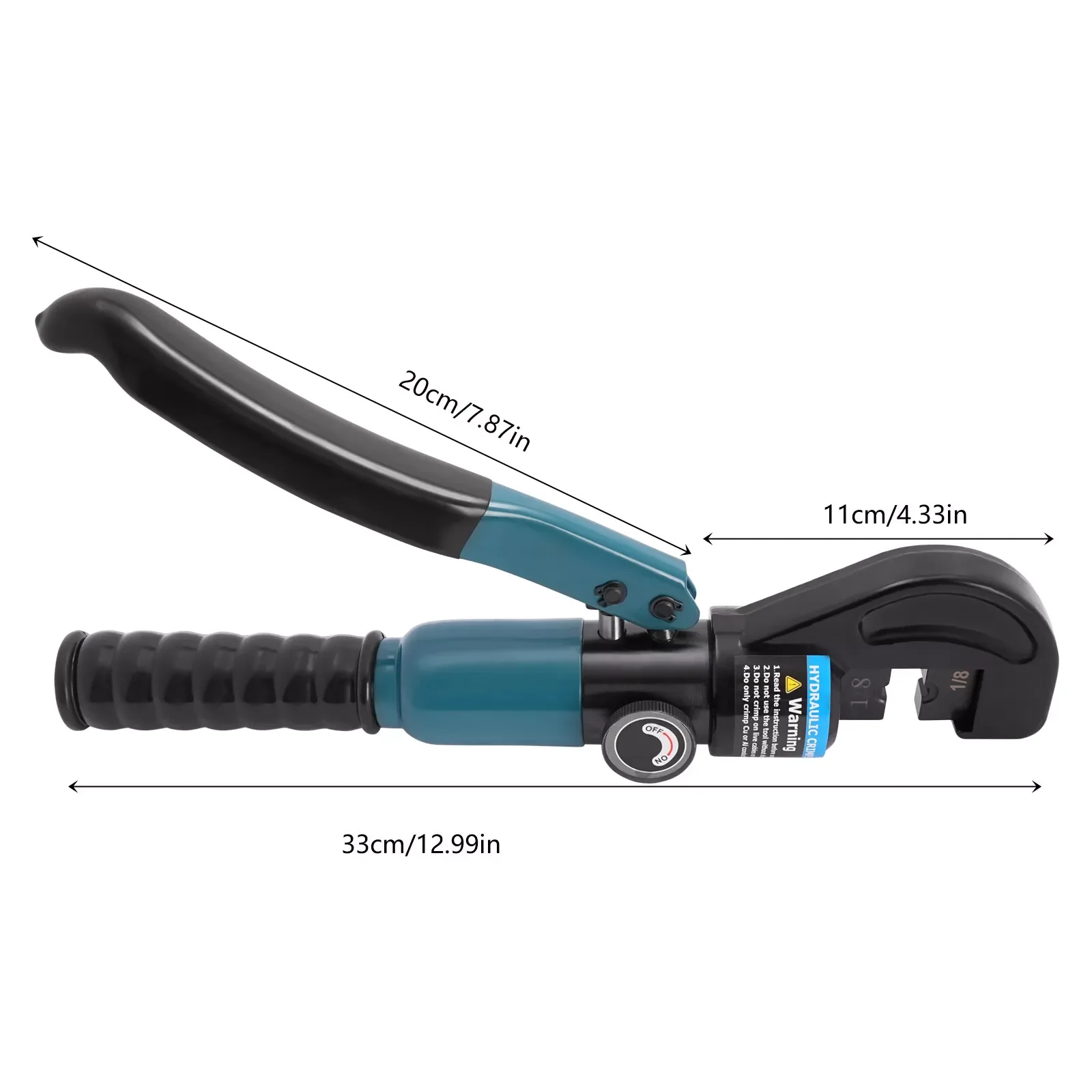

Crimping Head Length: 11cm/4.33in

Handle Length: 20cm/7.87in

Product Overall Length: 33cm/12.99in

Package Size: 34.5*15.5*10cm/13.58*6.1*3.94in

Gross Weight: 2kg/4.41lbs

Net Weight: 1.8kg/3.97lbs

Package Included

1 * Hydraulic Crimping Tool

1 * Tool Case

1 Pair * Dies (Already Installed)

5 * Oil Seals

1 * English Manual

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2.It is strictly prohibited to start crimping without installing the die to avoid damaging the product.

3.Please do not crimp on live cables or conductors.

4.Please only crimp Cu or AI conducting material.

5.Please note that the knobs require excessive force to fully tighten. Please note that when you find the crimper could not provide enough pressure, please check the knob and make sure it is fully tightened or needs further tightening up.

6.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Key Features

Made to Last: This product is made of high-quality steel by a thermal blackening process. It has high density and is not easy to break with long service life.



High Efficiency: This product adopts a dual-speed oil inlet design, and the plunger adopts three-layer leak-proof oil seal, which can quickly generate a hydraulic pressure of 6.3T, ensuring secure and reliable connections even for larger wire gauges and heavy-duty cables, greatly improving your working efficiency.

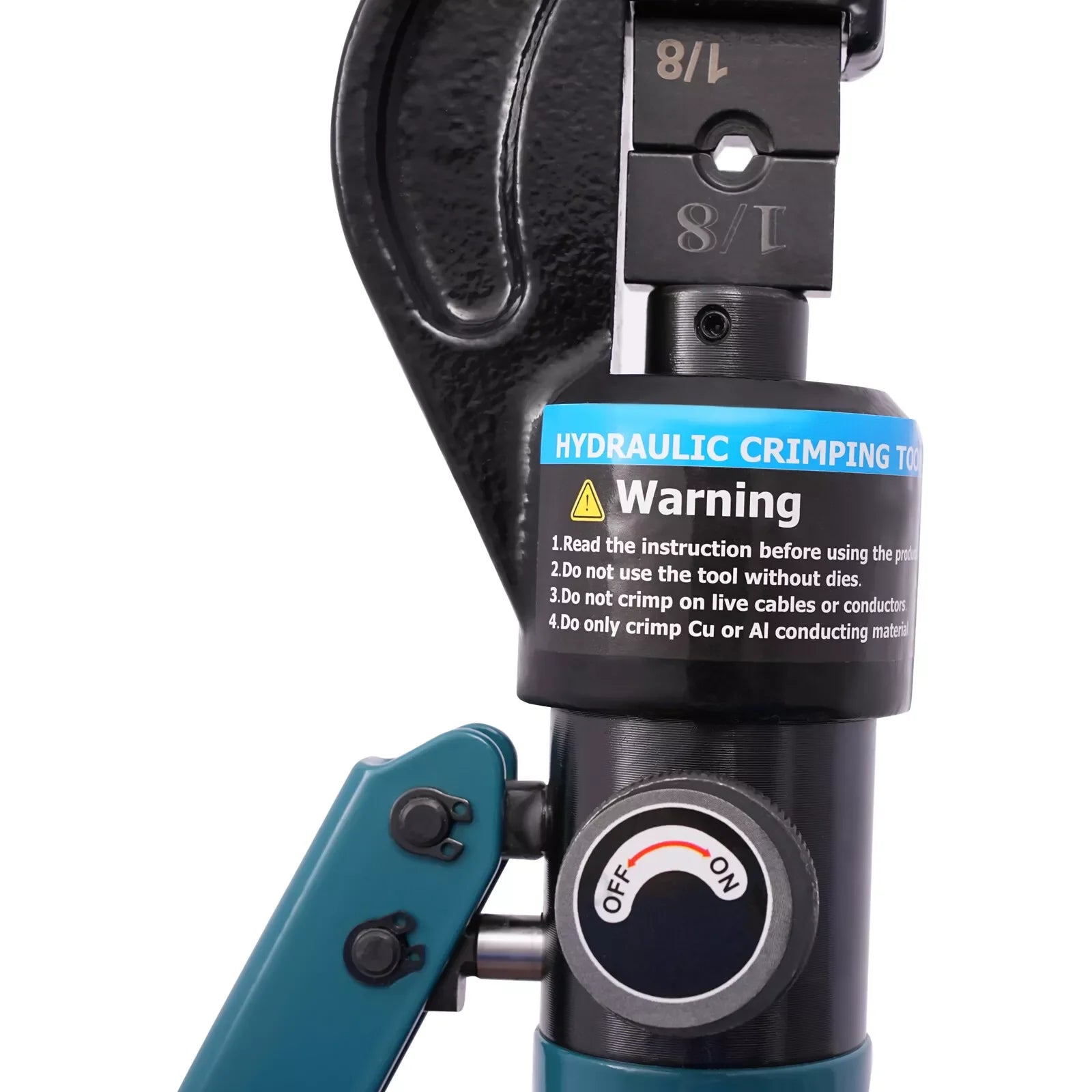

Adjustable Pressure: The oil switch knob is designed to effectively control the pressure during crimping. You can adjust the appropriate pressure according to the crimping object.



Complete Set: The crimper and a pair of standard 1/8-inch dies make a complete kit to meet your crimping needs without you having to purchase additional ones.



High Adaptability: This product has a crimping range of 4-70mm², so you can also configure the dies from 4-70mm² (not included) according to your needs. It is highly adaptable.



Convenient Assembly: It uses a C-shaped guide groove design for the crimping head, which is more convenient for installing dies and can better fix them without easy misalignment.

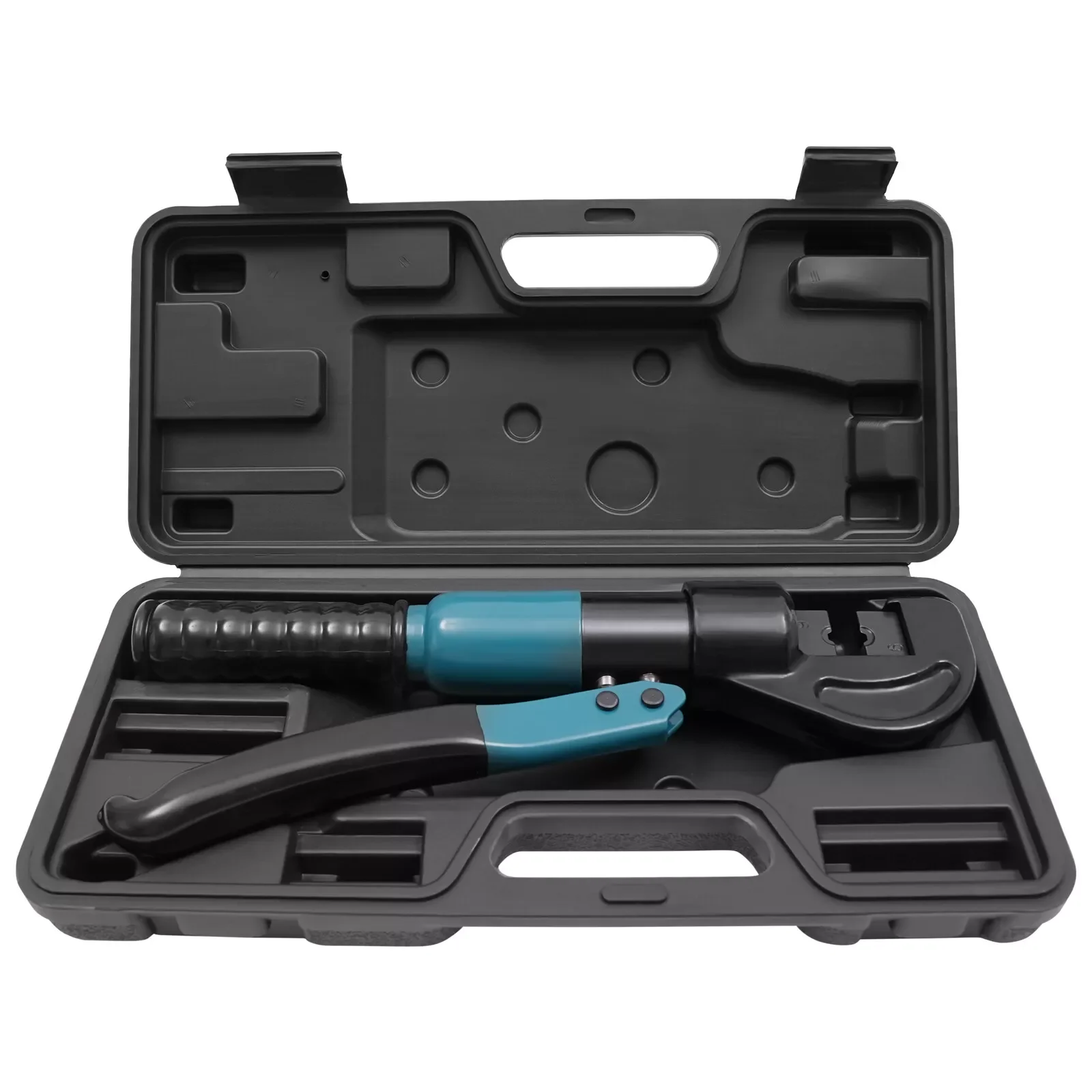

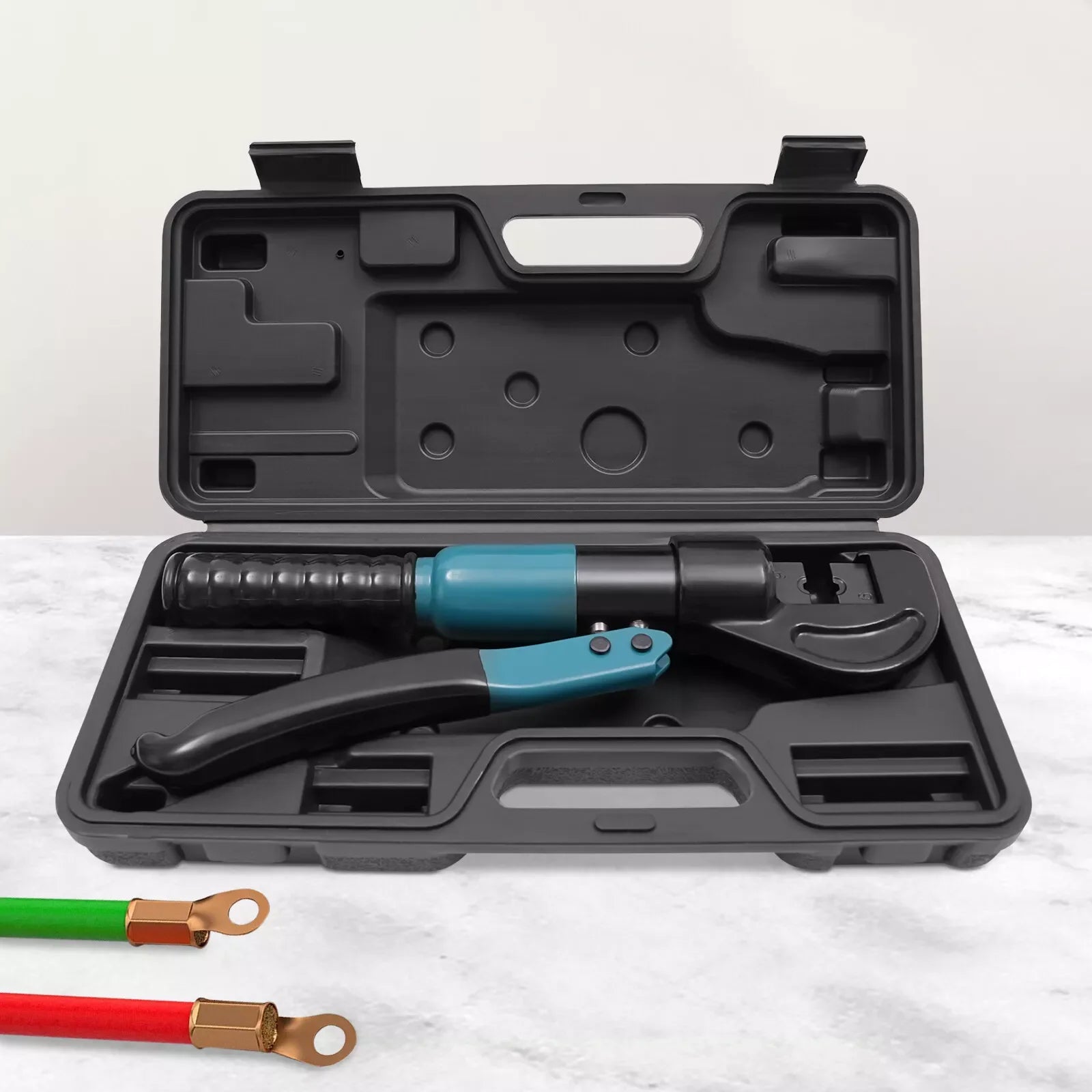

Easy to Carry: This product is equipped with a toolbox with slots to hold the tools, allowing you to take them to the desired place without worrying about damage or loss.



Effortless Cleaning: It has a smooth surface and an open structure, so you only need to wipe the dust or residue with a towel.



Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Oil Seals: In case of oil leakage in the product, you can directly replace the internal oil seal to ensure its sealing and performance.



Comfortable Handle: The ergonomic and comfortable handle makes it easy to grip and control.

Application

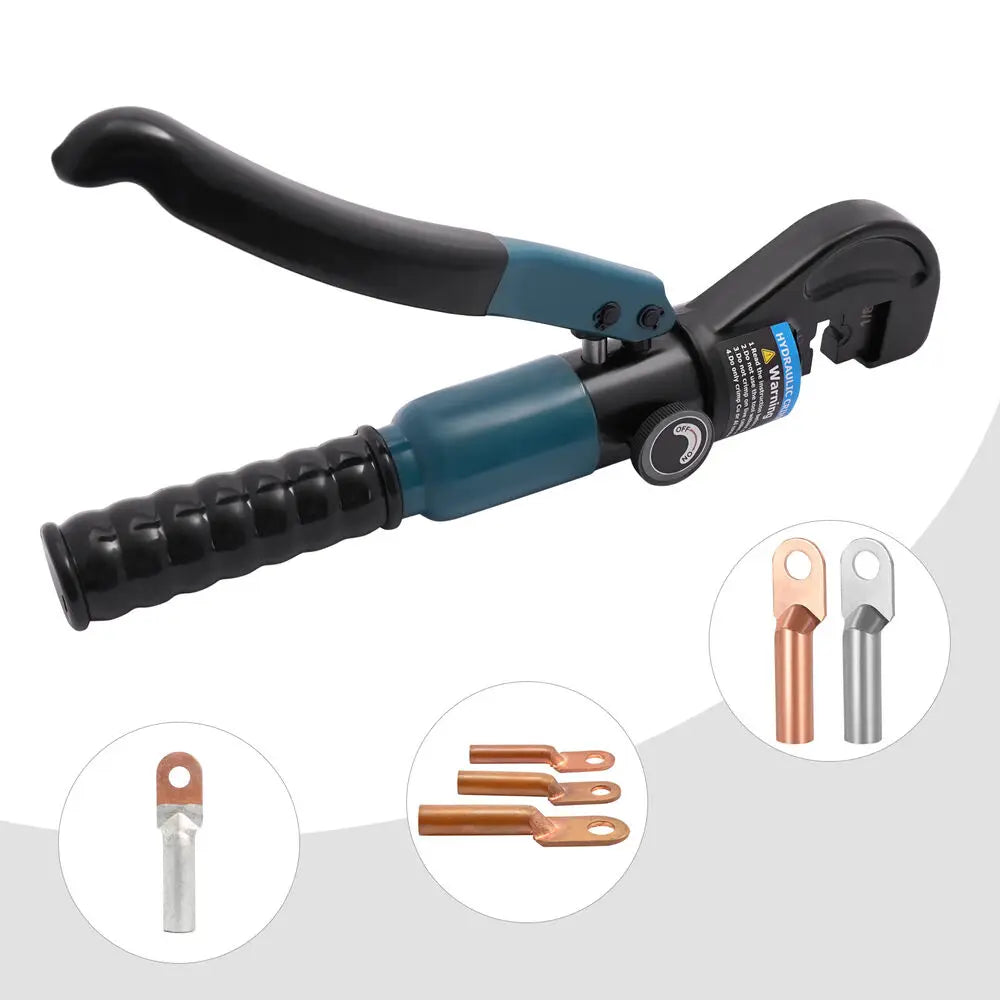

This product is widely used for crimping copper and aluminum terminals for various occasions and projects, such as the power industry, bridge construction, power repair, and site construction.
