Specifications
Color: Silver, Black
Material: Aluminum  Alloy

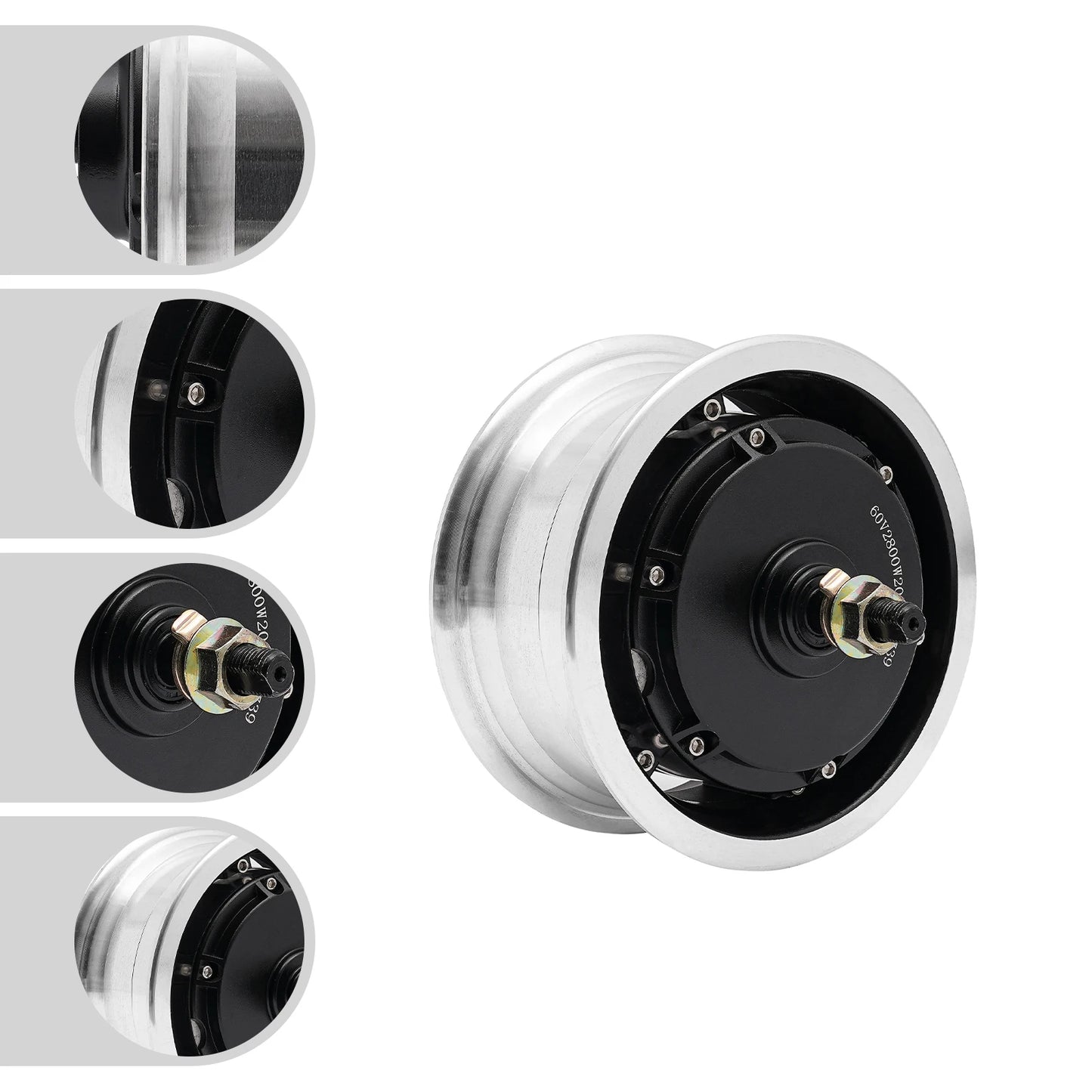

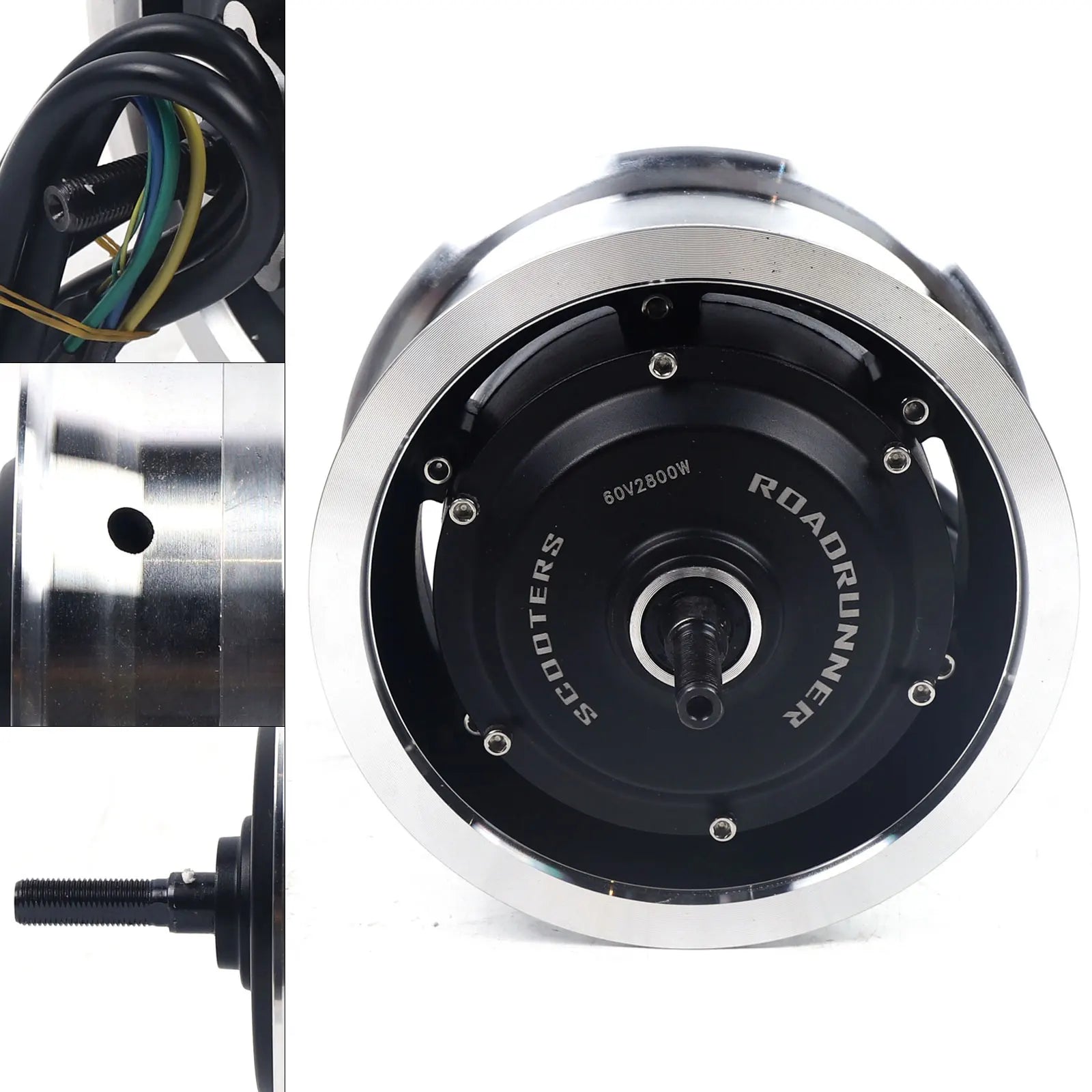

Type: Brushless Pure Copper Motor
Drive Type: Front Drive and Rear Drive Available
Winding: 20*3
Voltage: 60V
Max. Input Current: 45A
Idling Speed: 1900rpm
Max. Efficiency: 83%
Max. Input Power: 2800W
Max. Output Power: 2200W
Rated Power: 600W(Loading 75kg/165lbs )
Max. Torque: 45nm
Total Axle Length: 210mm/8.26in
Frame Open Gear Length: 146mm/5.74in
Wheel Diameter: 181mm/7.12in
Magnet Size (L*Th*W): 60*3*11.2mm/2.36*0.11*0.44in
Core Size (OD*H): 105*60mm/4.13*2.36in
Copper Wire Diameter: 0.51mm/0.02in
Packing Size: 23.75*23.75*23.75cm/9.35*9.35*9.35in
Net Weight: 6.5kg/14.3lbs
Loading Capacity: 150kg/330lbsPackage Included

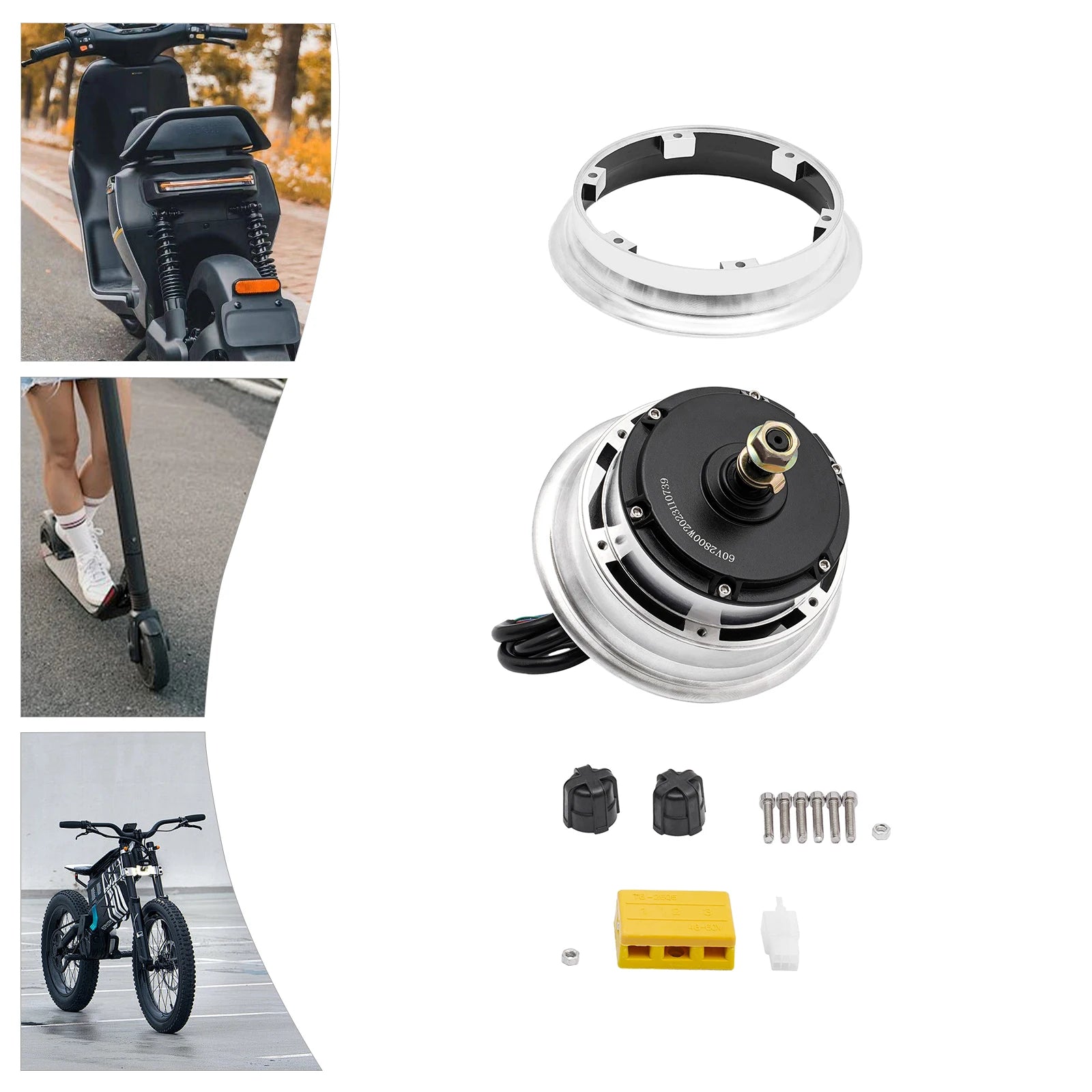

1* Motor

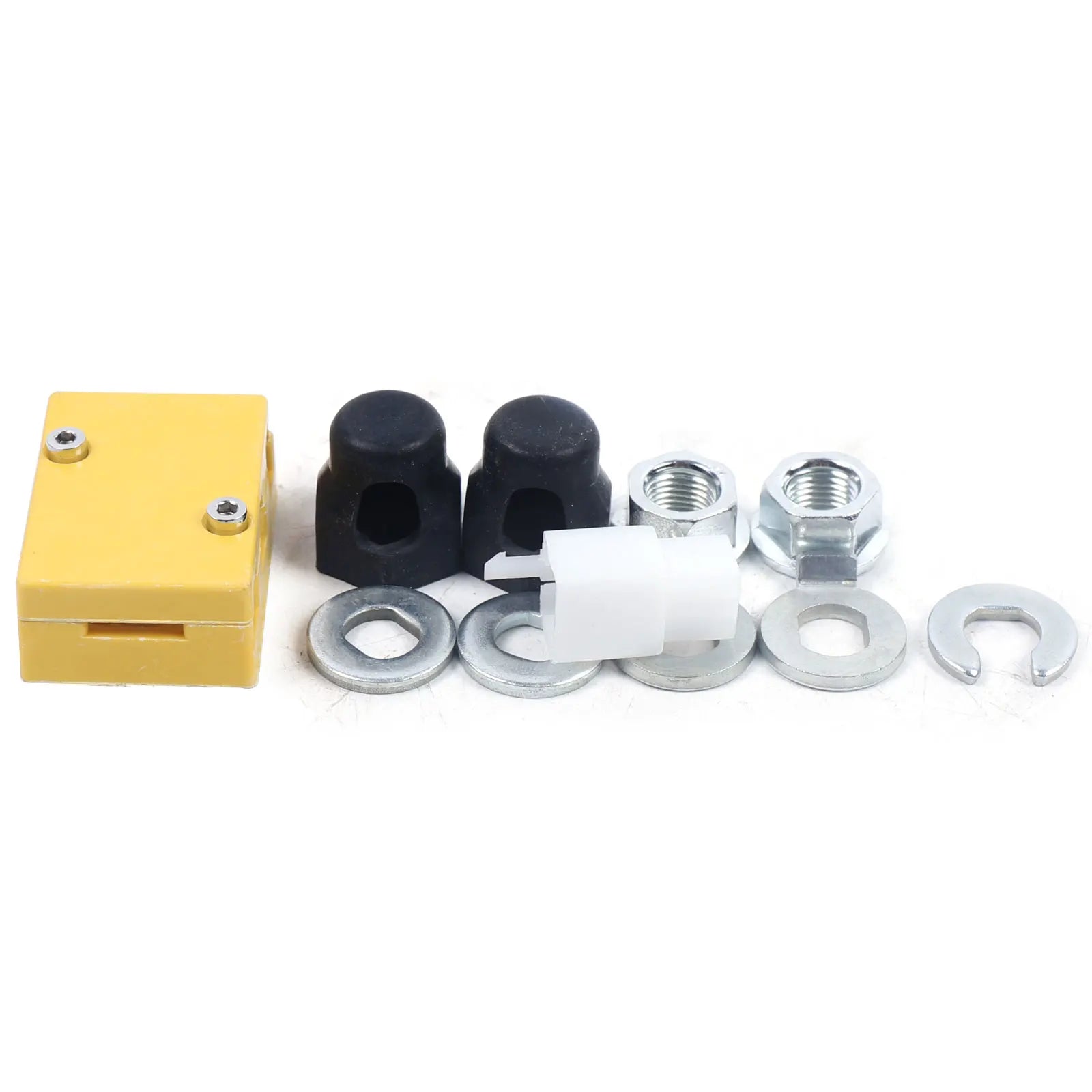

1* Wiring Box
5* Wiring Gaskets
2* Wiring Screws
2* Flange Nuts
1* Rubber SleeveNotes
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.Application

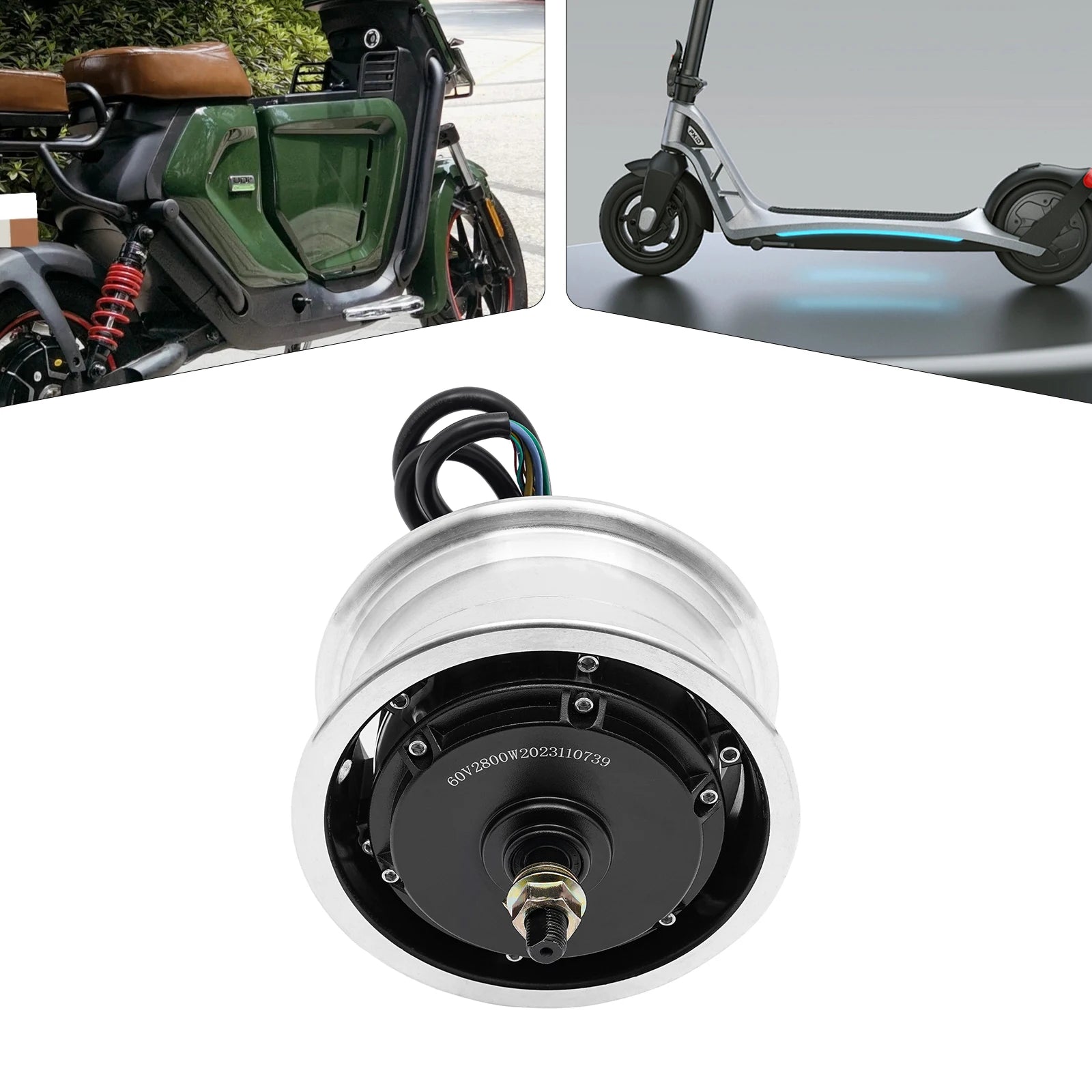

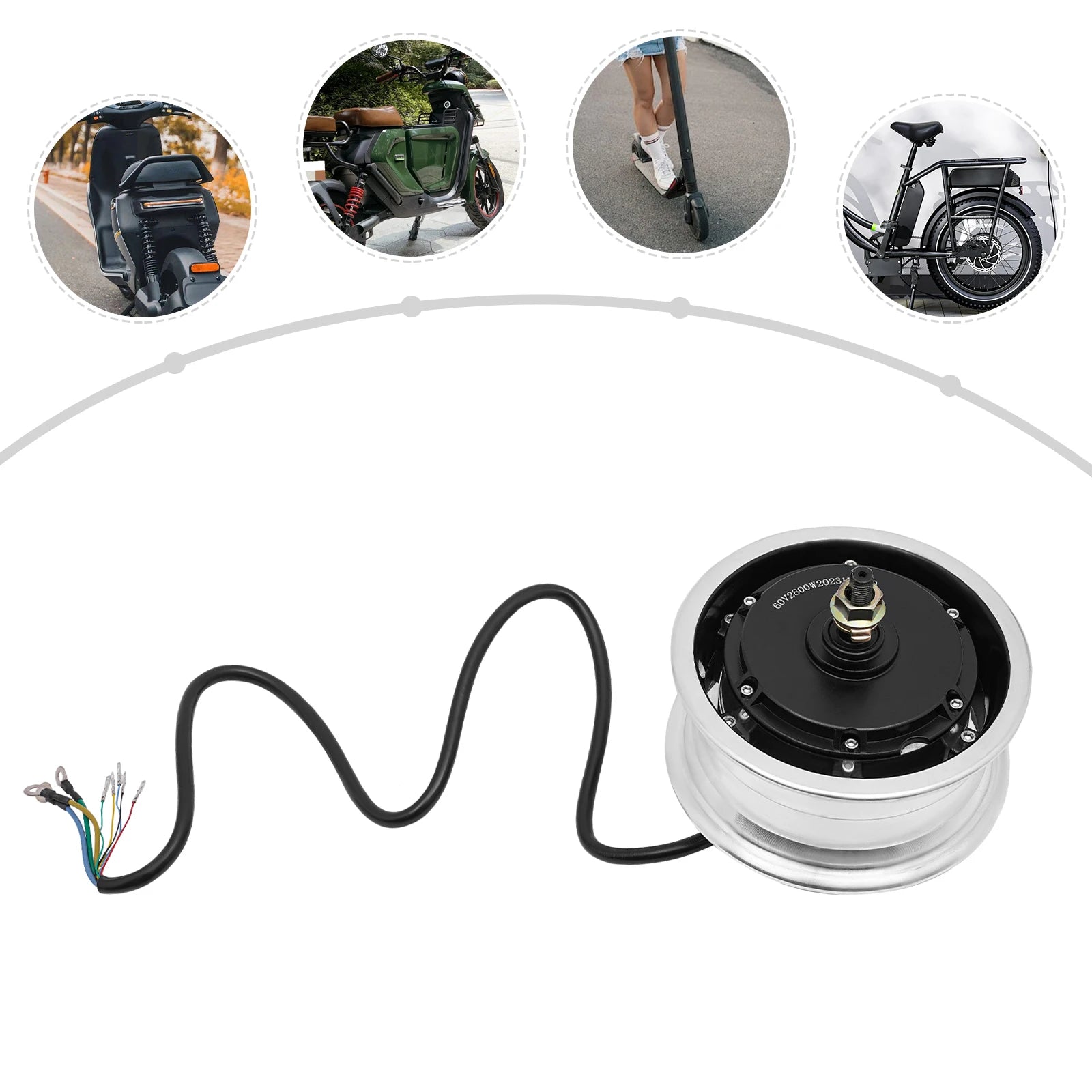

It is suitable for 11in DIY electric scooters, electric bikes, folding bikes and light electric tricycles, etc.
