SPECIFICATIONS



52CC 1900W Gas‑Powered Fence Post Driver 2‑Stroke Impact Hammer for Ground Rod Fencing Pile Driving Work

Electrified: No

Engine Type: Two-stroke, Air Cooling, Single-cylinder

Fuel Tank Capacity: 1L/0.26gal

Handheld: Yes



Movable: Yes



Power: 1900W

Power Source: Battery



Description

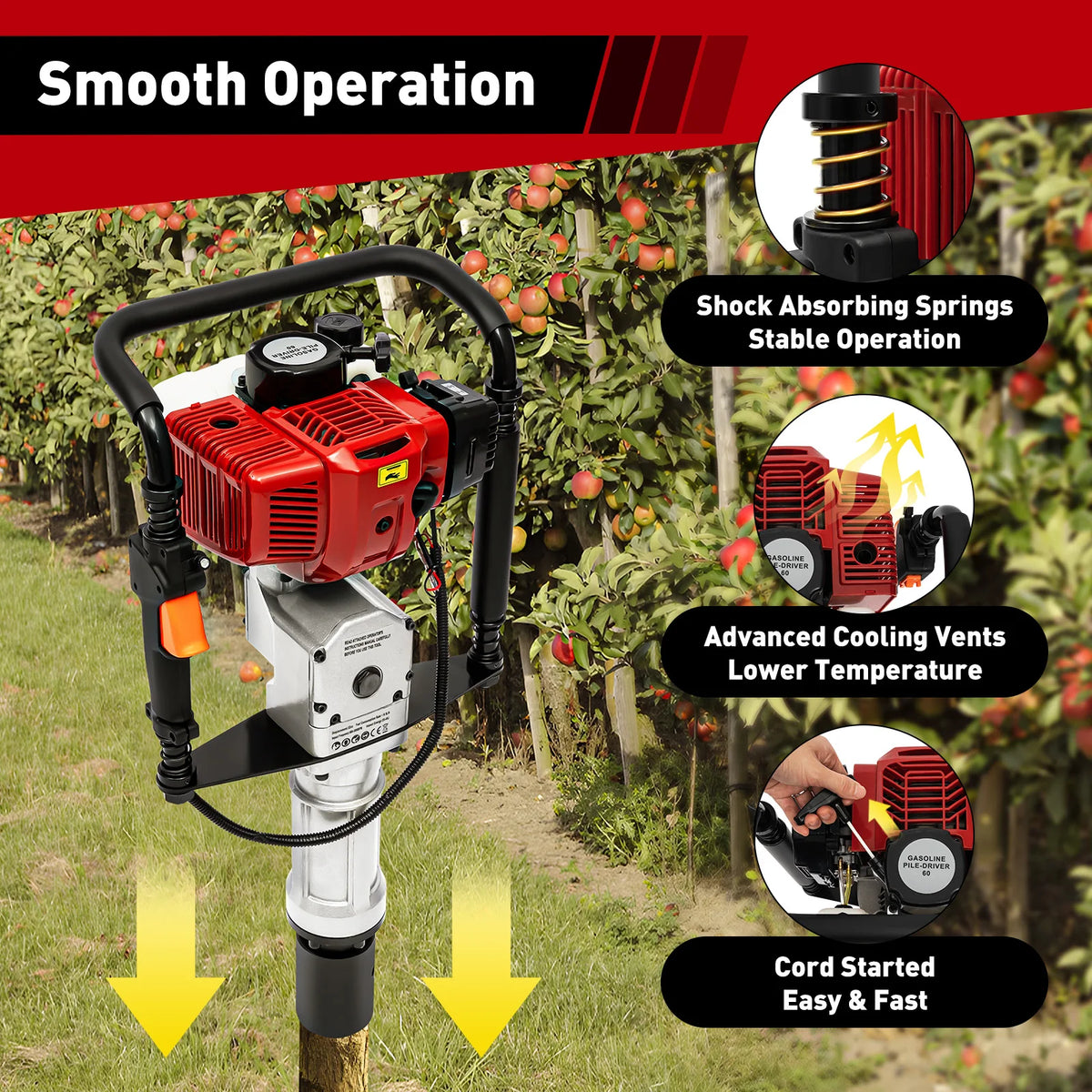

Piling work is usually carried out in relatively harsh environments, where traditional piling methods are very unsafe and inefficient. Fortunately, with this petrol post driver, your piling work can be very simple! The 1900W, 52cc two-stroke engine provides sufficient power to help you save time and energy, while the thoughtful shock absorption design and safety lock ensure your safety and comfort during use.



Specifications

Material: ABS, Iron, Aluminum, Alloy Steel, HDR

Surface Treatment: Spray-paint, Blackening

Color: Black, Red, Grey

Power Source: Gas Powered

Starter System: Hand Pull Start

Engine Type: Two-stroke, Air Cooling, Single-cylinder

Number of Items: 1

Power: 1900W

Noise: ≤103DBA

Displacement: 52cc

Max. Torque: 3.5N.m

Petrol Type: #92

Impact Energy: 25-45J

Fuel Tank Capacity: 1L/0.26gal

Impact Frequency: 800-2800BPM

Fuel Consumption Rate: ≤0.5L/h

Maximum Rotational Speed: 6500RPM

Fuel Type: Mixed Oil (25 petrol: 1 2-stroke Engine Oil)

Gross Weight: 22.7kg/50lbs

Net Weight: 20.95kg/46.18lbs

Equipped Socket Size: 55mm/2.17in(Small), 70mm/2.76in(Big)

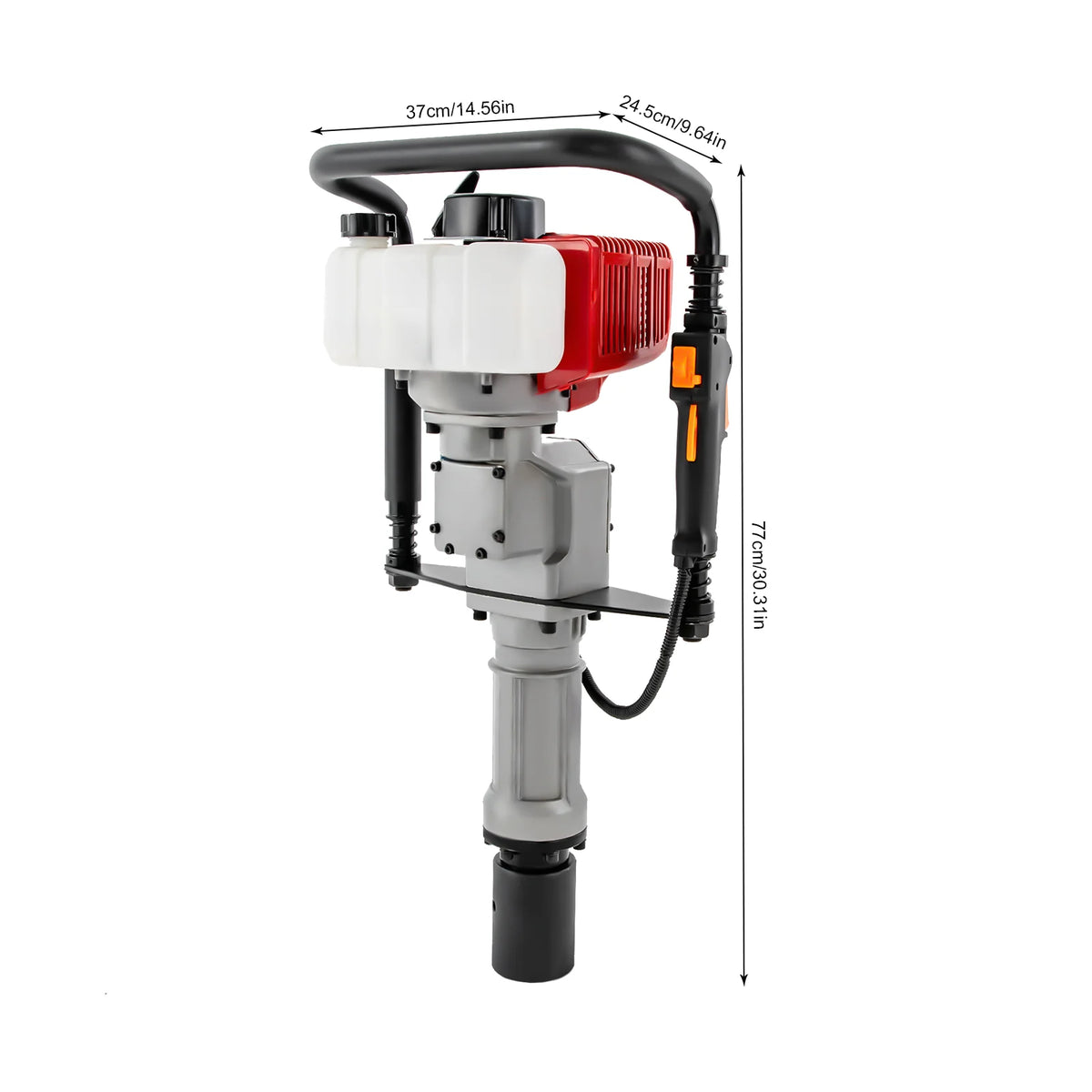

Product Size: 80*35*25cm/31.5*13.78*9.84in

Package Size: 73*44*35cm/28.74*17.32*13.78in

Package Included

1*Petrol Post Driver

2*Post Driving Heads

1*Oil-mixing Kettle

1*Tools Kit

1*Funnel

1*Filter Nozzle

1*English Manual

All Accessories for AssemblyApplication

This petrol post driver is suitable for professional or daily household users to use in a series of pile-driving projects such as fences, star stakes, stakes, geophysical exploration, buildings, guardrails, brackets, photovoltaic power stations, forestry seedlings, vineyard brackets, vegetable planting, orchard brackets, fence protection, etc.



High Efficient: The powerful 1900W, 52cc two-stroke engine enhances its maximum impact speed to a maximum rotational speed of 6500RPM, enabling efficient and precise completion of various pile driving tasks.Selected Materials: The ABS shell maintains lightweight while ensuring durability. Sprayed aluminum, blackened iron, and alloy steel are all sturdy and durable. The soft and anti-slip HDR protective cover greatly reduces the recoil force of the machine, making it easy to grip and use.complete Accessories: In addition to a post driver, our package also prepares different sizes of post sockets, an oil-mixing kettle, a tools kit, and other components and parts that you may need in your work, providing you with more thoughtful services.

Key Features

Easy to Use: You only need to quickly and continuously pull the starting pull rope to start the machine. The design of the integrated handle switch enables easy and safe starting and shutting down. The design of infinitely adjusting speed through hand pressure also achieves easier speed control.



Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit as much as possible.

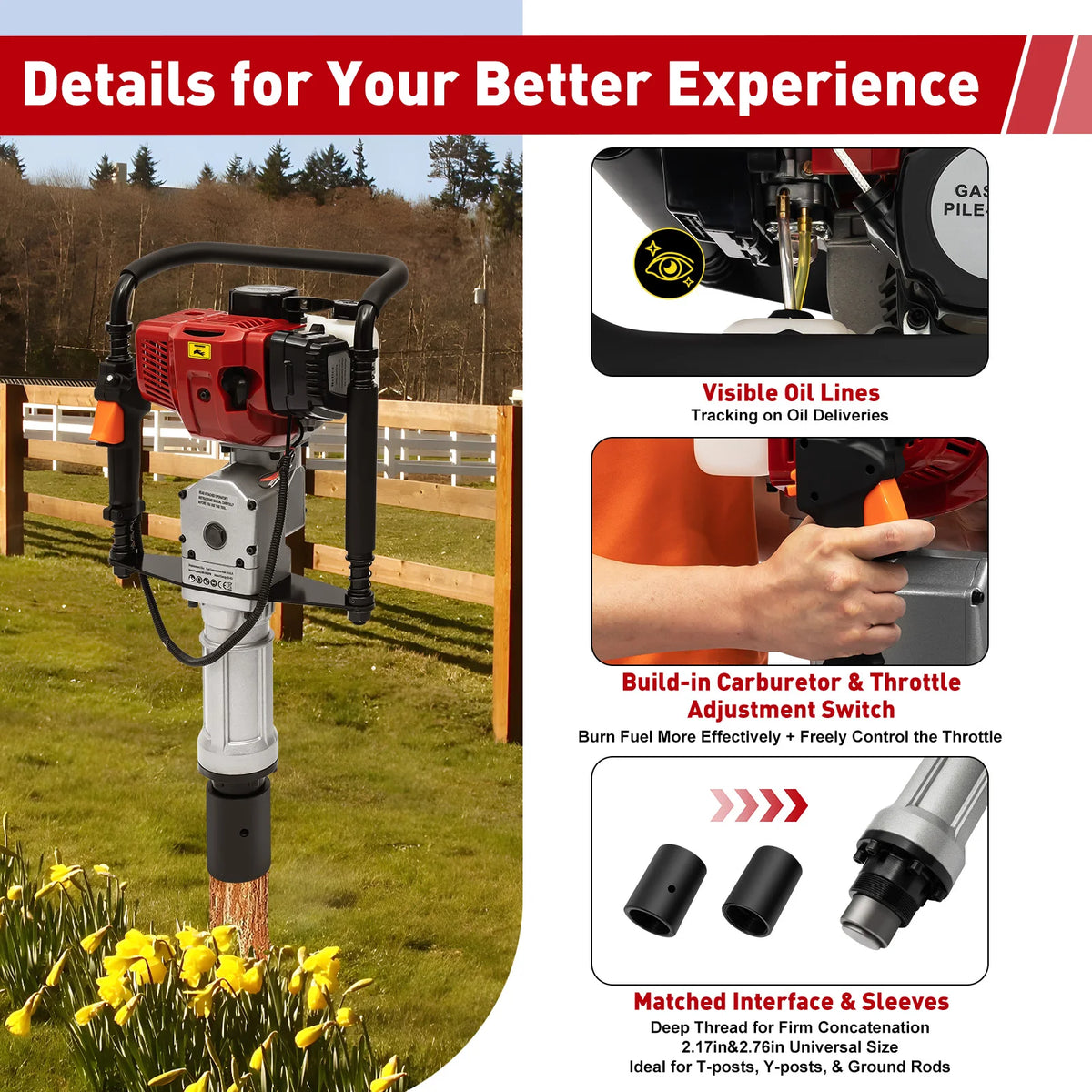

Details

Carburetor: It allows fuel to burn more fully during operation, avoiding fuel waste while also being very cost-effective.

2 Post Driving-head: The 2 post-driving heads (2.17in, 2.76in) make this an ideal choice for T-Posts, Y-Posts, and ground rods.





Notes

1. Please read the manual carefully and strictly follow the precautions for a better experience.

2. If this product does not hammer, please check if too much lubricating oil has been added. Clean the excess oil in the cylinder and add about 20 grams of high-temperature resistant lubricating oil again.

3. If the impact frequency is too high to hold by hand, it is recommended to slightly reduce the speed of the carburetor. Otherwise, please increase the impact frequency.

4. If the machine is not easy to start, first check the ratio of oil: petrol: oil=25:1 (please note to use 2-stroke oil), then pull out the rope for arm's length and continue pulling it two or three times to start. When the machine starts cold, please close the baffle and wait for the machine to function properly before opening it.

5. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
