Electric Bike Speedometer
Electric Bike Speedometer
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Broercok
Hign-concerned Chemical: None
Origin: Mainland China
Type: Display

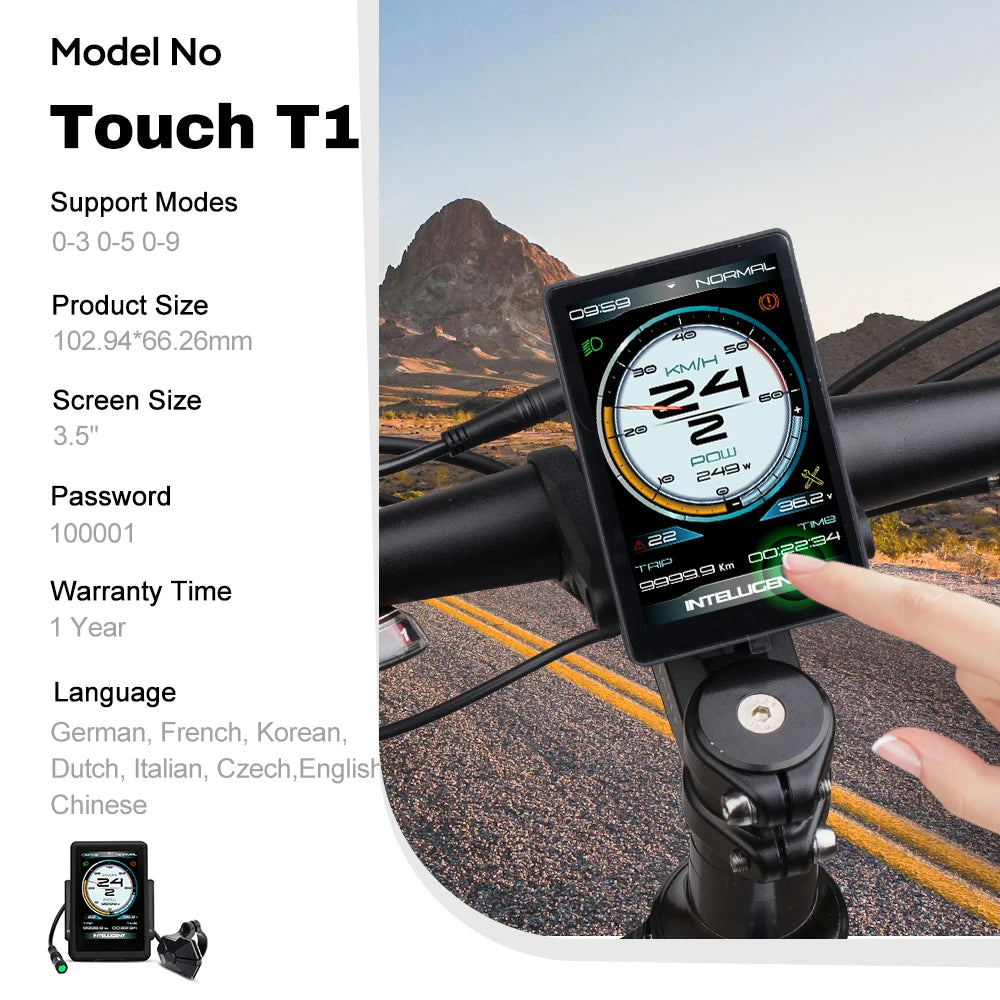

Display Name: T1 Touch
Display Connector: 5 Pin Female
Compatible With: Bafang Motor Kits
Waterproof: IP 65
Speed Mode: 0-3/0-5/0-9
Display Voltage: 36V/48V/52V/60V
Default Password: 100001
Default Speed Limits: 99KM/H
Screen Size: 3.5"
Headlights Turn On: Long Press "+"
6KM/Walk Mode: Long Press" - "

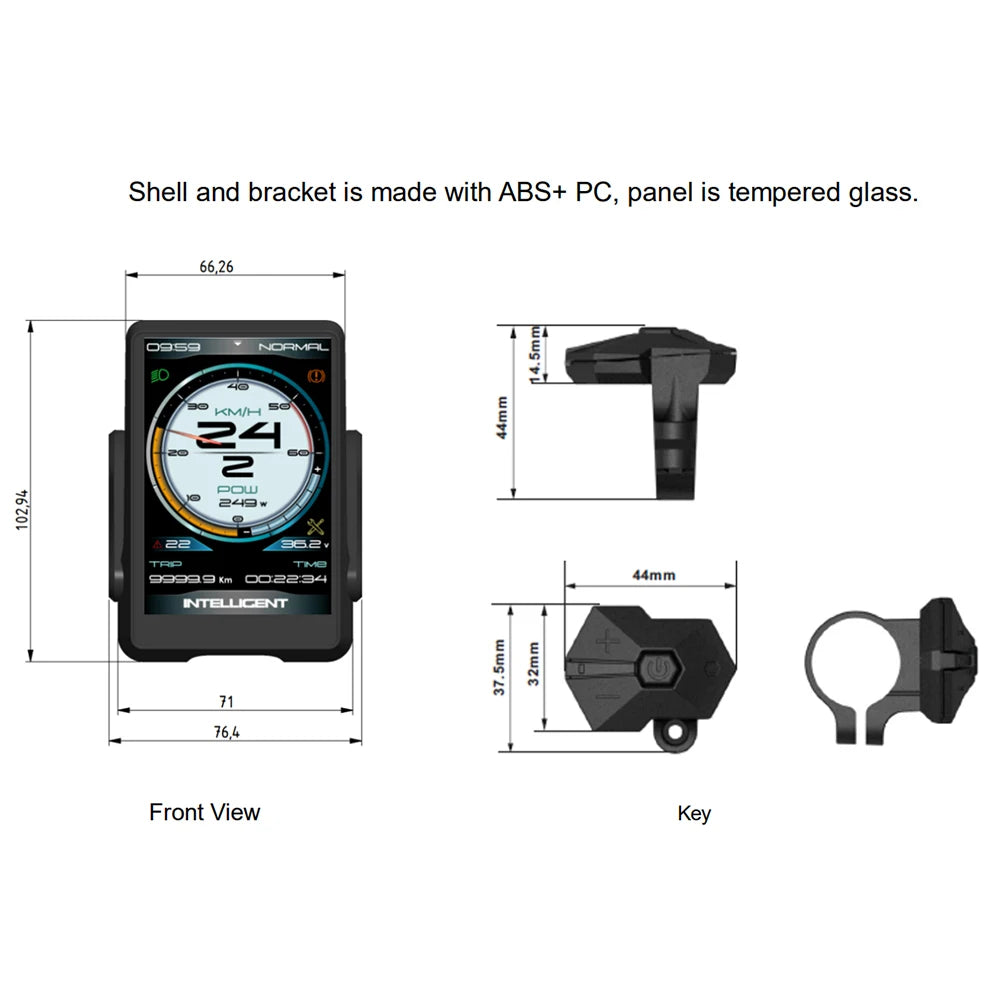

Display Size: 102.94*66.26mm
Display System: BF-UART
Warranty Time: One Year
Display Only Applicable To Bafang Mid/Hub Drive Motor Kits
- Communication Protocol:BF-UART
Connector: 5PIN Female Circular Connector
Note：
If your motor is not Bafang brand,these goods not fit for you,if your motor kits use other Communication Protocol,this display not fit for you too,please contact with us before you make order except you make sure our display fit for you .We can also customize the display.
Other Related Information:
UART has two protocols, BF-UART and 5S-UART, which are not universal. General UART protocols can be determined by the connector，most of the 5pin circular connector uses the BF-UART protocol, while the male connector uses the 5S-UART protocol.The CAN protocol uses triangular connectors.
-
Specifications:

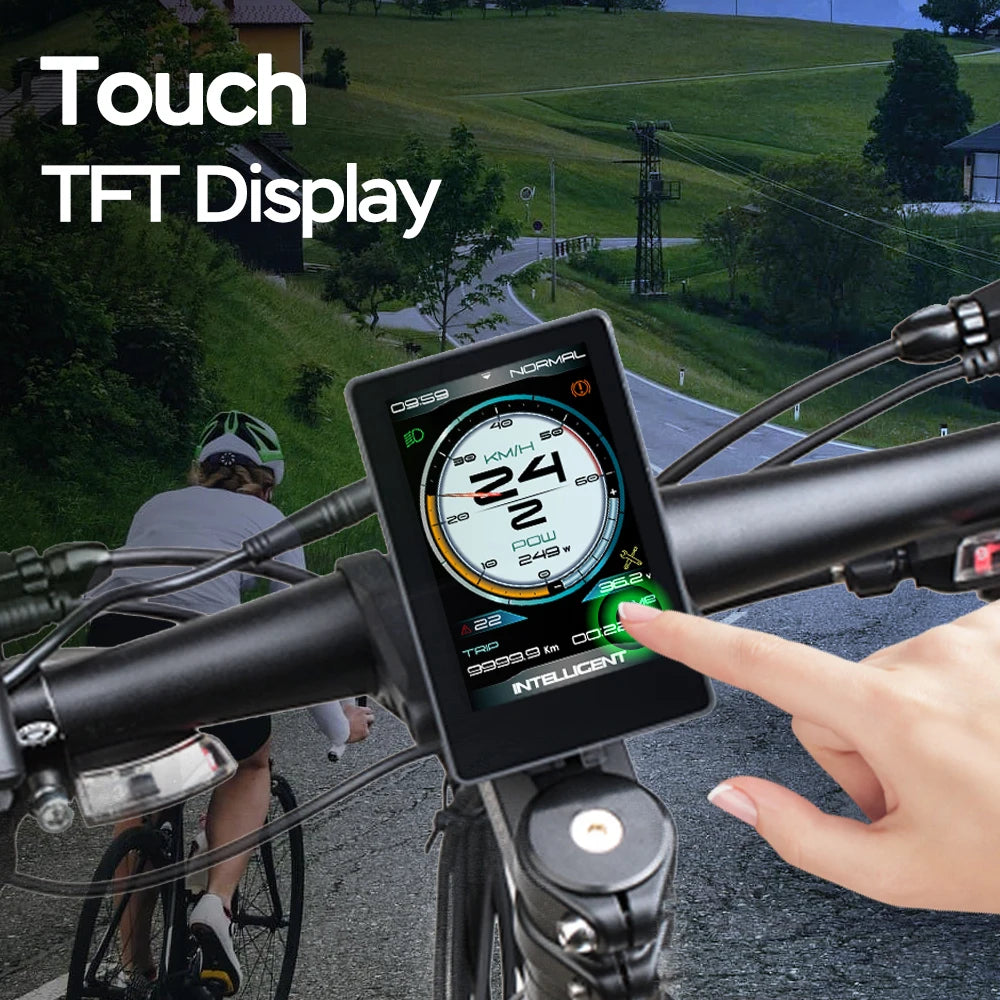

3.5inch TFT screen (IPS 320*480 pixel) Capacitive multi-touch screen, all items can be set through touch screen conveniently.
Tempered glass panel，GFF full lamination process

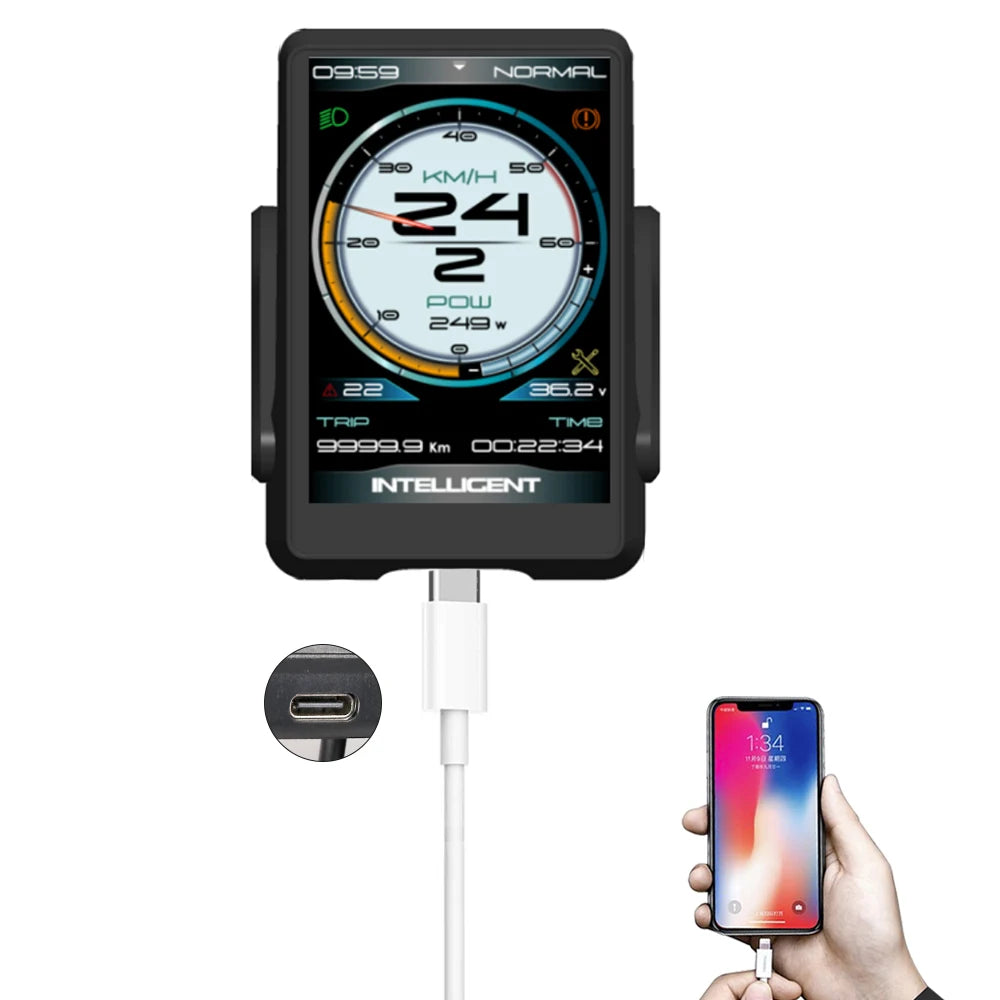

USB Type-C interface, DC 5V 500mA
Wide-voltage range：24~65V / 48-90V (optional)
Light Sensor
Maximum output current to controller: 200mA、off-leakage current <1μA
Waterproof: IP65
CE: RoHS
Features:

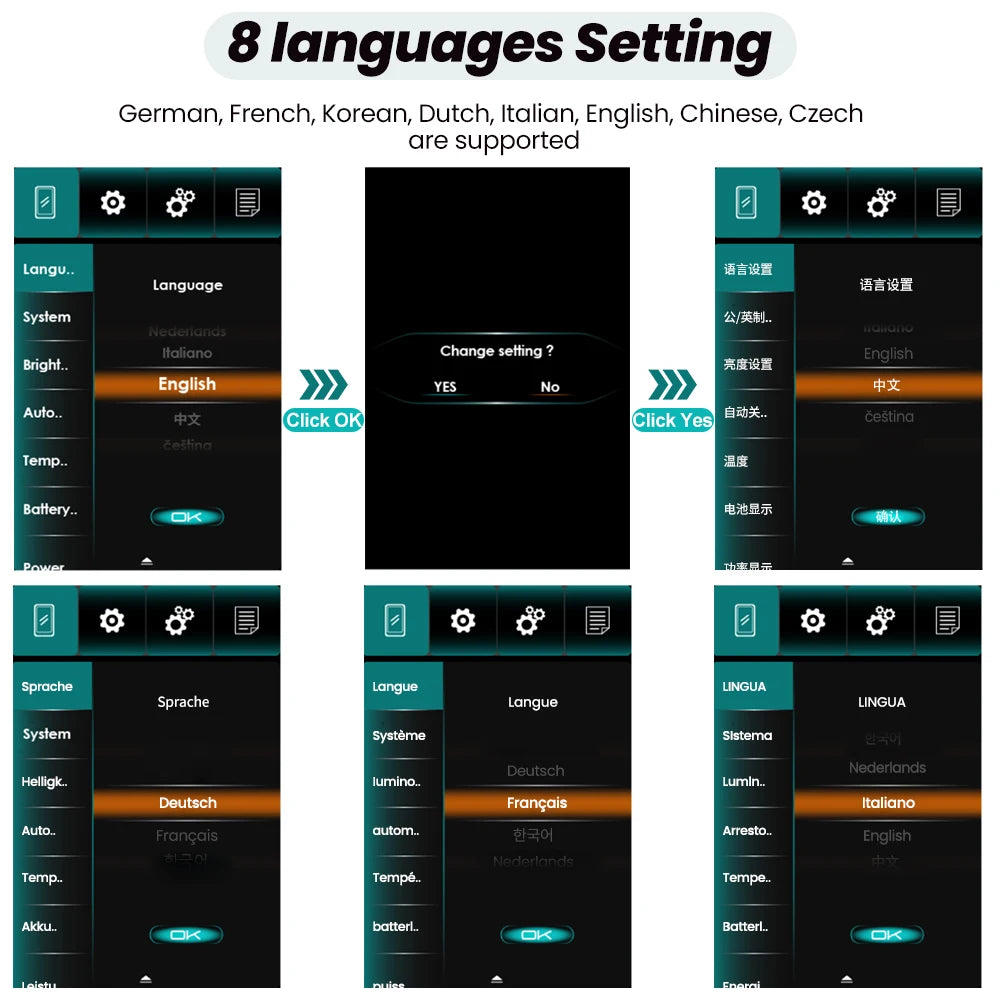

8 languages：German, French, Korean, Dutch, Italian, English, Chinese, Czech are supported.
Pattern unlock: If you forget the pattern, you can reset it by security questions.

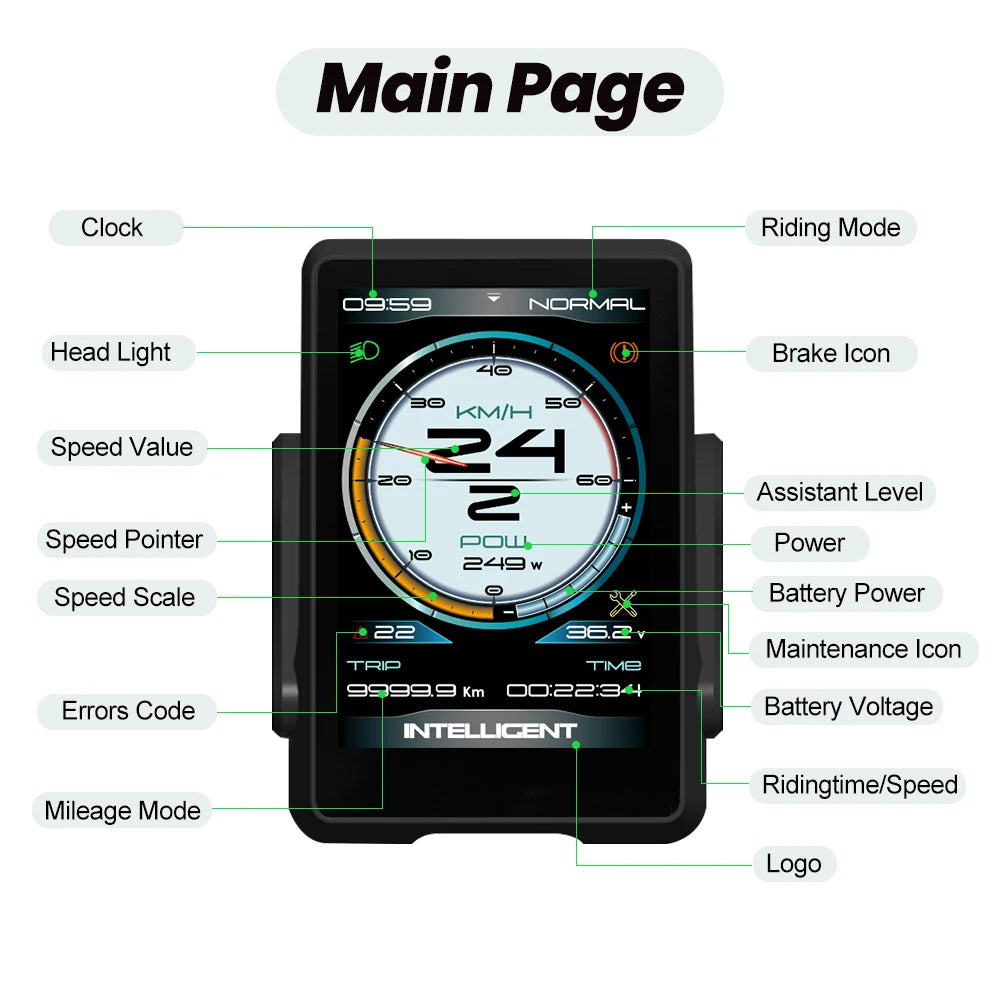

Speed indicator：Speed (Real-time), AVG Speed, MAX Speed

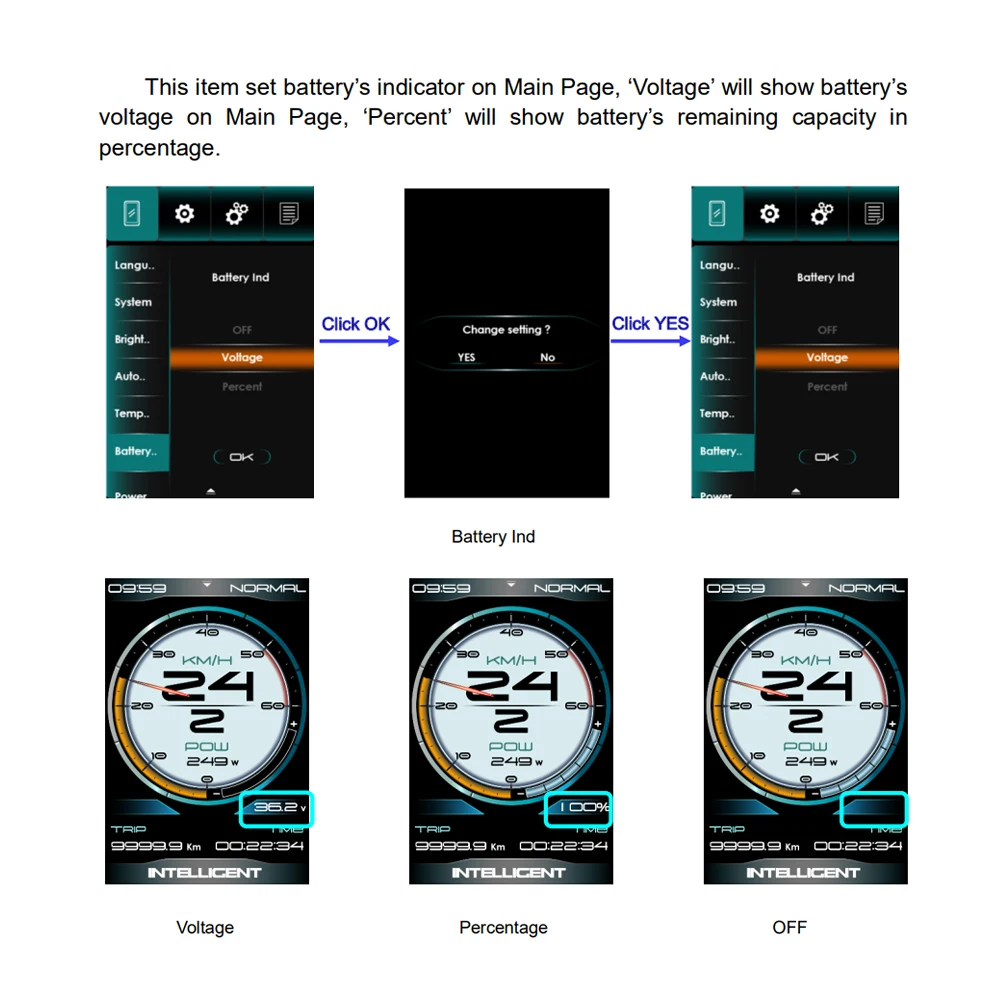

Smart battery indicator：Capacity (percentage) or Voltage
Mileage indicator：Odometer, Trip distance, Range (if controller support)
Clock indicator：Built in battery, clock keeps running when power off
Brightness setting：Day and Night Brightness can be set independent

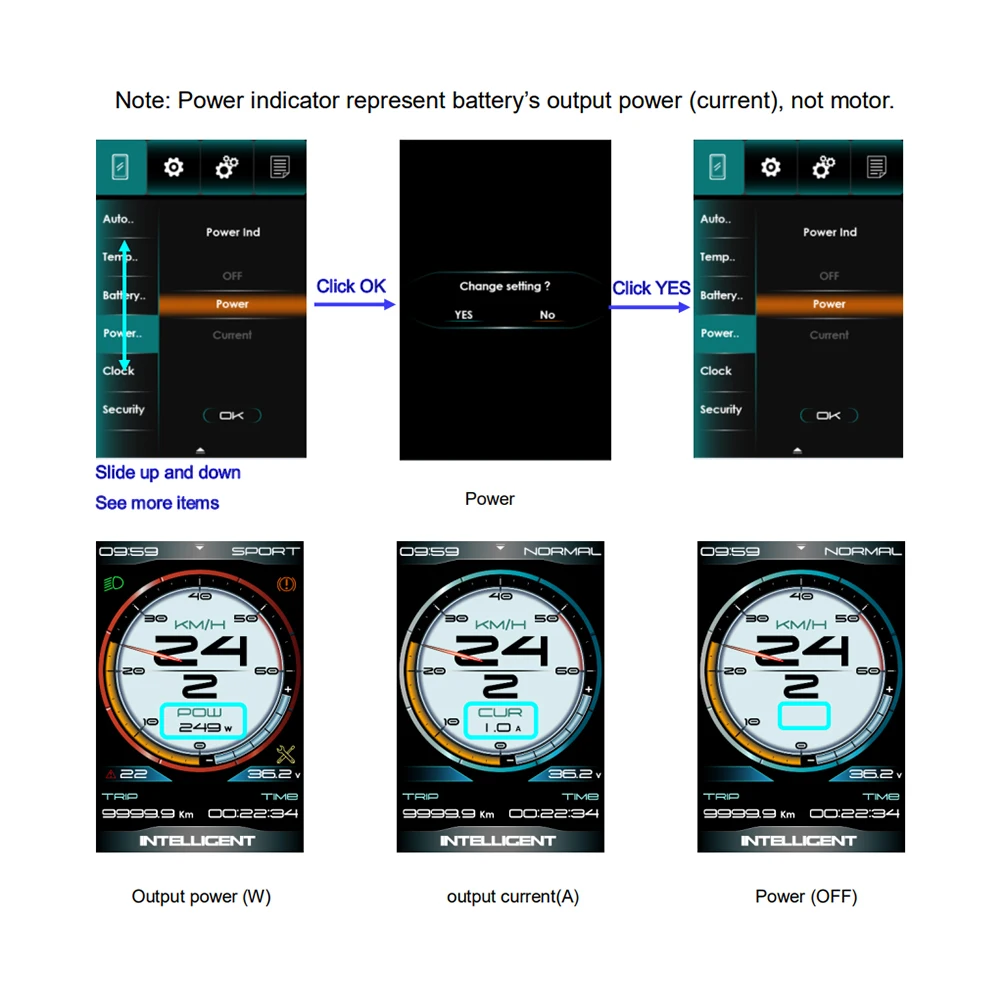

Power/ Current indicator: Real-time Power(W) or Current(A).
Errors Code Tips
Caution:
Installation:

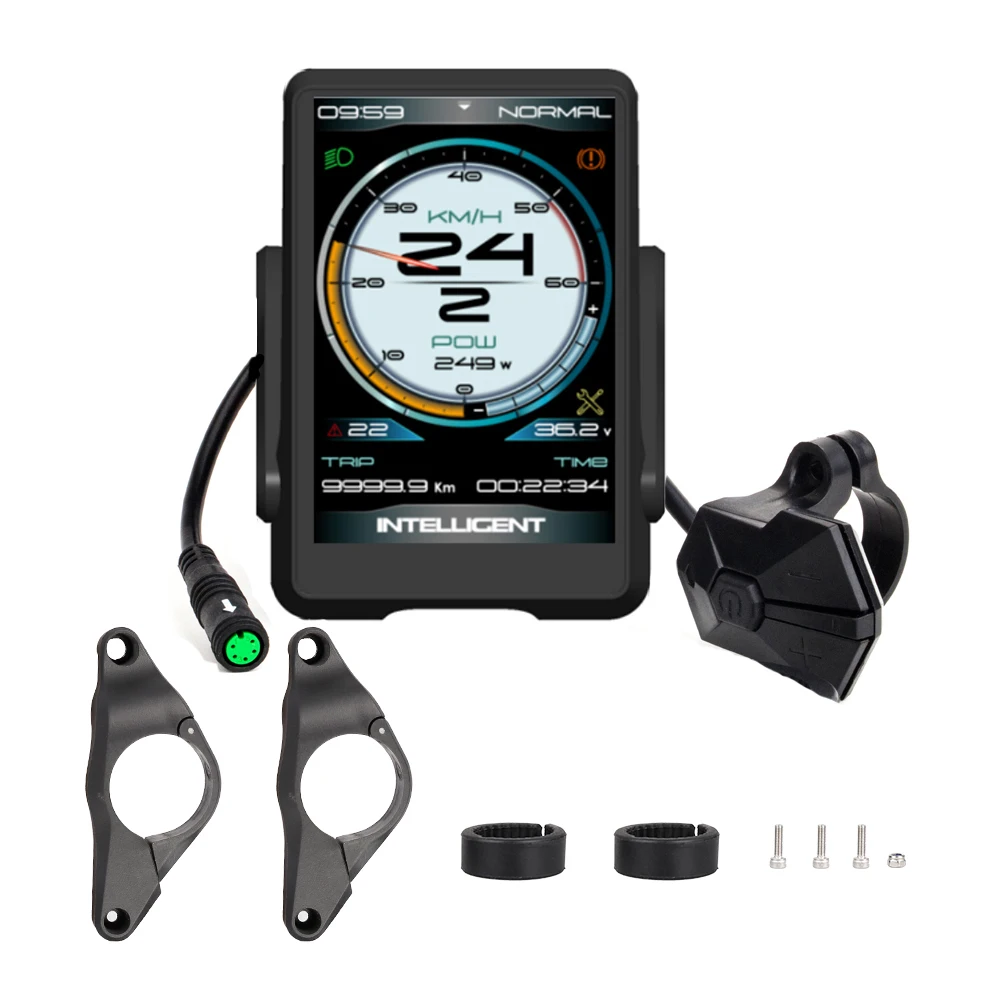

Install the display and button control on the handlebar and adjust its location. Plug it into the controller with power off.
Warranty Aggrement:
Motor Kits,warranty time12 monthexcept phycial damage and wrong operation.
Battery,warranty time12 monthexcept phycial damage and wrong operation.
Accessories,12 month except phycial damage and wrong operatio
