Application

This product is suitable for DIY electric bicycles, electric tricycles, electric scooters, etc. with wheel sizes ranging from 16 inches to 28 inches.

Specification

Material: Iron, Aluminum, Copper Wire
Process: Bake Painting, Die-casting
Color: Black, Silver
Style: Modern
Assembly Required: Yes
Applicable Scope: 16''-28'' Bikes
Specification: 350W 36V
Unload Current: ≤2.0A
Unloaded Speed: 3850rpm
Rated Torque: 1.1N·m
Rated Speed: 3000rpm
Rated Current: ≤12.5A
Efficiency: ≥78%
Gear Ratio: 9.78: 1
Sprocket Outer Diameter: 134mm/5.27in
Sprocket Inner Diameter: 35mm/1.38in
Sprocket Tooth Pacing: 12.7mm/0.5in
Sprocket Mounting Hole Size: 6.5*12mm/0.25*0.47in
Package Size: 26*18*18.5cm/10.24*7.09*7.28in
Gross Weight: 4.4kg/9.7lbs
Net Weight: 4.18kg/9.22lbs

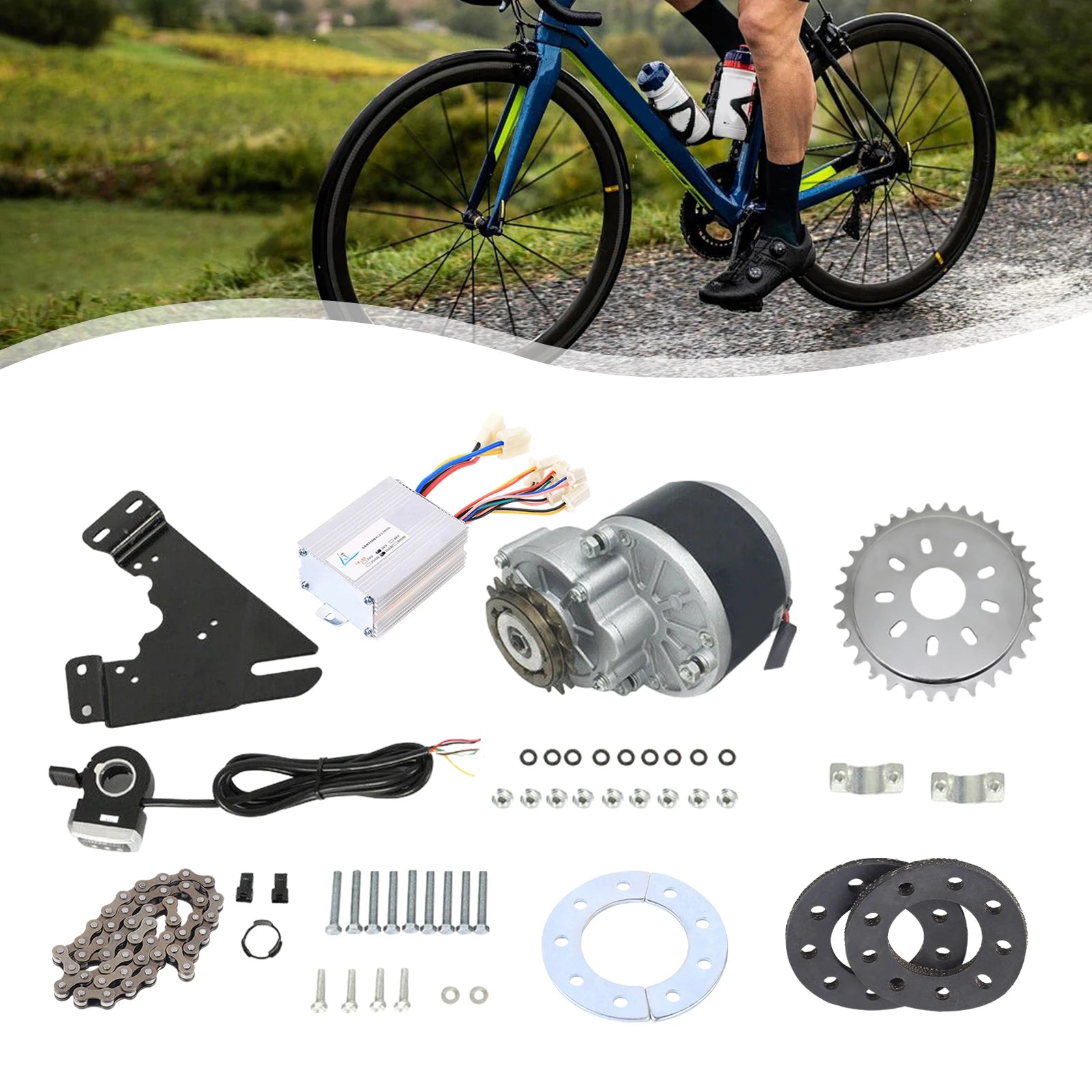

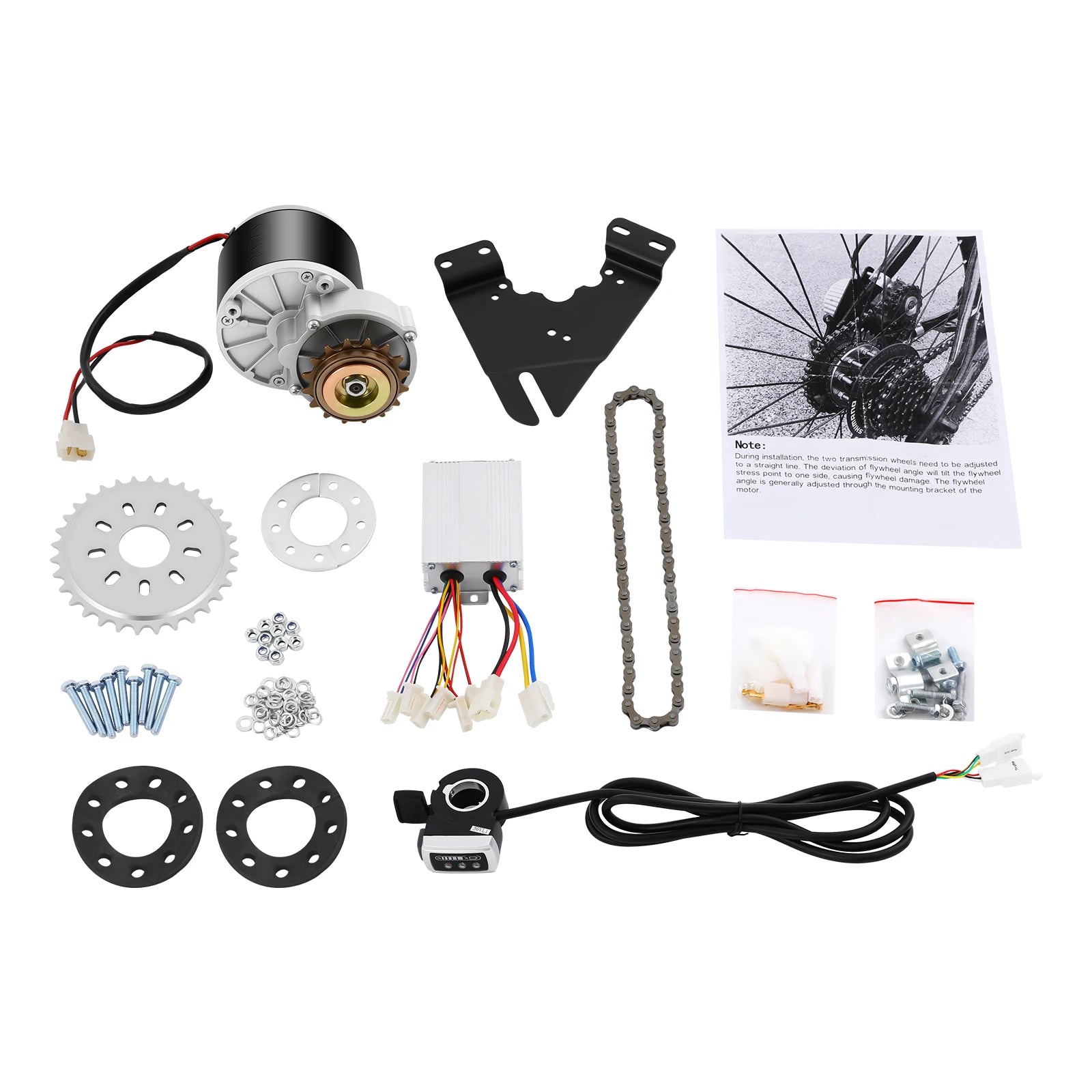

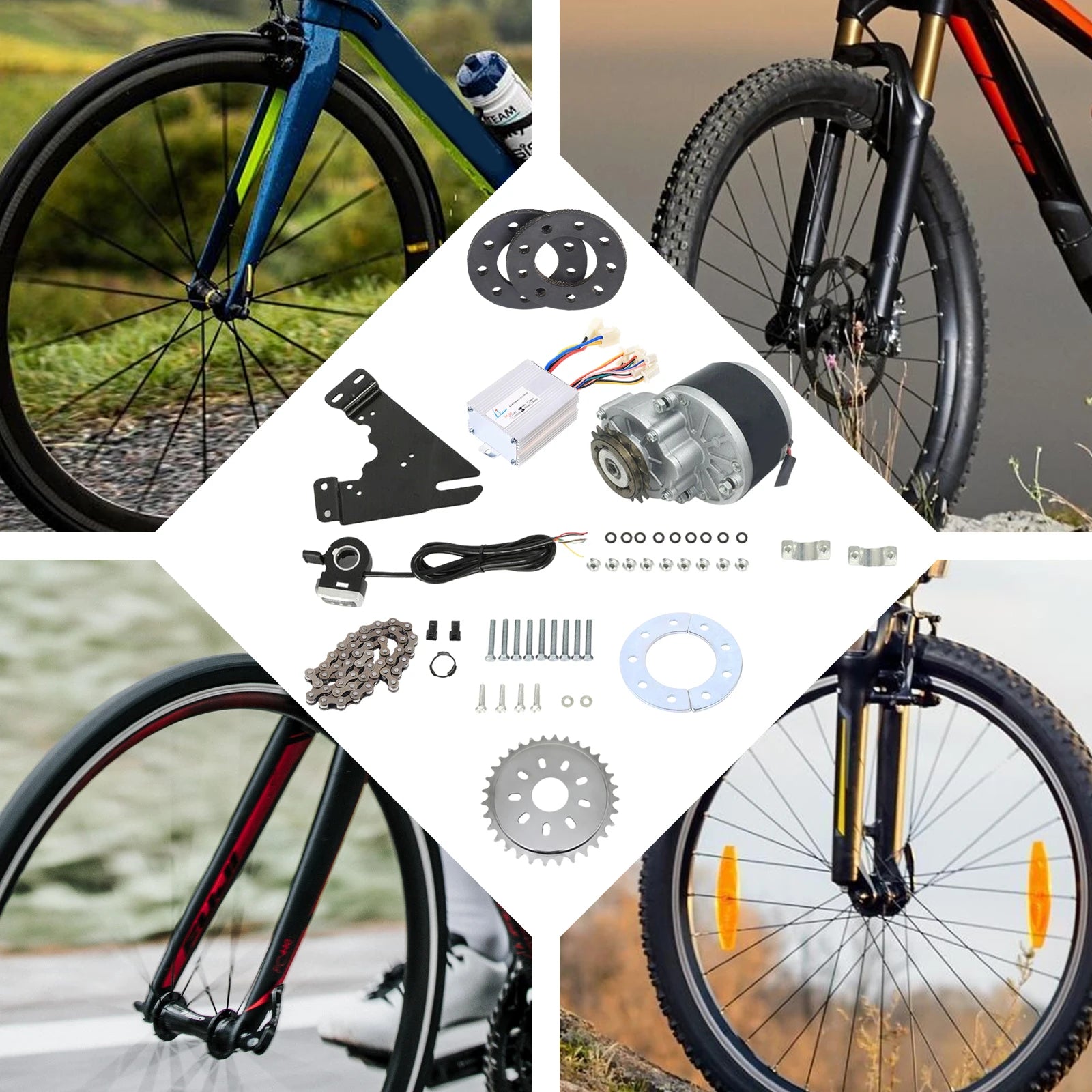

Package Included

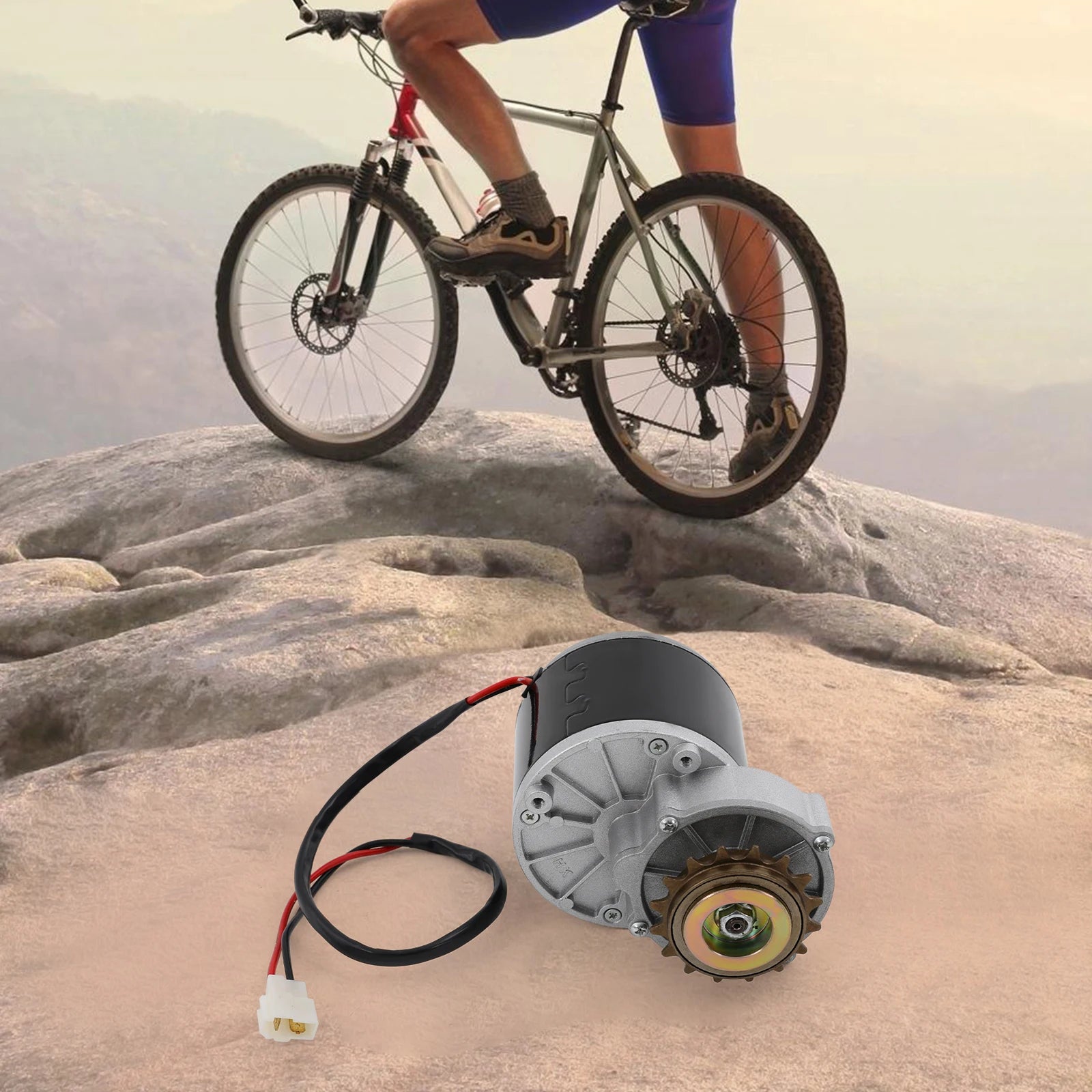

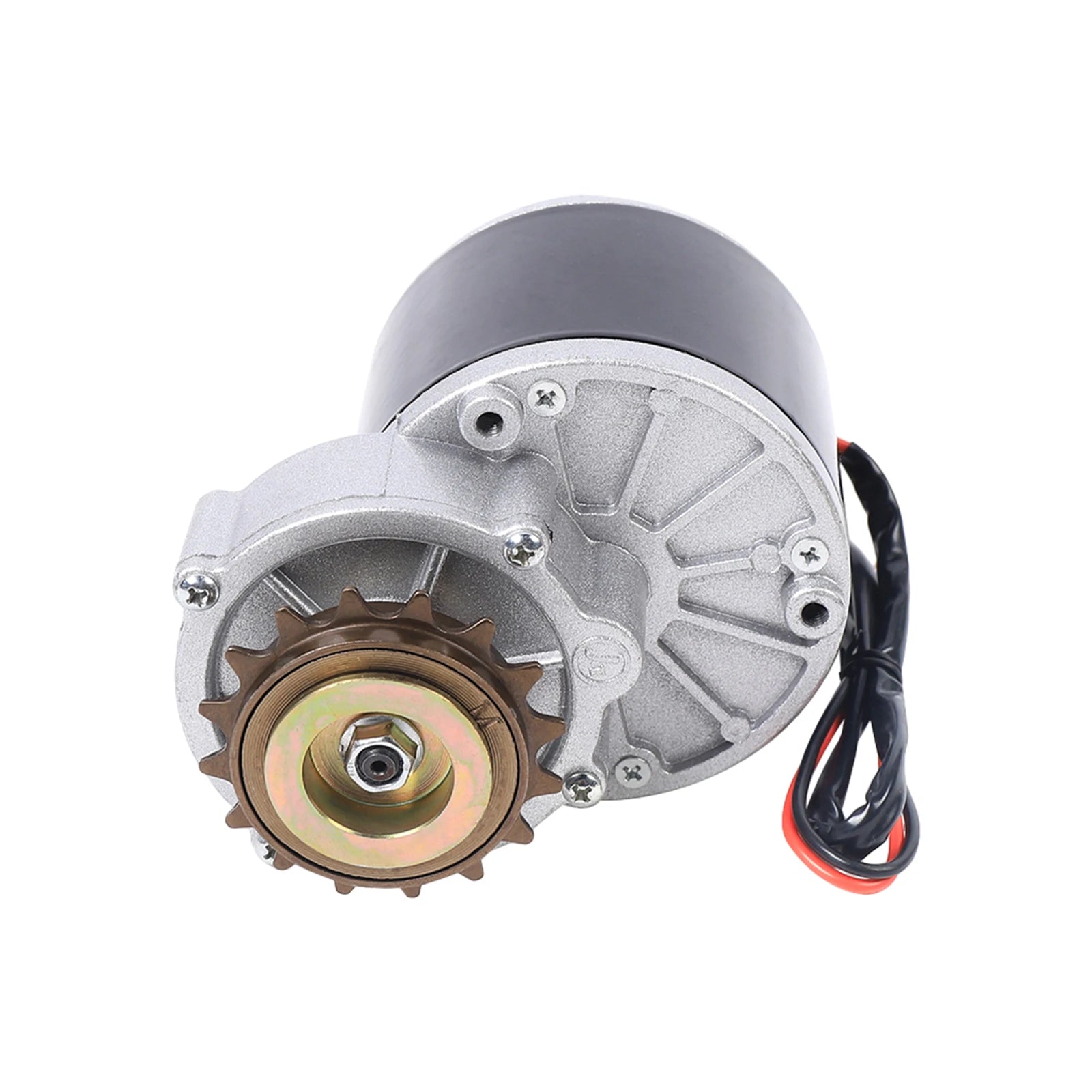

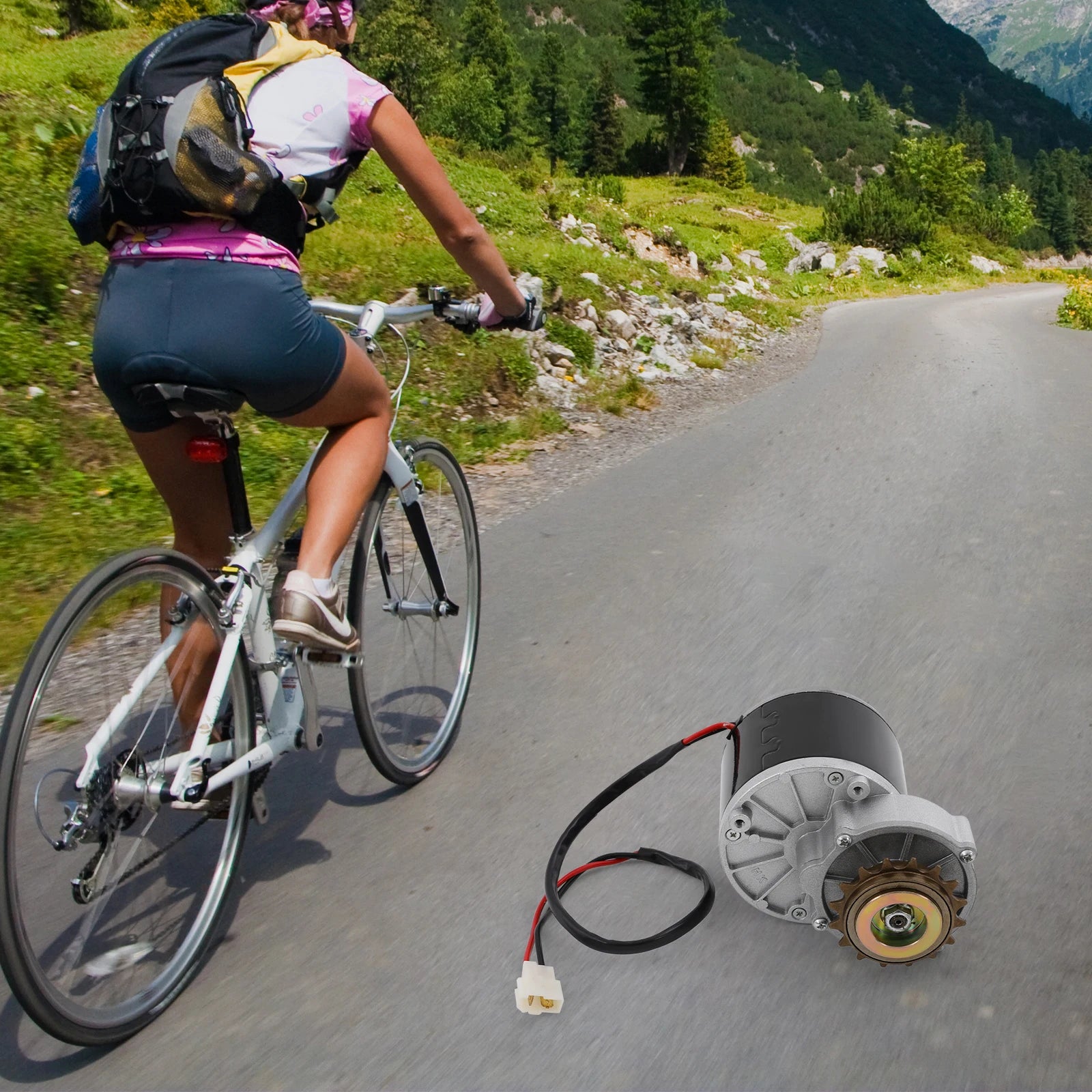

1* Brushed Motor with Flywheel
1* Chain
1* Sprocket
1* Controller
1* Mounting Plate
1* Thumb Throttle
2* Keys
Other Accessories for Assembly and Use
