SPECIFICATIONS





Design: Brushless

Motor: Side Hung Motor

Mounting Position: MID Drive

Voltage: 48V

Wattage: 501 - 1000w

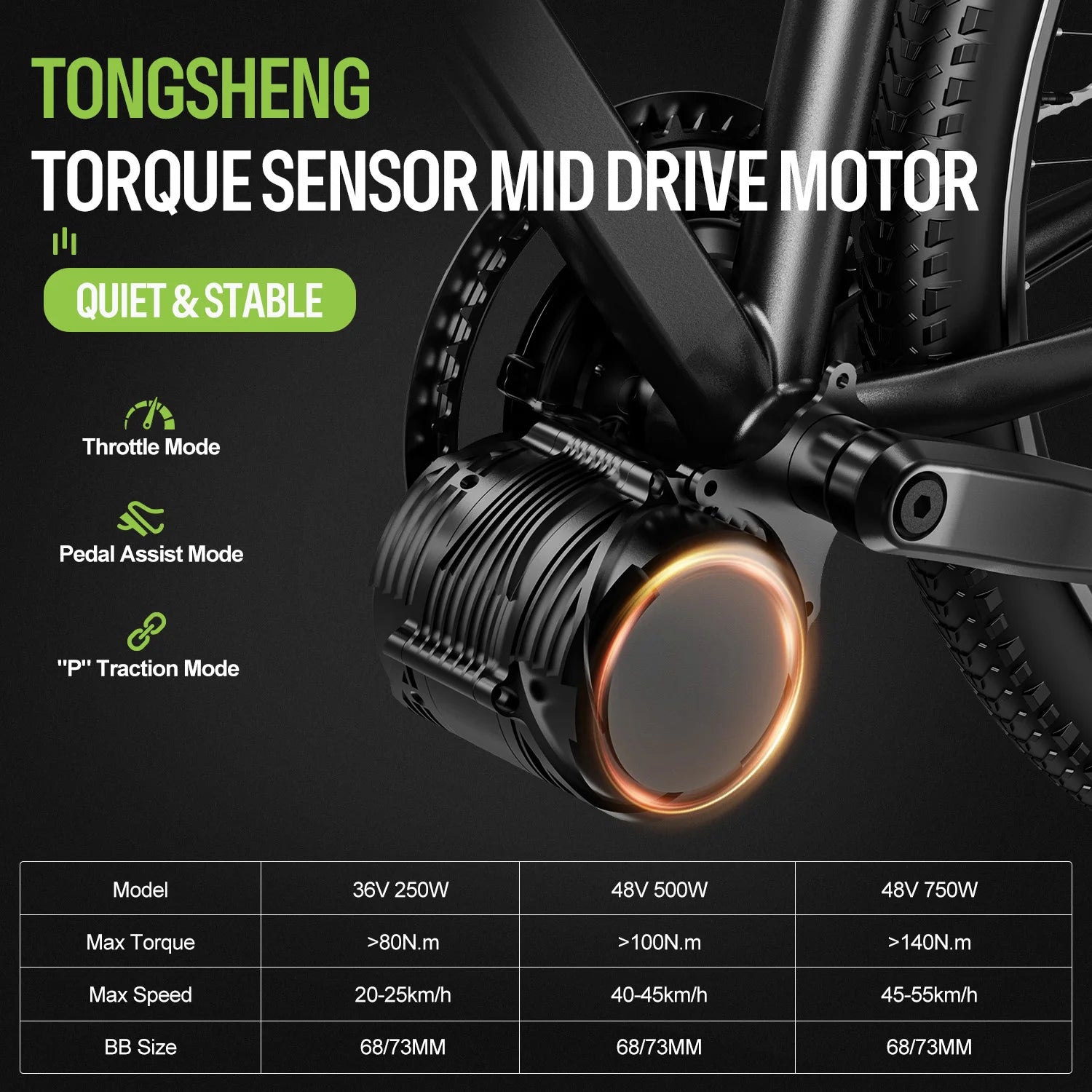

Tongsheng Mid Drive Motor - TSDZ8 & TSDZ2B



》》》Torque Sensor Technology:  Both models feature advanced torque sensor technology that automatically adjusts power assistance based on your pedaling force, providing a natural and responsive ride feel.



》》》Quiet Operation: Experience a smooth and quiet ride, thanks to the innovative design that minimizes noise, so you can enjoy the beauty of your surroundings.



》》》User-Friendly Installation: Widely compatible with BB 68-73mm bottom bracket, easy to install on most bike frames, making it a hassle-free upgrade for your e-bike setup



Upgrade New Version



New Designed, Better Efficiency, Better Riding Experience

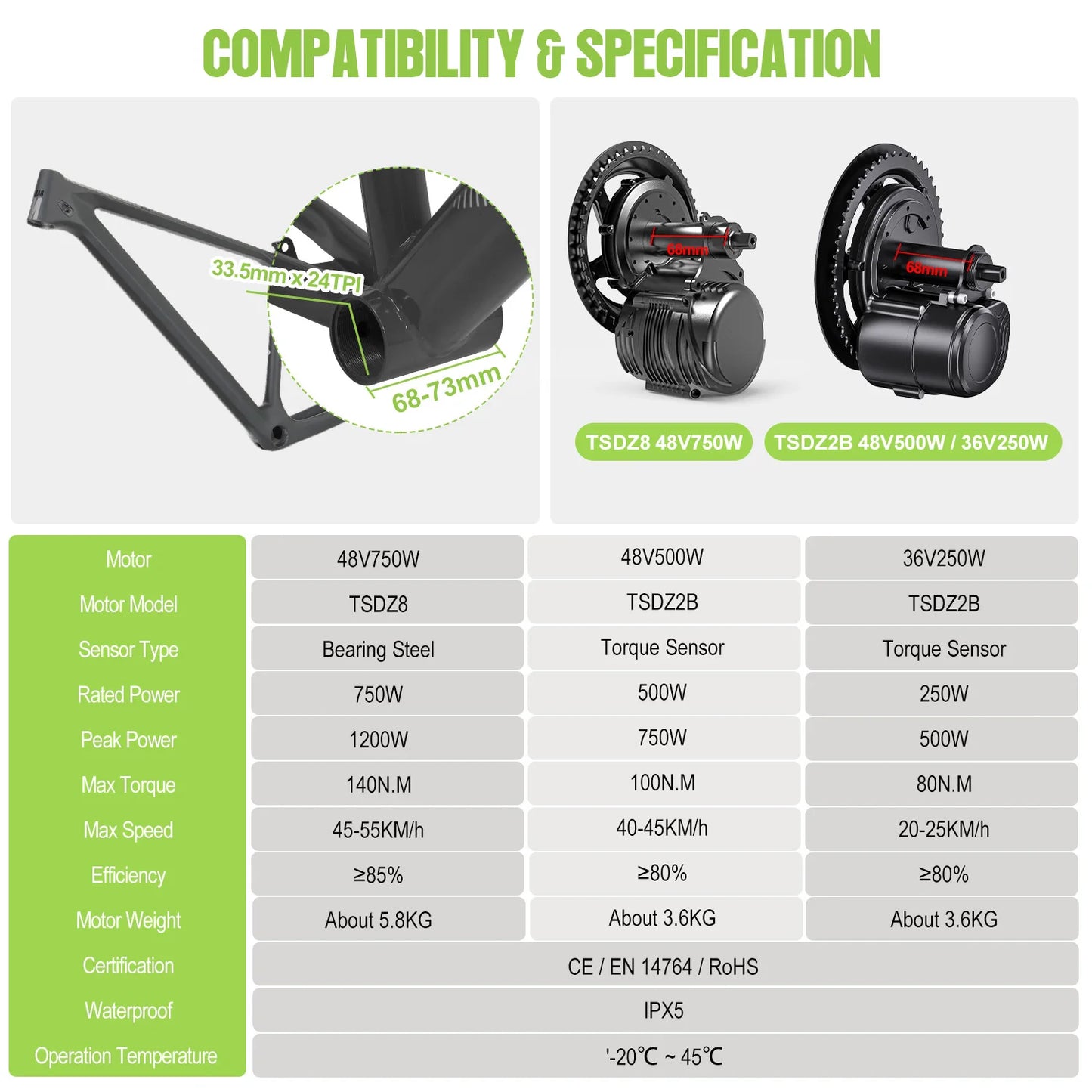

Universal Compatibility



Fits most bikes in market with 68-73mm bottom bracket; The Tongsheng TSDZ2B motor is compatiable with mountain bike,road bike ,city bike and so on.

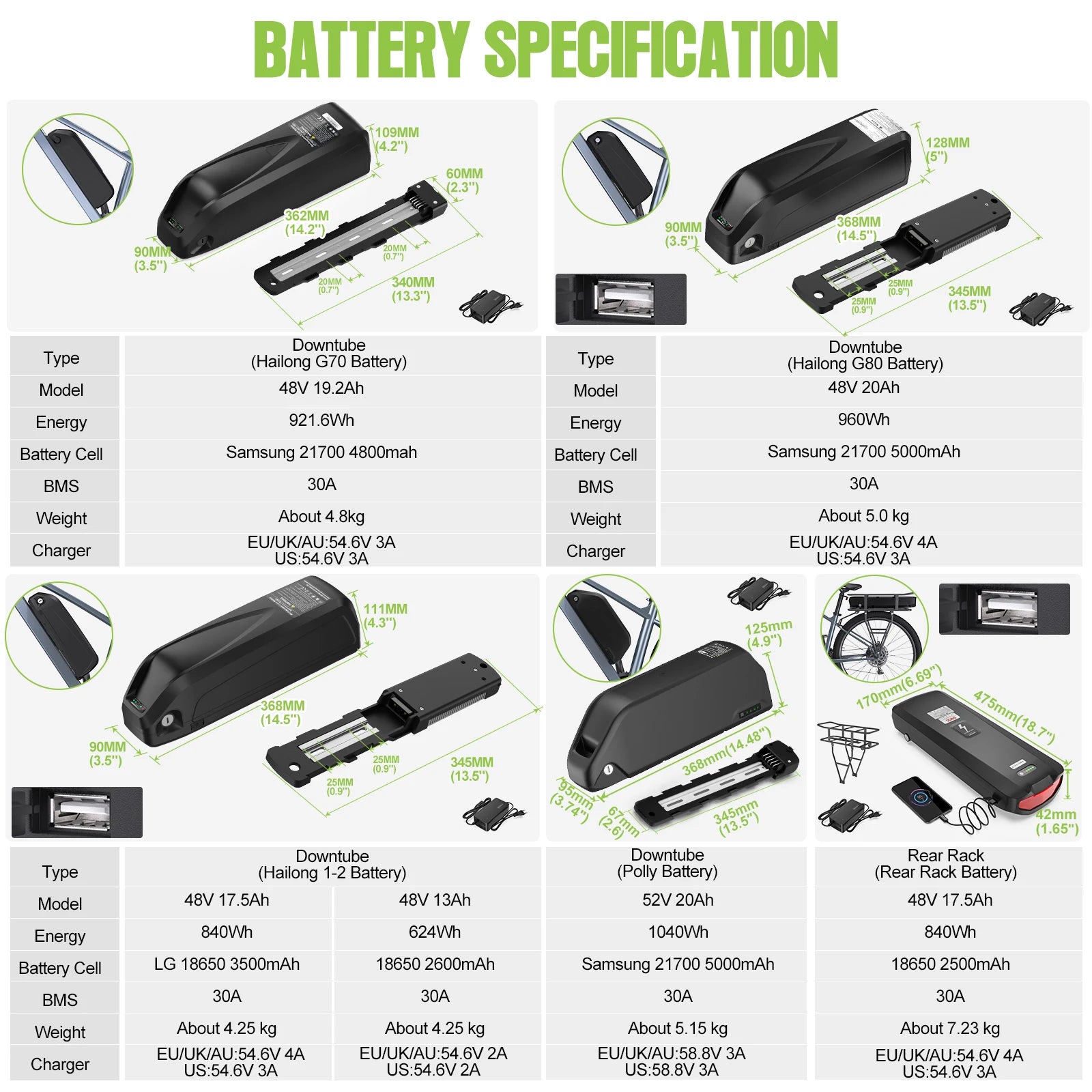

Ebike Battery Option



Performance engineered, Greenergy batteries always get you there. Combining the latest technology and years of industry know-how, we have developed lightweight, fast-charging, long-life batteries that provide the highest level of efficiency. From intube to racktype, the range will meet the needs of any project. With such diverse options, We has the solution to power-up any eBike.

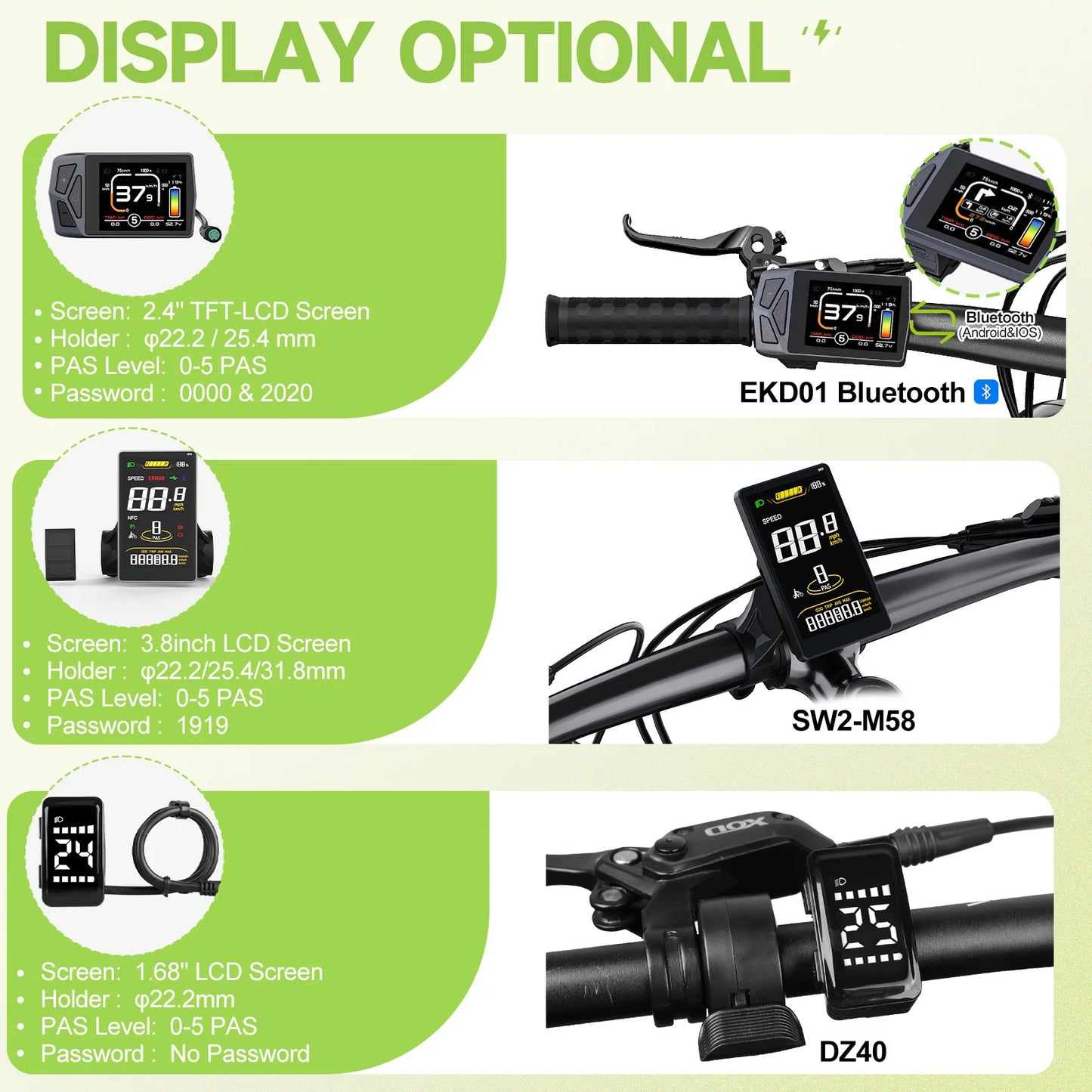

### DZ40 / SW2-M58 / EKD01 Display Option



If you need he most cost-effective display, we recommend the DZ40. It is the mini display with 1.68 inch LCD Screen. It has 0-5 PAS mode option. Its holder fits for φ 22.2mm handlebars.



The SW2-M58 is our new arrival. It is with 3.8 inch big and vertical screen. It has 0-5 PAS mode option, too. Its holder fits for φ 22.2 / 25.4 / 31.8mm handlebars.

As for the EKD01, it is a versatile display. Equipped with Bluetooth and navigation capabilities, the EKD01 allows you to download a smartphone app for seamless navigation through a Bluetooth connection. With support for 8 languages setting (English, Français, Deutsch, Español, Italiano, Polski, Netherlands, čeština), it offers a user-friendly experience for cyclists from various backgrounds.



### Motor Wirings



Unlike other sellers of Tongsheng motors, we have upgraded the cable and connector for TSDZ8 and TSDZ2B motor with a focus on enhanced performance and waterproof capabilities. The battery connector has been upgraded from a bullet connector to an XT60 connector, and the main cable has been enhanced to a 1T4 EB-BUS cable. This not only simplifies installation but also improves waterproof performance and opens up possibilities for diverse DIY modifications. These features are not included in Tongsheng motors sold by other sellers.

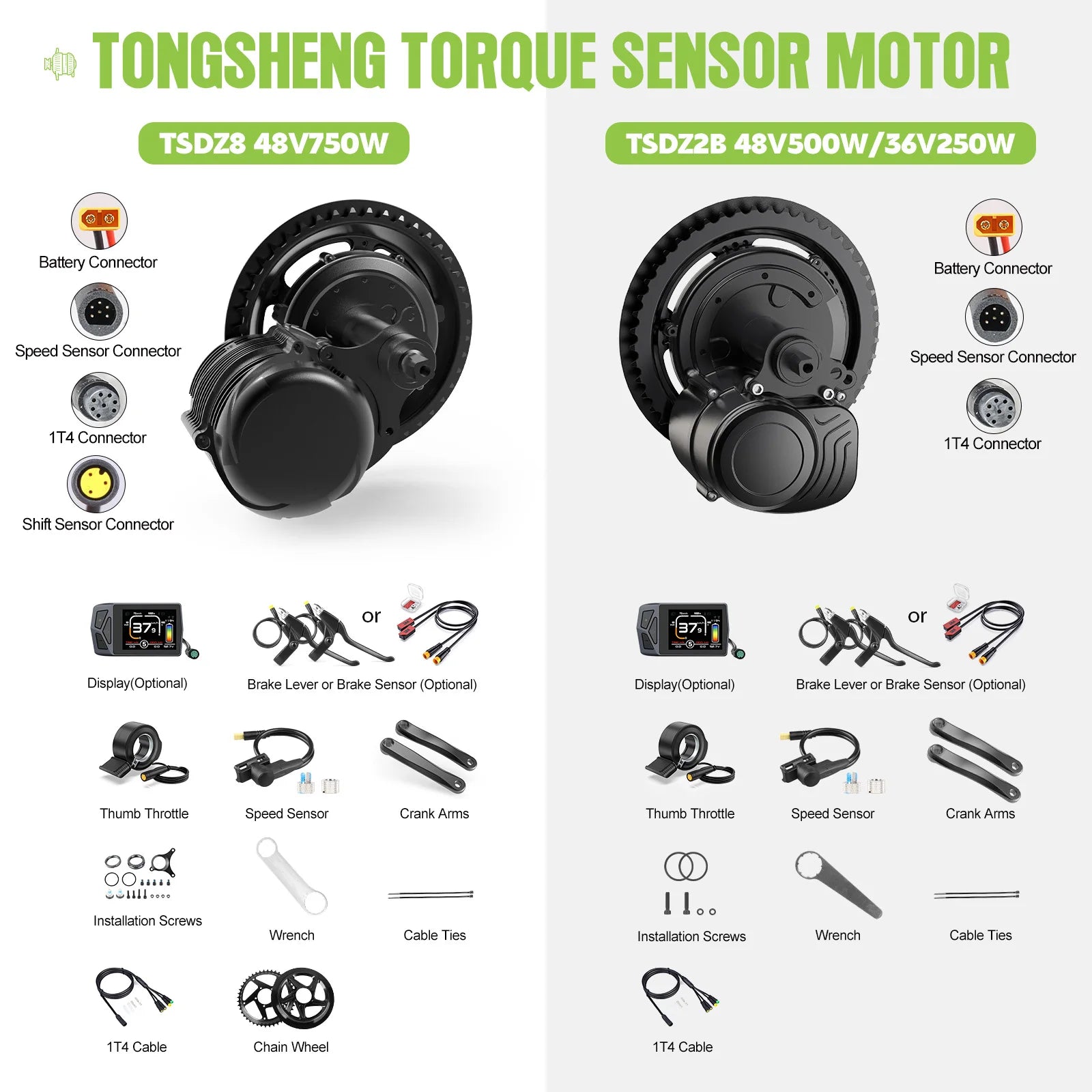

### Packing List



1 PC Motor

1 PC Display (Option)

1 PC Thumb Throttle

1 PC Speed Sensor

1 PC 1T4 Cable

1 PC Chainwheel

1 Pair Brake Lever or Brake Sensor (Option)

1 Pair Crank

1 Set Installation Screws

1 PC Wrench (Free Gift)

1 Set Cable Ties (Free Gift)
