SPECIFICATIONS

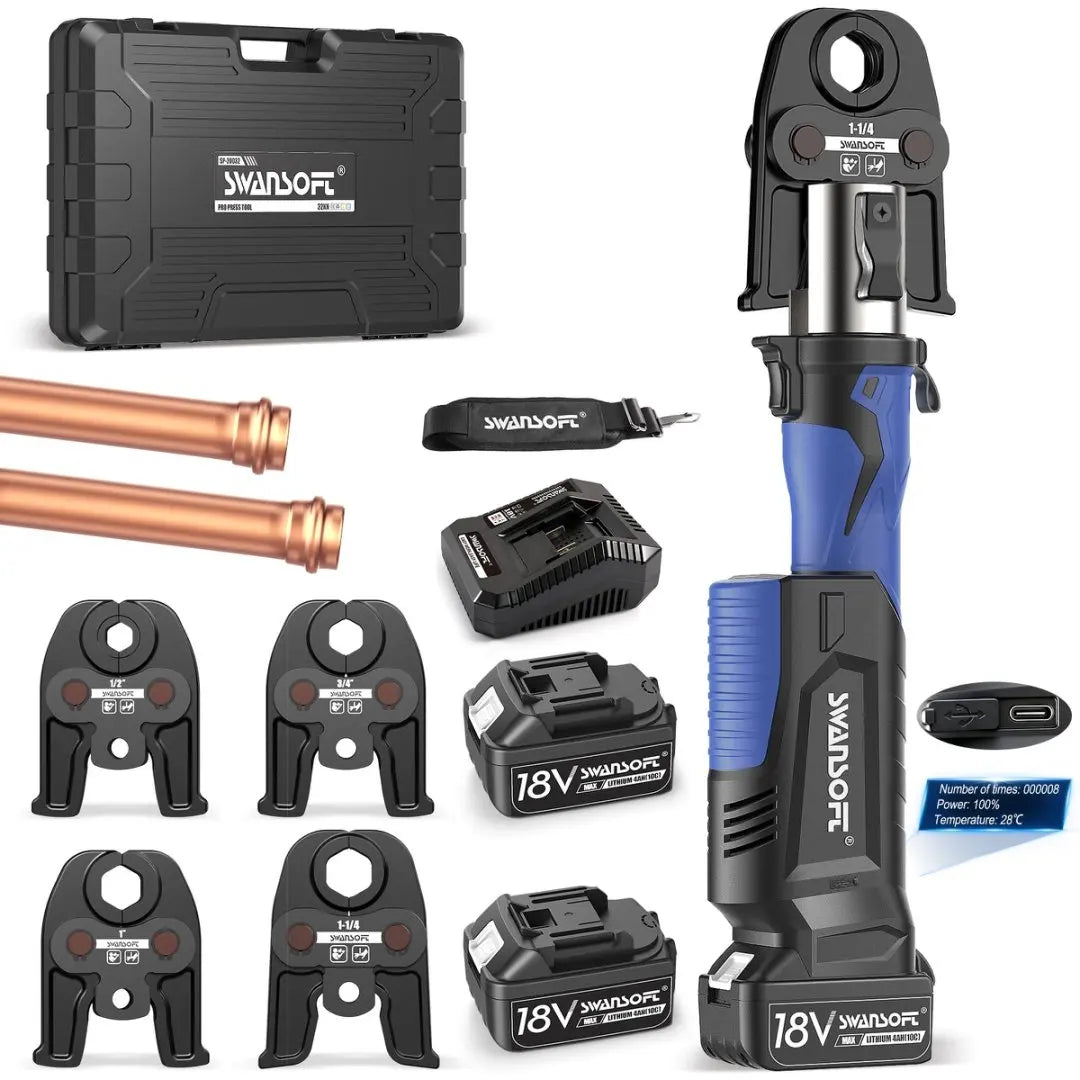

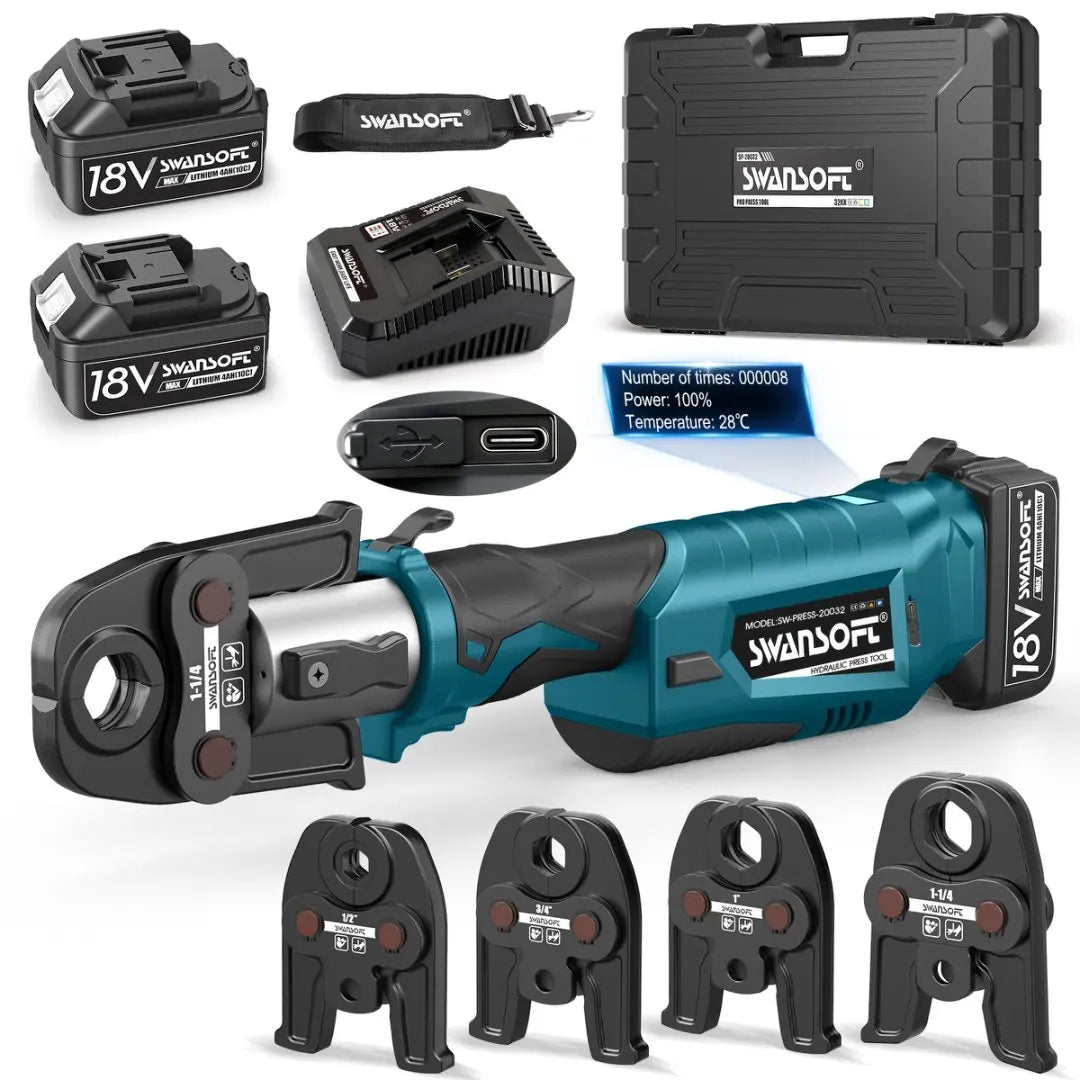

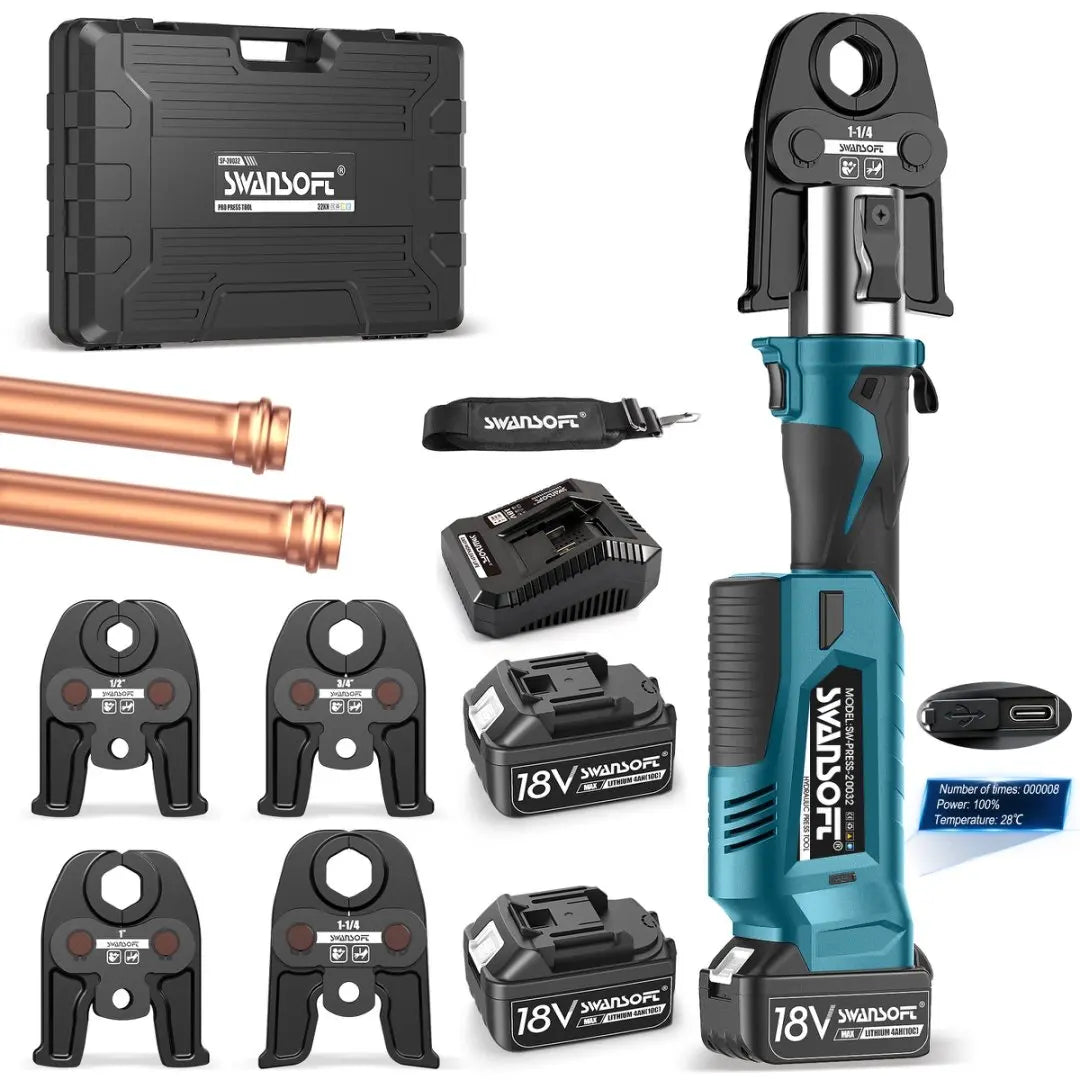

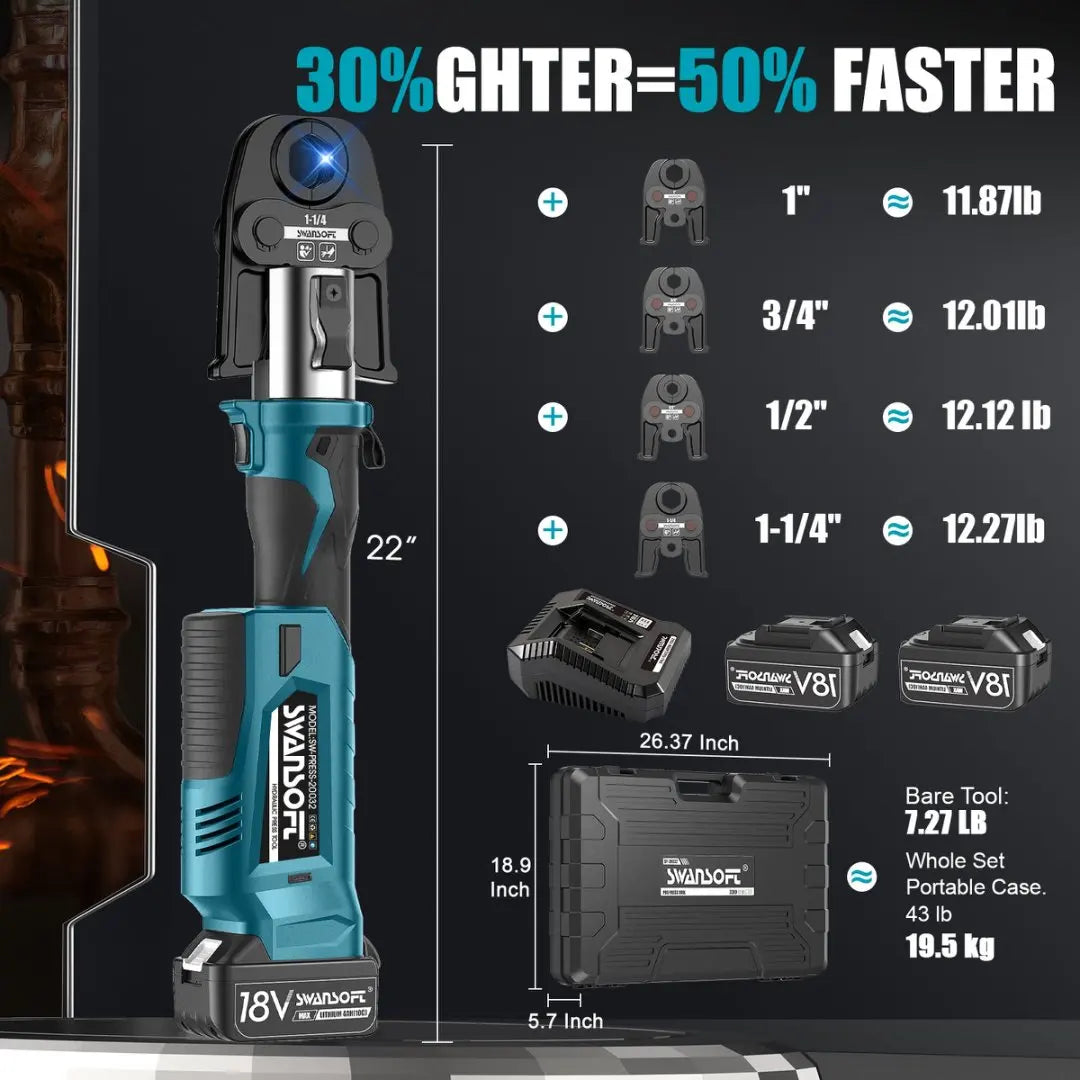

1/2" 3/4" 1" 1-1/4" Copper Pipe Jaws 32kN Copper Pipe Crimping Tool With 4 US Standard Jaws&Dual 18V 4Ah Battery
Crimping Range: VUS 1/2" to 1-1/4"
Electrified: Yes
Handheld: Yes
Motor: Brushless
Movable: Yes
Power Source: Battery
Use: Renovation Team
Voltage: 18V
NOTE: If you need to crimp PEX or stainless steel tubes, please purchase the corresponding press dies separately.
Specifications:
Crimping Time：3-5s（1/2"）
Oil Storage：5.61oz（166ml）
Max Pressure：50 MPa
Max Output Force：32 kN
Crimping Range：12-54mm
Working Stroke：1.57"（40mm）
Compact Scissor Style Jaw Set：VUS1/2",VUS3/4",VUS1",VUS1-1/4"
Hydraulic Oil：15# Low-temperature Anti-wear Hydraulic Oil
Operation Temperature：-10℃ to 40℃
Crimping Cycles Per Charge：About 200 times（3/4")
Charging Power：100V-240V,50-60Hz
Charging Time：≈2 hours

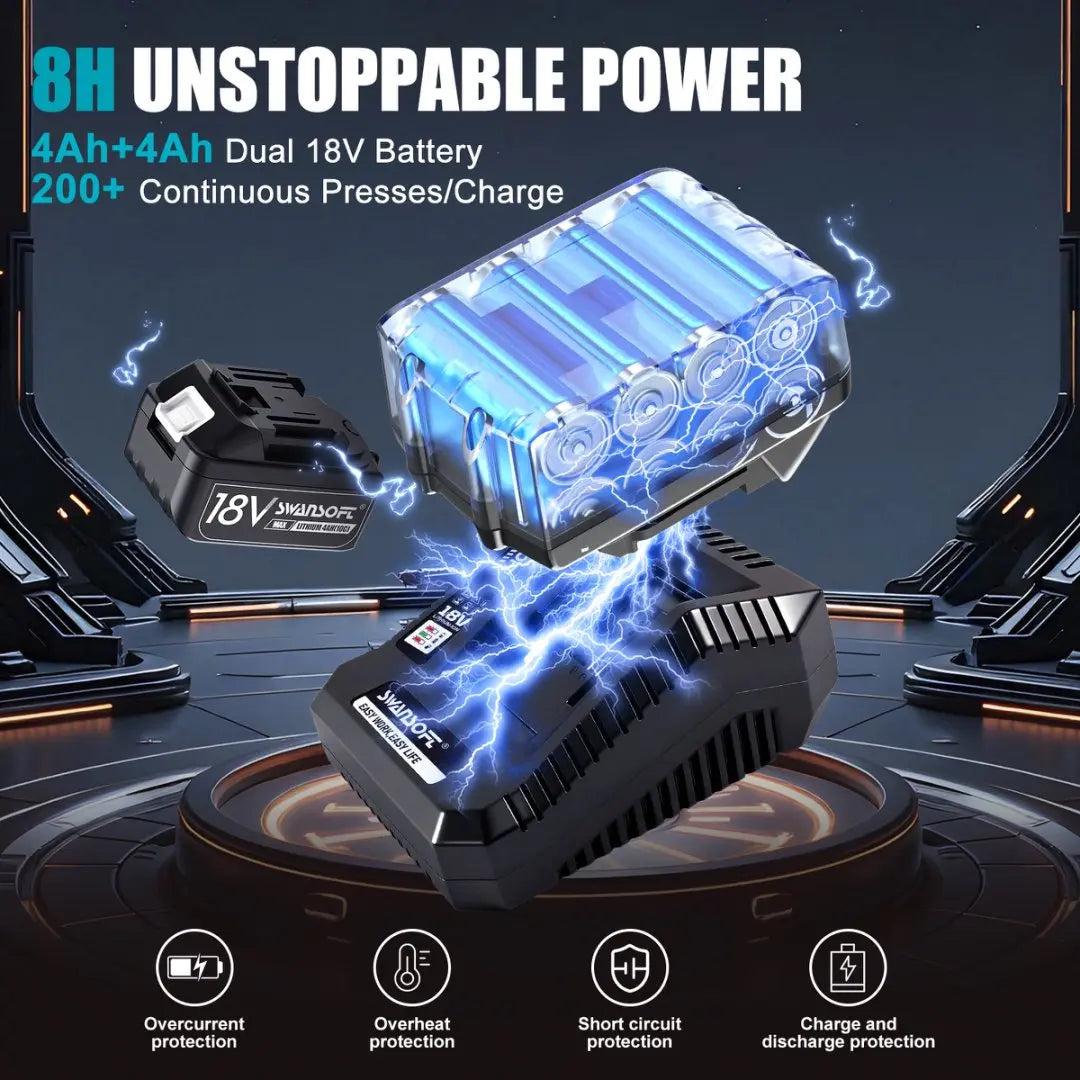

Battery：18V 4Ah*2
Features:
1.[Premium Materials & Powerful Performance]PA and aviation-grade 7075-T6 aluminum alloy body, 299,000+ cycle trigger switch, 18V motor delivering 32 kN force and 50 MPa pressure, 3-4s per crimp, 200+ crimps/hour.

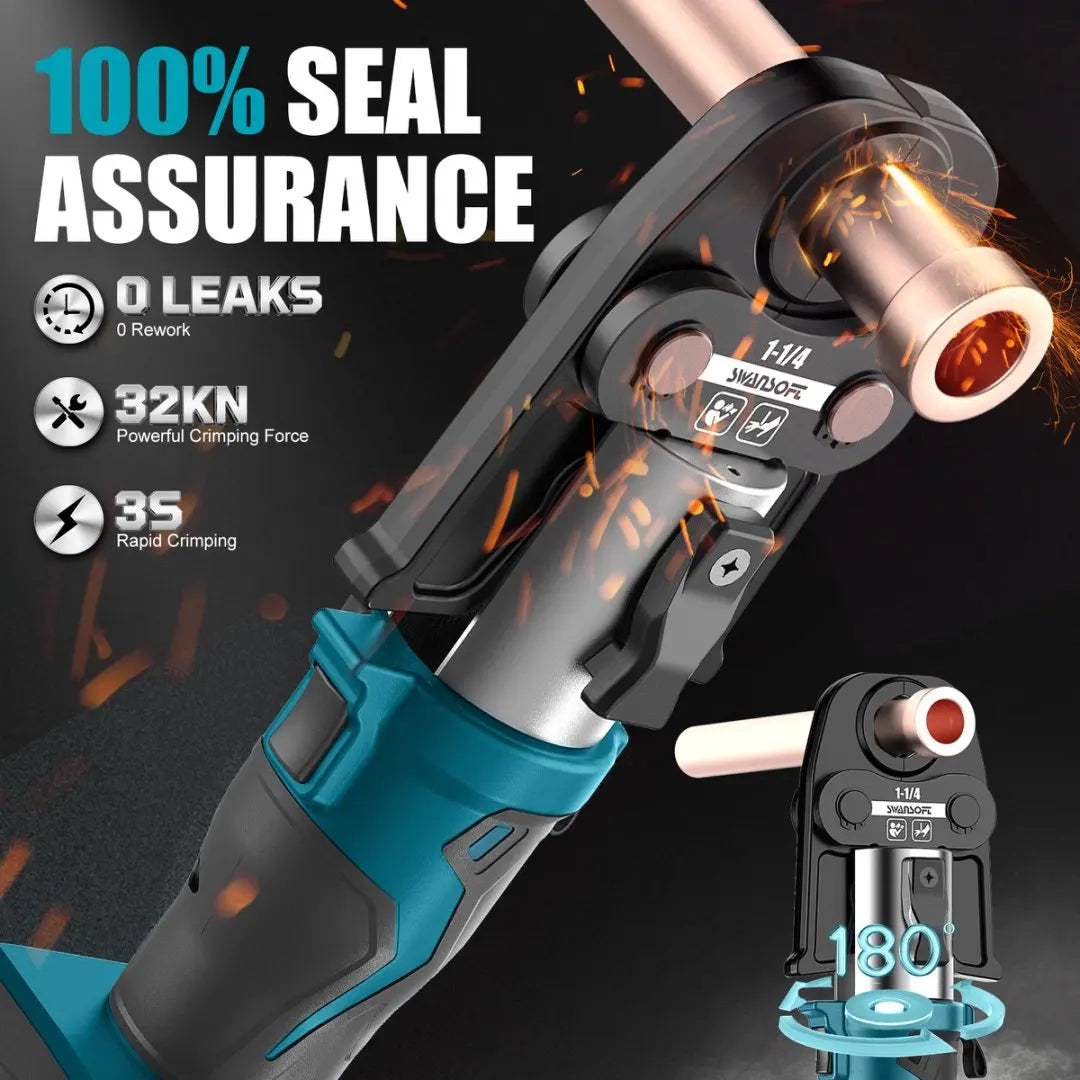

2.[Superior Efficiency & Flexible Access]30% more efficient than other pro press tools, 50% more than standard ones, safer than welding, 180° rotatable jaw for confined spaces.
3.[Smart Cooling & Circuit Protection]Dual turbo-fan system: 30% better heat dissipation, 50% lower noise (≤68 dB), oversized power MOSFET boosts performance by 50%, conformal coating protects circuitry.
4.[U.S. Standard Jaws & Extended Lifespan]Includes VUS 1/2", 3/4", 1", 1-1/4" jaws for U.S. pipe sizes, 7075-T6 aluminum with ultra-hard alloy reinforcement, 50,000+ crimping cycles (3X standard jaws), 99% zero-leak rate.

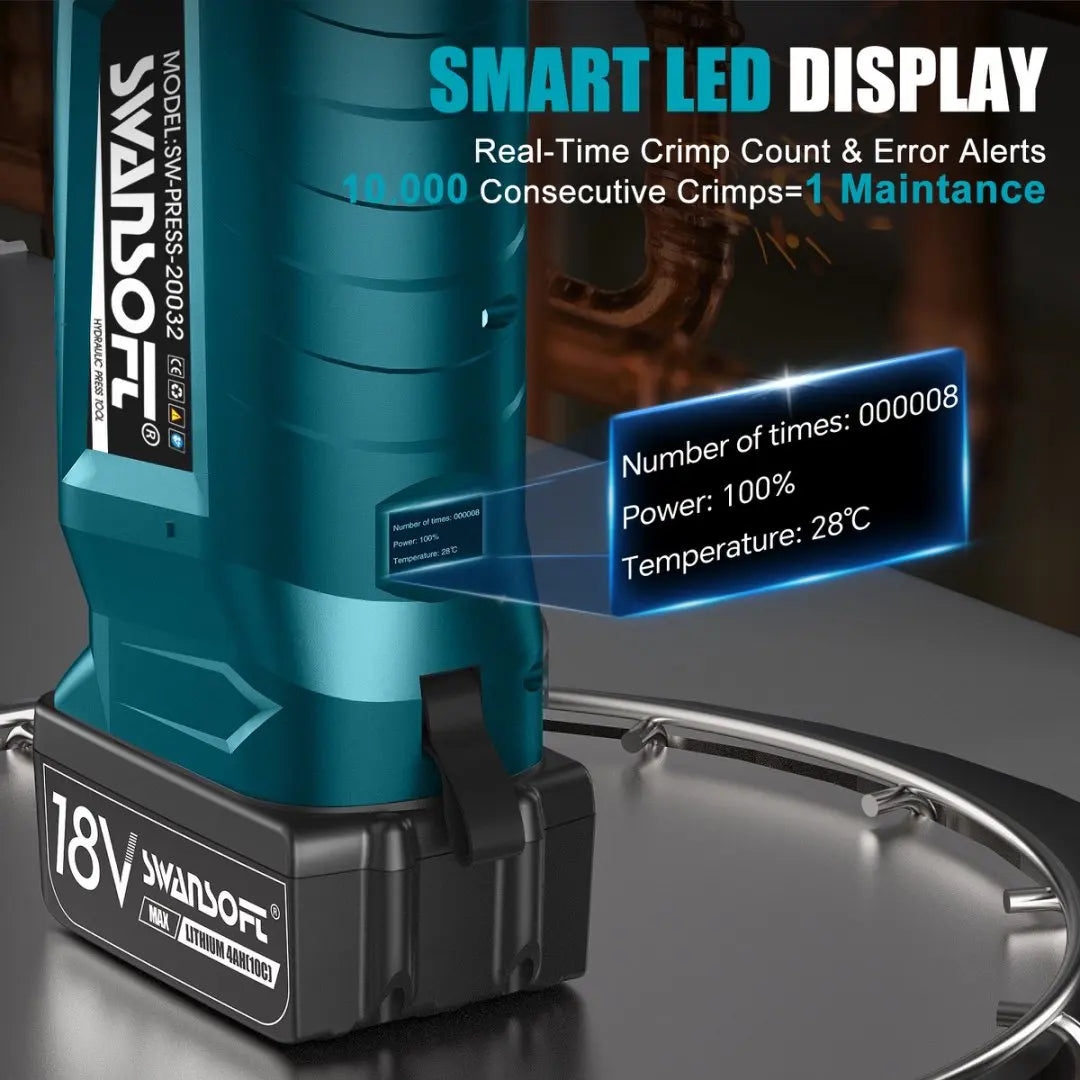

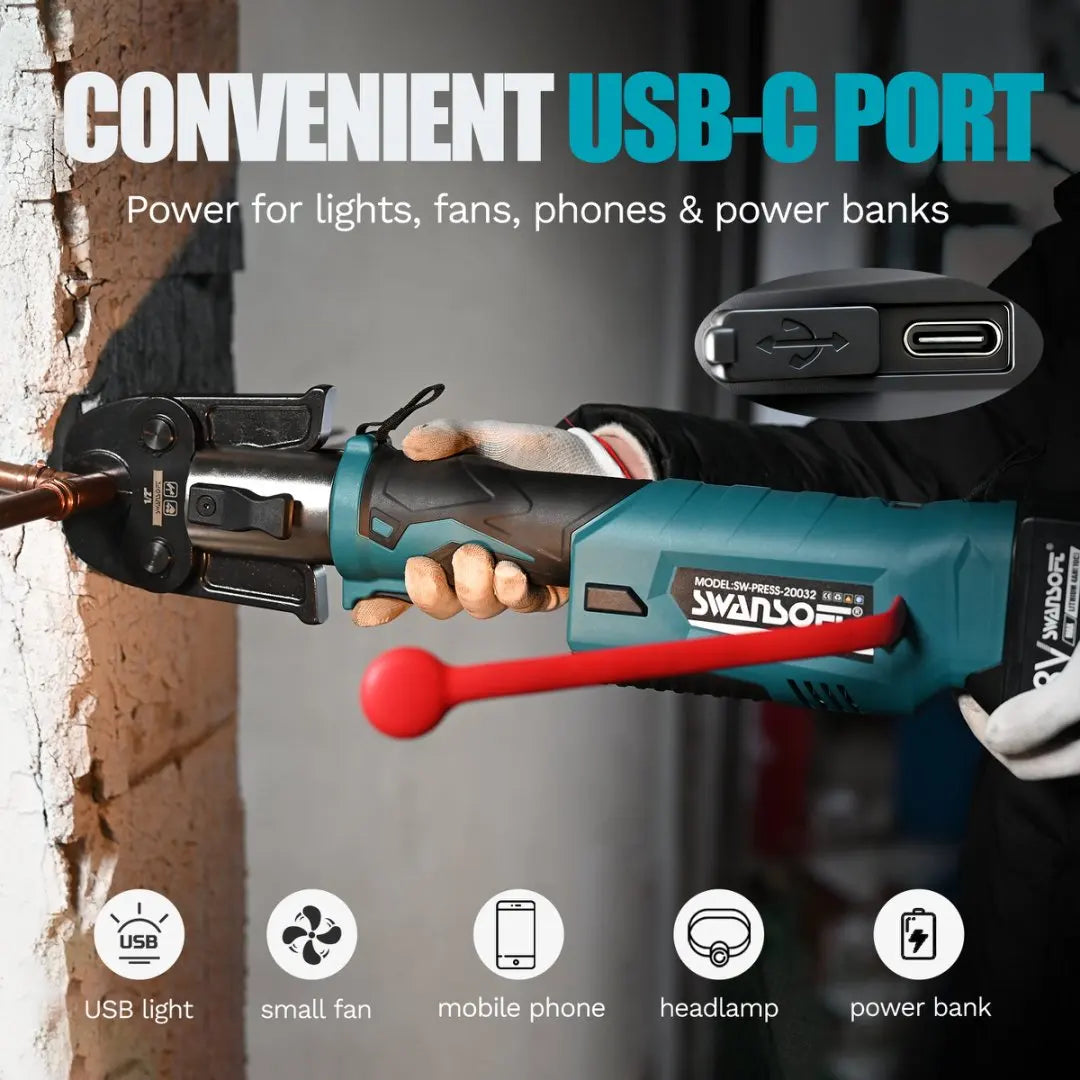

5.[All-Day Battery, Smart Display & Ergonomic Design]2 x 18V 4.0Ah batteries, OLED display (crimp count, battery, temperature), 10-year validated control system, quadruple-protection charger, anti-slip handles, jaw lock, shoulder strap, USB-DC port for LED light.
