SPECIFICATIONS

Application: Wood Working Tool

DIY Supplies: Woodworking

Model Number: Metal Concealed Hinge Jig,Metal Concealed Hinge Jig

Package: Case

Type: Combination

is_customized: No

Features:

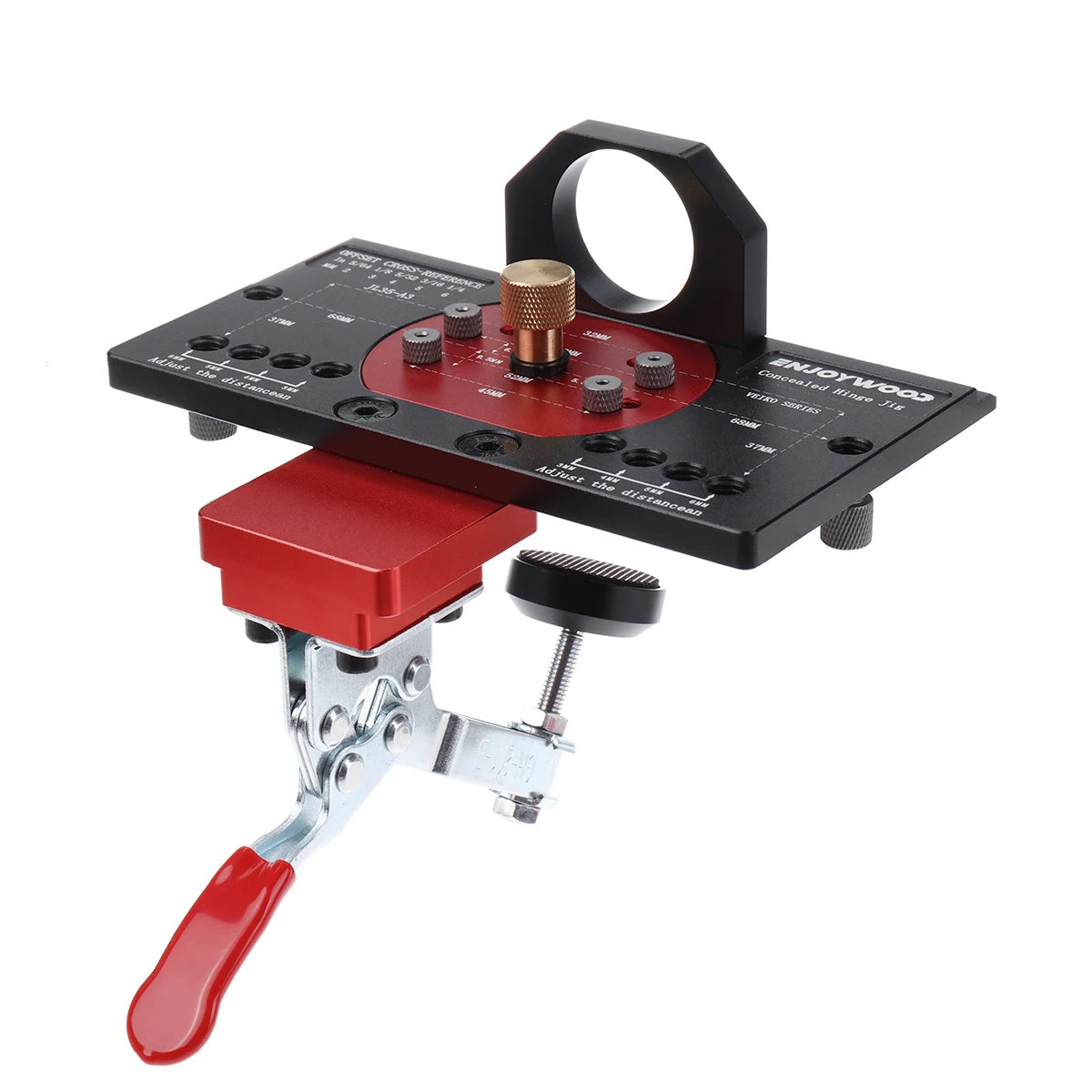

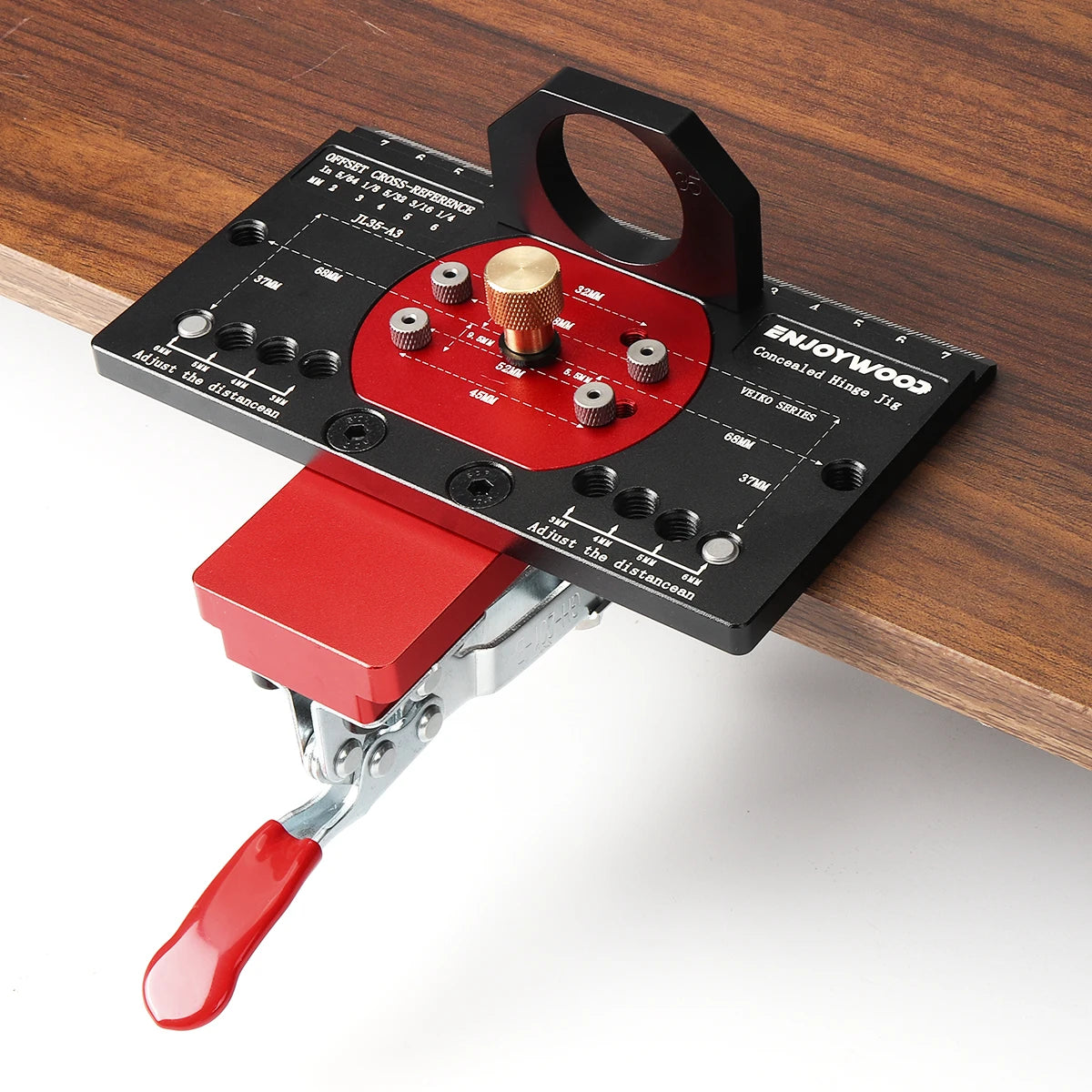

1. Accurate: The all-metal construction of this hinge jig, crafted from high-quality aluminum alloy, offers improved accuracy over plastic alternatives. Its built-in double bearings facilitate continuous drilling.
2. Dust-Free Operation: The jig features an in-built metal dust bracket suitable for 1-3/8 inch vacuum hoses, ensuring a clean, dust-free working environment and more efficient installation of cabinet hinges.
3. Easy to Use: This tool allows rapid depth setting for cabinet hinge holes without the need for additional measuring, with drill depth ranging from 0-0.6 inches.

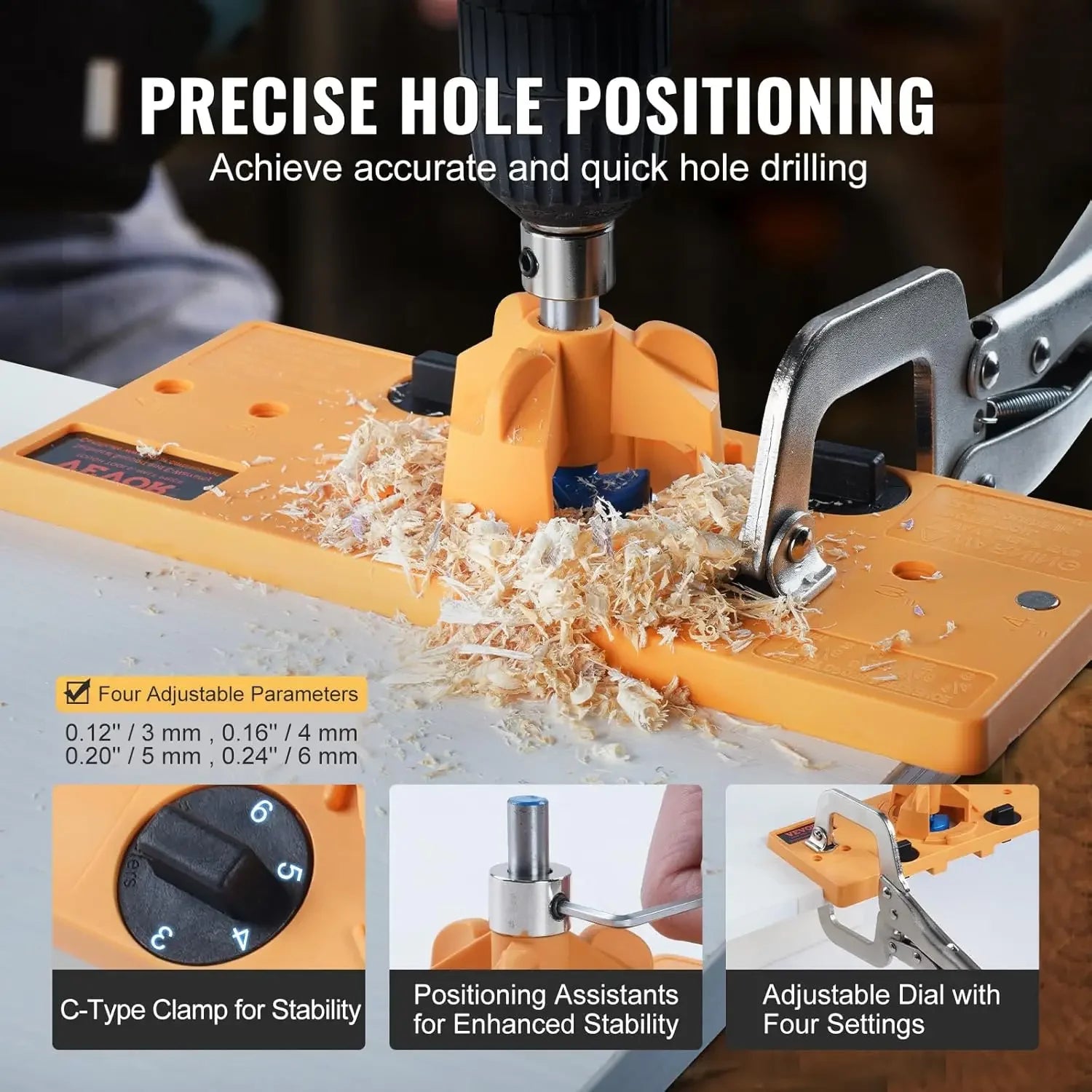

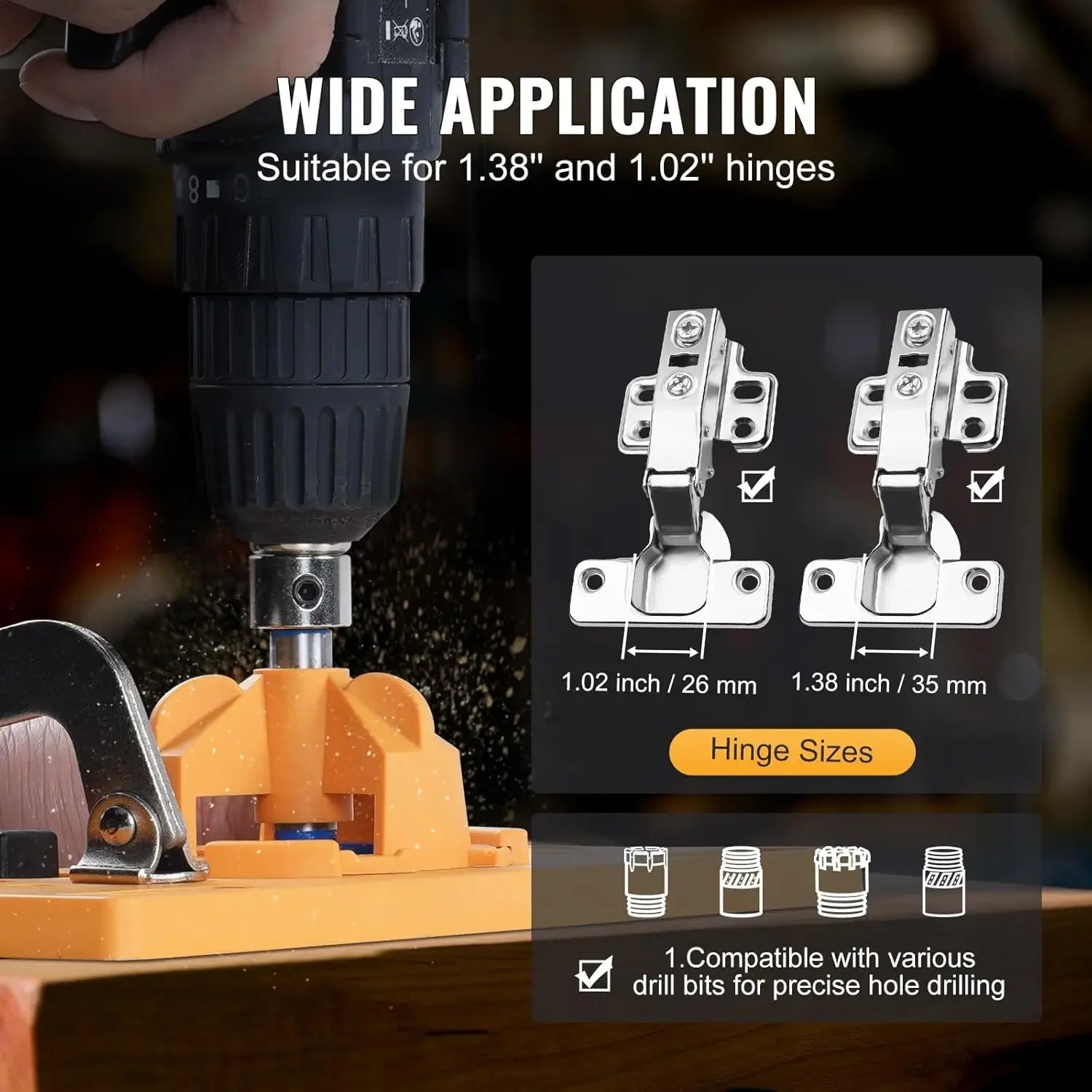

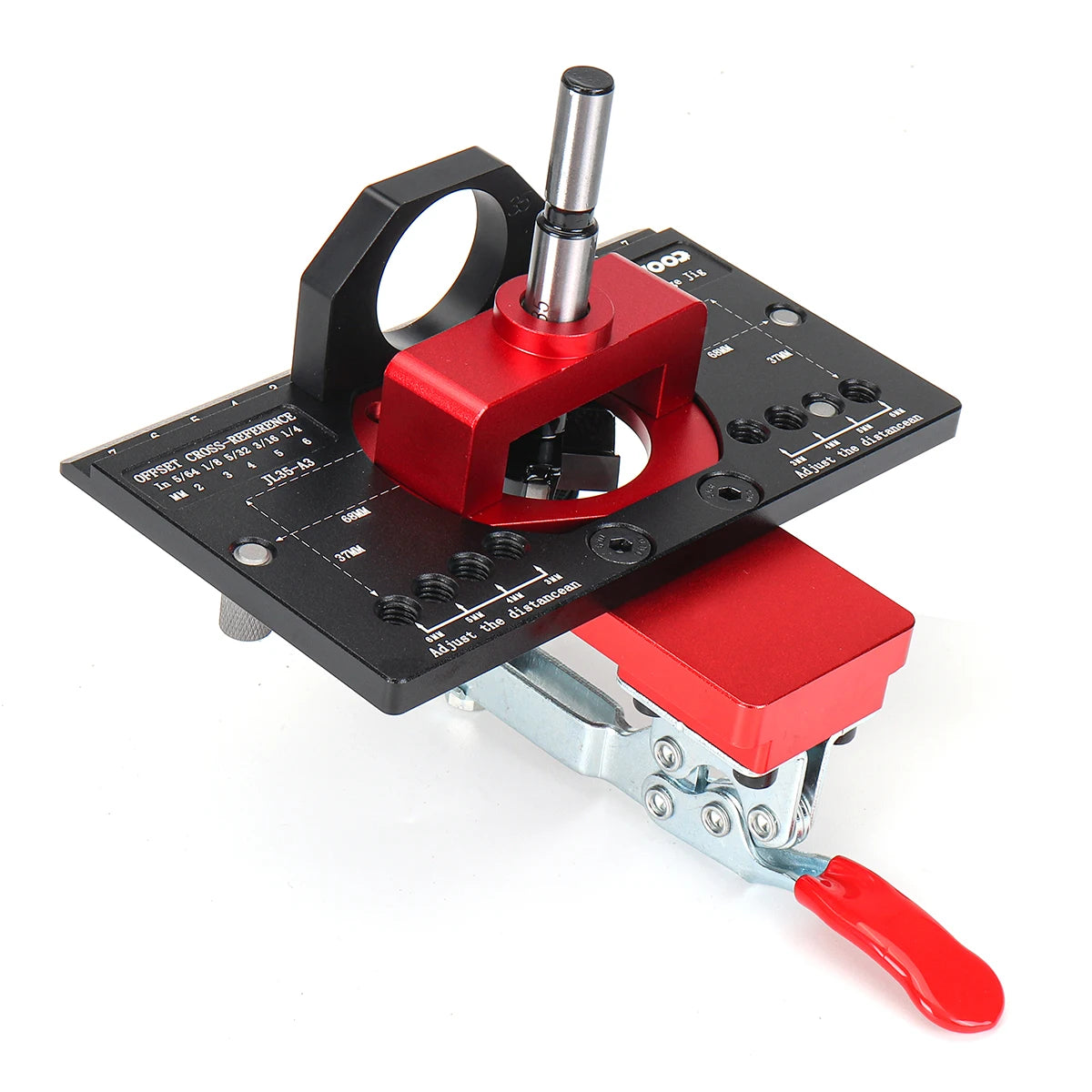

4. Versatile: The hinge jig caters to multiple hinge offsets, including 3mm, 4mm, 5mm, and 6mm, making it adaptable to most concealed hinges. The provided drill guides offer versatile hinge screw hole spacing for numerous concealed cabinet door hinge installations.

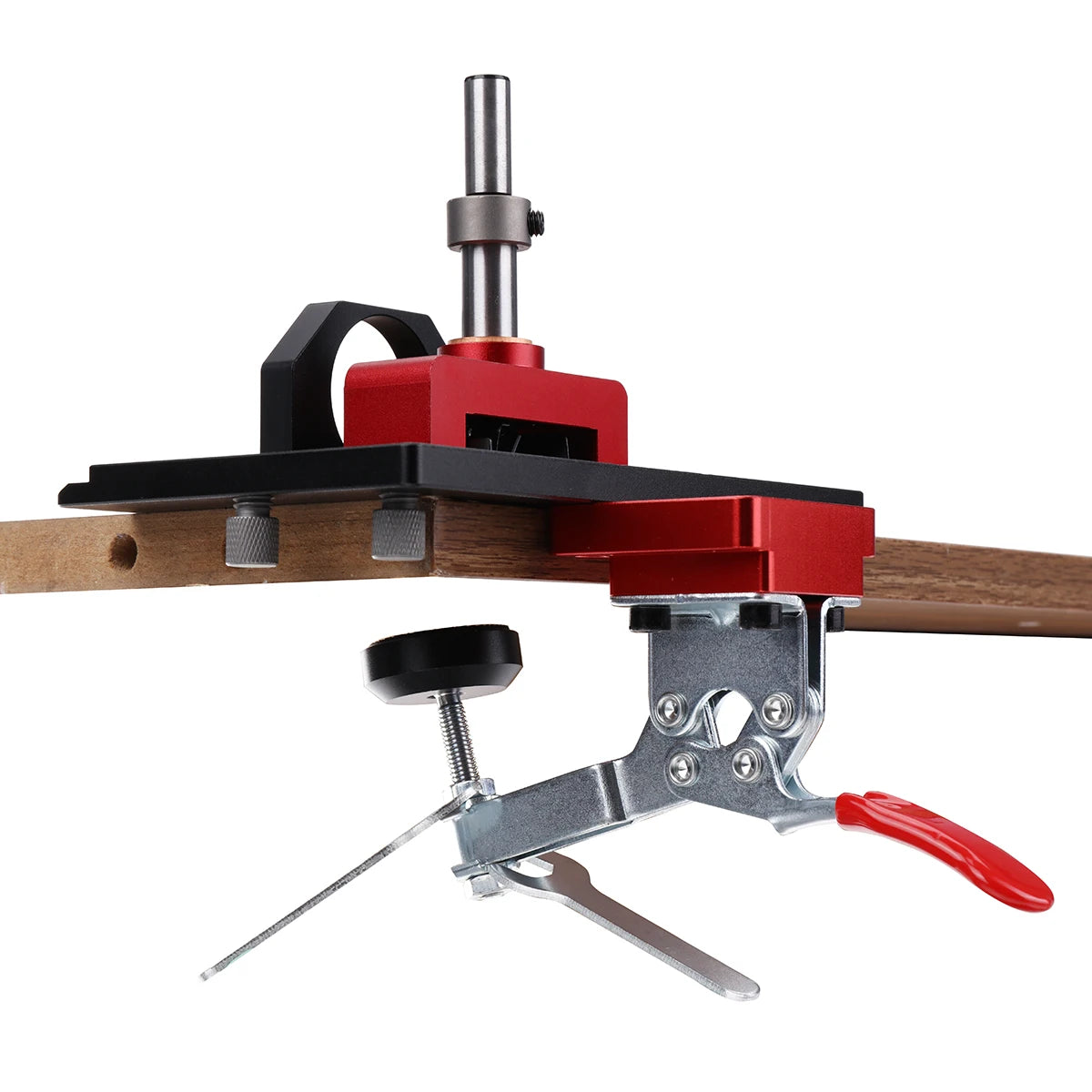

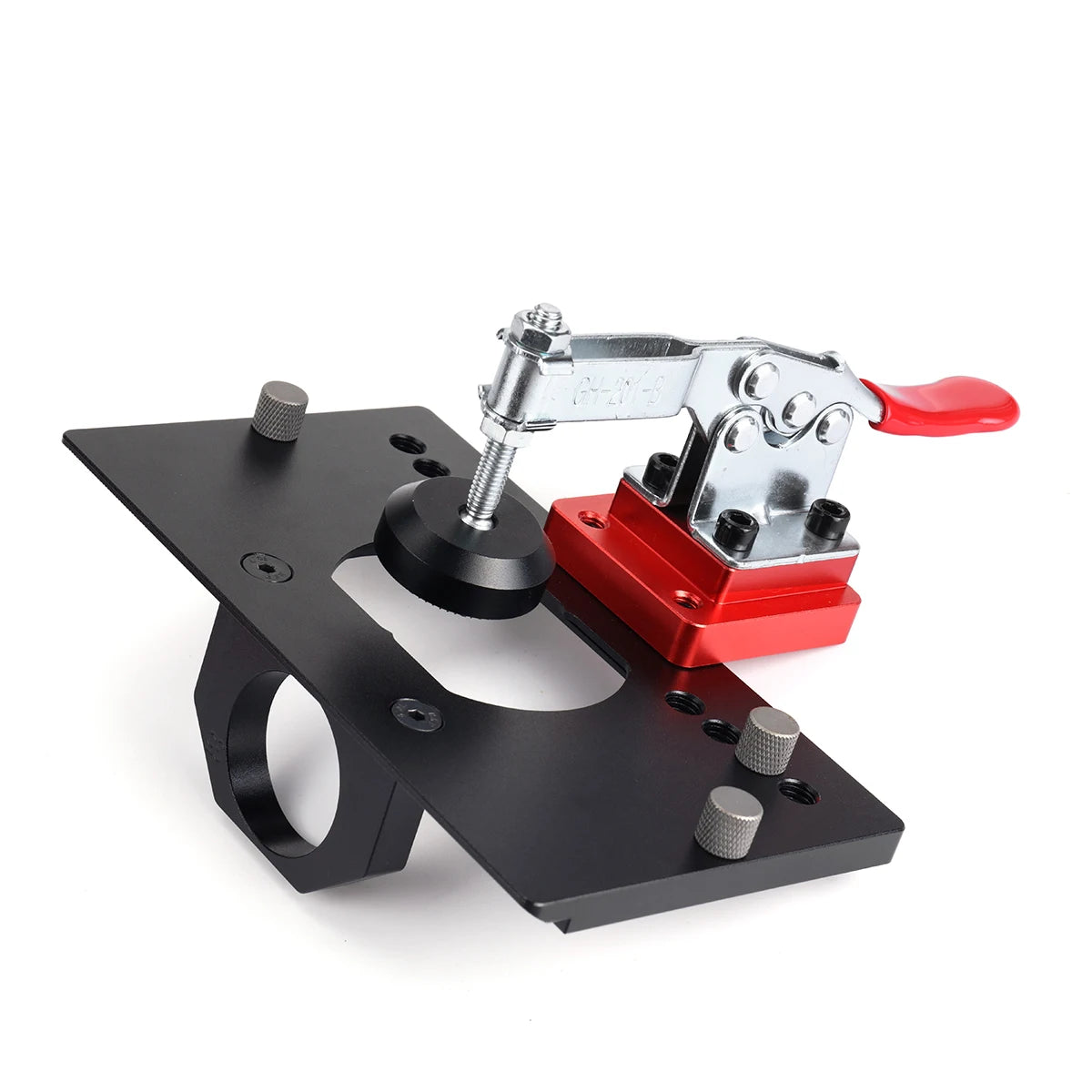

5. Quick Clip Design: The pro max type 35mm hinge hole drilling jig features a quick for fast and secure fixing to the workpiece, saving time and simplifying woodworking processes.

Specifications:

Material: Aluminum Alloy
Hinge Offsets: 3mm, 4mm, 5mm, and 6mm
Drill Depth: 0-0.6 inch
Suitable for: 1/2 inch overlay hinges

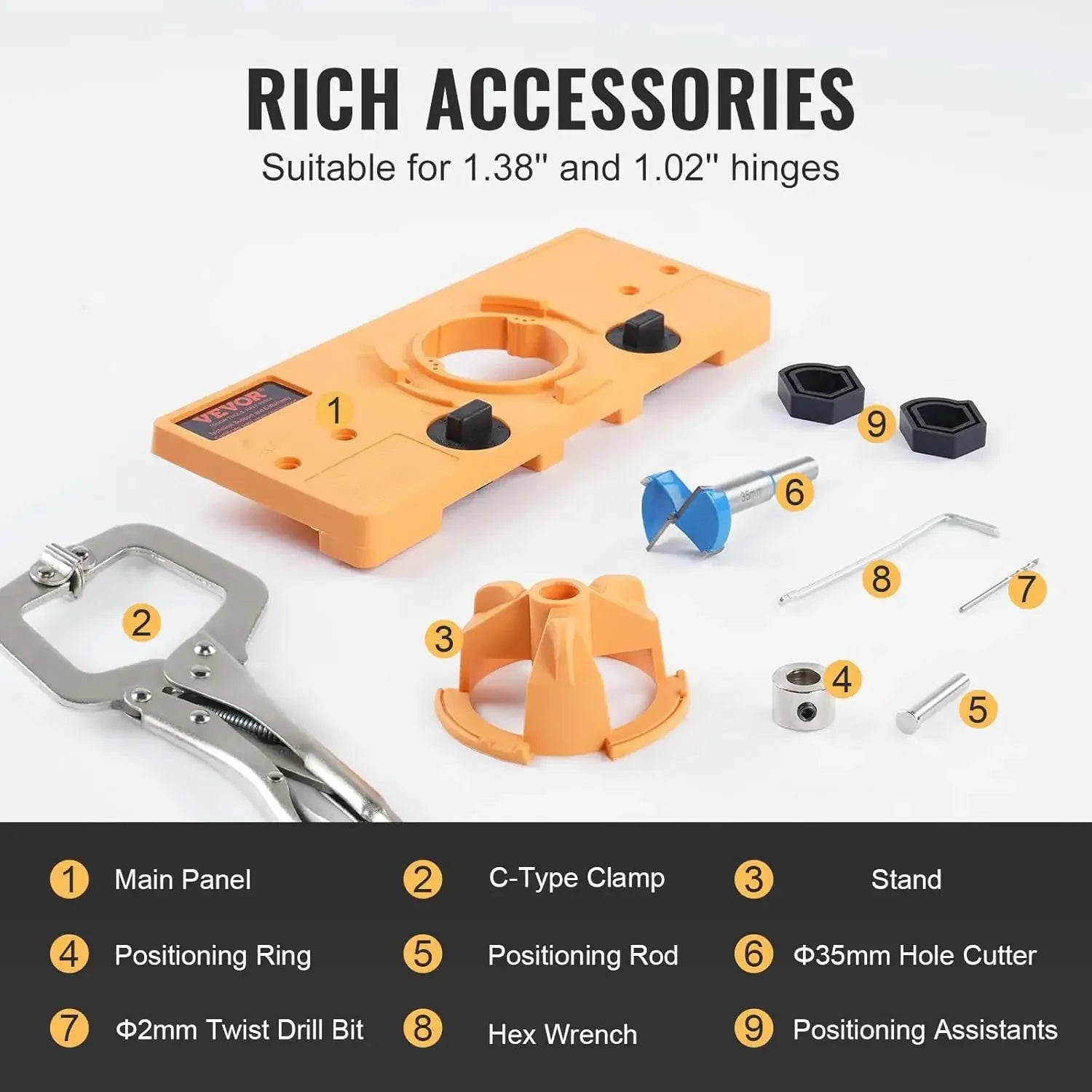

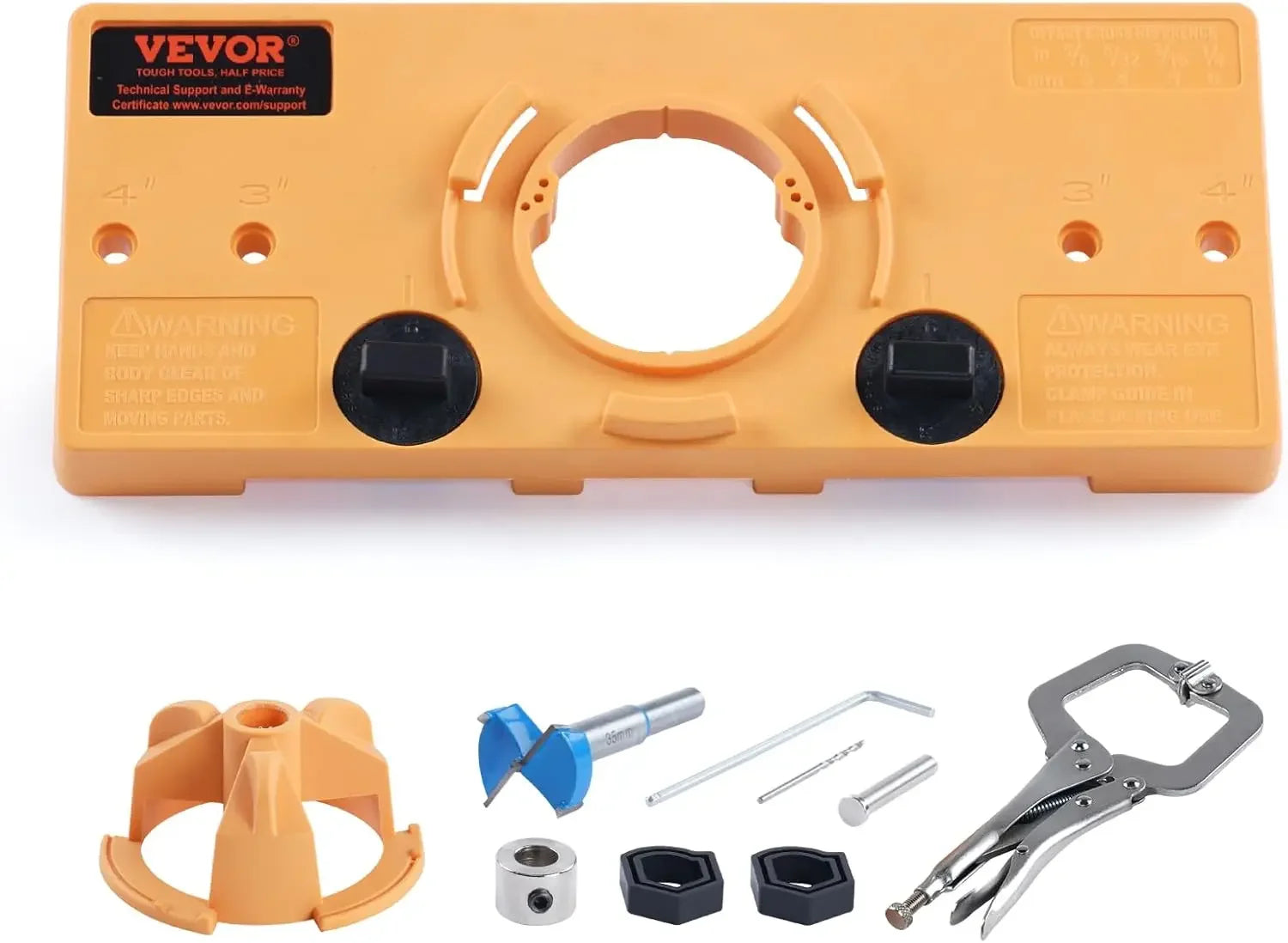

Package Included:

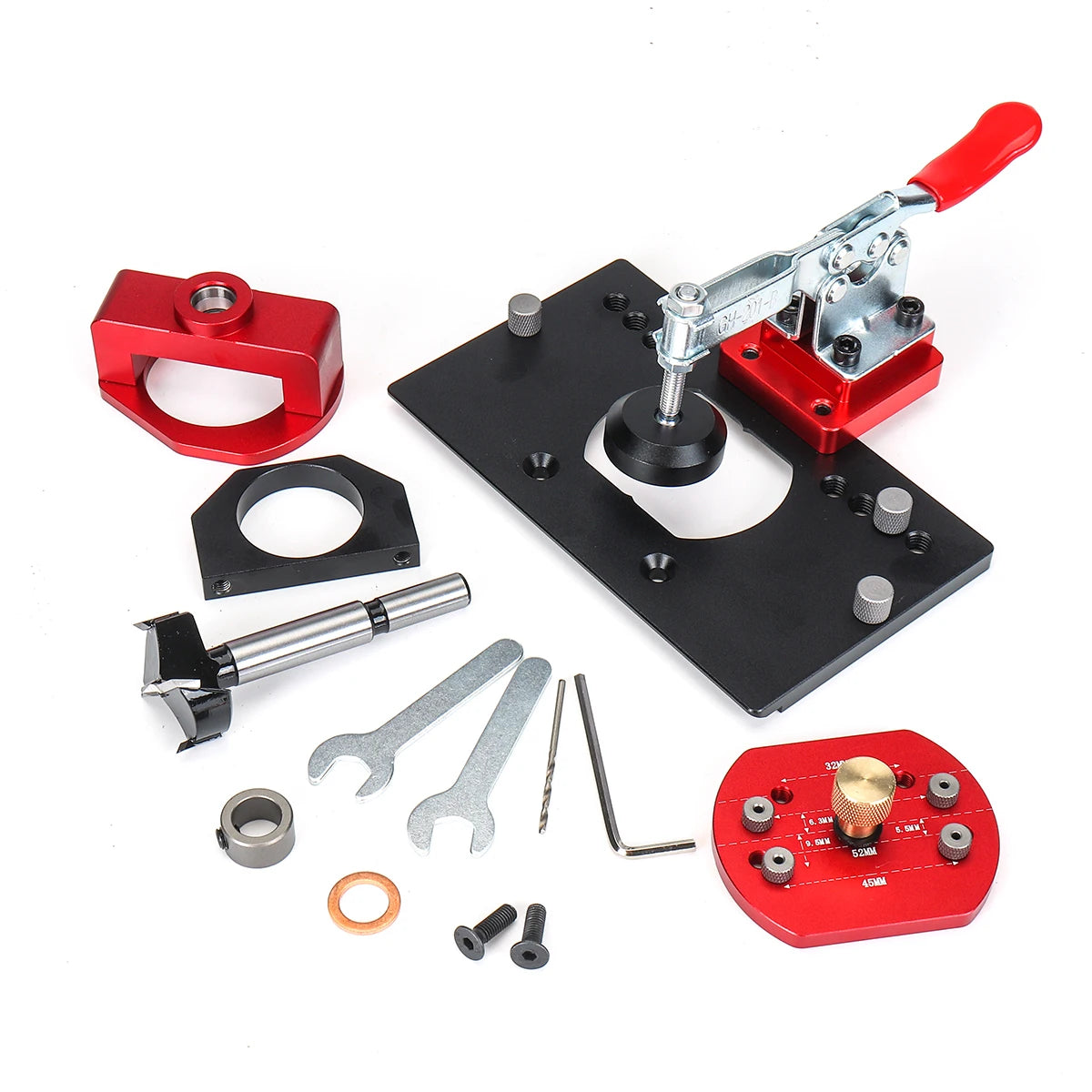

1 x Concealed Hinge Jig
