SPECIFICATIONS

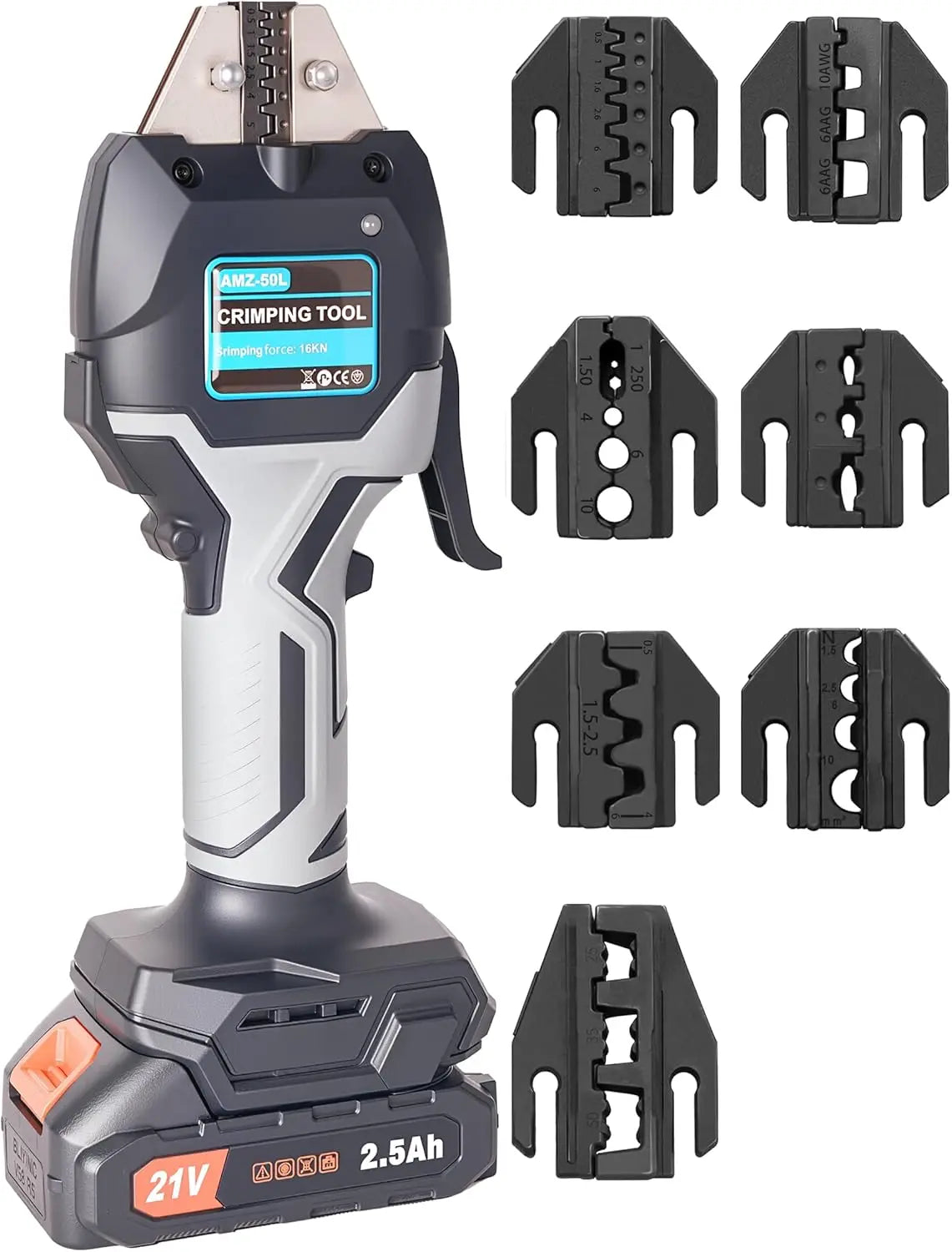

Battery-Operated Terminal Crimper Kit, Electric Wire Crimping Tool with 7 Interchangeable Dies, 0.5-50mm² (20AWG-0AWG) for Ferrules and Wire Terminals

Electrified: No

Handheld: Yes

Movable: Yes

Power Source: Ac

【Electric crimping tool specification】 Crimping range 0.5~50mm²(20AWG~0AWG) Used for ferrule terminals and insulated cable end-sleeves, 0.5~6mm²(22AWG~10AWG) Used for Used for insulated terminals and nylons terminals, 1.5~10mm²(16AW~6AWG) Used for Non-insulated terminals, 0.5~6mm²(20~10AWG) Used for Non-insulated terminals

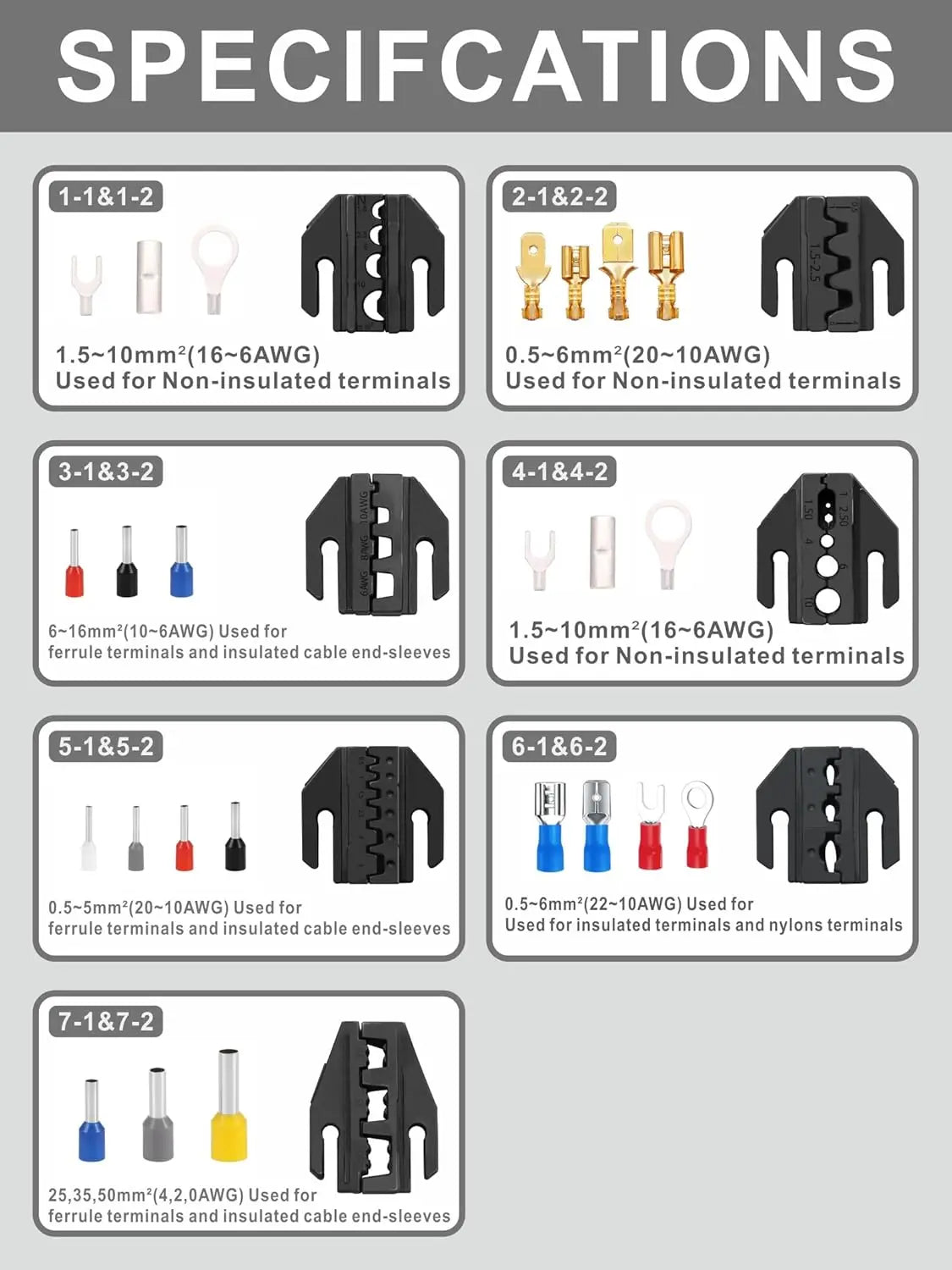

【Hydraulic crimping tool 7 pairs of dies】① 1.5~10mm²(16~6AWG)Used for Non-insulated terminals, ② 0.5~6mm²(20~10AWG)Used for Non-insulated terminals, ③ 6~16mm²(10~6AWG) Used for ferrule terminals and insulated cable end-sleeves, ④1.5~10mm²(16~6AWG) Used for Non-insulated terminals, ⑤0.5~5mm²(20~10AWG) Used for ferrule terminals and insulated cable end-sleeves, ⑥0.5~6mm²(22~10AWG) Used for Used for insulated terminals and nylons terminals, ⑦ 25,35,50mm²(4,2,0AWG) Used for ferrule terminals and insulated cable end-sleeves
【Easy operation】The dies can be easily replaced by one-way fixed latch, 2.0AH batteries provide ample power.

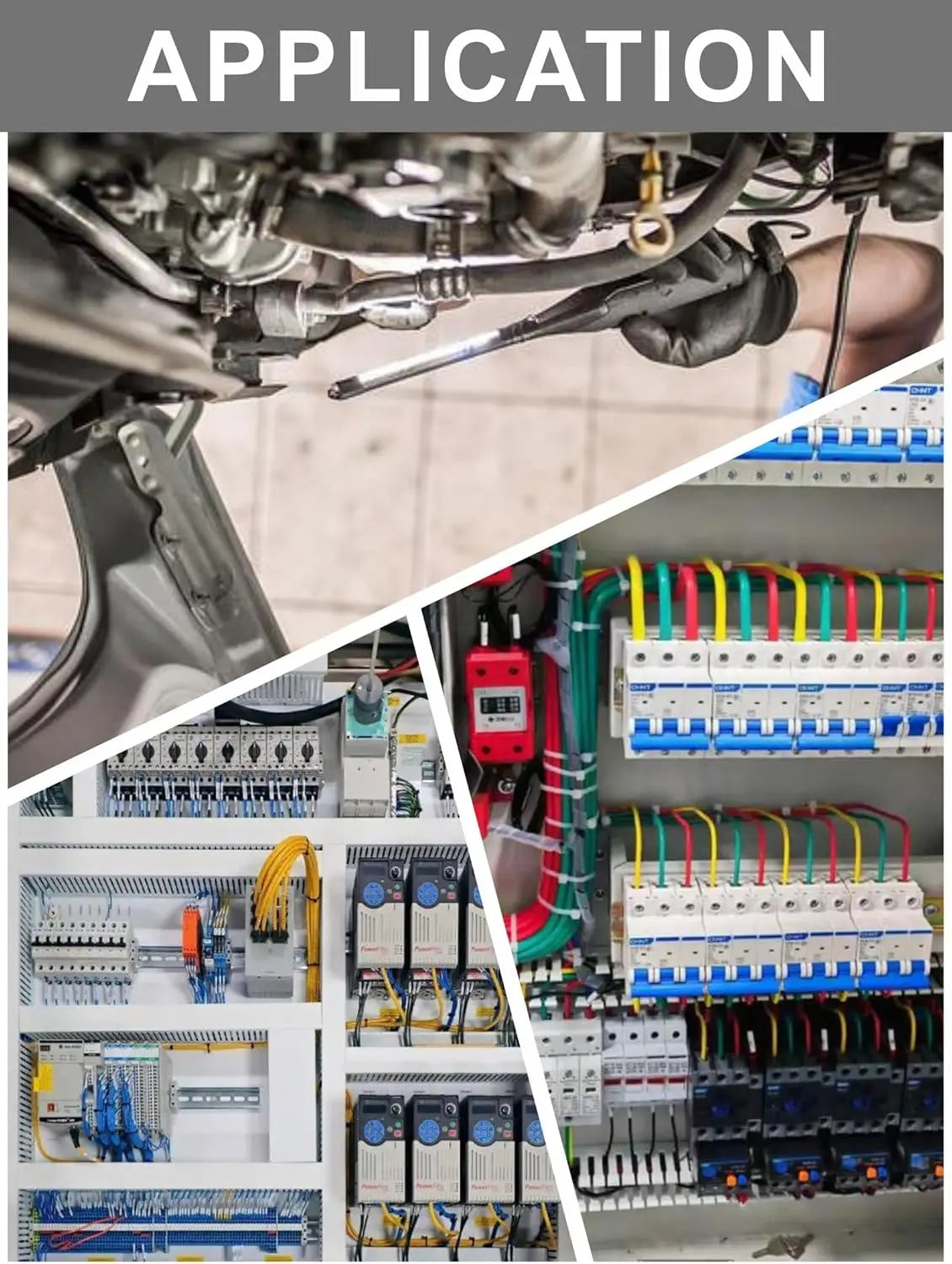

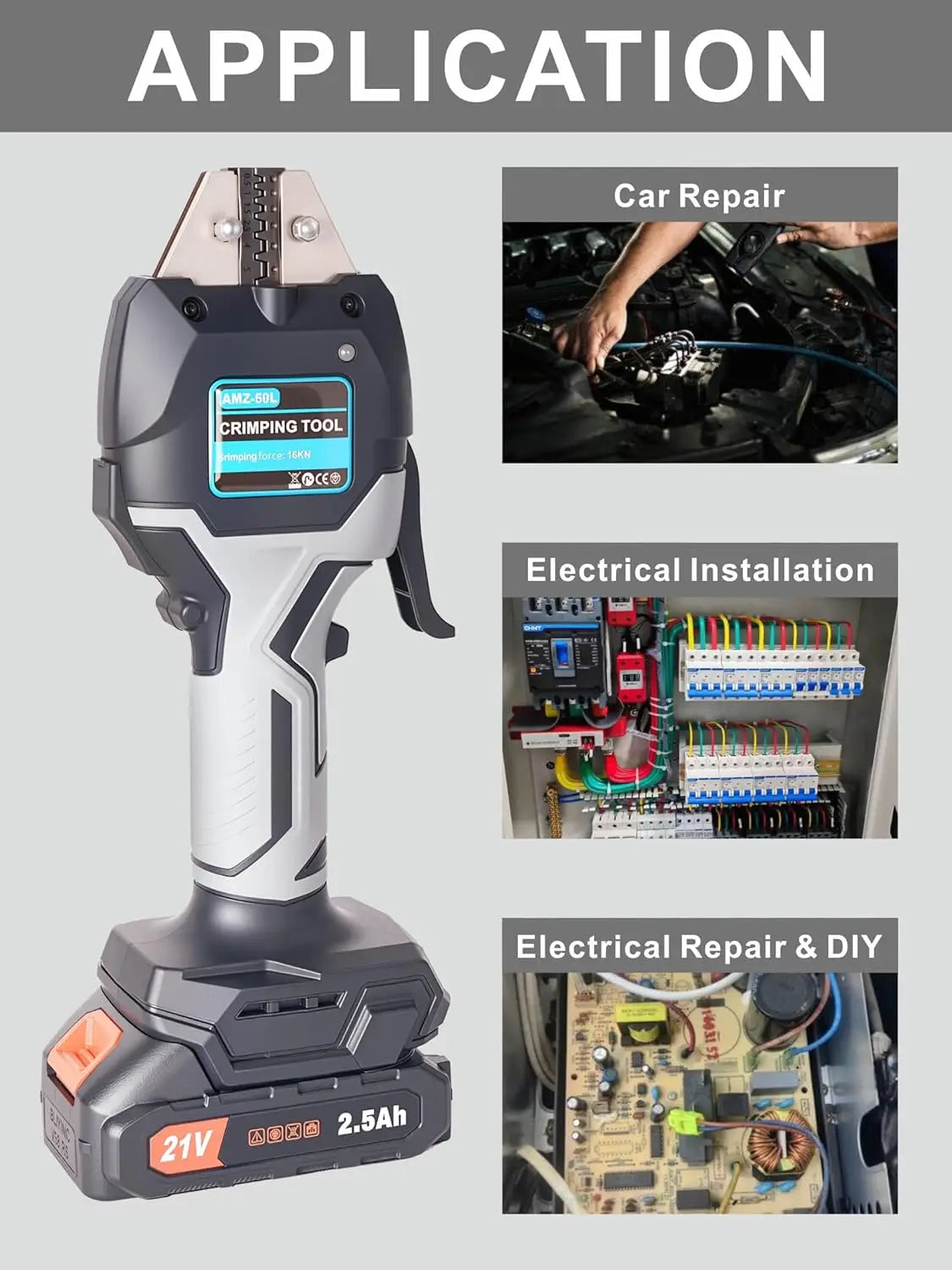

【Wide Application】 Insulated and nylon wire terminals,Non-insulated terminals,Insulated cable-end sleeves and open barrel terminals etc.
【Quality service】Products are double-checked before leaving the factory. If there is any quality problem, you can contact us.
