Application
It can be used for single-phase AC110V power circuits as well as bi-directional power sources such as commercial generators, solar power, and batteries. If it is a DC or low voltage power supply, the inverter needs to be connected to a dual power source after reversing to AC 110V, such as a meter, street light, inverter, UPS, etc.

Specification
Assembly Required: No
Style: Modern
Shape: Rectangular
Color: Blue, Gray
Material: Plastic, Pure Copper, Copper
Rated Current: 63A
Bore: M6 (6mm/0.24in)
ATS Level: CB Level
Used Level: AC-33iB
Conversion Mode: Automatic Transfer and Self-Recovery
Display Function: Indicator Light Display

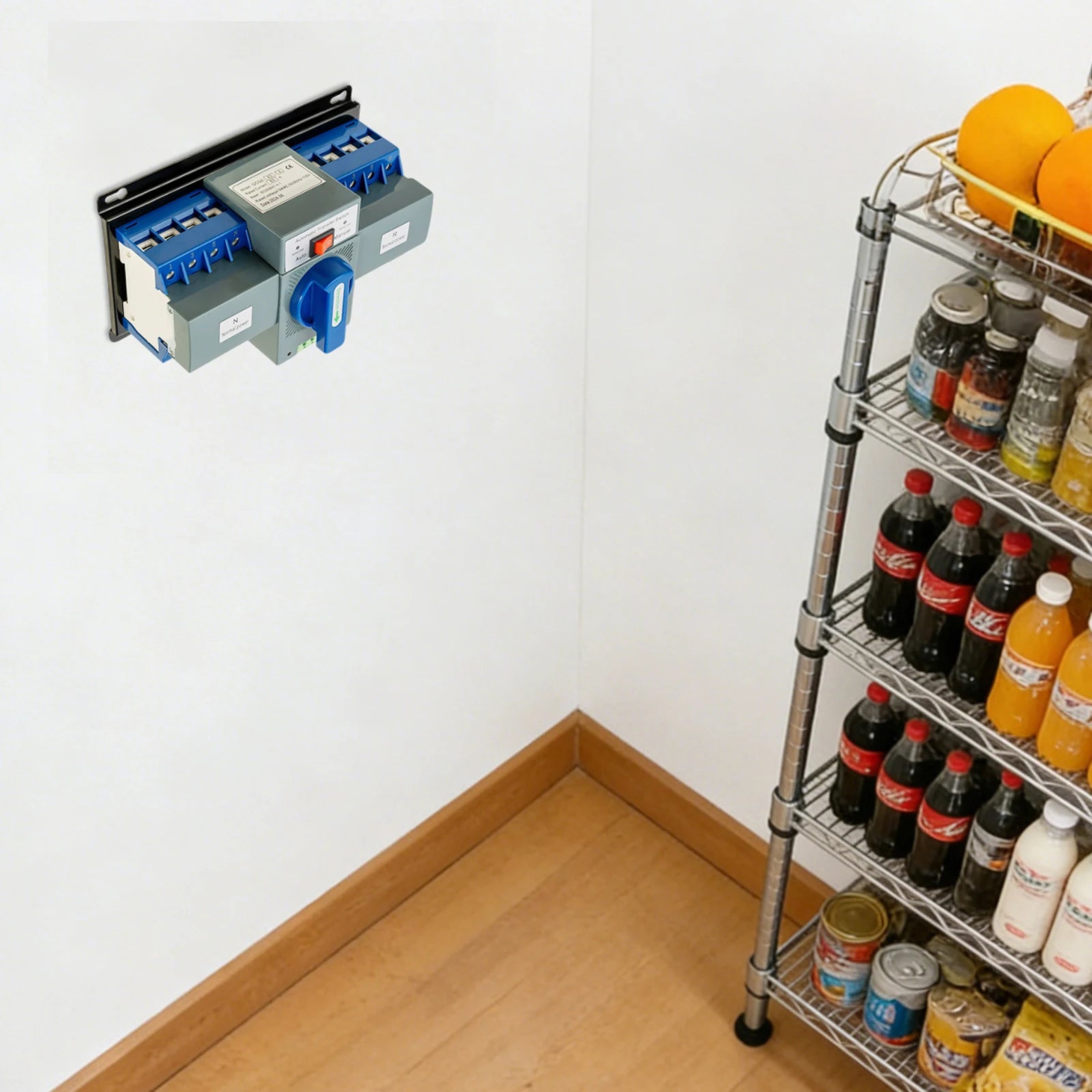

Installation Type: Wall Mount (Horizontal or Vertical)
Operating Voltage: AC110V
Rated Voltage: AC240V
Line Current: 6A-63A
Working Frequency: 50HZ/60HZ
Insulation Voltage: AC690V
Conversion Time: About 2S
Contact Type: Edged Output Contacts
Circuit Type: Bidirectional
Actuator Type: Ring Cross
Number of Poles: 4

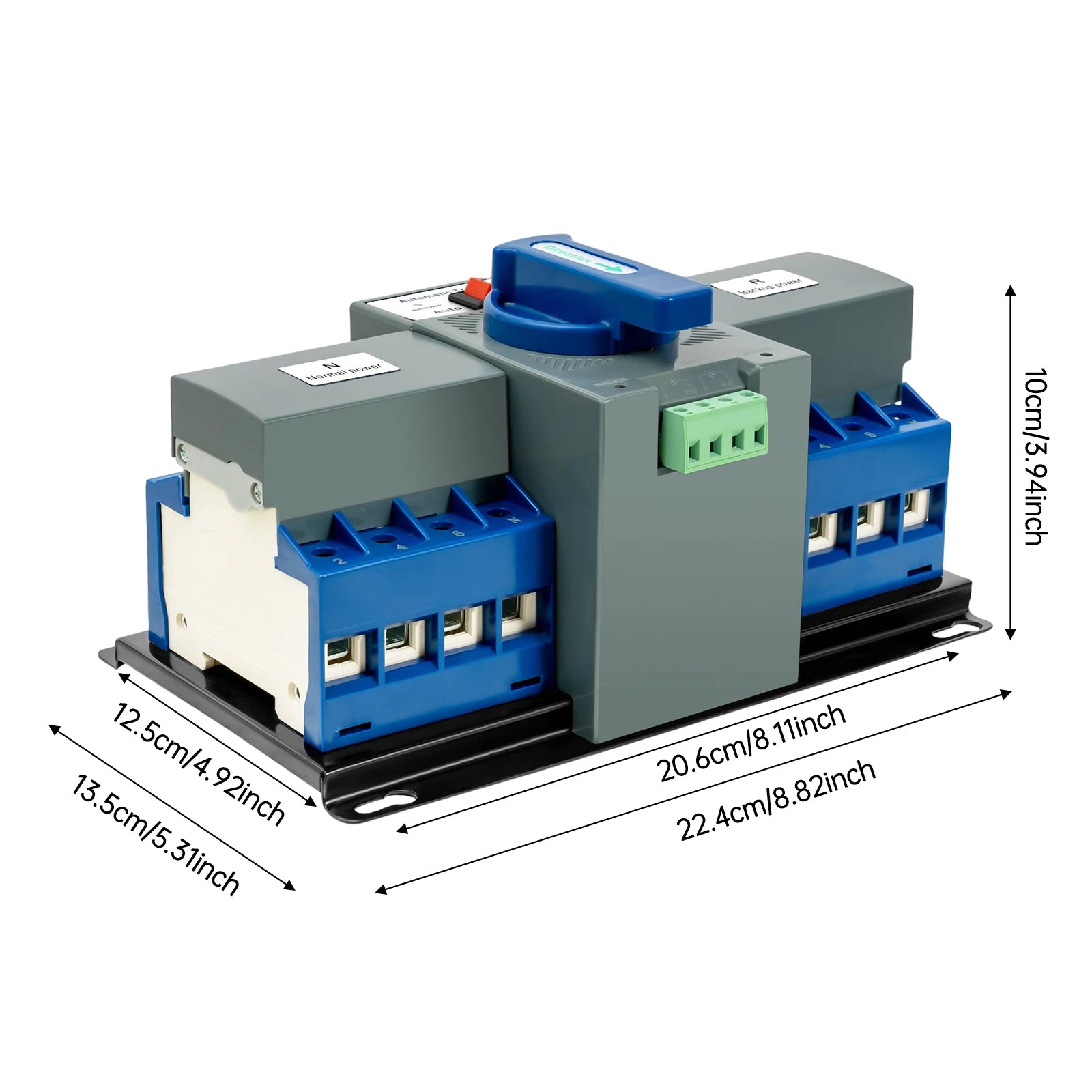

Mounting Hole Distance: 20.6cm/8.11 in
Base Width: 12.5cm/ 4.92 in
Product Size: 22.4*13.5*10cm/8.82*5.31*3.94in
Package Size: 23*14.5*13cm/9.06*5.71*5.12in
Gross Weight: 1.85kg/4.08lbs
Net Weight: 1.76kg/3.88lbs

Package Included
1* Dual Power Automatic Transfer Switch
1* English Manual


Notes
1.Please check the style and size before purchasing.
2.Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.
3.Please note that the power supply is cut off when the voltage is switched in both directions.
4.Please note that the switch cannot turn the generator on or off.
5.When both normal and standby power are supplied at the same time, the switch will give priority to the normal power.

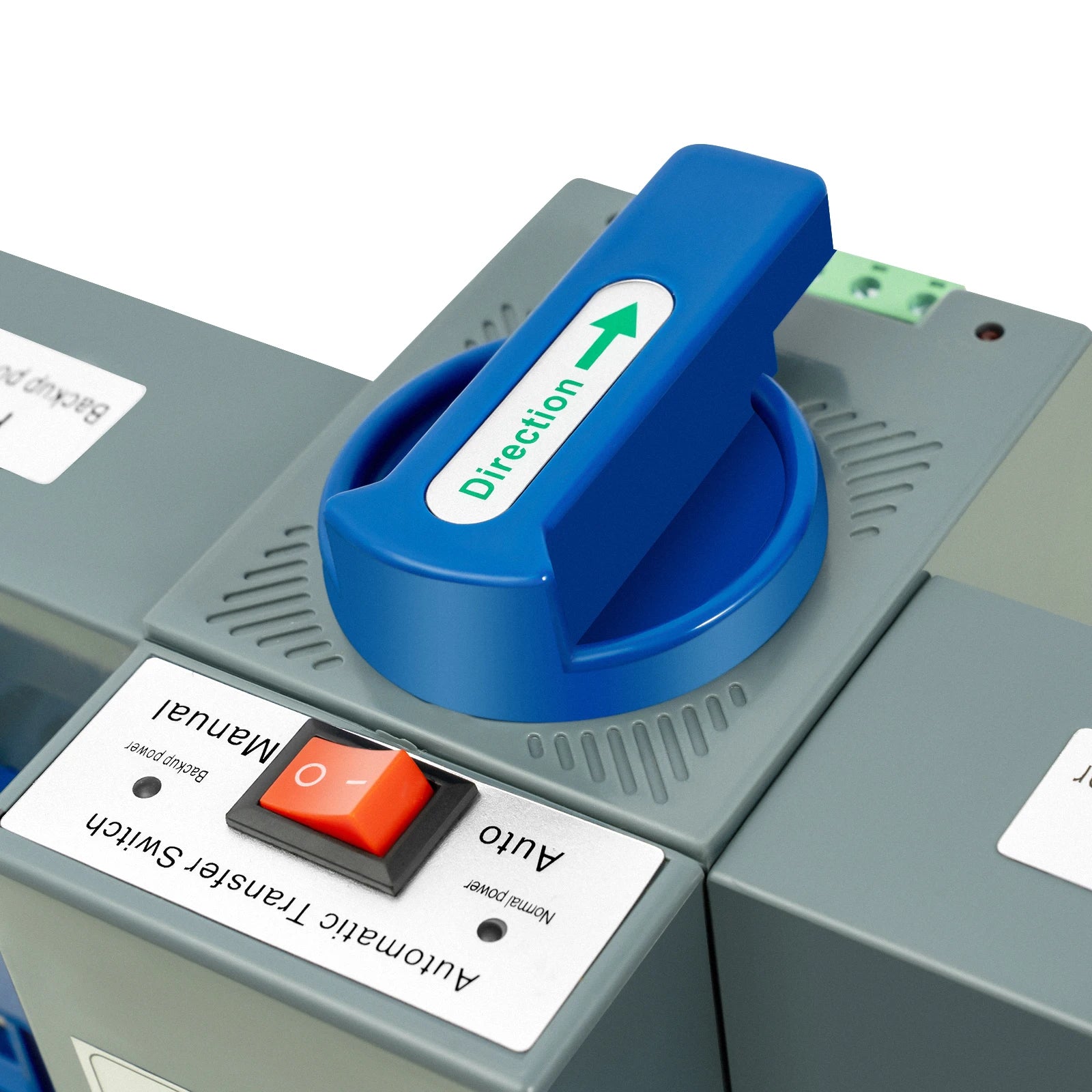

6.Please turn the handle in the direction of the arrow. Please do not use the handle in automatic control.
7.Please do not install the switch with leakage protection on the upper end to avoid tripping. If necessary, install it on the lower end.
8.This product cannot be mounted on a rail. General household distribution boxes are too small for concealed distribution boxes.
9.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
