SPECIFICATIONS



Battery Voitage Accuracy: +/-0.3%





Certification: CE,FCC

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Efficiency: 98.0% max.



Is Smart Device: Yes

Max. PV Array Open Circuit Voltage: 350Vdc

Model Number: 4KW-24V

Operating Temperature Range: 0°C to 55°C



Output Current: 33A

Output Frequency: 50/60HZ

Output Type: SINGLE

PV Array MPPT Voltage Range: 55-350Vdc

PV Charge Current: 140A

PV Voltage Accuracy: +1-2V

Rated Output Power: 4.0KW/24V

Rated Power: 5600W

Size: 46*31*15cm

Standby Power Consumption: 2W

Storage temperature: -15°C~ 60°C

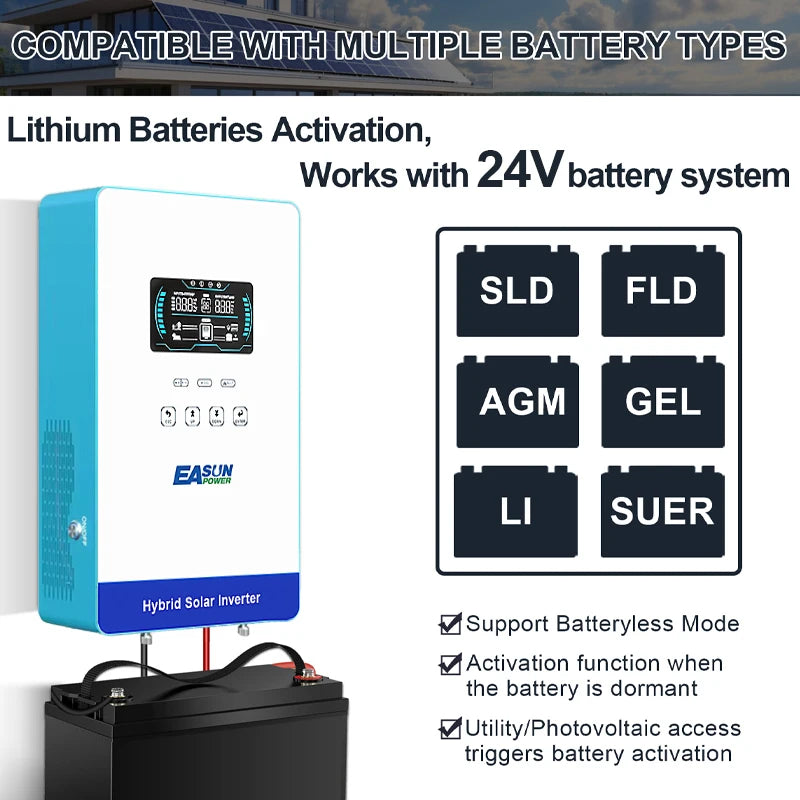

Support Battery type: lithium battery,LiFePo4

Weight: 8.5KG

is_customized: Yes

wave form: Pure Sine Wave



Introduction:



This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery

charger to offer uninterruptible power support with portable size. Its comprehensive large LCD display offers

user-configurable and easy-accessible touch button operation such as battery charging current, AC/solar

charger priority, and acceptable input voltage based on different applications.



Hot selling machines: 12KW-48V-WIFI











Machine specification ：



Off grid solar inverter

●No battery function available
Under Battery Mode can adjust AC voltage 100vAC,110VAC and 120VAC.

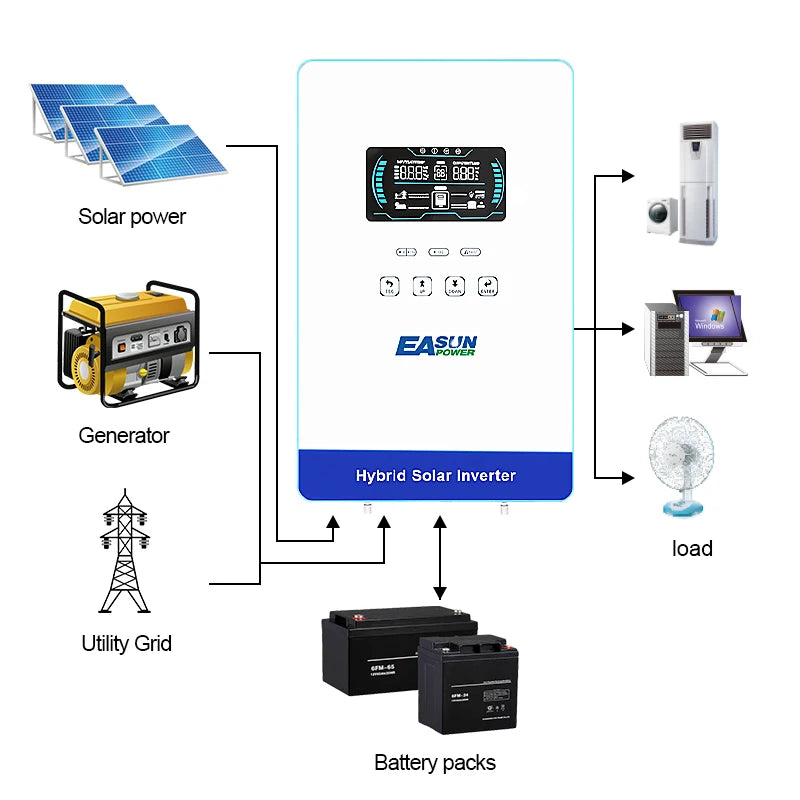

●Utility power,battery and PV power complement each other
●Pure sine wave solar inverter
Unique glass top cover design with 6.25inch LCD display and touchable buttons
Built-in 150A MPPT (Max PV 7200W) solar charger
High PV input range from 55V-450Vdc
Smart battery charger design for optimized battery performance
Configurable AC/Battery input priority via LCD setting
●Auto restart while PV is recovering
●Over-load, over temperature and output short circuit protection
Cold restart function
Built-in lithium battery automatic activation
●Communication with RS232/RS485
WiFi monitoring function (optional）
●Anti-dust kit for harsh environment(optional)
●Restore default Settings with one click

●inversores híbridos solares

●inversor sumry 4000w híbrido



MODEL	4KW-24V
Rated Power	5600W
PV Charge Current	140A
Efficiency	98.0% max.
Max. PV Array Open Circuit Voltage	350Vdc
PV Array MPPT Voltage Range	55-350Vdc
Standby Power Consumption	2W
Battery Voitage Accuracy	+/-0.3%
PV Voltage Accuracy	+1-2V
Charging Algorithm	3-Step
Safety Certification	CE
Operating Temperature Range	0°C to 55°C
Storage temperature	-15°C~ 60°C
Dimension(D*W*H)，mm	400*250*89mm
Net Weight, kg	8.5kg
Rated Output Power	4.0KW/24V
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	120Vac±5%
Output Frequency	60Hz or 50Hz
