SPECIFICATIONS



Application: Home



48V 12KW/8KW 3-in-1 Solar Hybrid Inverter, Dual MPPT, 120V/240V Split/Single Phase, 12kW Pure Sine Wave Output, Safety Protections, With USB/RS485/CAN, LCD Display & Remote Monitoring For Off-Grid System

Certification: CE,FCC,RoHS,UL,pse,weee

Gross Weight of Product: 28.45KG±3%



Output Voltage (V): 48V

PCBincluded: Yes

Product Dimensions: 60*45*13.2cm

Solar Power (W): 12KW

Specification: Mini

Start-up Voltage: 120Vdc

Type: Solar Inverter

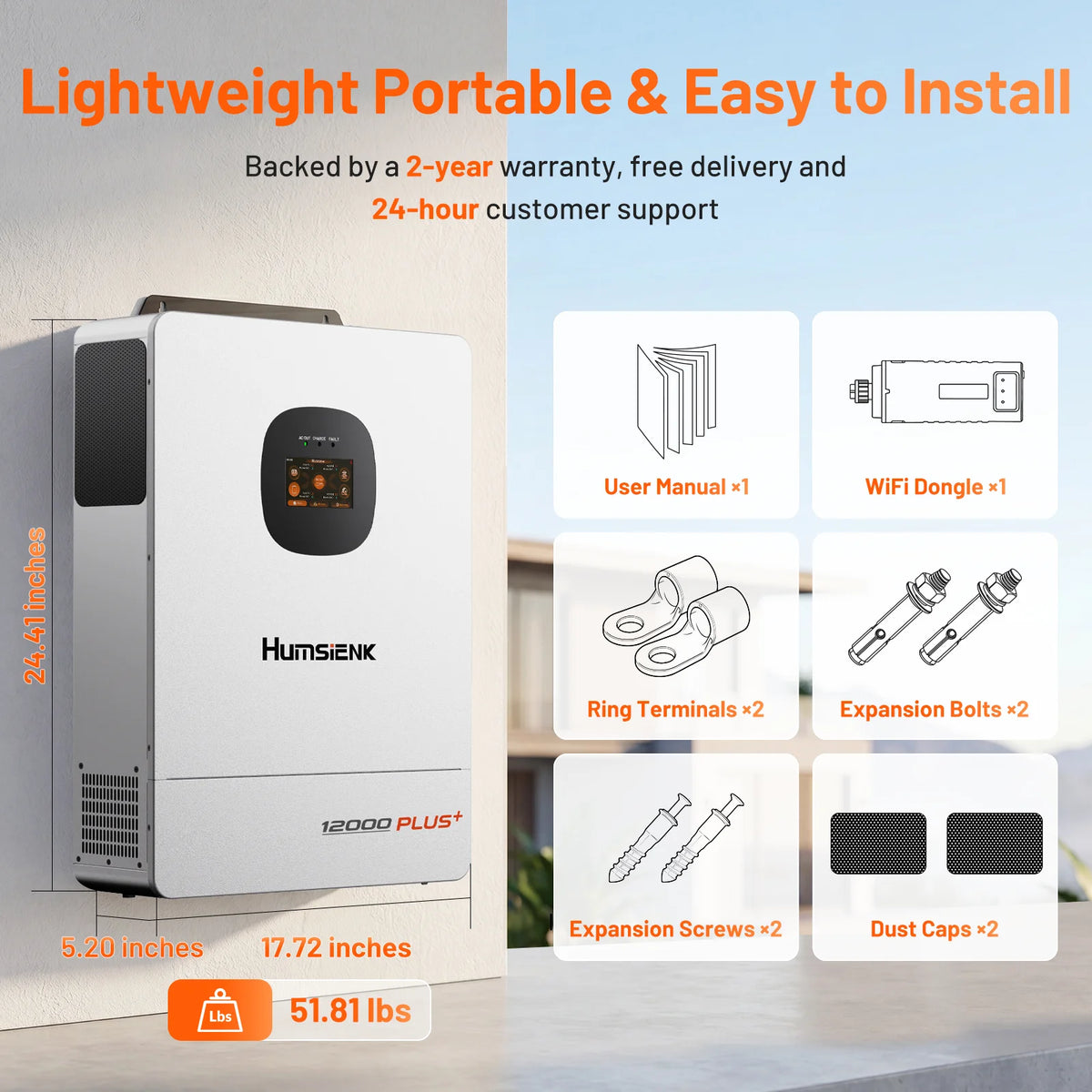

Compact, Lightweight & Quiet

24.4×17.7×5.2 in, 51.8 lbs, ≤60dB noise, UL1741 & FCC Class B certified.

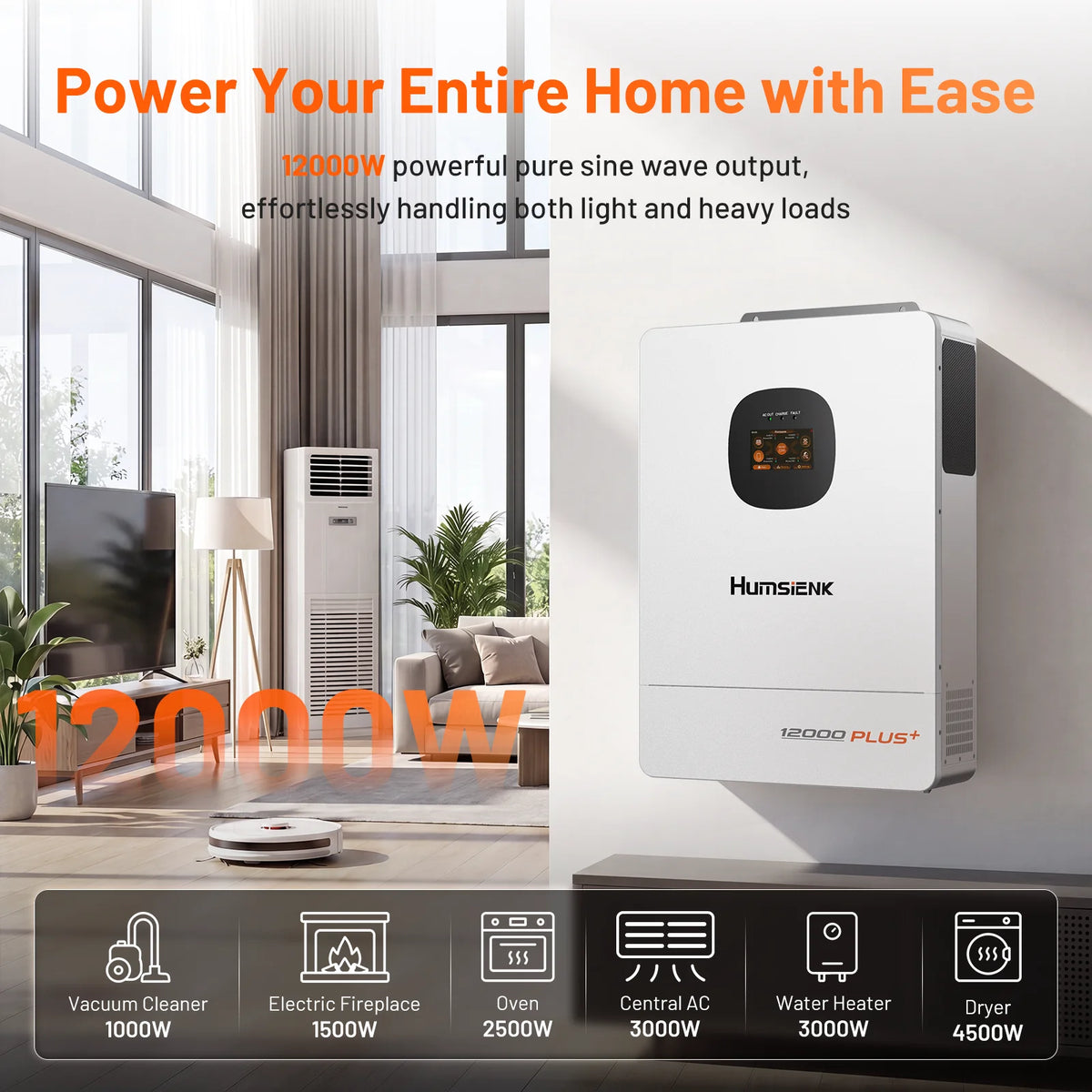

12kW Pure Sine Wave Output

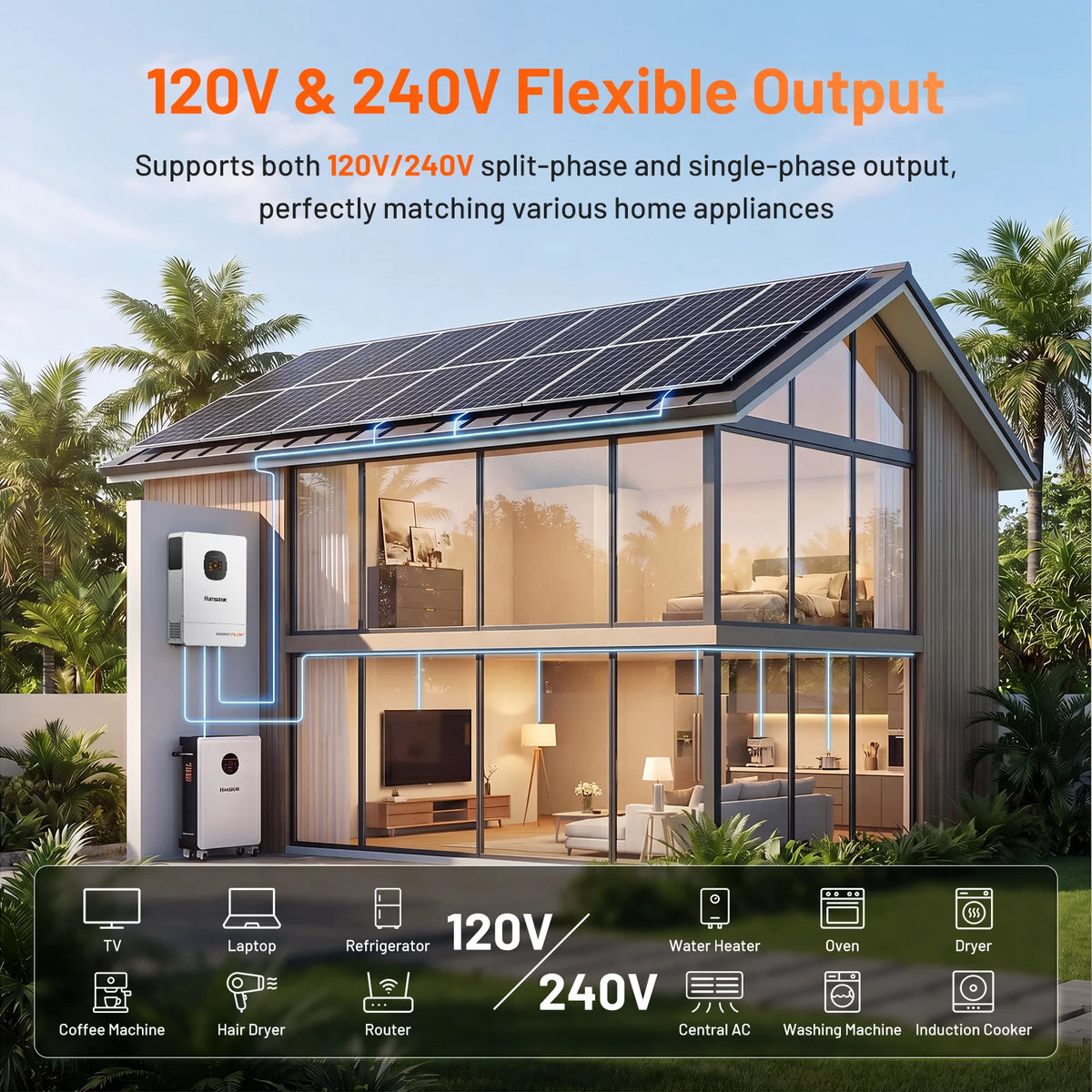

Supports 120/240V split‑phase and single‑phase, powers all home appliances with ease.

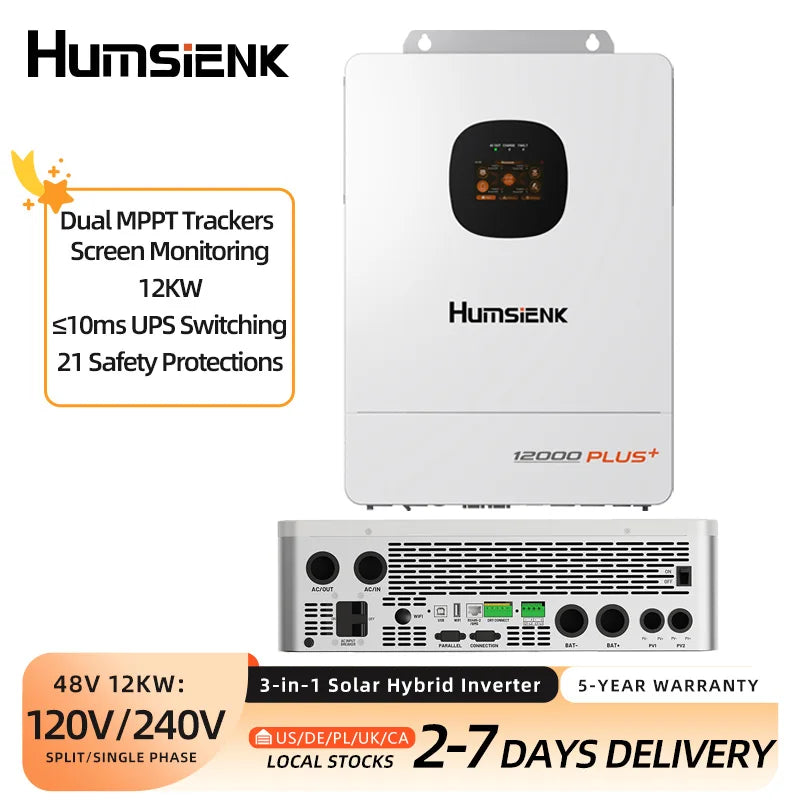

3-in-1 Integrated Unit

Combines 12kW inverter, 12kW MPPT solar charger, and 220A battery charger – saves space and cost.



Dual MPPT Trackers

Handles up to 12kW solar input from two independent PV arrays for maximum harvesting efficiency.

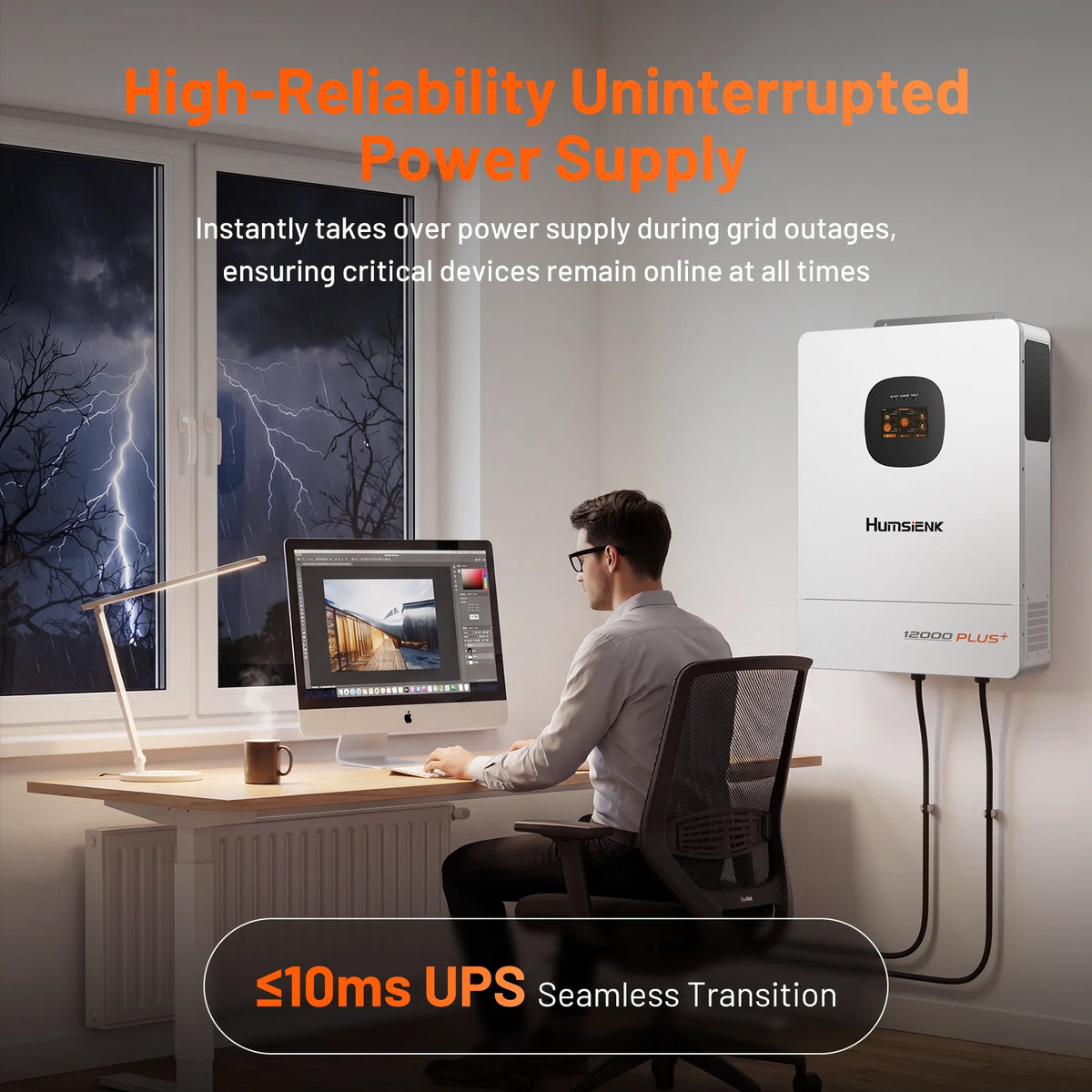

≤10ms UPS Switching

Instant backup during outages; runs on solar+grid even without a battery.

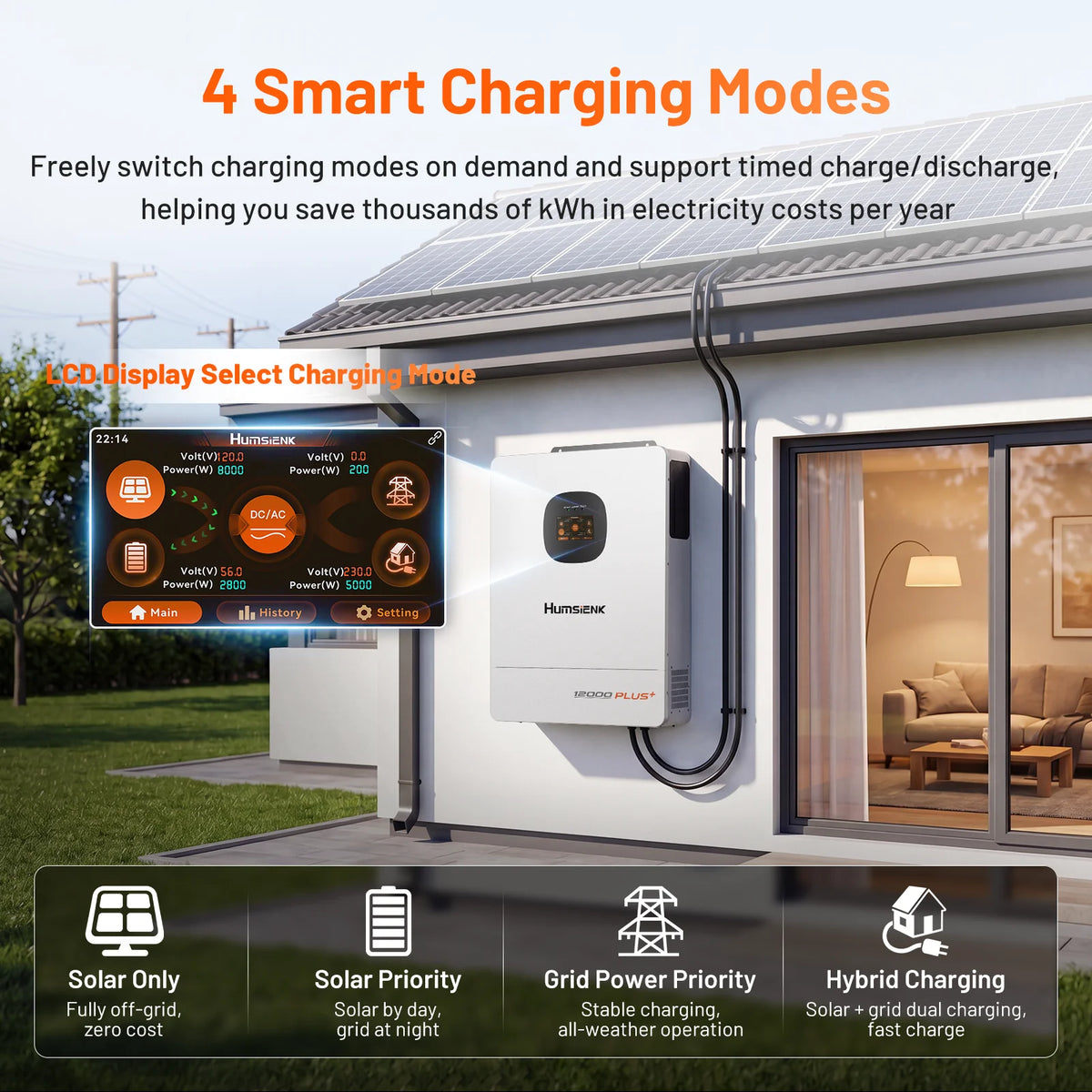

4 Smart Charging Modes

Solar Priority, Grid Priority, Hybrid, and Solar Only – with time‑of‑use settings to reduce bills.

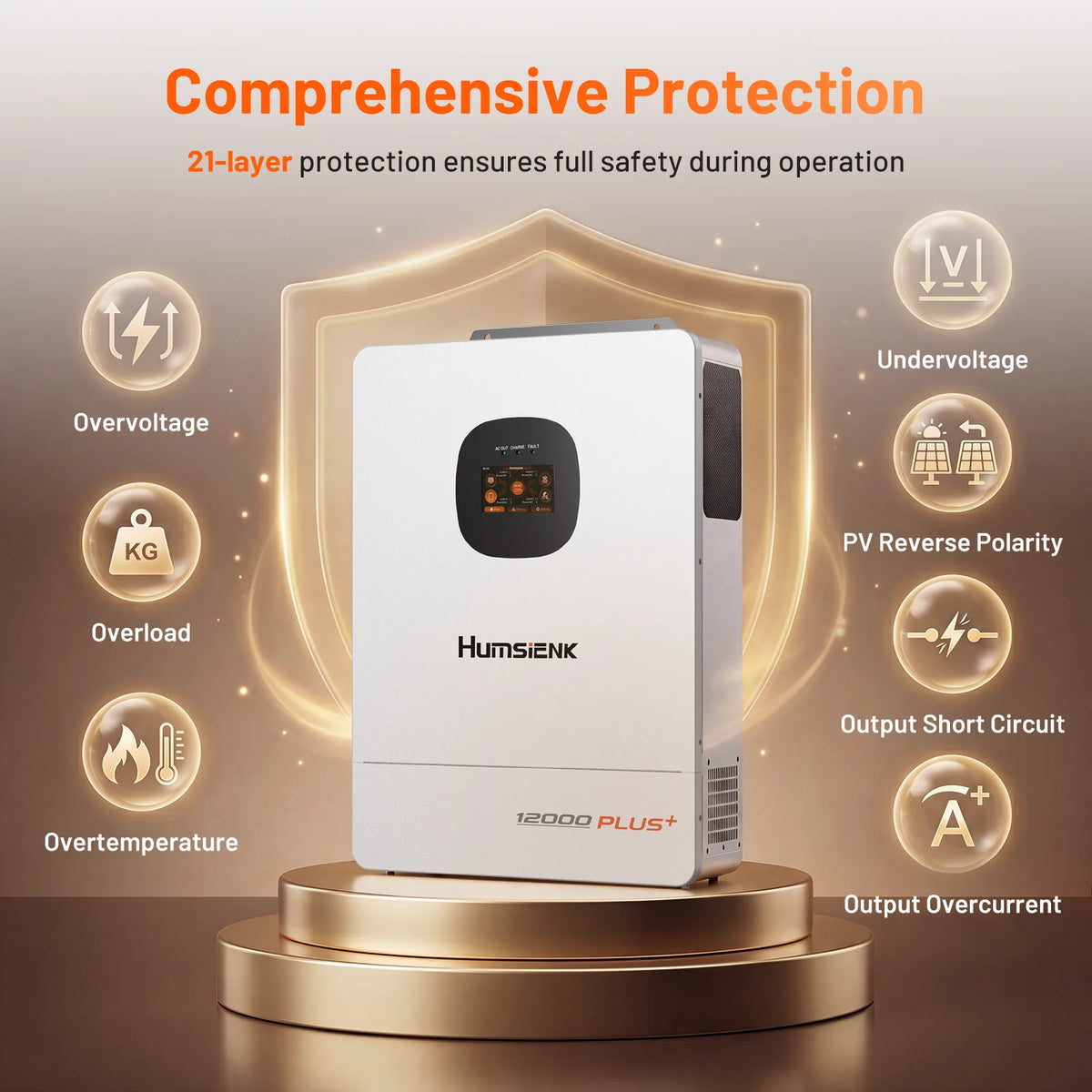

21 Safety Protections

Intelligent variable‑speed fan cooling ensures reliable, stable operation under all conditions.



Parallel up to 6 Units

Scales to 72kW total output to meet higher power demands.

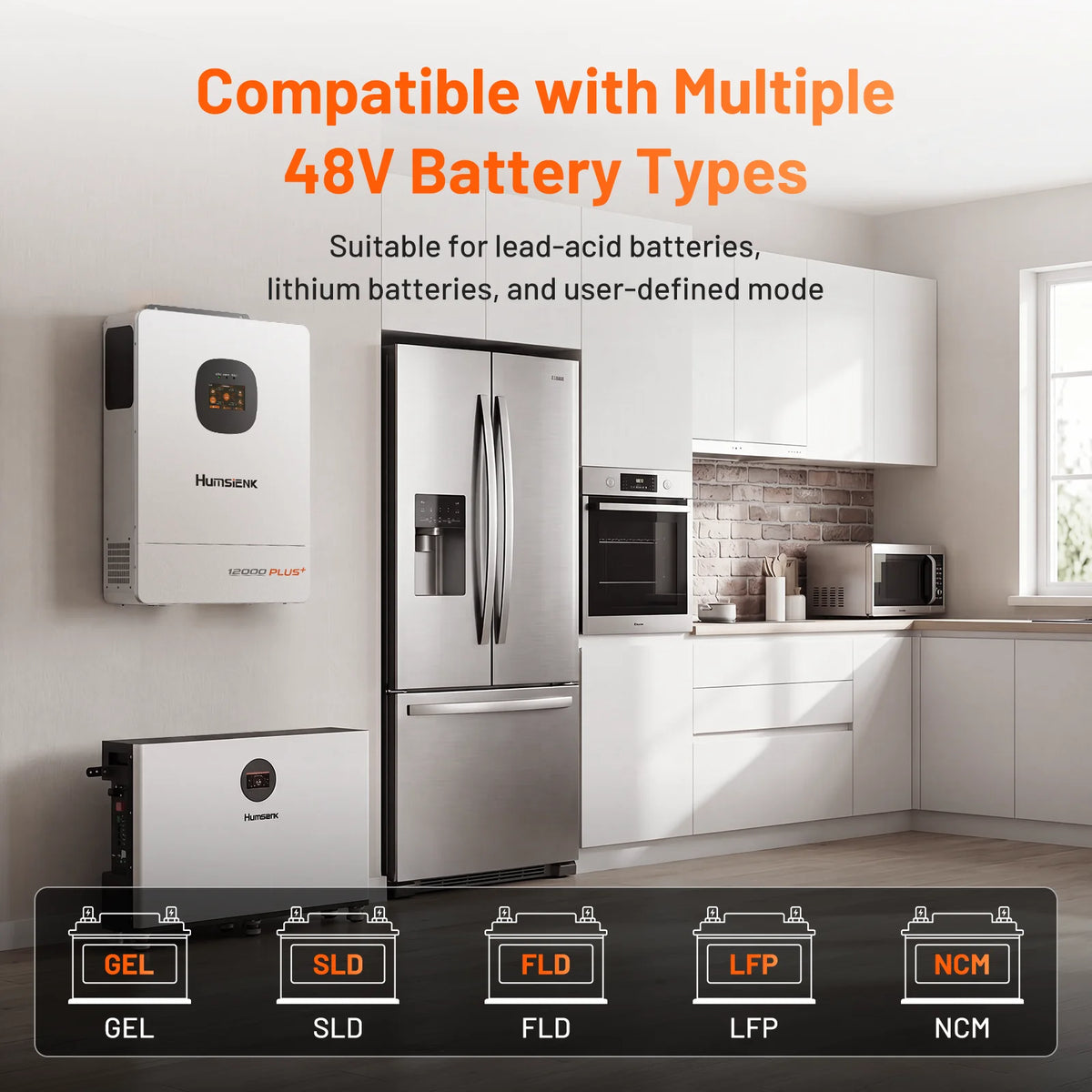

Wide Battery Compatibility

Works with GEL, SLD, FLD, LFP, and NCM – flexible upgrades, lower replacement costs.



LCD Display & Remote Monitoring

Real‑time data, fault codes, and optional WiFi/GPRS with USB/RS485/CAN.
