SPECIFICATIONS

Certification: CE

Weight: 6.15

Model Number: NEW HVM200

Dimensions: 43cm*24cm*28cm

Wire Feeding Speed: Automatically

Is Smart Device: no

Usage: MIG TIG ARC welding

Voltage: 110V/220V

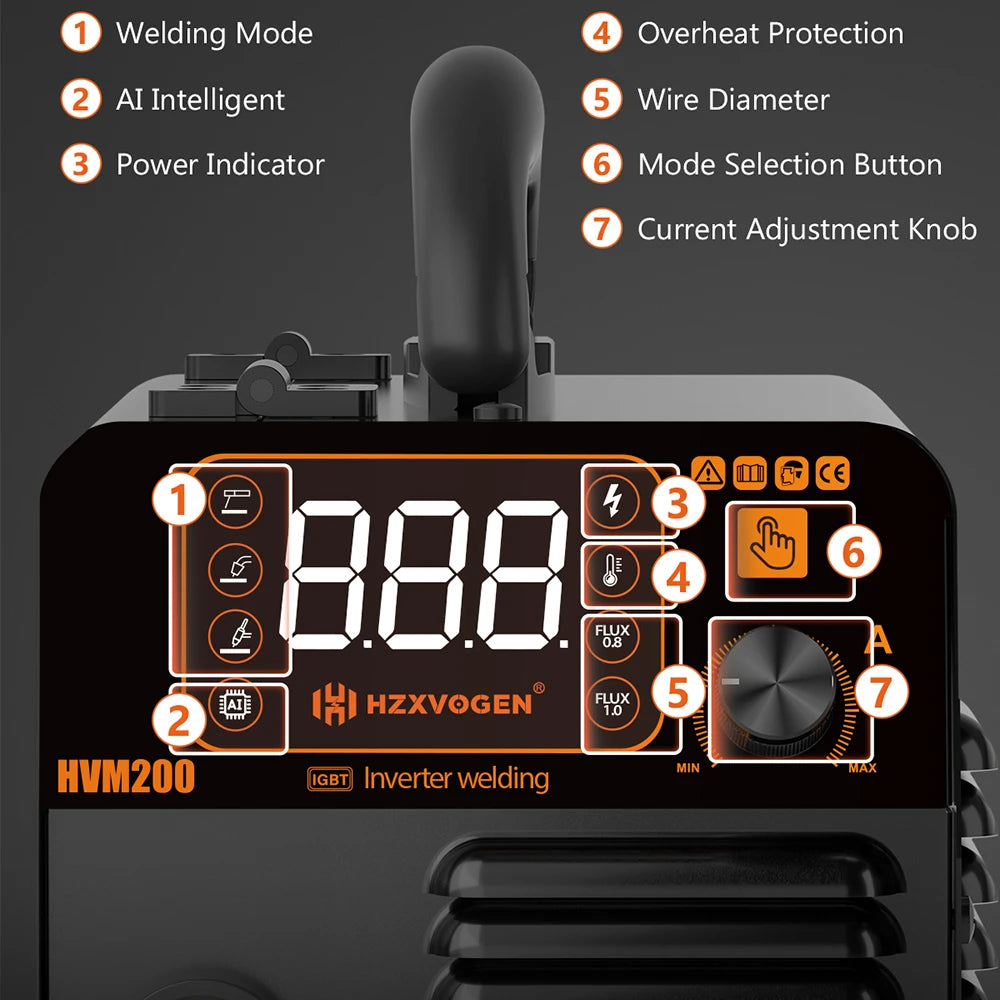

【Complete Functions】HZXVOGEN MIG welding machine has MIG/MAG and MMA/ARC 2 in 1 function. Equipped with intelligent one-button control system and digital display. MMA welders have better control of welding current and speed. Meet your welding needs.



【Safety Protection】 Cored wire welding machine has built-in over-current, over-voltage and over-temperature protection. Welding equipment shuts down automatically in case of overheating and overload. Running fan cooling system reduces dust ingress to the machine and prolongs its life.

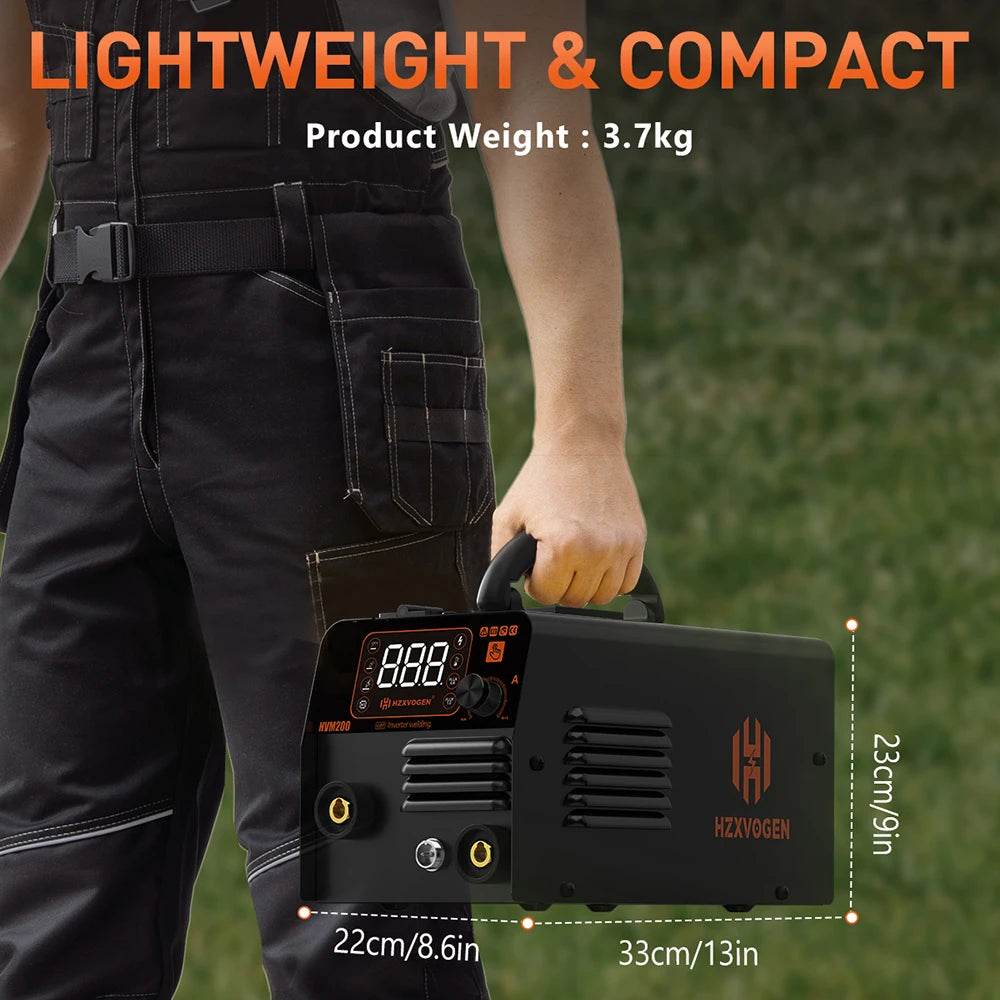

【Compact Design】Size is suitable for home use. Smaller, lighter and more portable than traditional MIG welders. Front and rear of the fuselage are designed with heat sink plastic to reduce the possibility of the machine malfunction due to excessive temperature. Size: 170*152*155mm, Weight: 3.7kg.



【100% Money Back Guarantee】HZXVOGEN 2 Years Inverter Welder Warranty! If you're not satisfied with your purchase, we'll replace or refund you within 60 days. Just buy a HZXVOGEN machine with confidence! Let you believe in our high quality and unique customer service.



Recommend:

*MIG function:no gas iron welding.

*ARC function:no gas iron welding.



*Full-digital control system to realize precise control and stable arc length during welding.



*Great reduction in metal loss obviously enhances the welding efficiency and energy saving effect.



MIG welding 0.5~6mm iron and mild steel plate



ARC welding 2.5mm acid electrode



Specifications:

Model:HVM200

Rated Input Voltage (V):AC110V±10%,50/60Hz

Rated Input Power(KVA): MMA:9KVA / MIG: 13.4KVA

Rated Input Current(A): MMA:82A / MIG: 70.3A

Rated Output Current & Voltage: MMA:200A/28V / MIG:200A/24V

Output Current(A): MMA:20-200A / MIG:30-200A

No-load Voltage(V): MMA:54V / MIG:55V

Rated Duty Cycle(%):60

Efficiency(%):85

Power Factor(coso):0.73

Protection Class:IP21S

Insulation Class:F

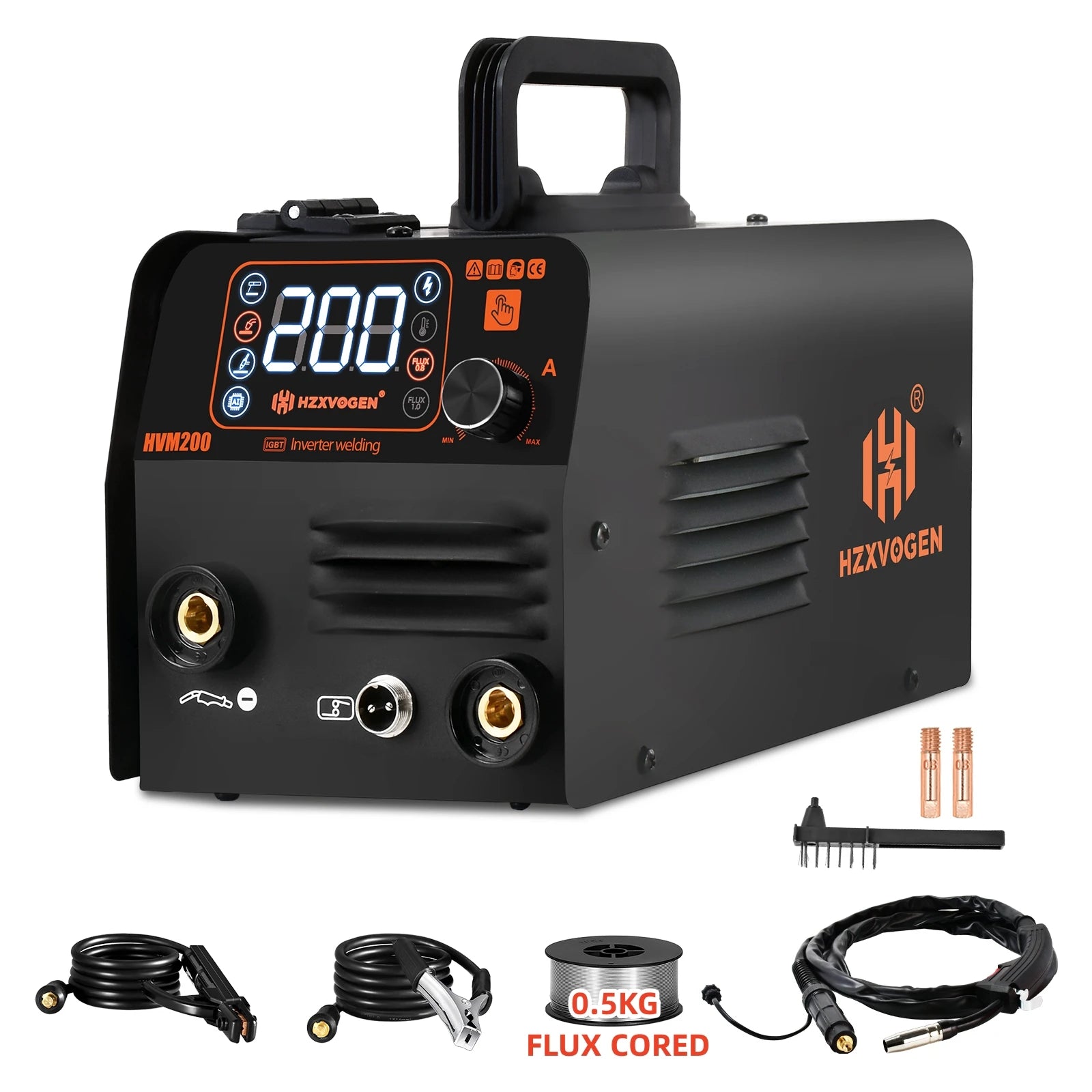

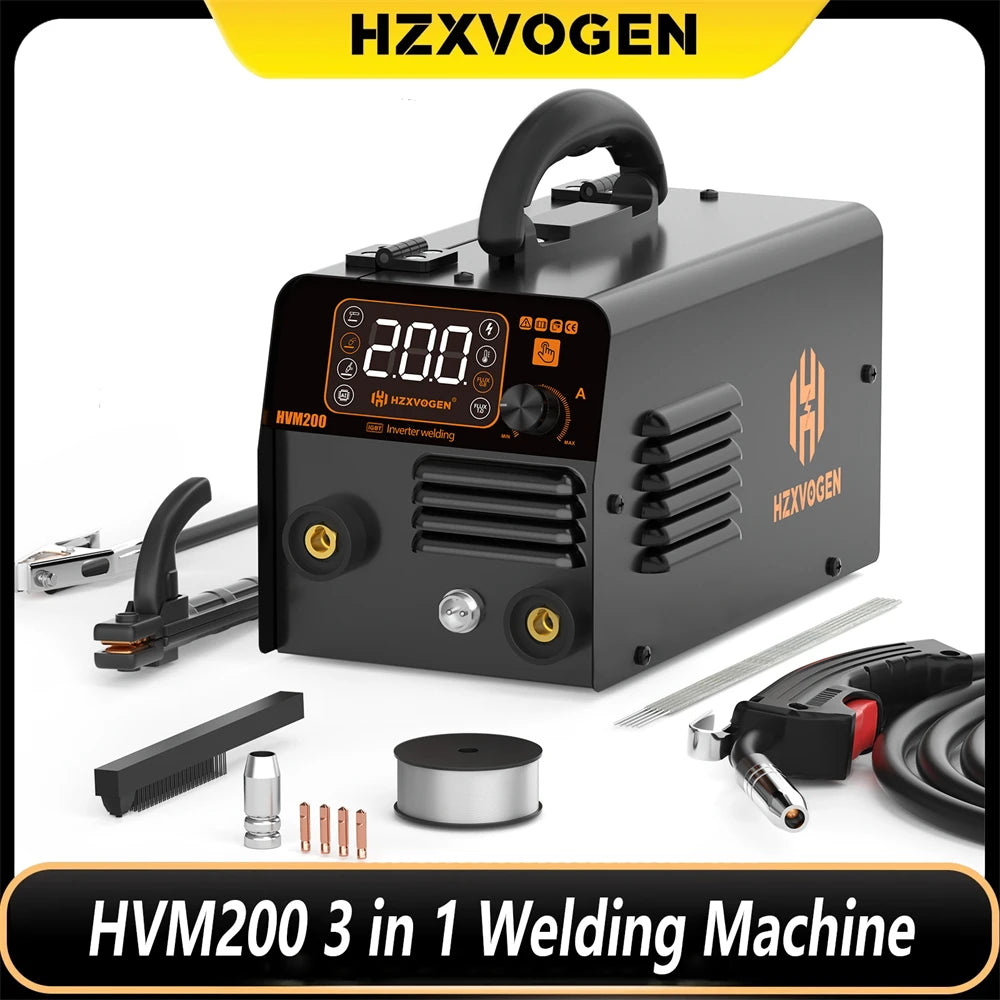

Packing list:

1X Mig welder HVM200



1X Earth clamp



1X Electrode holder



1X Mig welding torch



1X Flux cored wire 0.5kg (1mm)
