SPECIFICATIONS





Color: Blue+White+Red

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc



Installation Method: Assembly

Is it electrified: Yes

Material: ABS, Neodymium Iron Boron



Process: Oxidation, Paint Spraying

Shaft Material: Stainless steel

Type: Wind Power Generator



24V 400W Vertical Wind Turbine, Vertical Axis Wind Generator With Controller, Three Color Wind Turbine Generator, for Home Boat RV Street Light



Application



This product is suitable for use in ships, pavilions, cabins, RVs, windmills, households, businesses, and industrial energy supply.



Details



🥇Controller with Wires: It is equipped with black, green, and red wires for easy product wiring.

🥇Colorful Fan Blades: Bright-colored blades make the product unique and easily recognizable, enhancing its aesthetic appeal.



Specifications



Material: ABS, Neodymium Iron Boron

Process: Oxidation, Paint Spraying

Color: Blue+White+Red

Style: Modern

Generator Type: Rare Earth Permanent Magnet Generator

Braking Method: Electromagnetic

Wind Direction Adjustment: Automatic

Applicable Battery Voltage: 24V

Shutdown Voltage: 29V

Restart Voltage: 26.4V

Rated Power: 400W

Max. Power: 450W

Protection Level: IP67

Max. Speed: 300RPM

Noise: ≤ 30dB

Working Temperature: -40~80℃/-40~176℉

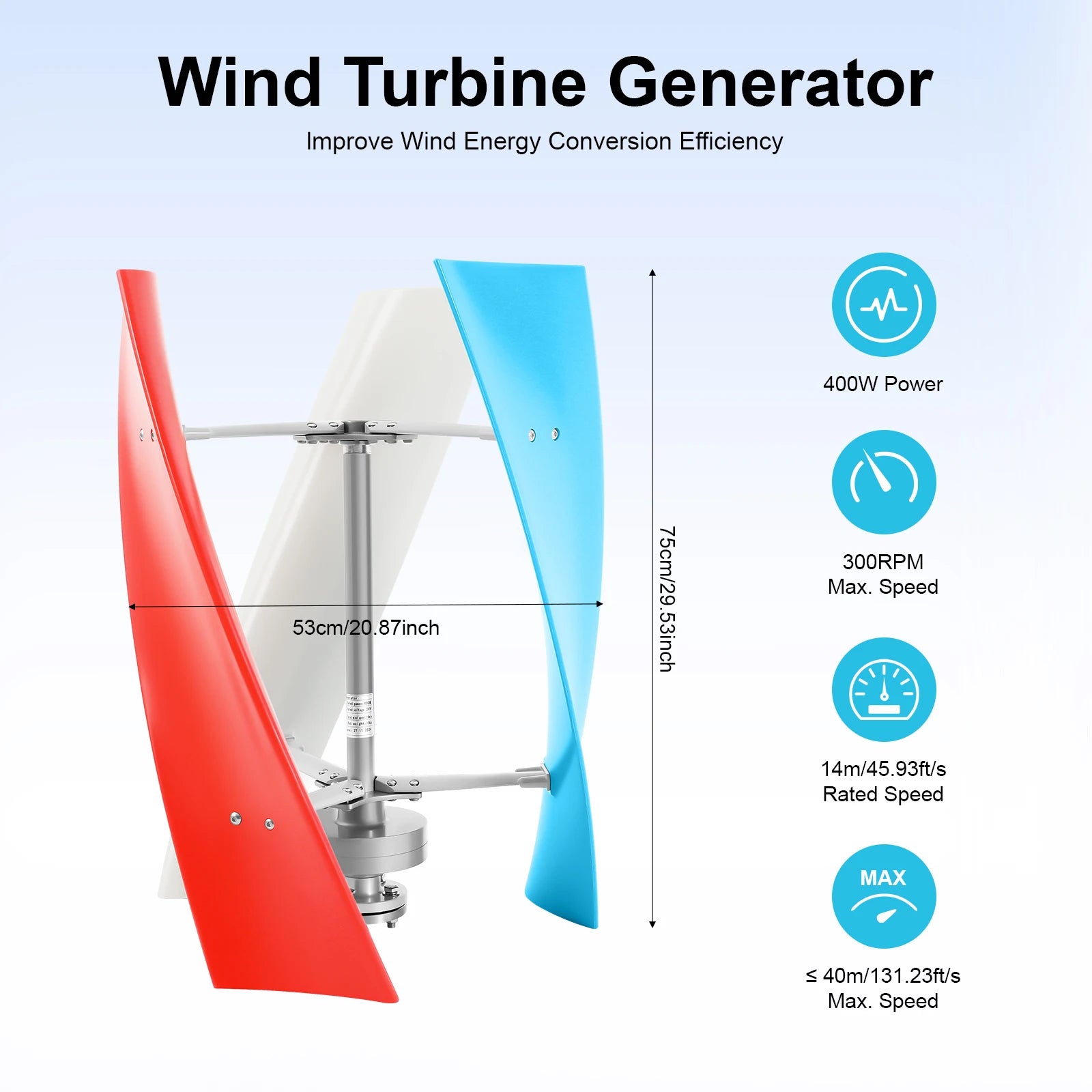

Blade Size(D*H): 53*75cm/20.87*29.53in

Rated Wind Speed: 14m/45.93/ft/s

Starting Wind Speed: 2-2.5m/6.56-8.2ft/s

Instantaneous Max. Wind Speed: ≤ 45m/147.64ft/s

Max. Wind Speed: ≤ 40m/131.23ft/s

Product Size: 85*38*19cm/33.46*14.96/7.48in

Package Size: 86*38.5*20cm/33.86*15.16*7.87in

Gross Weight: 9.84kg/21.69lbs



Package Included



1 * 3-blade Wind Turbine Generator

1 * Controller

1 * English Manual

Other Accessories for Assembly

Notes

1. Please carefully check the product size before purchasing.

2. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
