SPECIFICATIONS





Condition: New

Cylinders: 1

Dimensions (L x W x H) (mm): 46*36*105cm/18.11*14.17*41.34in

Engine: 4 Stroke

Engine Position: Outboard

Fuel Type: Gasoline



Material: Aluminum

Mounting Type: Transom Mount



Recommended Uses For Product: Outdoor

Starting Method: Manual Pull Start

Type: 4-Stroke, Single Cylinder, Air-cooled



Application

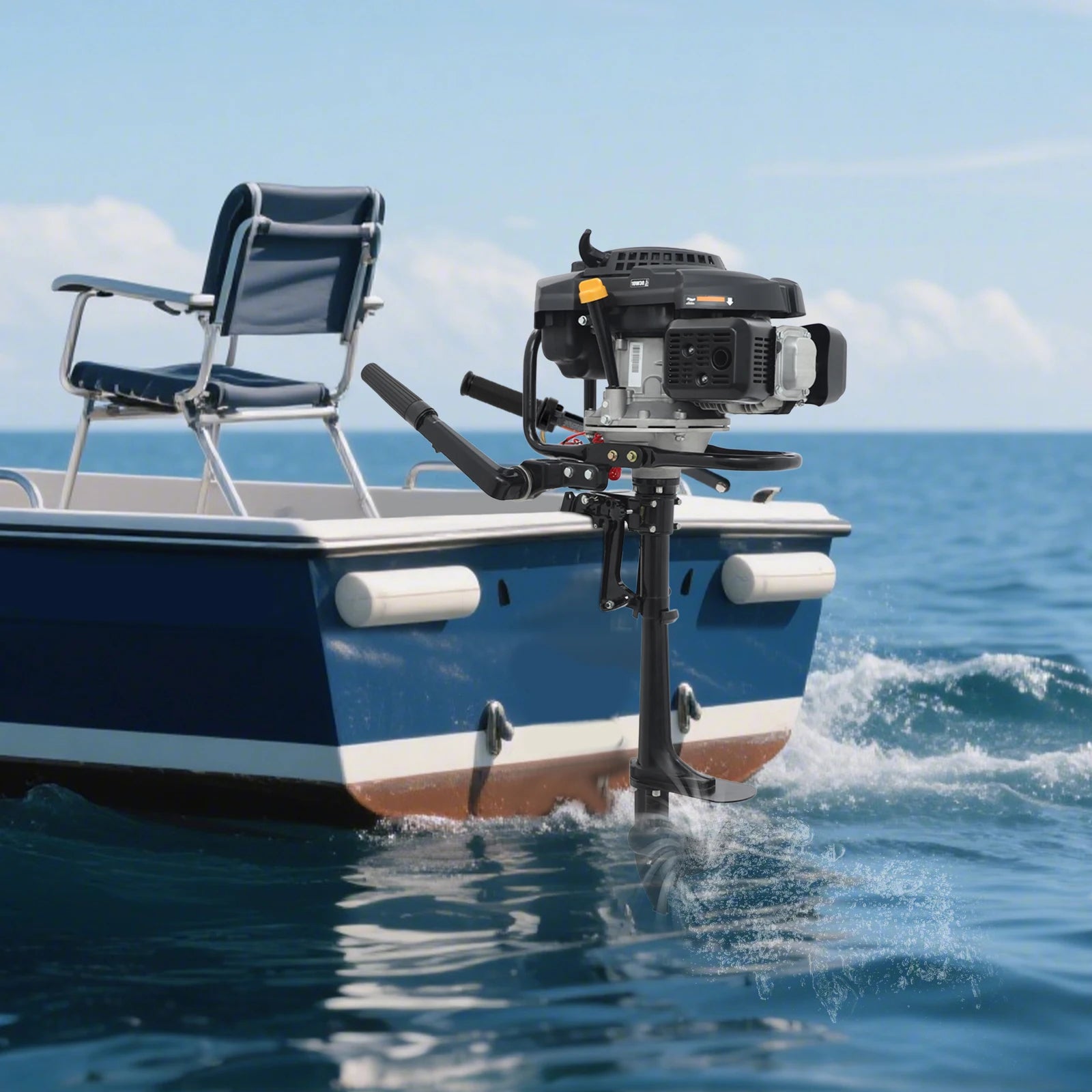

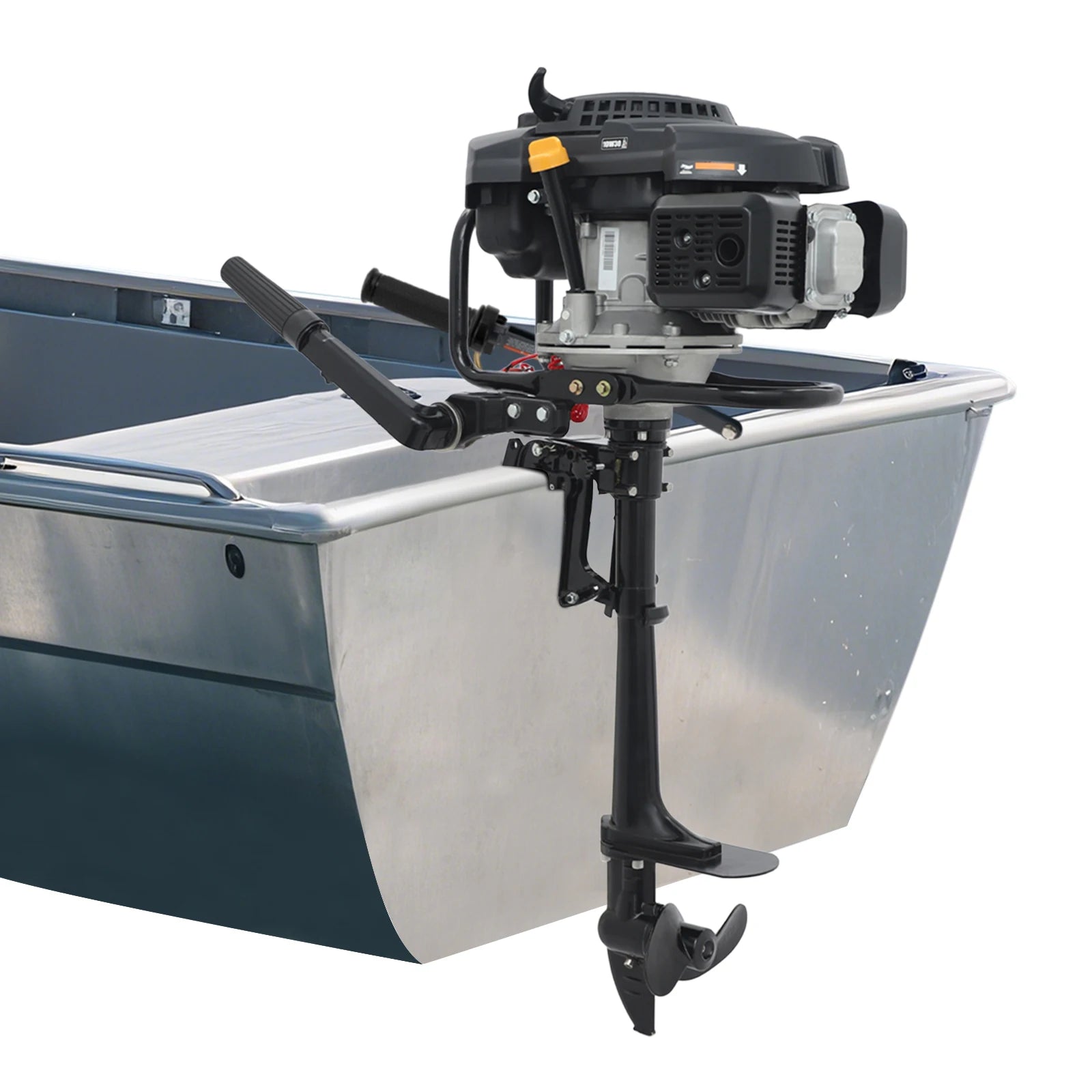

It can be used for aquaculture, transportation, net fishing, bait fishing, outboard motor backup, and river cleaning and maintenance. It is suitable for inflatable boats, fishing boats, sailboats, small yachts, canoes, kayaks, flat-bottomed boats, rubber boats, and aluminum alloy boats ranging from 15 to 20 feet in length.

Specification

Color: Black

Material: Aluminum

Type: 4-Stroke, Single Cylinder, Air-cooled

Recommended Uses For Product: Outdoor

Mounting Type: ‎Transom Mount

Starting Method: Manual Pull Start

Recommended Gasoline: #92 or Above

Maximum Torque: 9N.m

Displacement: 224cc

RPM: 3600rpm

Idle Speed: 1800 ±150 rpm

Max. Speed: 19km/11.81mile/h

Bore x Stroke: 72 x 55mm / 2.83 x 2.17in

Recommended Power Output: 4.2kW / 3600rpm

Maximum Output Power: 4.2kW (9.0hp)

Fuel Capacity: 1.3-1.5L/0.34-0.4Gal

Engine Oil Capacity: 0.6L/0.16Gal

Compression Ratio: 8.7:1

Spark Gap: 0.6-0.8mm

Exhaust Valve Clearance: 0.15-0.2mm

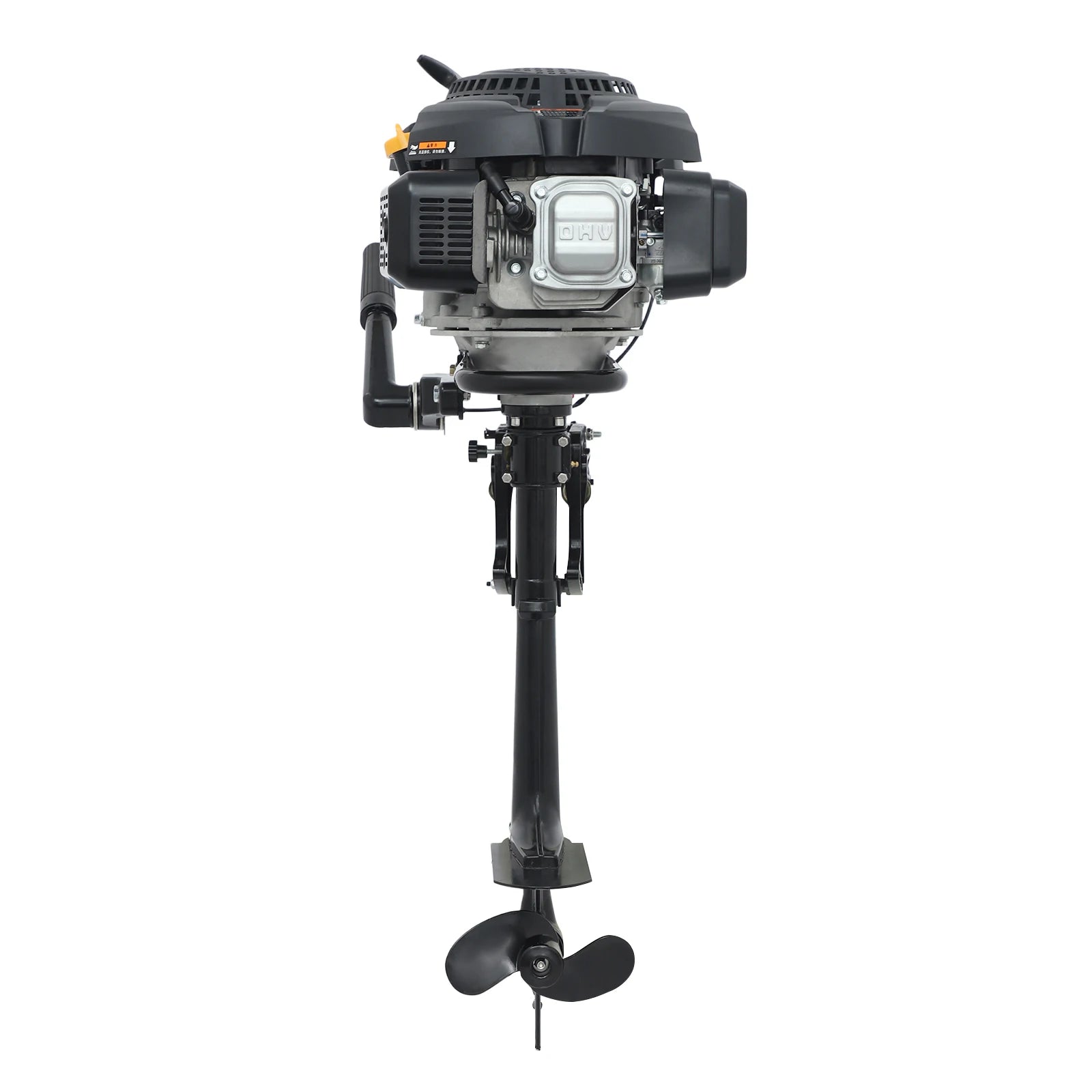

Propeller Diameter: 20cm/7.87in

Applicable Boat Size: 4.57-6m/15-20ft

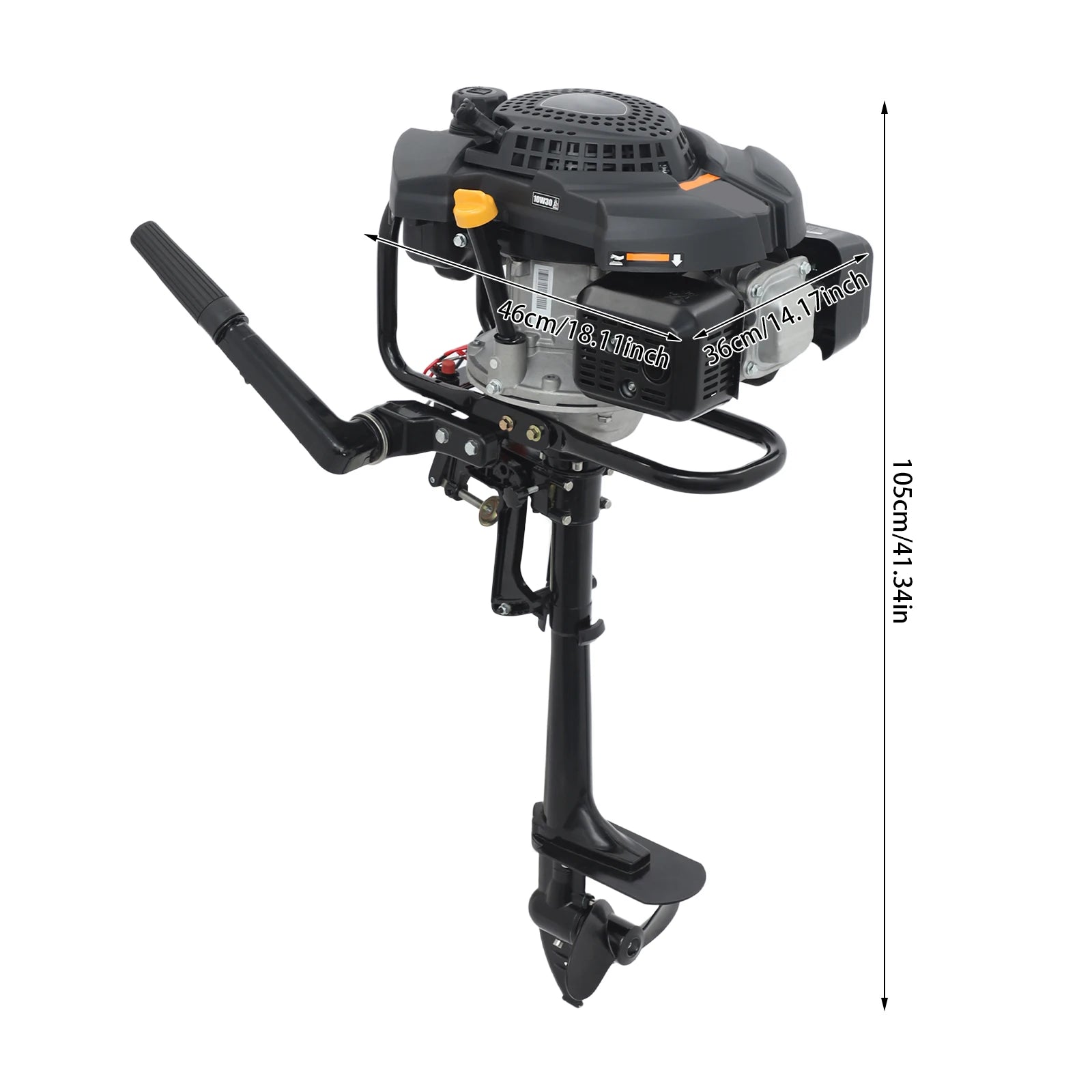

Product Size: 46*36*105cm/18.11*14.17*41.34in

Package Size: 121*52*40cm/47.64*20.47*15.75in

Gross Weight: 24kg/52.9lbs

Net Weight: 20.6kg/45.42lbs

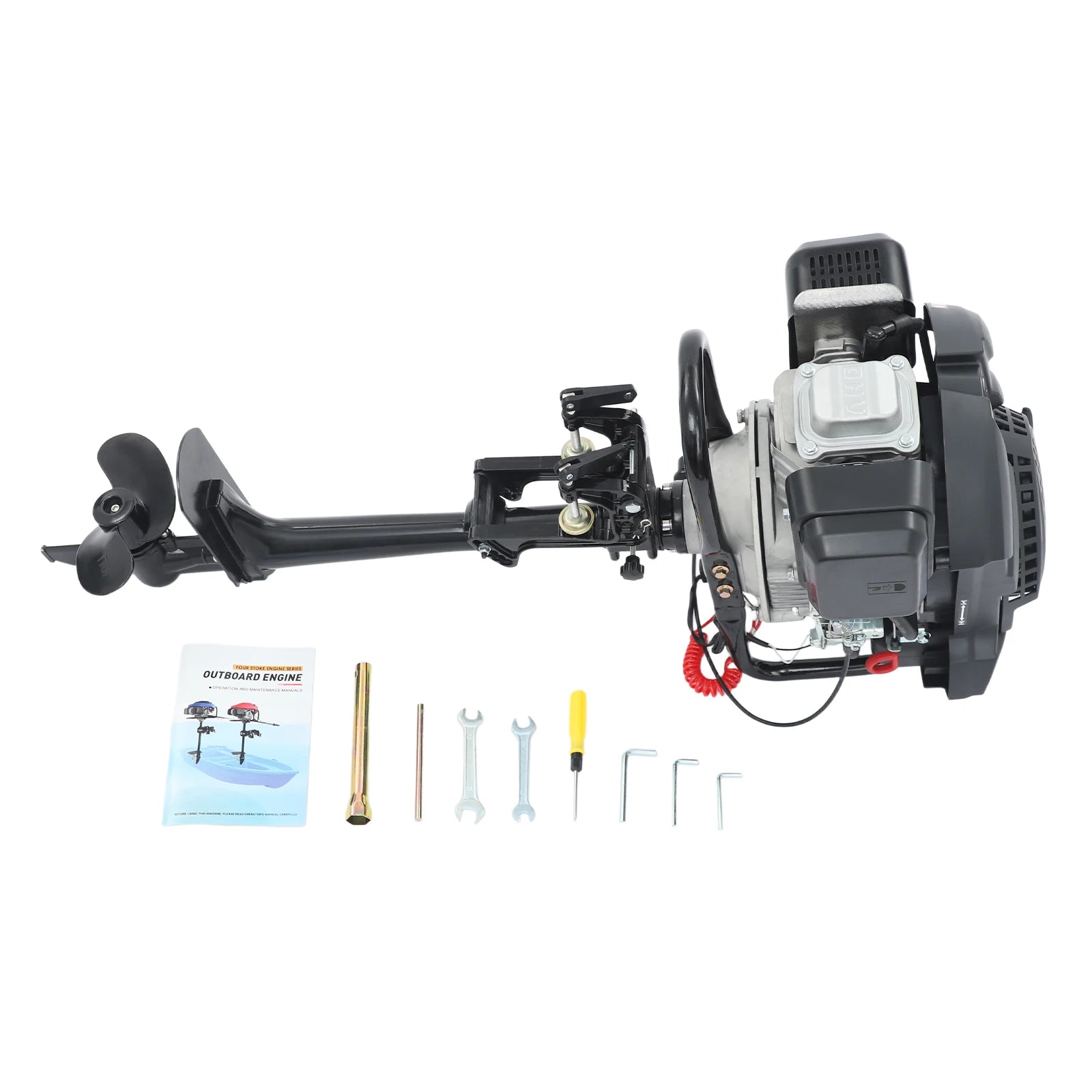

Package Included

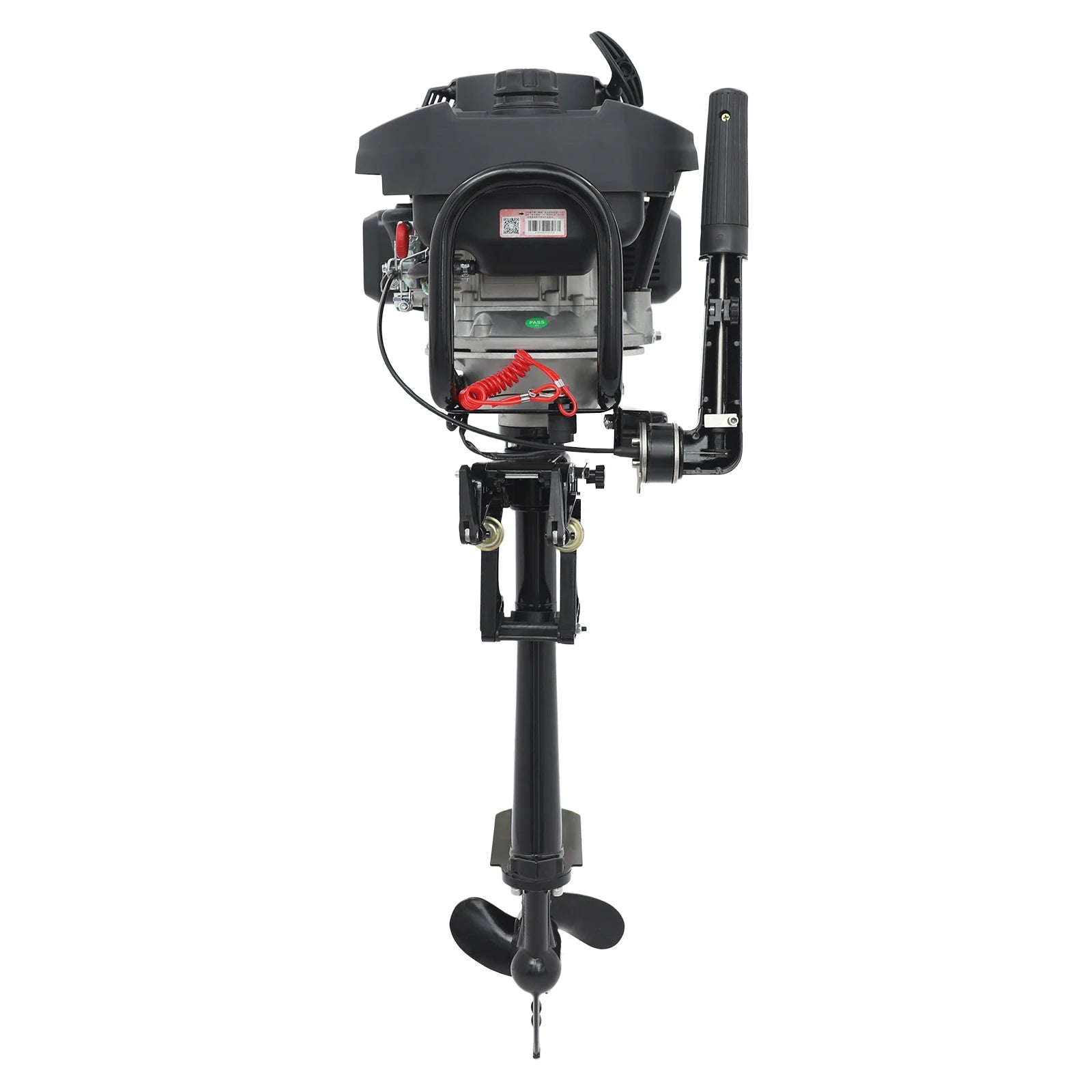

1* 4-stroke Outboard Motor

1* English Manual

Other Needed Accessories



Key Features

Engineered for Durability: Constructed from premium aluminum, this product is designed to be robust, and rust-inhibiting, providing a reliable and enduring solution.



Powerful Performance: Delivering 9.0 horsepower from a 224cc engine, it ensures strong propulsion and smooth navigation for your watercraft. With a top speed of 11.81 mph and efficient fuel use, it offers a dynamic blend of power and economy.





Well-thought Design: This design integrates tilt functionality, 360° rotation, and CDI ignition technology, with reverse gear engagement achieved through 180° rotation at the front end, ensuring operational flexibility and convenience.

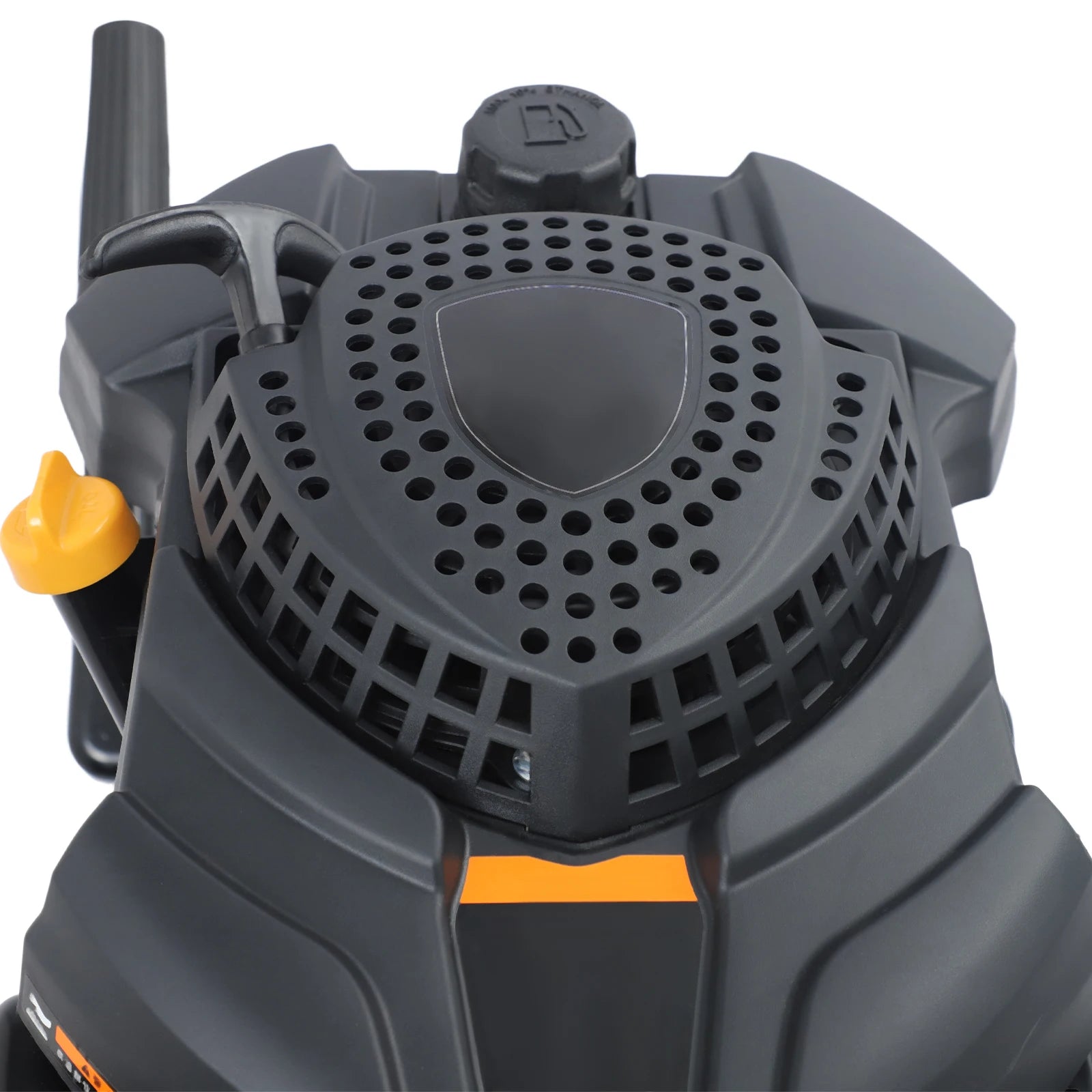

Safety Guard: Equipped with an emergency stop switch and a safety lanyard, it also includes a clutch that halts propeller rotation during idling for enhanced safety. The air-cooled design with multiple ventilation holes ensures efficient heat dissipation, promoting stable performance and prolonged durability.





Premium Gift Selection: With its exceptional practicality, this product makes an ideal gift for friends and family, as well as an ideal choice for sailing enthusiasts and anglers.



Notes

1. Please note that the driving speed will change due to different ship types, loads, and natural conditions.

2. High-temperature exhaust components may cause severe burns. Please do not touch them.

3. Please do not disassemble the host without authorization to avoid unnecessary damage. Please do not use it indoors or in enclosed spaces. Before long-term storage, the gasoline in the tank should be empty.The engine should be stored in a well-ventilated place and avoid direct exposure to sunlight.

4. Before use, please prepare enough fuel, bring life jackets, and other necessary tools(not included), and check if the outboard engine is installed correctly.

5. Please read the English manual carefully before use, paying particular attention to the safety instructions.

6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
