SPECIFICATIONS



Application: Home,Agriculture/Farming, Home/Garden, Electronics, ecreational Vehicle (RV), Irrigation



Certification: None

Charging Mode: PWM (Pulse Width Modulation)

Connector Type: MC4

Current Type: DC

Features: All Daylight Conditions, Monocrystalline, Corrosion Resistant

Load Power (W): 200W

Maximum Power Current: 5.13A

Maximum Power Voltage: 19.5V

Maximum Series Fuse Rating: 10A

Maximum System Voltage: 1000Vdc

Open Circuit Voltage: 22.7V

Output Voltage (V): 18

Pliability: Rigid

Power Source: Solar

Rated Max Power: 100W

Resistance Properties: Waterproof

Short Circuit Current: 5.55A

Size: 895*585*35mm/35.24*23.03*1.37in

Solar Power (W): 200W

Solar Technology: Monocrystalline

Specification: Normal

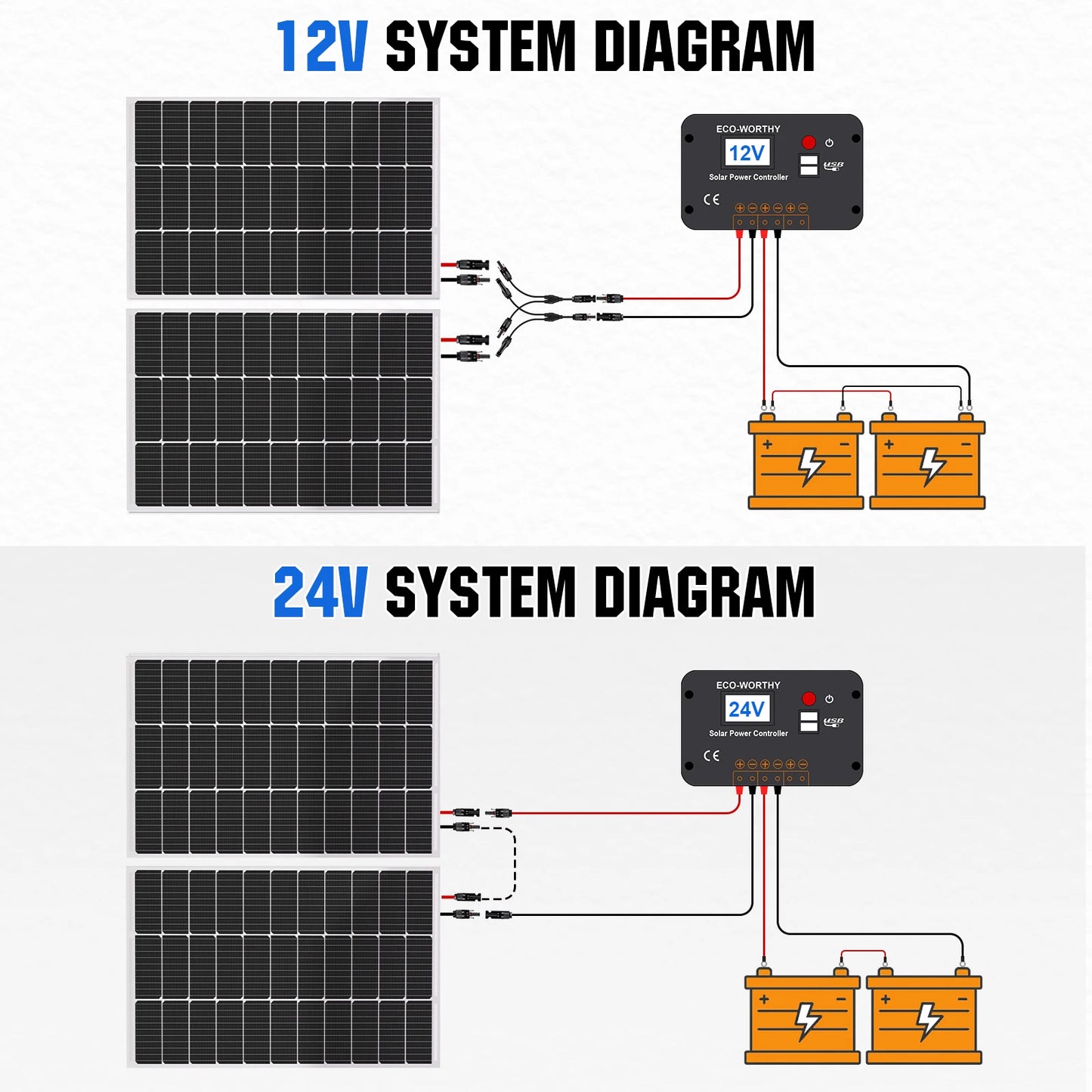

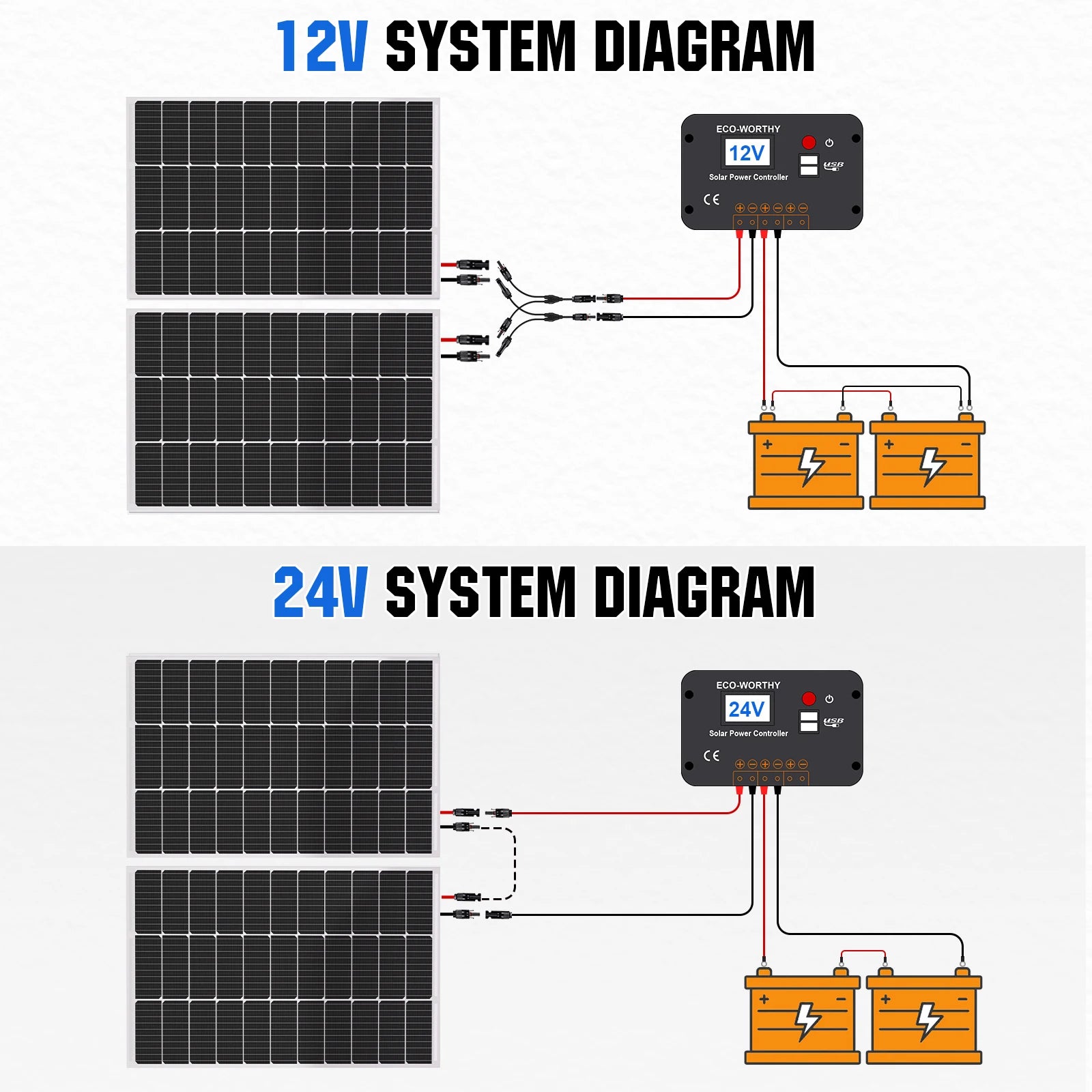

System Configuration: Off-Grid

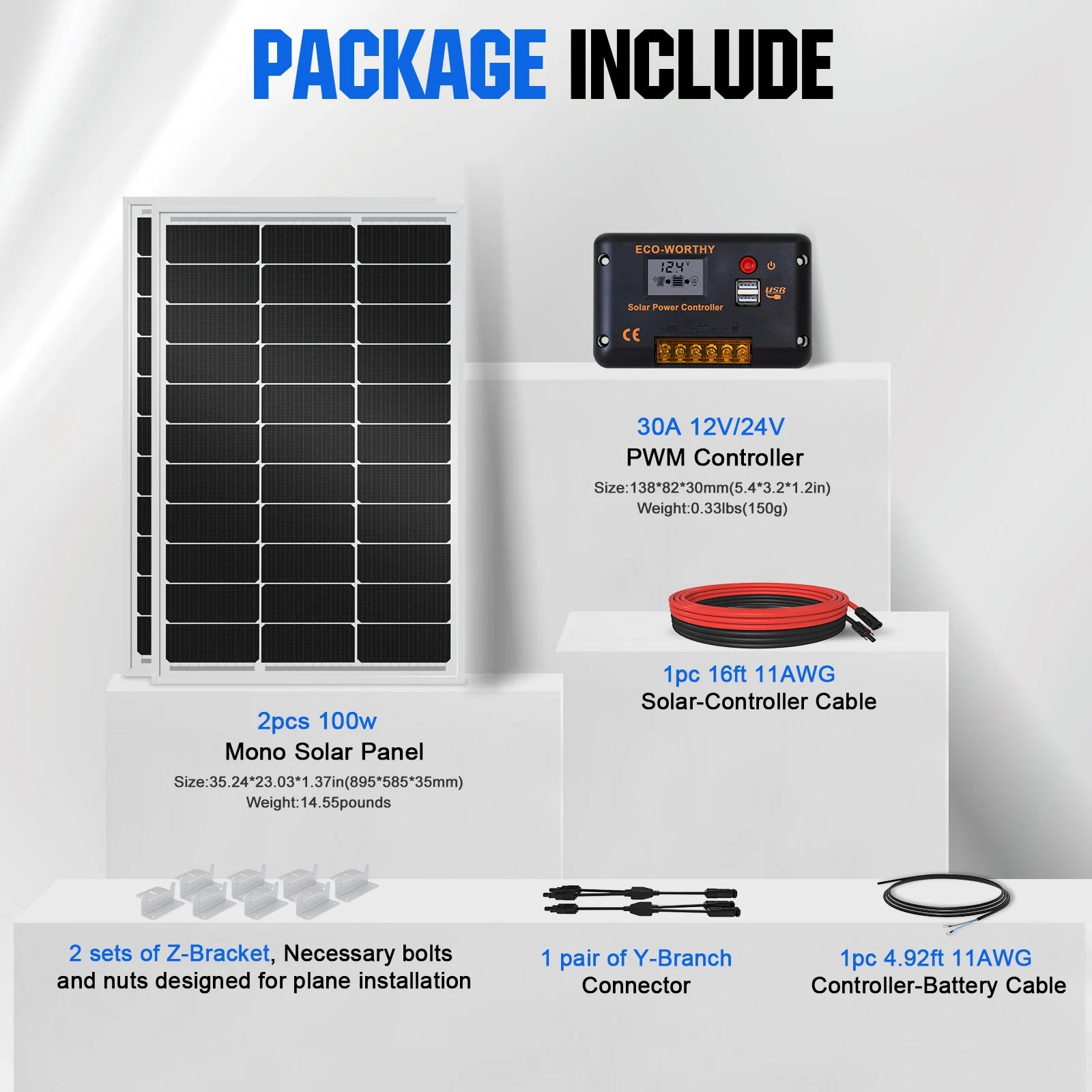

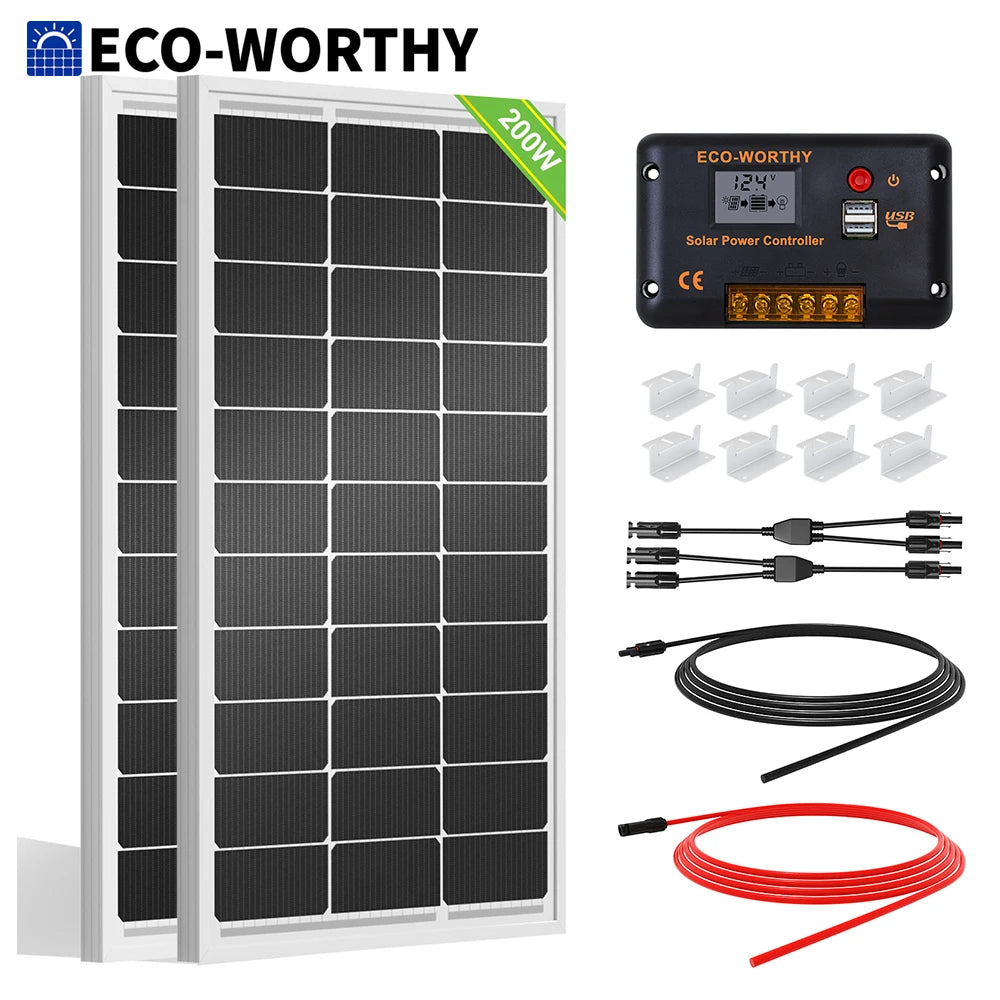

Type: Solar Panel Kit

Voltage: 18 V

Wattage: 200W

Work Time (h): 24
