SPECIFICATIONS





Design: Brushless

Voltage: 48V

Wattage: > 400w



Electric Bicycle EBike Conversion Kit 20" E-Bike Front Wheel Frame Kit 20" 48V 1000W for Fat tire Bike Motor kit



Description

This brushless gearless hub motor is made of aluminum and iron, which is more durable and corrosive-resistant, having a long service life. The speed range can reach 500rpm and has a no-load speed of 48km/h, which can make your ride easier. So, you can fully enjoy the ride. It is used to convert an ordinary bicycle into an electric bicycle, making it both a bicycle and an electric bicycle. It will be your ideal choice!



Key Features



High Speed: The speed of this motor can reach 500rpm and a no-load speed of 29.82mile/h, which can make your ride easier. So, you can fully enjoy the ride.



Smooth Running: The friction of this front wheel motor is greatly reduced when running because it has no brush and gear so it can run more smoothly even on irregular roads.





Low Maintenance Cost: This front wheel motor has a low maintenance cost because it has no brush, so you don't have to replace the brushes to reduce your economic pressure.





Powerful Controller: This product is equipped with a powerful controller to ensure a high current supply. It can help you ride, double the distance, and make the riding process easier!





High Efficiency: This brushless and gearless motor is more efficient due to its high power of 1000W and an available efficiency of more than 82%, thus allowing for more efficient riding.





Low Noise: The friction of this brushless gearless hub motor is greatly reduced when running because it has no brush, which will release lower noise during operation.





Complete kit: This is a complete wheel motor kit, so the parts are more adaptable and have better performance. At the same time, it is very convenient as you do not need to buy the parts separately.





High Safety: The motor's power supply can be cut off automatically when braking, which not only saves energy, but also increases safety and makes riding more secure.





Great Durability: Thanks to its aluminum housing and iron hub, it is more durable and firm. It is also not easy to damage or rust under proper use.





Excellent After-sales Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us, and we will reply and solve the problem for you as soon as possible.





Details

Brushless Gearless Motors: As brushlessgearless motors do not have carbon brushes, frictional resistance and heat are greatly reduced, resulting in extremely high transmission efficiency and speed. It allows for more efficient operation.

Controller Bag: This set is equipped with a controller bag, which can store the controller. It is not only very convenient to store it but also very good-looking.



Hall Sensors: It is equipped with 3 Hall sensors, which detect the magnetic field of the motor and the motor's movement speed to facilitate the driving of the motor for a more powerful start and a smoother ride.



Power Indicator Light: With three power indicators on the handle. The green light will be on when the power is sufficient, while the yellow or red light will remind you that it is time to recharge.



Application



It is suitable for the modification of 20 "x4" size wheels, such as snow bikes, electric bikes, and electric motorbikes.



Specification



Material: Aluminium + Iron + Magnetic Steel

Color: Black

Voltage: 48V

Power: 1000w

Rated Speed: 500 rpm

Rated Torque: 45 N.M

Motor Type: Brushless Gearless Motor

Brake: 6 Screws Fixed Model Disc Brake

Corresponding Controller: 48v1000w Controller

Efficiency: ≥82%

Travel Speed: 48km/h Unladen(29.82mile/h)

Suspension Type: Front

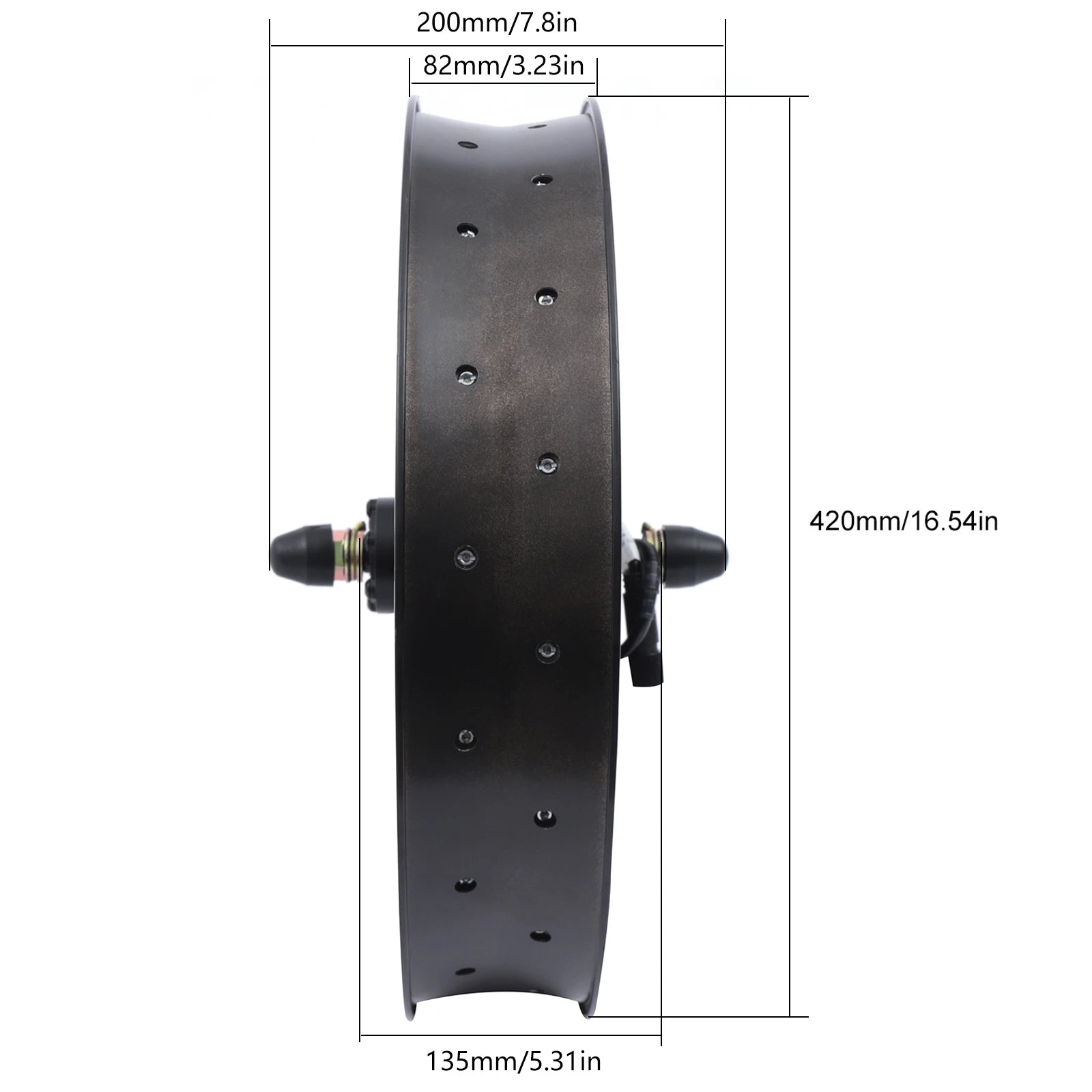

Motor Diameter: 420mm/16.54in

Motor Shaft Length: 200mm/7.87in

Motor Cable Length: 100cm/3.93in

Wheel Diameter: 445mm/17.25in

Motor Width: 82mm/3.263in

Number of Hall Sensors: 3

Body Size of Magnet: 13.65*3*30mm/0.53*0.11*1.18in

Flat Fork Width Requirement: Min.135mm/Min.5.31in

Suitable Wheel Size: 50*10cm/20*4in

Packing Size: 50*50*28cm/19.68*19.68*11.02in

Gross Weight: 11.5kg/25.35lbs

Net Weight: 10kg/22lbs

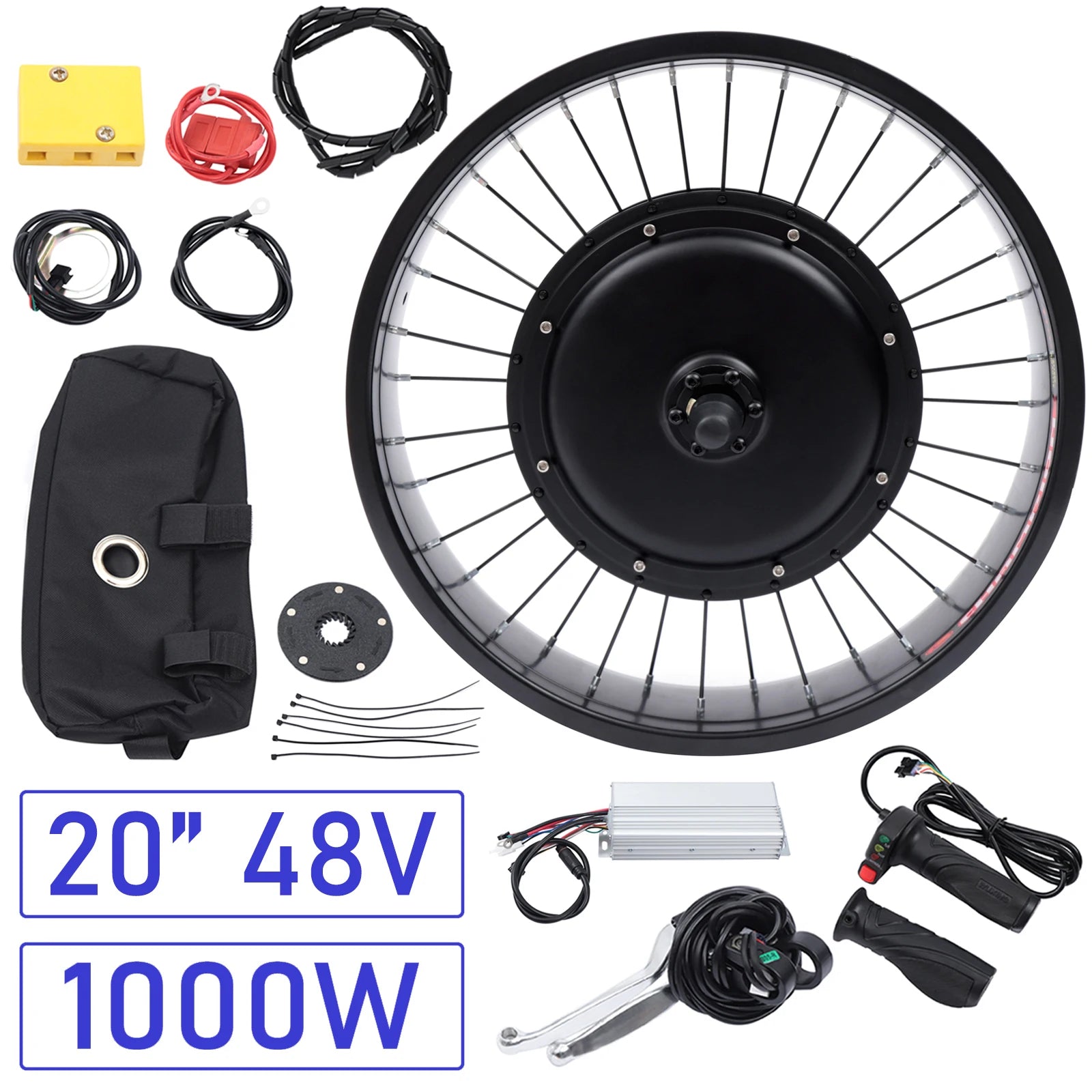

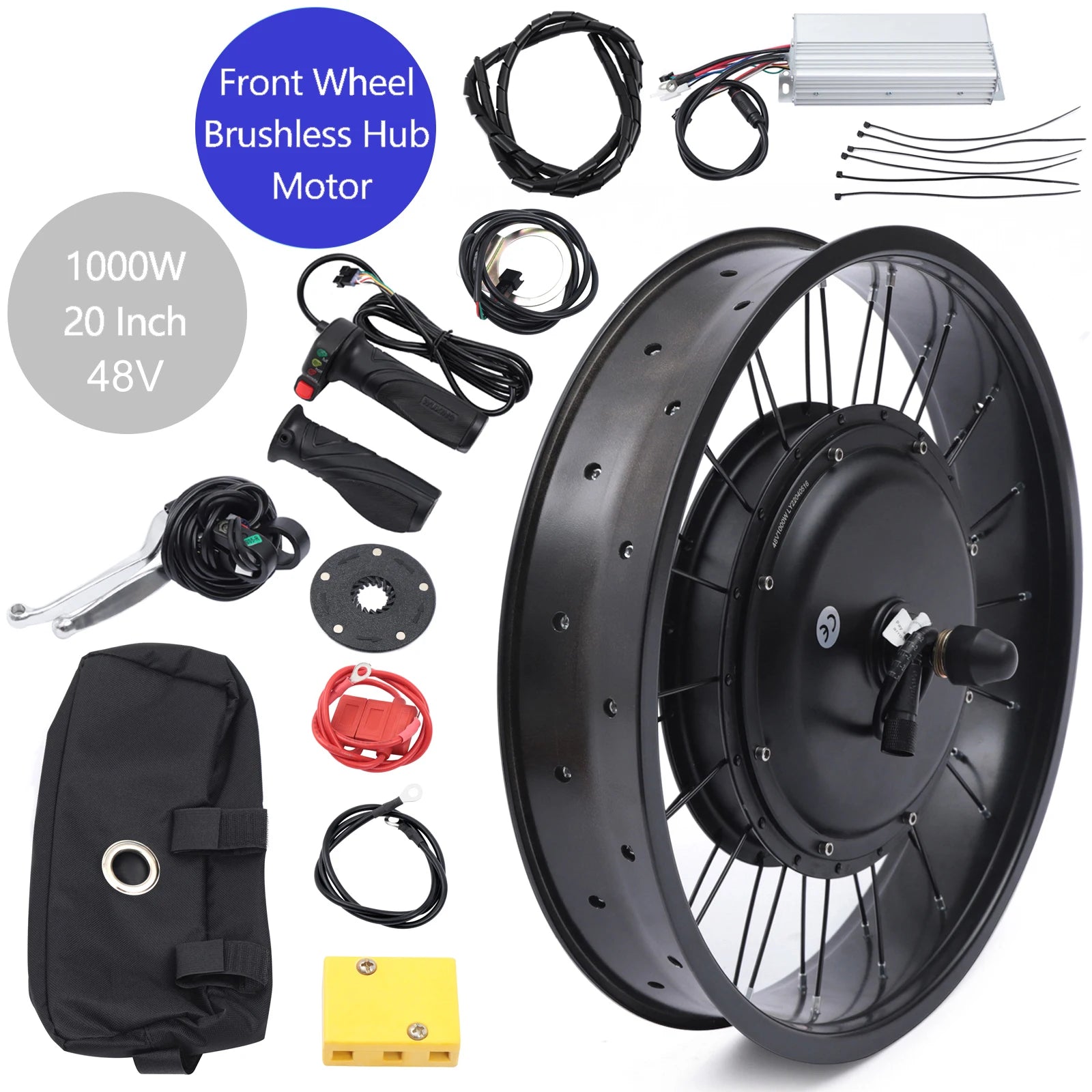

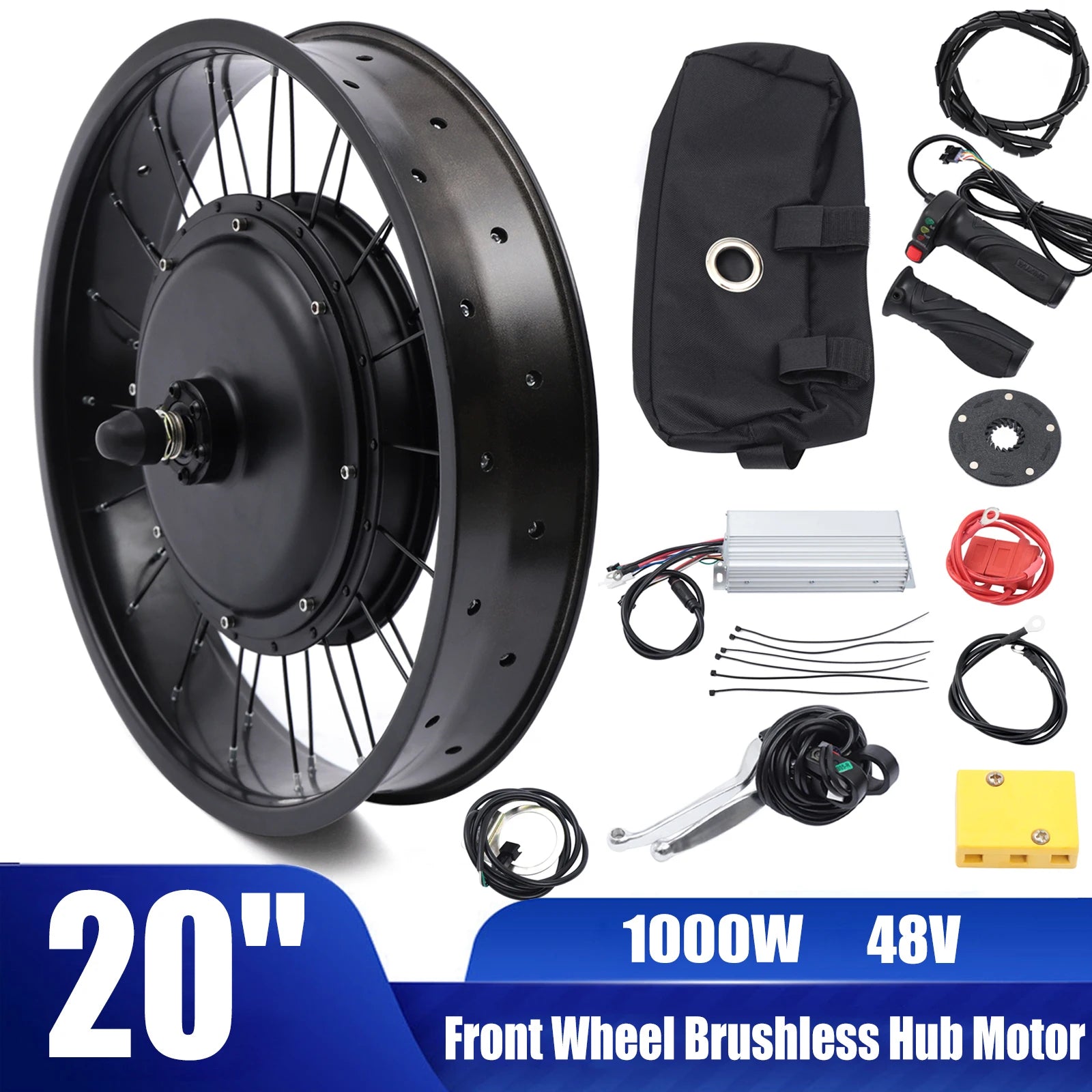

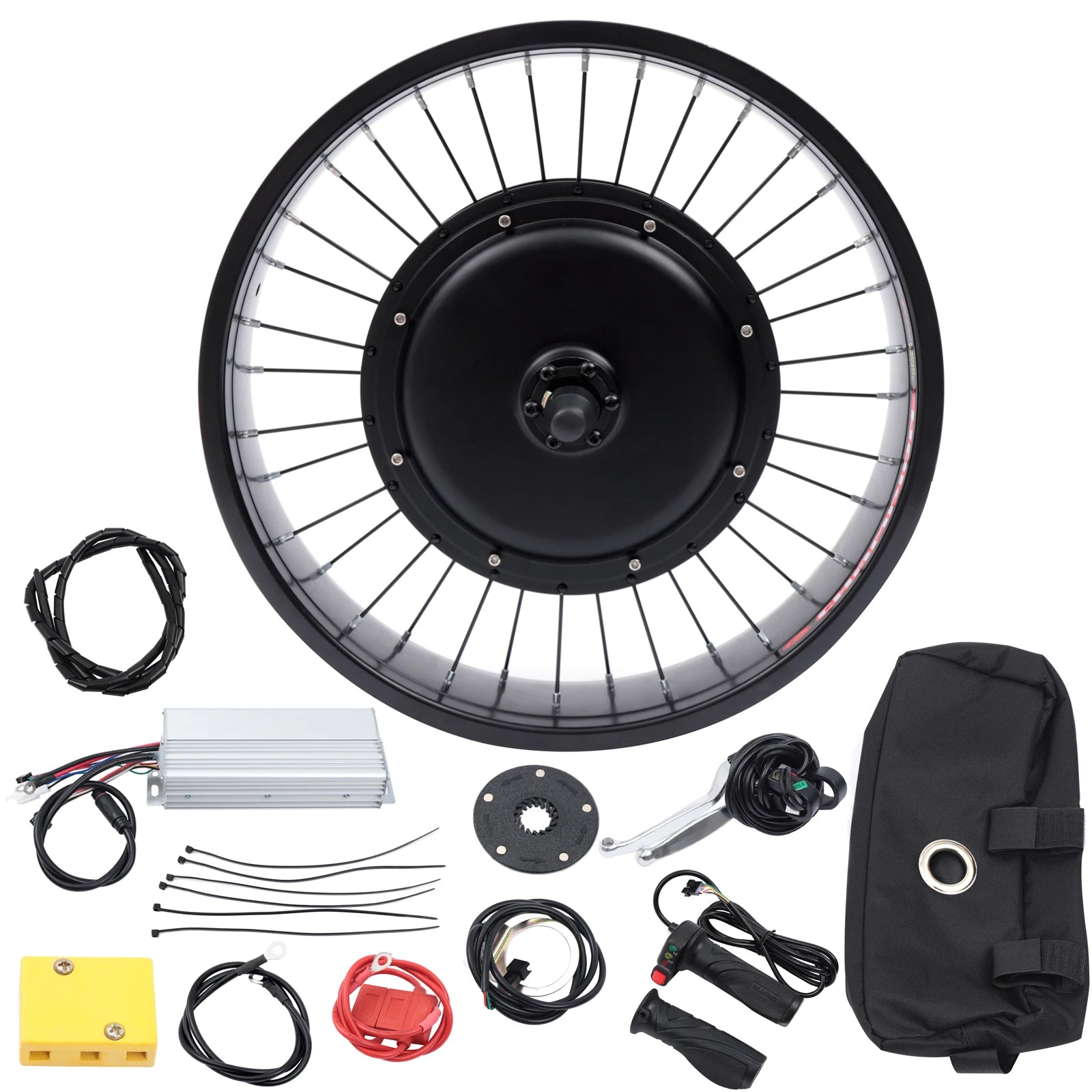

Package Included



1* Wheel Motor

1* Controller

1* Turnbuckle

2* Brake Handles

2* Handles

1* Assist Sensor

1* Controller Bag

1* English Manual

All Accessories for Installation



Notes



1.This set does not include tires and needs to be purchased by the customer. The suitable tire size is 20*4in.

2. Please make sure to use lead-acid or lithium batteries of the appropriate voltage (48V).

3. It is suitable for two-wheeled bicycles, not for three-wheeled or multi-wheeled vehicles.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
