SPECIFICATIONS



2.3 Hp 2 Stroke Outboard Motor 52cc Forced Air Cooling Outboard Motor Mixed Oil Boat Vessel Engine with 360° Rotatable Joystick



Description

Suitable for small boats up to 8.2 feet in length, the 2.3 HP 2-stroke outboard motor is a simple and efficient device that can be operated by a handle, making it ideal for tasks on the water or for activities on the water. Its sophisticated design and efficient fuel mechanism ensure excellent performance, while the user-friendly handle simplifies use, even in challenging conditions. Whether you're embarking on a fishing trip or a recreational cruise, this 2.3 HP 2-stroke outboard motor is the ideal companion for your water adventures.



Key Features



Powerful Motor: It is a 2-stroke 2.3-horsepower motor with a speed of up to 8500 rpm, allowing you to drive quickly, saving a lot of time and energy. When you fill it up with oil, it can run for 40-70 minutes.



Good Heat Dissipation: The cooling holes in the housing dissipate heat quickly, preventing the motor from burning out after long periods of use. Meanwhile, the air cooling mechanism allows for faster cooling, reducing the failure rate.

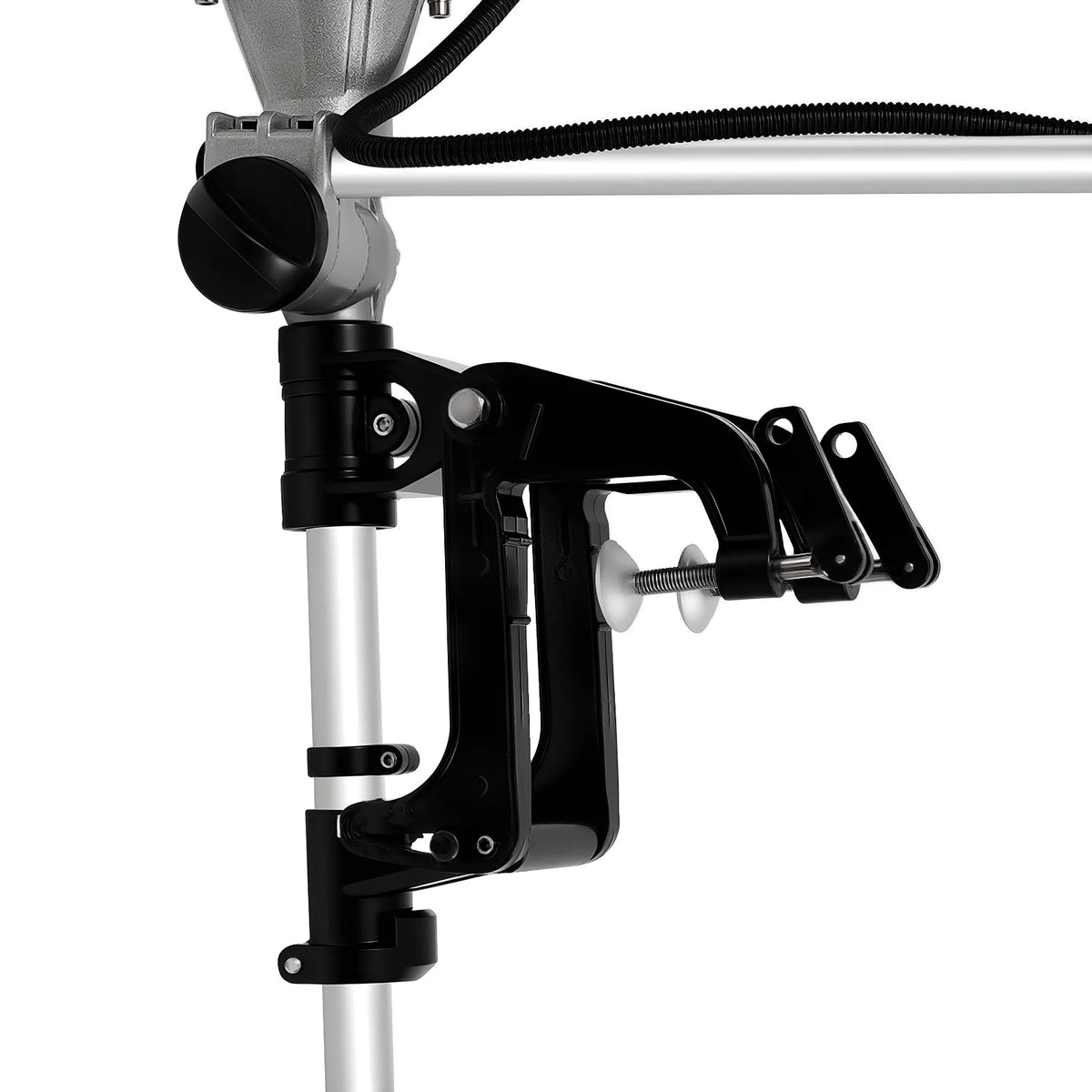

Thoughtful Design: Rubber handle is ergonomically designed for easy hand grip while increasing friction to prevent hand slipping. The mounting bracket can be used to secure the engine firmly on the boat. The external 0.22-gal fuel tank allows you to replenish fuel promptly.





Quick Start: The CDI ignition mechanism and convenient hand-pull starter allow you to quickly start the product, saving time and effort.





Safe to Use: Gear start protection, clutch function prohibits the propeller from idling, and lift and tilt function facilitates shallow water use, which is safe and reliable, making it more convenient for you to use.





Details



360° Rotatable Joystick: It can be easily used in all directions for added convenience.



Swirl Reducer Plate: It prevents the propeller from lifting water when the water is shallow and also improves propeller efficiency and reduces fuel consumption.





Application



This product is suitable for vessels up to 8.2ft in length and weighing 220.46lbs or less, with a load capacity of 2-3 persons. It is suitable for fishing, aquaculture, outdoor adventure, water sports, water tourism, water rescue, and other fields.



Specifications



Material: Aluminium, Iron, Cooper, Plastic, Rubber

Process: Spray Molding

Color: Black

Type: 2 Stroke Engine,  Forced Air Cooling

Assembly Required: Yes

Carburetor Type: Diaphragm Type

Mounting Type: ‎Ship's Outer Side

Ignition Mechanism: CDI

Trim and Tilt Mechanism: Manual

Gasoline: Mixed Oil ( Gasoline and 2-stroke Engine Oil Mixed at a Ratio of 25:1 )

Propeller Specification: 3-blade

Gear Ratio: 3:2

Displacement: 52cc

Horsepower: 2.3 HP

Fuel Tank Capacity: 1L/0.22gal

Fuel Consumption: 0.6-0.8L/0.13-0.17 gal/H

Power: 1.7kw

Rotation Speed: 8500rpm

Full Fuel Running Time: 40-70min(For Feference Only)

Applicable Boat Size: Within 2.5m/8.2ft

Gross Weight: 9.55kg/21.05lbs

Net Weight: 9.07kg/20 lbs

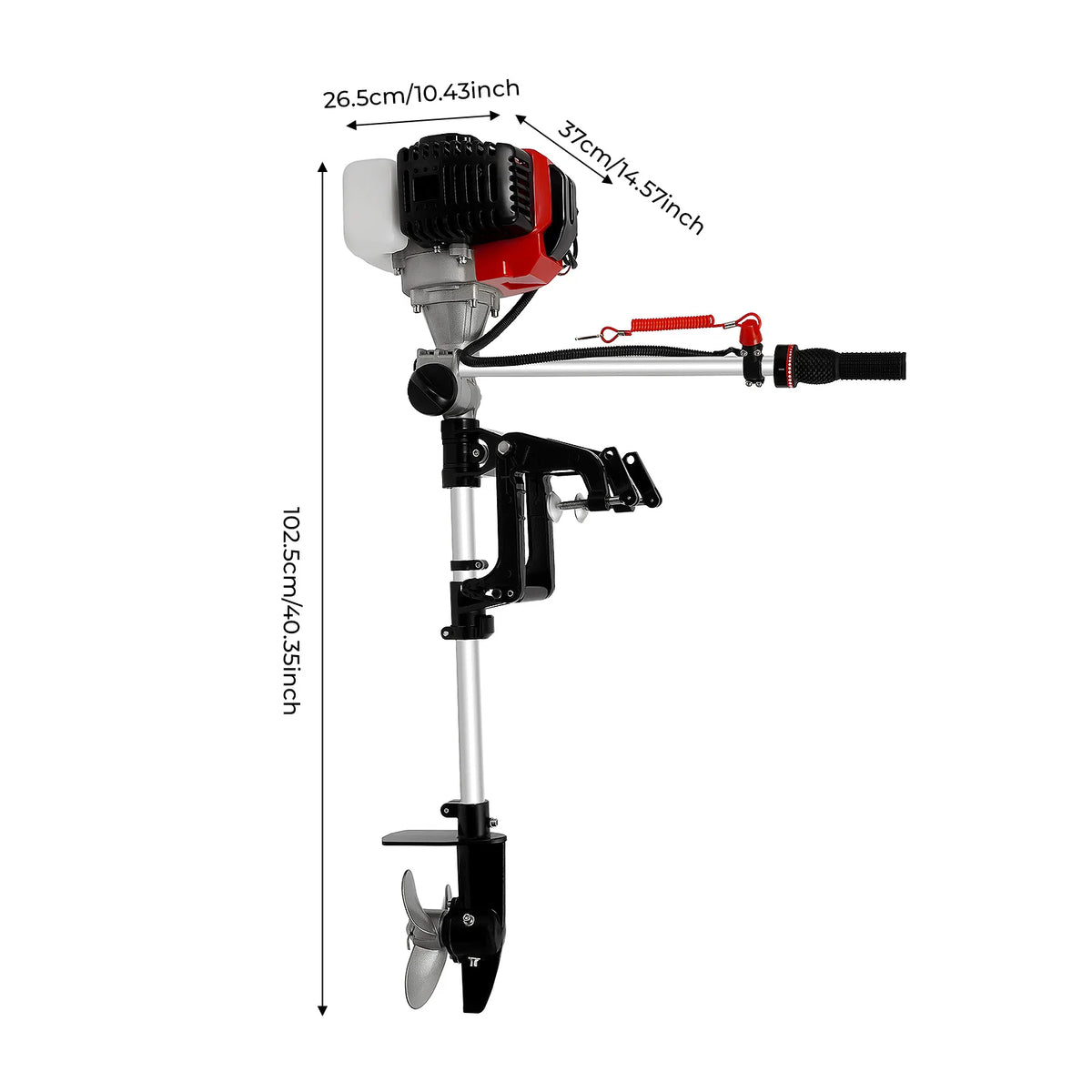

Product Size: 102.5*37*26.5cm/40.35*14.57*10.43in

Package Size: 113*30*29cm/44.49*11.81*11.42in

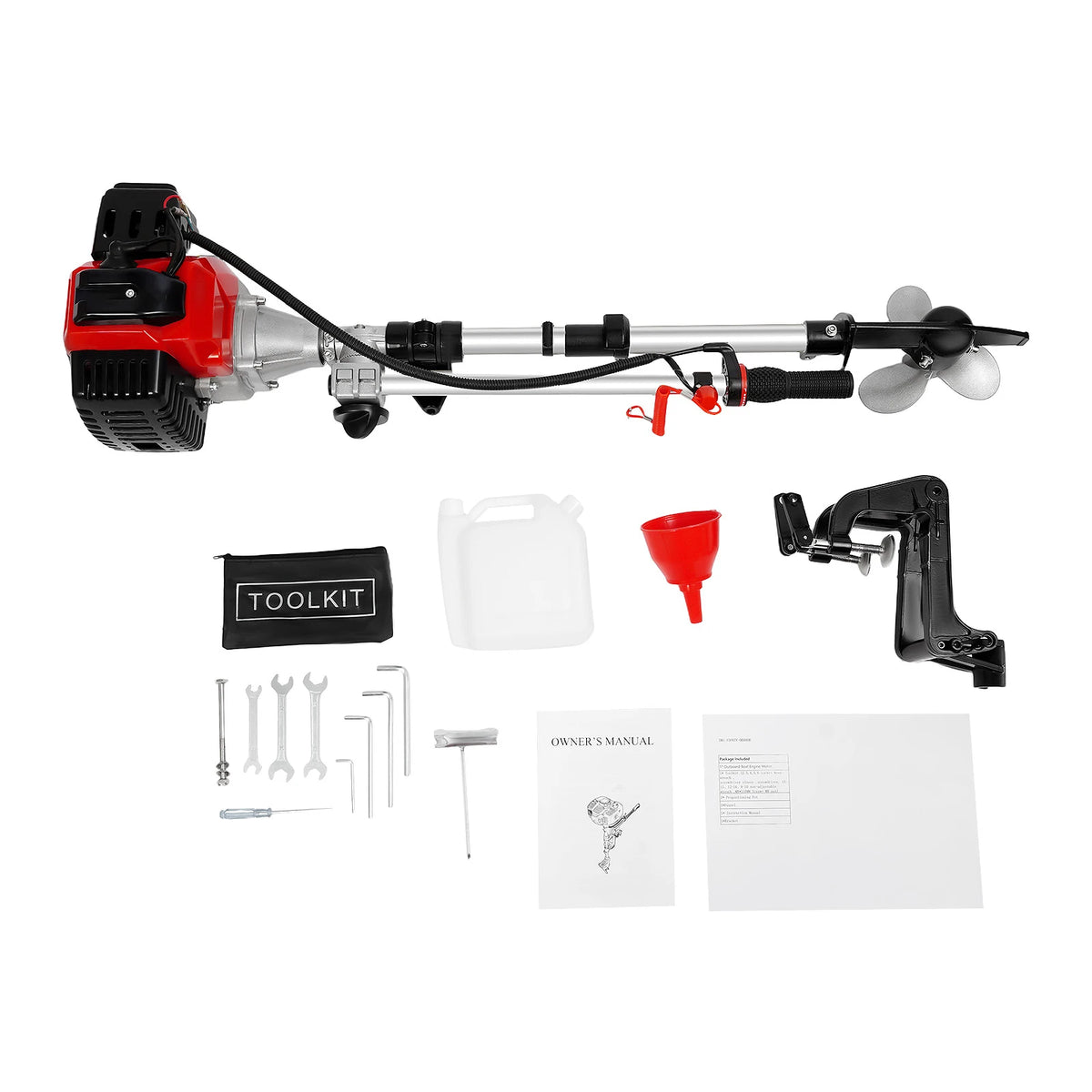

Package Included



1* Outboard Motor

1* Bracket

1* Toolkit Bag

1* Funnel

1* Mixing Bottle

1* English Manual

1*  Package List

All Accessories for Assembly



Notes



1. Please read the operating manual and label completely before use, and pay particular attention to the safety instructions included. Please note that the speed is certainly not the same when one person is on it or when many people are on the boat. Please don't start the motor on the bank. If you want to test the motor, it should be done in the river. Please don't use the motor when it stops coming out of the water.

2. Please note that gasoline(not included) is prone to oxidation and degradation during storage. Using degraded gasoline can clog fuel lines and cause starting difficulties. If the engine has not been used for more than half a month, please drain the fuel in advance.

3. Please prepare enough fuel according to the sailing distance. Please carry a life jacket and a hand paddle (both not included). Please check the installation of the outboard motor before sailing.

4. Please note that all gasoline engines make noise, but this is normal. The use of fishing gear should comply with national laws and regulations, comply with local government water control.

5. If you need to accelerate, please accelerate slowly; please don't accelerate sharply, or it will increase the wear and tear of the clutch.

6. Please allow the slight color difference caused by the shooting light and a 1-3cm error due to manual measurement, and make sure you do not mind before you order.
