SPECIFICATIONS



Application: Commercial,Resindential



1800lbs Automatic Sliding Gate Opener Operator Kit Electric with 2 Remotes

Gate Move Speed: 43 ft/min, 13 m/min



Horse Power: 360 W/0.5 HP

Max Gate Weight: 1800lbs (800kg)

Maximum Gate Size: 19.7 ft/6 m

Motor Speed: 66 RPM



Output Power: 360W

Output Torque: 18 N.m

Power Source: Electric

Remote Control Mode: Single-Button

Remote Control Range: 100 ft / 30 m

Type: Gate Opener

Voltage: 110V AC

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No



Specification

Power Supply: 110V AC, 60Hz
Gate Move Speed: 43 ft/min, 13 m/min
Max. Gate Weight: 1800 lbs / 817 kg
Remote Control Range: 100 ft / 30 m
Motor Speed: 66 RPM
Output Power: 360W
Output Shaft Height: 2.3 in / 58.5 mm
Output Torque: 18 N.m
Duty Cycle: S2, 15 Minutes
Noise: <56 dB
Max. Gate Length: 39.4 ft/12 m
Max. Remote Controls: 40
Remote Control Mode: Single-Button
Frequency: 433.92 MHz
Operating Temperature: -4°F~+122°F / -20°C~+50°C
Product Size: 12.6 x 6.18 x 22.5 in / 32 x 15.7 x 57 cm
Remote Control Mode: Single-Button
Without infrared



Feature

360W Copper-Core Motor: This powerful motor can drive gates weighing up to 1,800 pounds, operating at speeds of up to 43 feet per minute.

Stability: Featuring a quiet operation design and equipped with overload protection and overheat protection devices, it ensures long-term stable performance.



Smart Remote: You can use the remote to control to make the gate open, close, and stop from nearly 100 ft away. Two emergency release keys allow you to open the gate manually in case of power shortages. Our gate opener automatically closes after opening; the timing can be customized to 5, 10, or 20 seconds.



Smart Obstruction Detection: The gate will stop and reverse if an obstacle is detected by the sensor of our gate opener. This technology brings great convenience and security to you.



Sturdy & Waterproof Construction: The heavy-duty and waterproof shell can shield the motor from damage. The stainless steel gears with a rainproof cover will never get rusted. 9-in-height base will keep the gate opener from being submerged during heavy rain.



Accessories & Encrypted: The electric gate opener comes with 2 x 10 ft chains and complete installation accessories. You can install it without effort. Our remote control also has a rolling anti-theft mode to prevent intrusion.

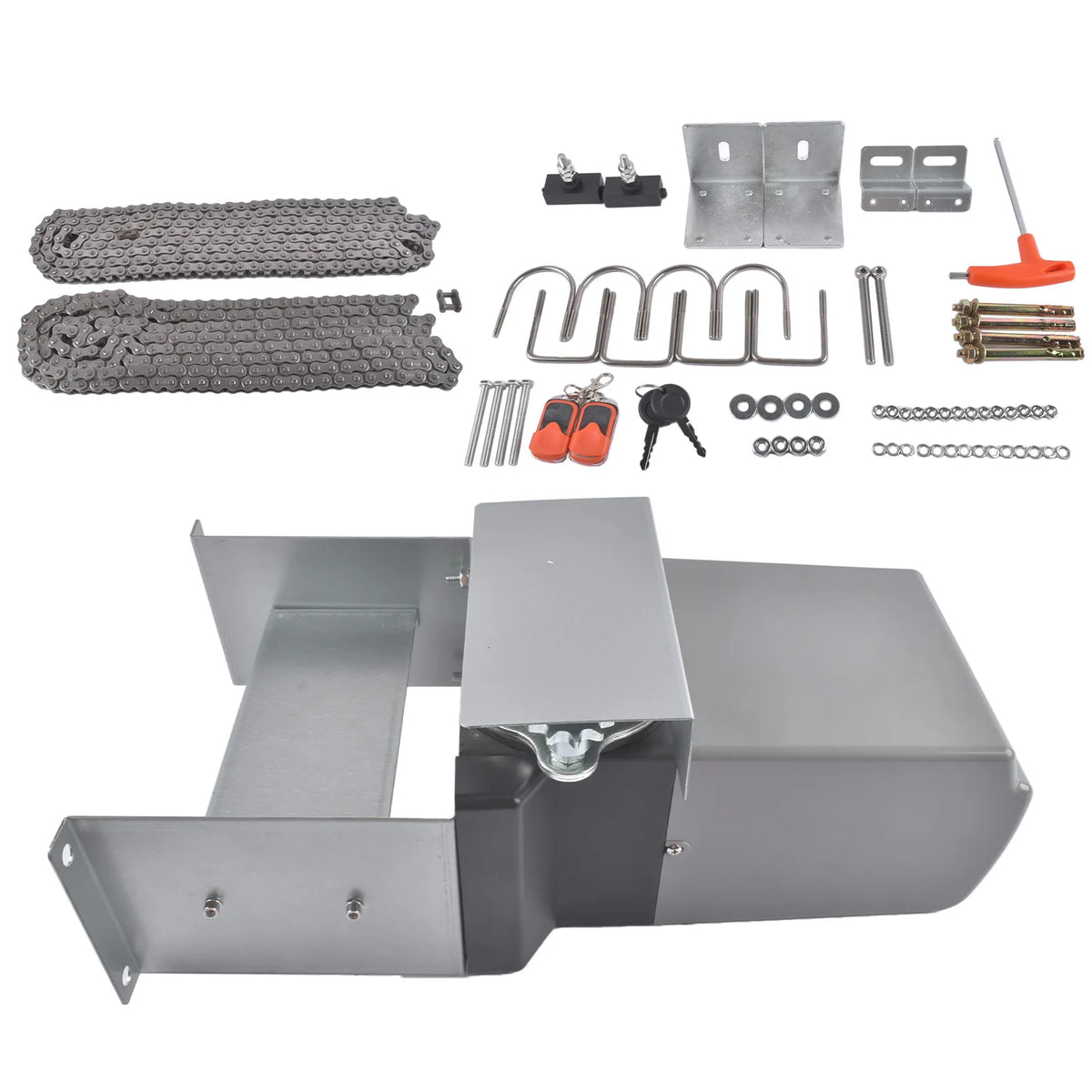

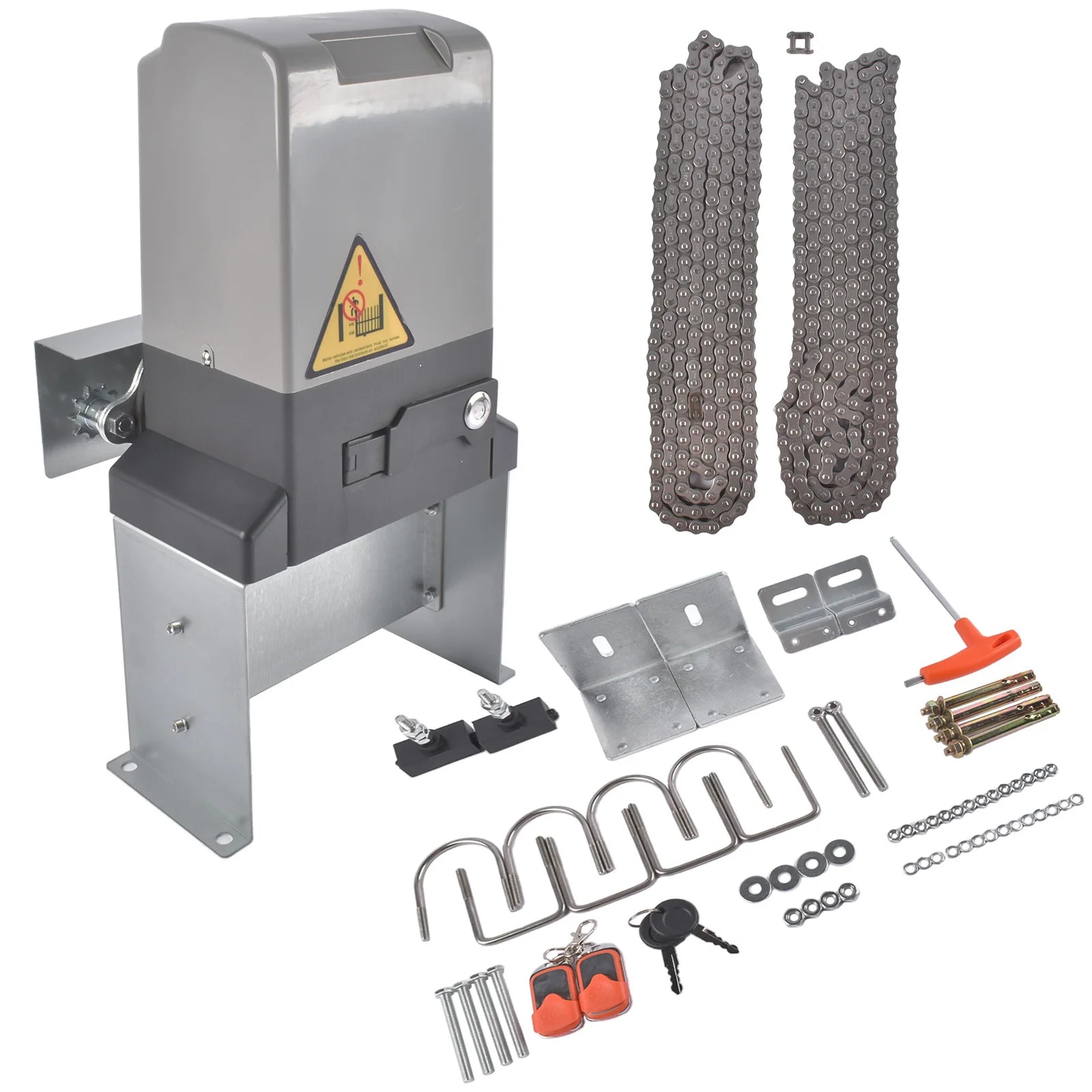

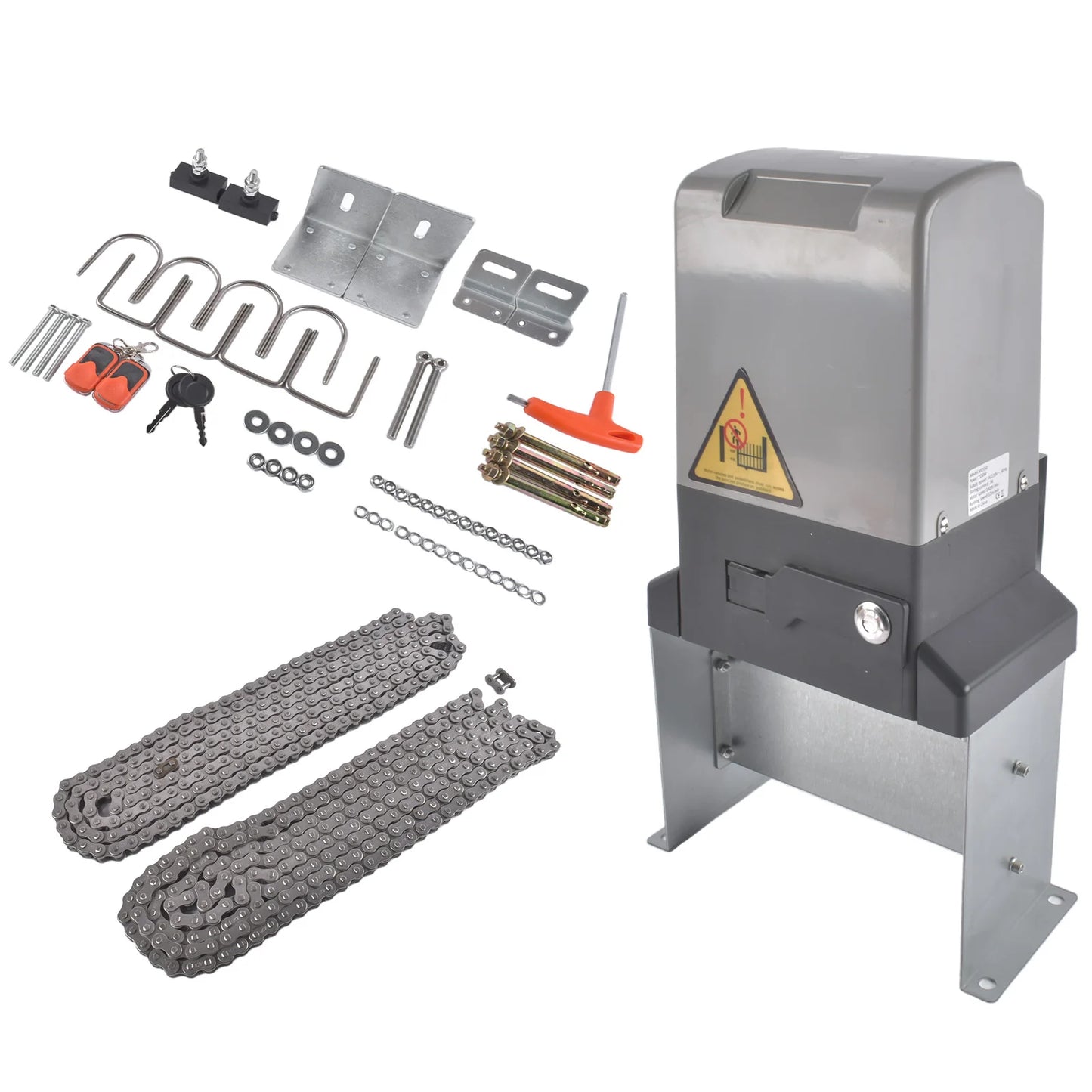

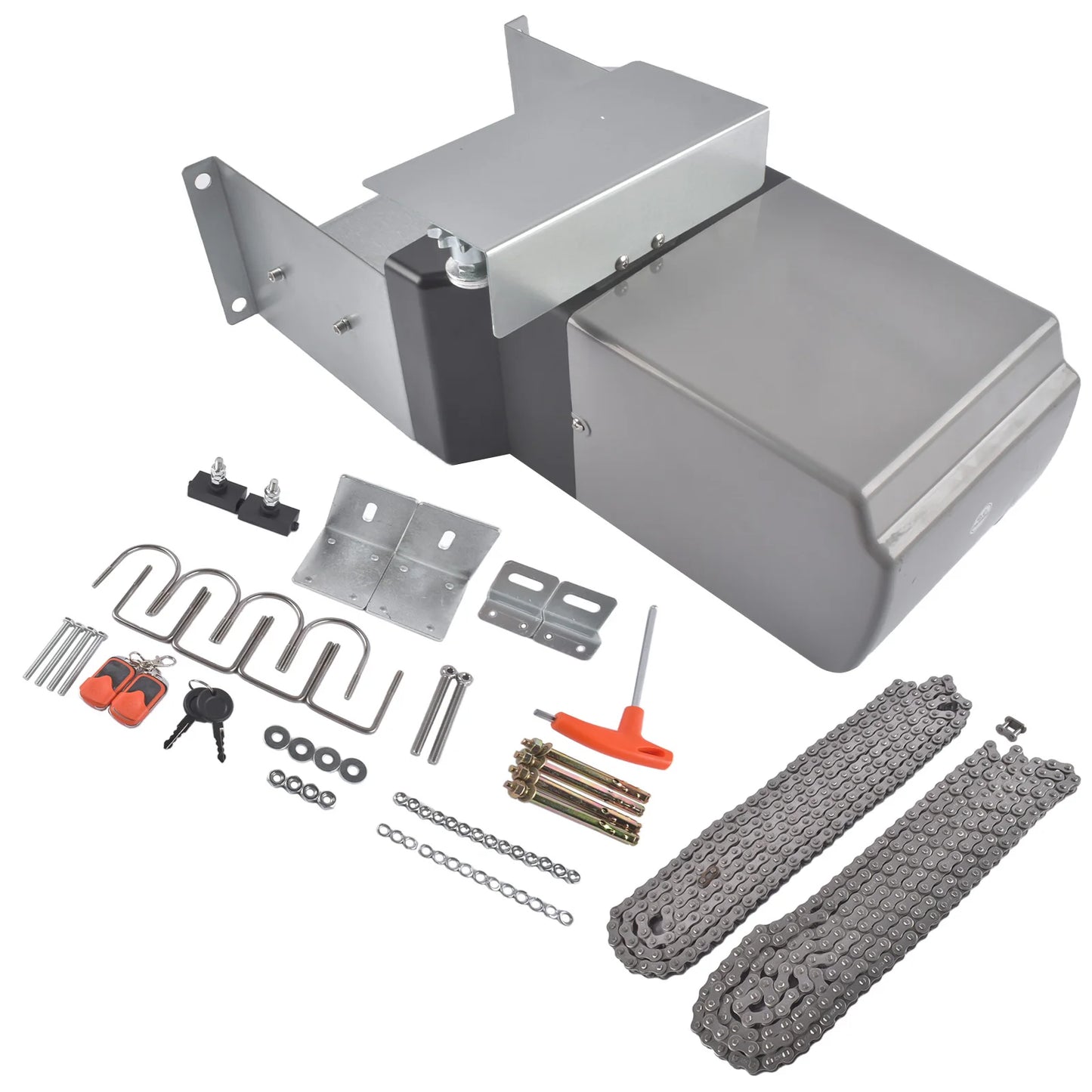

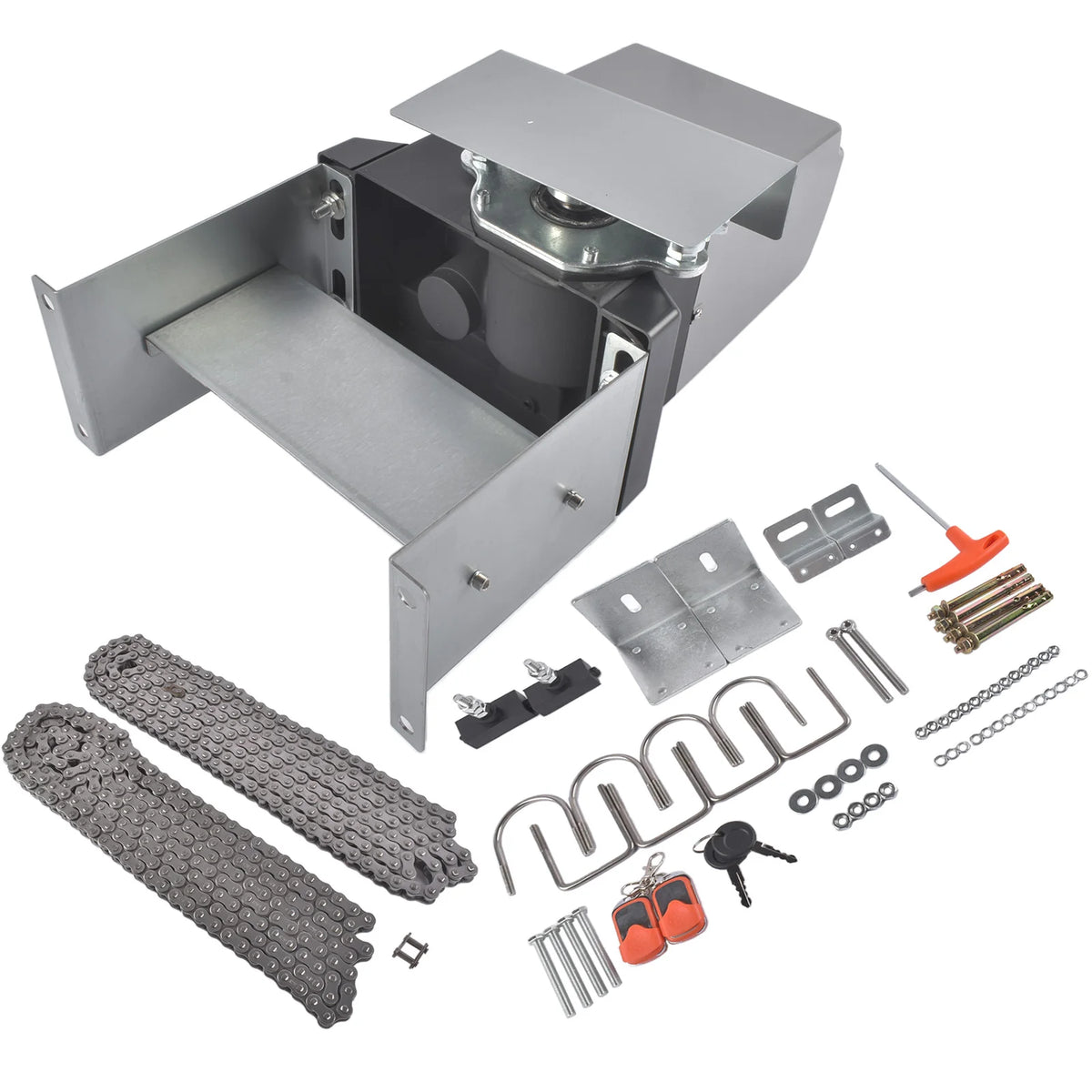

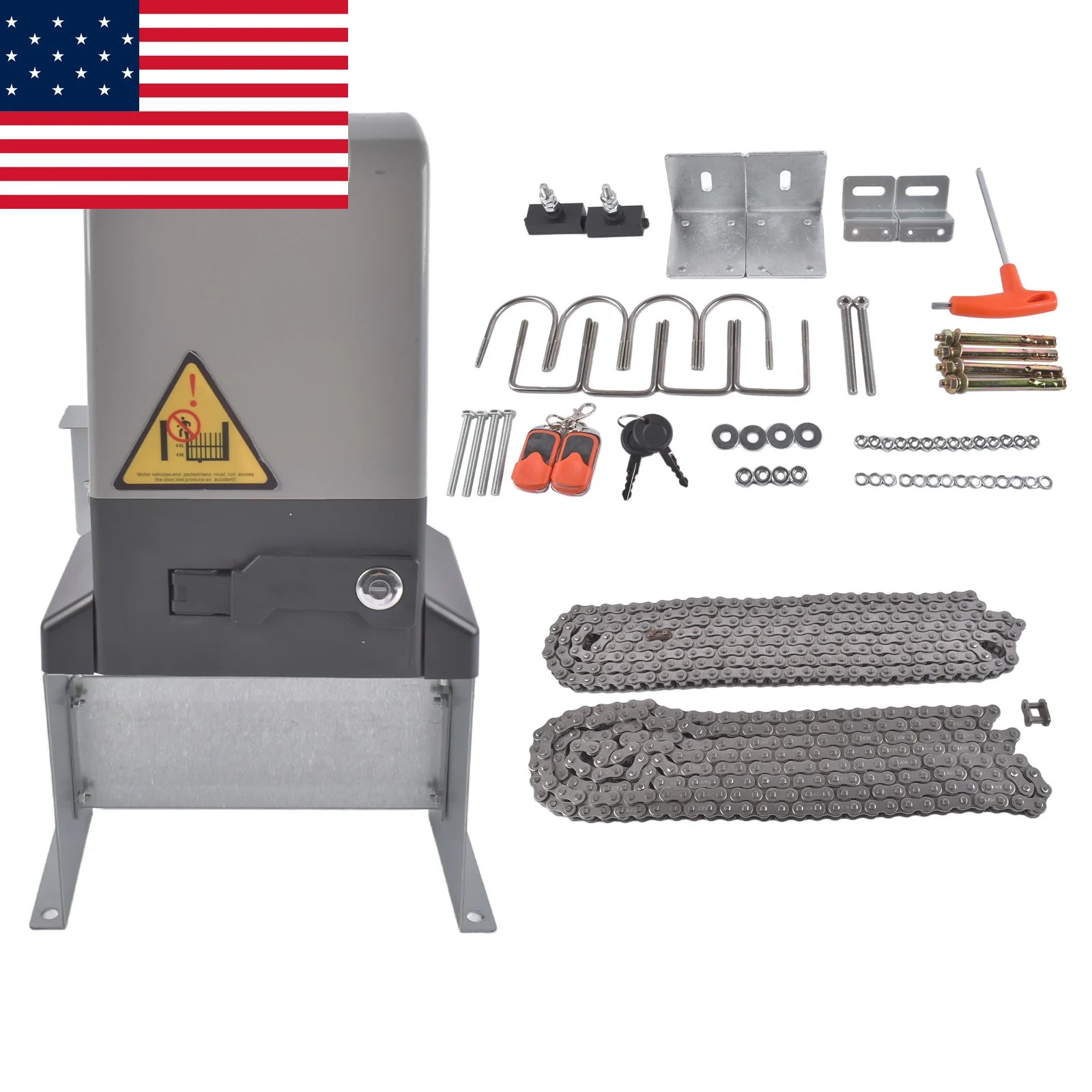

Package Content

As pics shown
1 X Sliding Gate Opener
1 X 20 ft Chain (Can be split into 2 x 10 ft Chains)
2 x Remote Controls (Not Include Battery)
2 x Manual Release Keys
1 x Set of Mounting Hardware
1 x Set Installation Parts
1 x Manual
