SPECIFICATIONS



12V Portable Air Compressor Suspension Air Pump 200 PSI Intelligent Control Less Noise for Inflating Tire Cars Motorbike



Certification: ce

Color: Silver

Handheld: No



Material: Iron, Copper

Movable: No

Noise: 72db



Power Source: AC Current,Corded Electric

Process: Electroplated

Shape: Rectangular

Style: Modern

Voltage: 12 V



Description

The air compressor is made of high-quality iron and copper, sturdy and durable, which is not easy to deform. The working pressure of this product is 200PSI, which is enough to meet your needs. Whether your vehicle is traveling on rough roads or exploring off-road trails, our product is up to the task.

It is suitable for car horns, pneumatic suspension systems, pneumatic tools, car tires, motorbike tires and so on.



Specifications

Color: Silver

Material: Iron, Copper

Shape: Rectangular

Process: Electroplated

Power Source: Corded Electric

Style: Modern

Shut Down: Manually

Features: Portable, High-pressure

Applicable Models: Automobile Universal

Power: 200-300W

Air Volume: 50L/13.21gal/min

Suitable Capacity of Gas Storage Cylinder: ≤18.93L/5gal

Noise: 72db

Voltage: 12 V

Max.Amperage: 23Amps

Max.Working Pressure: 200PSI

Max.Duty Cycle 100% @100PSI

Flow Rate @0PSI(13.8 Volts): 1.8 CFM

Gross Weight: 4.9kg/10.8lbs

Net Weight: 4.5kg/9.92lbs

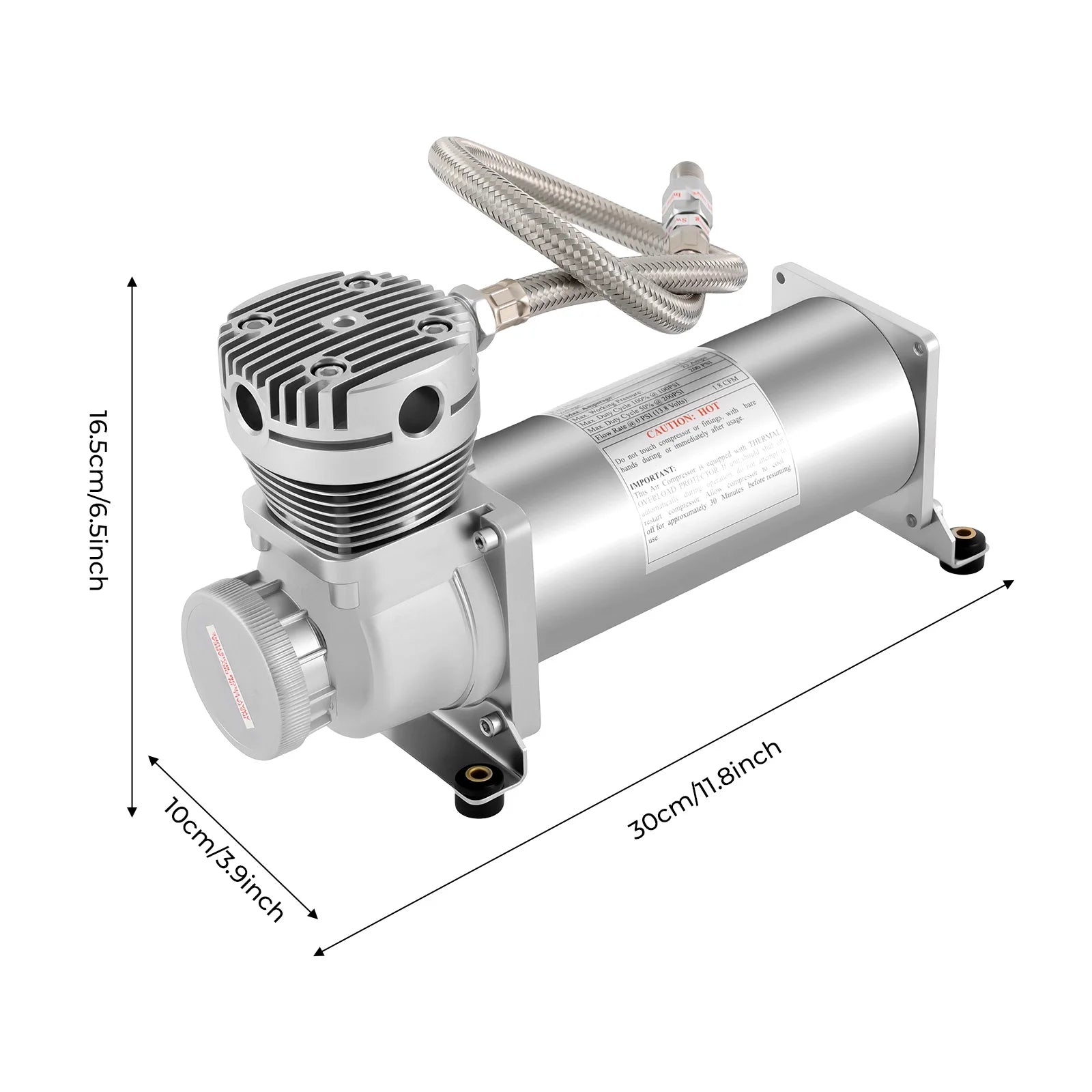

Product Size: 30*10*16.5cm/11.8*3.9*6.5in

Package Size: 32*15*21cm/12.6*5.91*8.27in

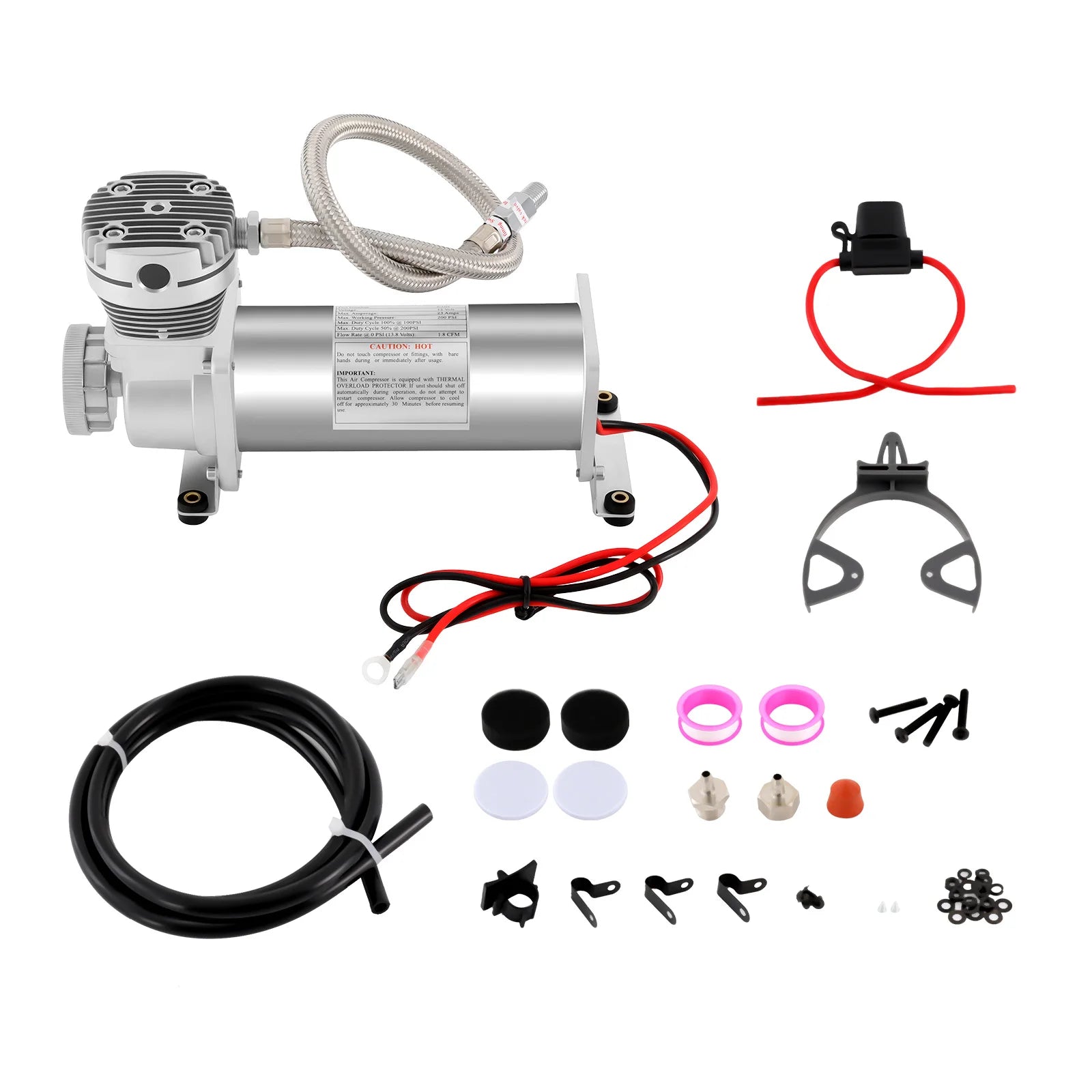

Package Included

1*Air Compressor

2*Sealing Raw Material Belts

1*Fuse

1*Gas Pipe

1*Filter Valve

Other Installation Accessories



Notes

1. This air compressor can be powered by the 12V car battery but not the car cigarette lighter plug.

2. Please do not overfill air gun tanks or air cylinders (less than 0.26gal), as this can cause serious injury. Never attempt to set the output pressure/auto shut-off above 30Mpa(300 bar).Please do not disassemble the machine without professional guidance. Otherwise, it may lead to damage to the machine.

3. If the machine can not start, you can check and reset, try to restart the power supply, or open the valve to relieve pressure.

4. If the compressor is overheating, you can check the motor rotation direction, wind blades, or cooling water circulation. And continuous working can not exceed 1 hour.

5. If the pressure can't increase or the inflation time is too long, you can adjust or change the hose/connector, or clean/ change the valve sheet.If the machine is smoking, you should turn it off and restart it after it cools down.If the compressor vibrates strangely, you can try to tighten the screws or change the ground.

6. Please do not touch the compressor or accessories with your hands during or immediately after use, except for the ON/OFF switch.

7. If the unit switches itself off during operation, do not attempt to restart the compressor. Turn the ON/OFF switch of the compressor to the OFF position and allow the compressor to cool down for approx. 30 minutes before continuing to use it.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
