SPECIFICATIONS



Application: RV,Marine Boat,High Drain Devices, Solar/Wind Devices





Cell Dimension: 232*135*181mm



Charge Over-Current Protection: 200A

Charge mode: CC CV

Charging Voltage: 14.6V

Connection: Others



Maximum continuous charge: 50A

Maximum continuous discharge: 50A



Nominal Capacity: 50AH

Nominal Voltage: 12.8V

Number of series and parallel: 4P4S

Operation Temperature Range-Charge: 0~55℃

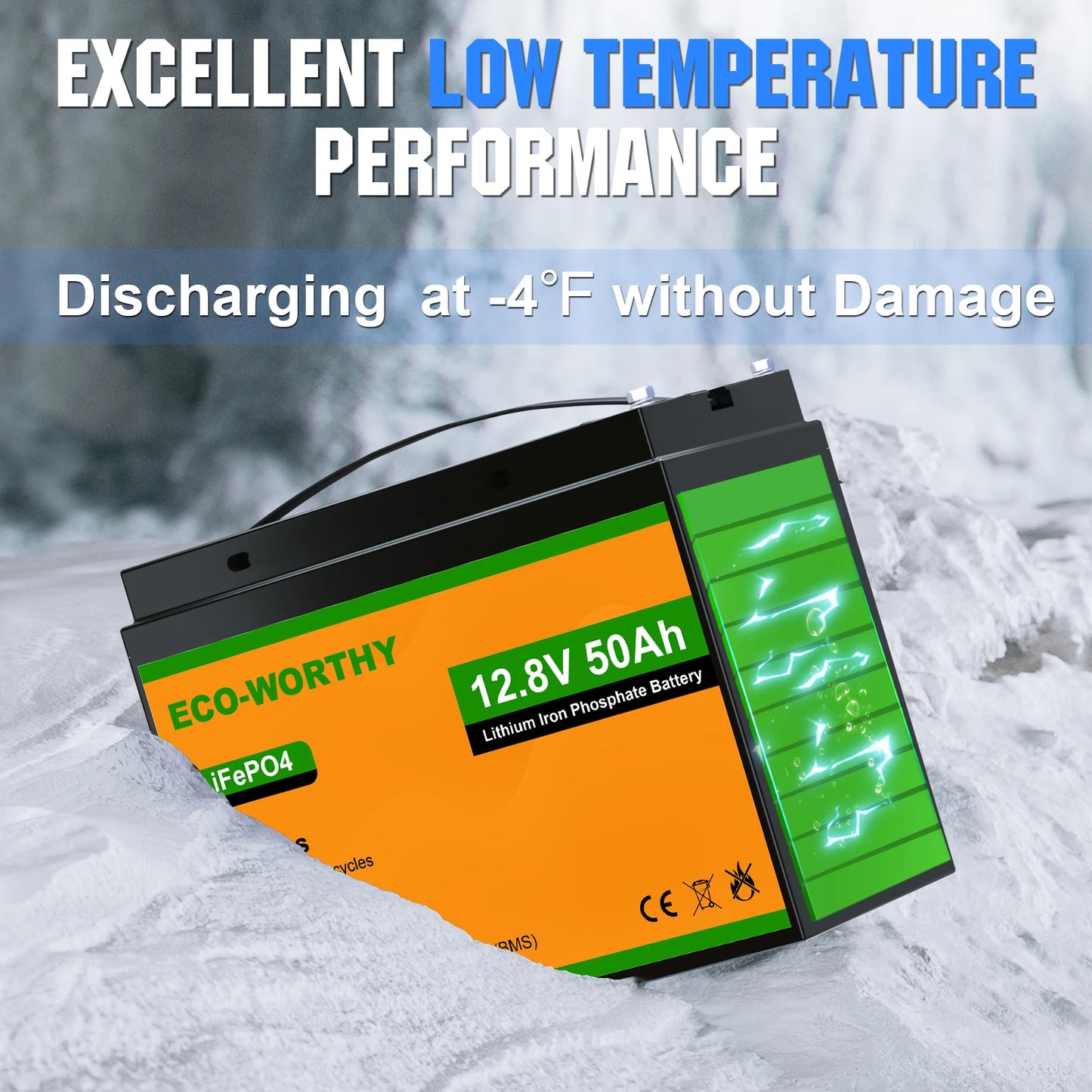

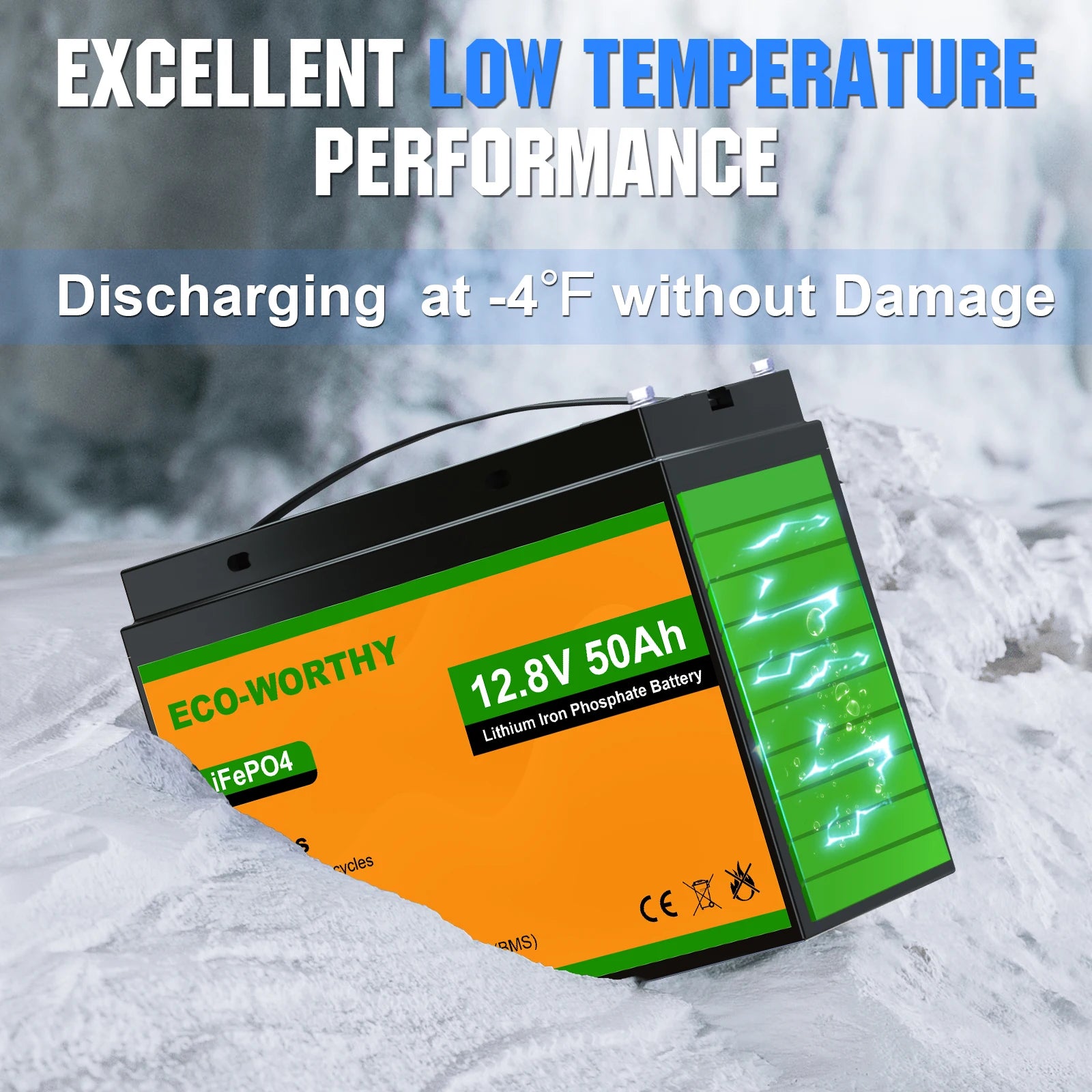

Operation Temperature Range-Discharge: -20~55℃



Rated Capacity: 50Ah

Rated Voltage: 12V

Short circuit protection: Yes

Size: 23.2*13.5*18.1CM

Standard charge: 25A

Type: LiFePO4,LiFePO4 battery

Voltage: 12V

Voltage at end of Discharge: 10V

Weight: 5.5KG



[10 Year Lifetime]

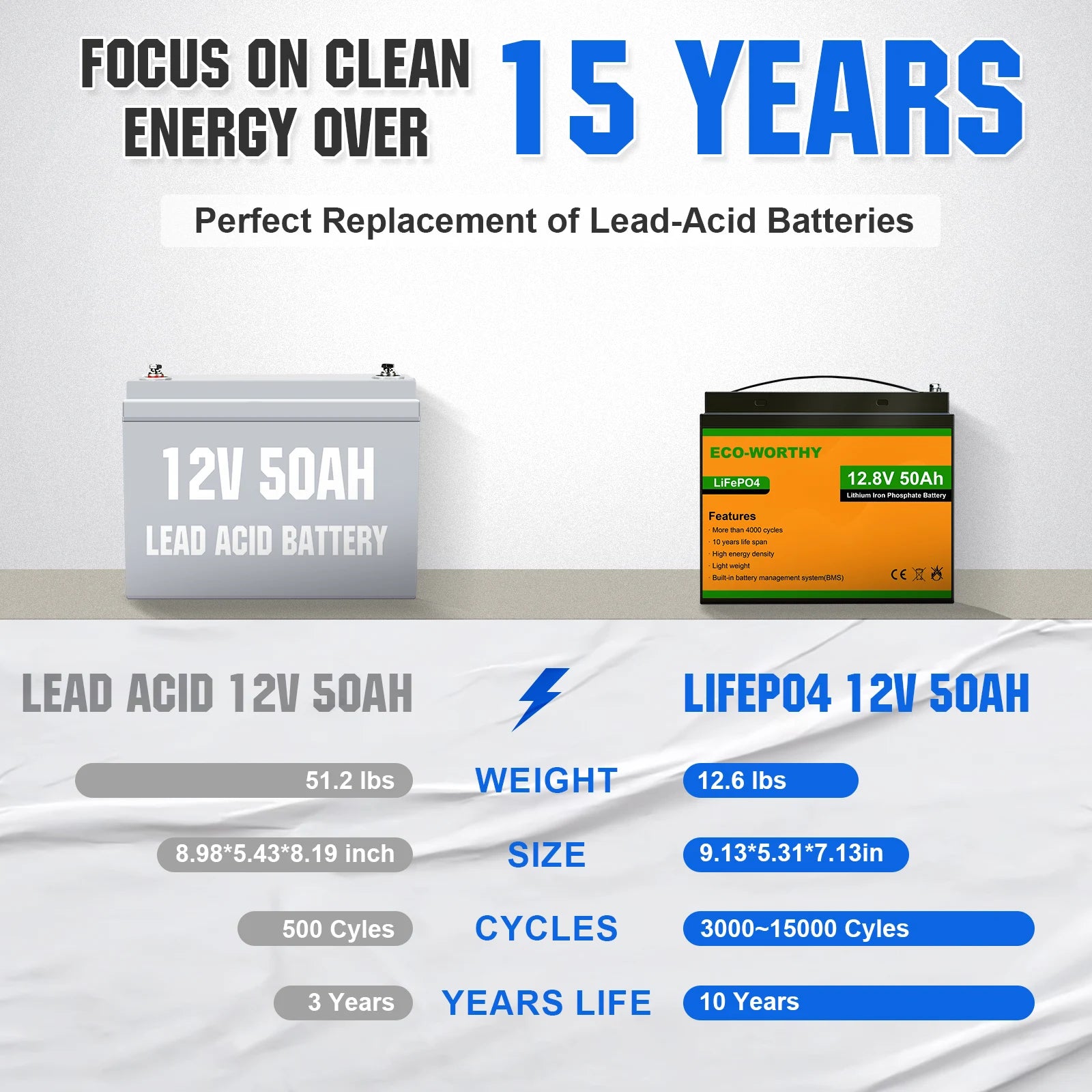

ECO-Worthy lithium iron phosphate battery (LiFePO4) can be recharged more than 3000 times in a deep cycle to achieve a longer cycle life. More than 8 times higher than lead-acid batteries (generally only 300-400 cycles can be charged).

[100% Protection]

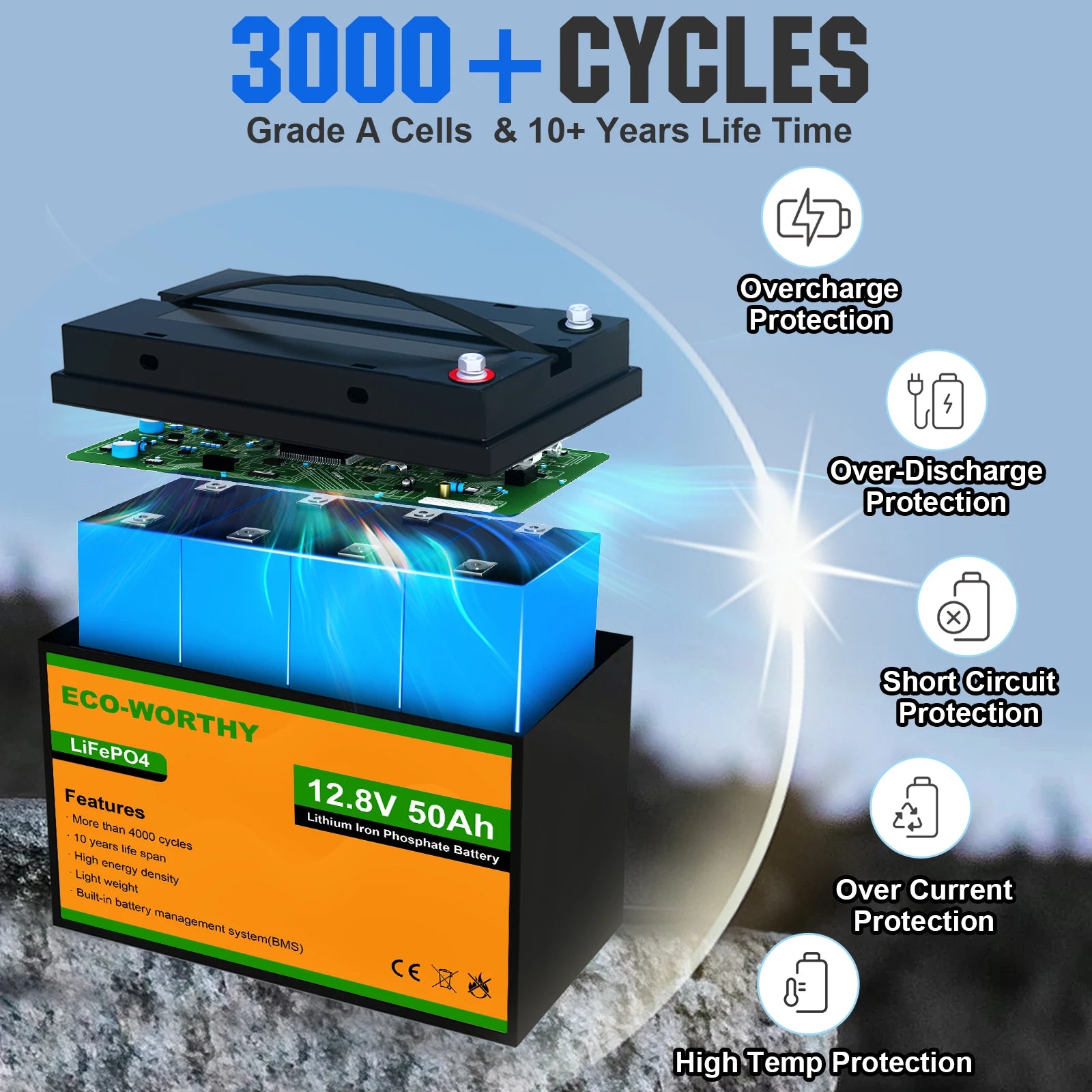

Built-in BMS(Battery Management System) protects the cell from getting damage like: overcharge, over-discharge, short-circuit. And keep balance between battery cells.

[Lightweight Design]

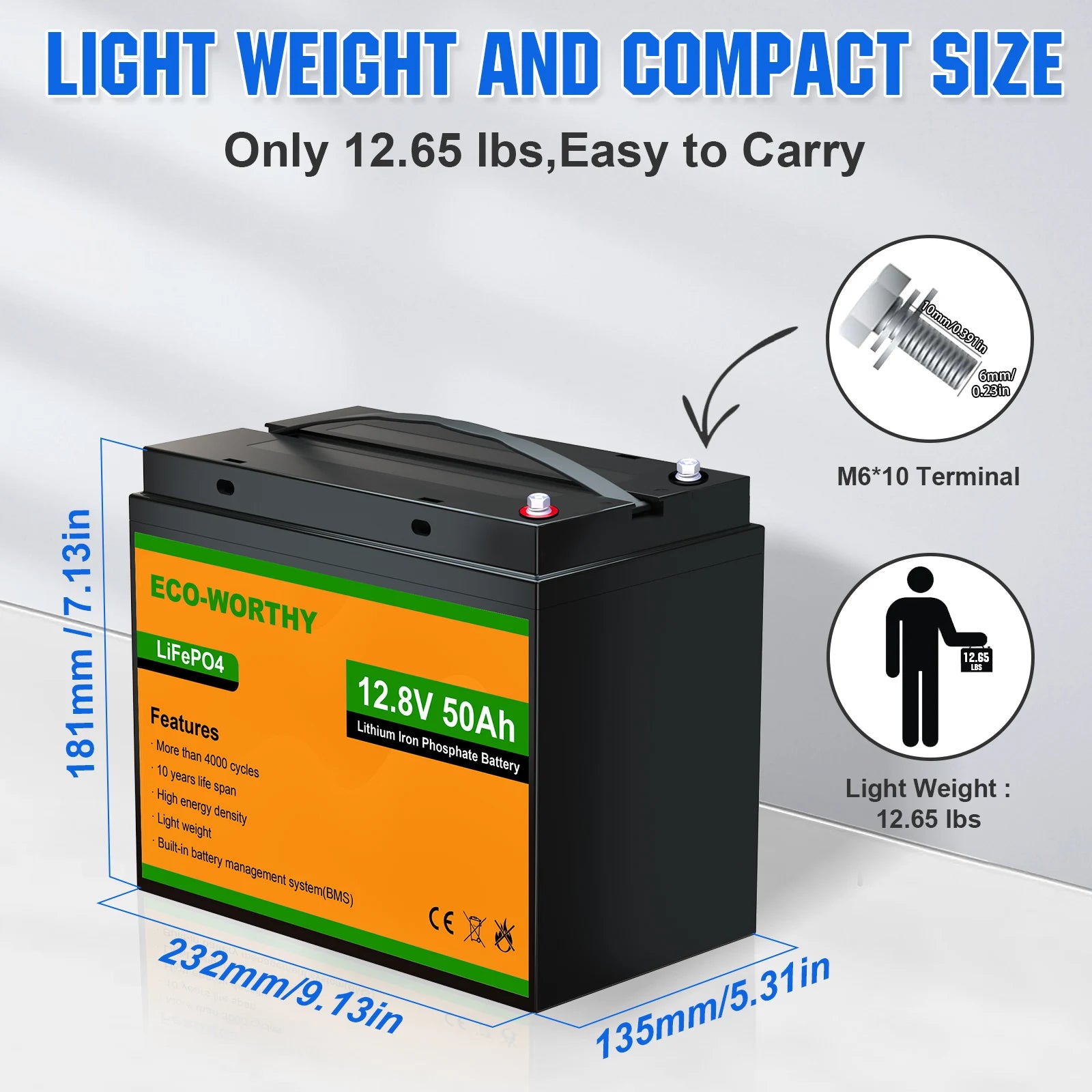

The 50Ah lithium battery has a lightweight design and weighs only 12.7 pounds, much lighter than the lead-acid one. The lithium battery is easy to take outdoors and place in any position that can not be achieved by lead-acid ones.

[Broad Application]

The 50AH lithium battery is Suitable for Golf Carts, Power wheels, Trolling motor, RV, Tool trailer, Caravan, Marine, Camper, Electric scooter, Backup power supply, Solar, off-grid, etc.

[Capacity Expansion]

The 50AH lithium battery can be used not only in parallel connections but also in series. It involves up to 4 identical batteries for connection in series and unlimited batteries in parallel.
