12KW Split Phase Solar Inverter 48V 110V 120V Hybrid

12KW Split Phase Solar Inverter 48V 110V 120V Hybrid

$1,623.99 USD
$0.00 USD $1,623.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS







Certification: UL

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc



Is Smart Device: Yes



Output Frequency: 60Hz

Size: 620mm*450mm*132mm

Weight: 29KG

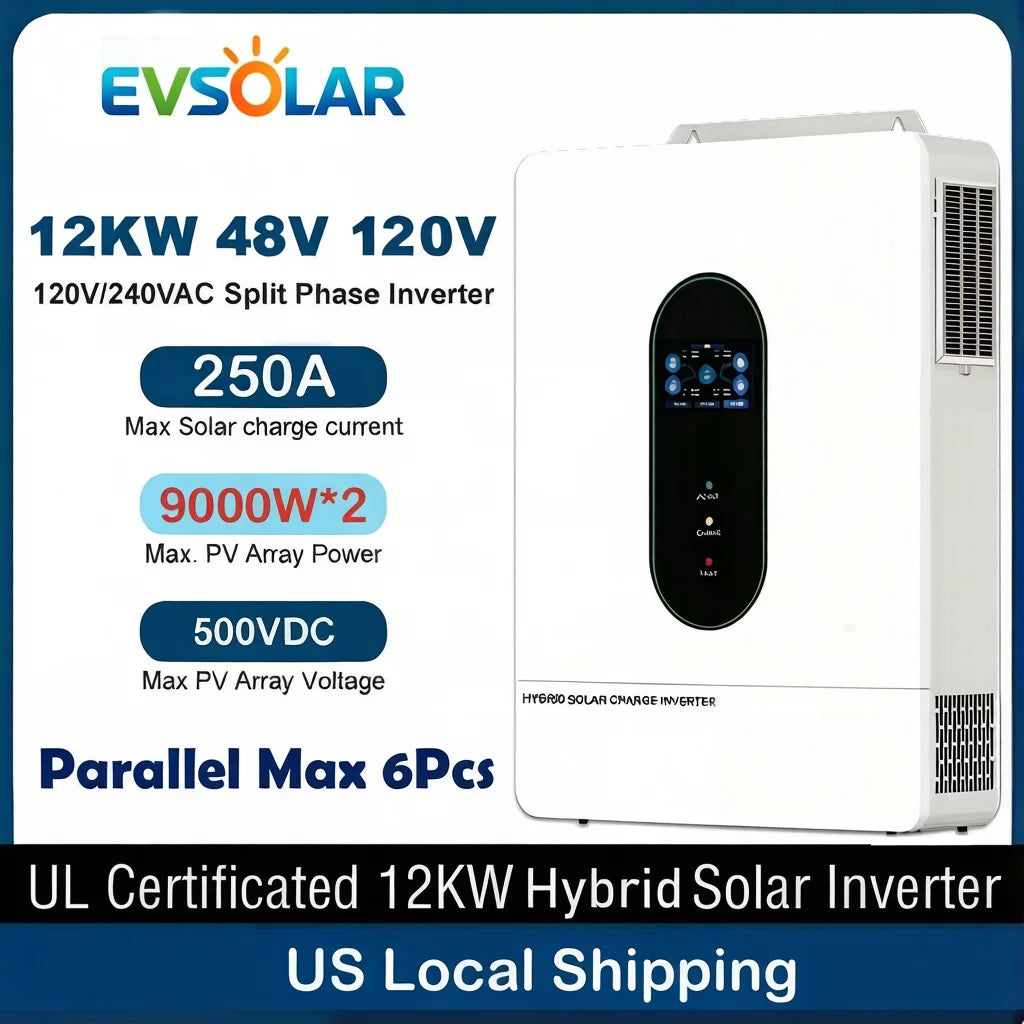

UL 12KW Split Phase Solar Inverter 48V 110V 120V/240 Hybrid Solar Inverter 250A MPPT Paralleled With WiFi Solar Controller Inversore







Description:

EVSOLAR 12KW 48V Solar Hybrid Inverter 120V/220V Pure Sine Wave Power Inverter Split Phase 250A Charger System



1.Pure sine wave

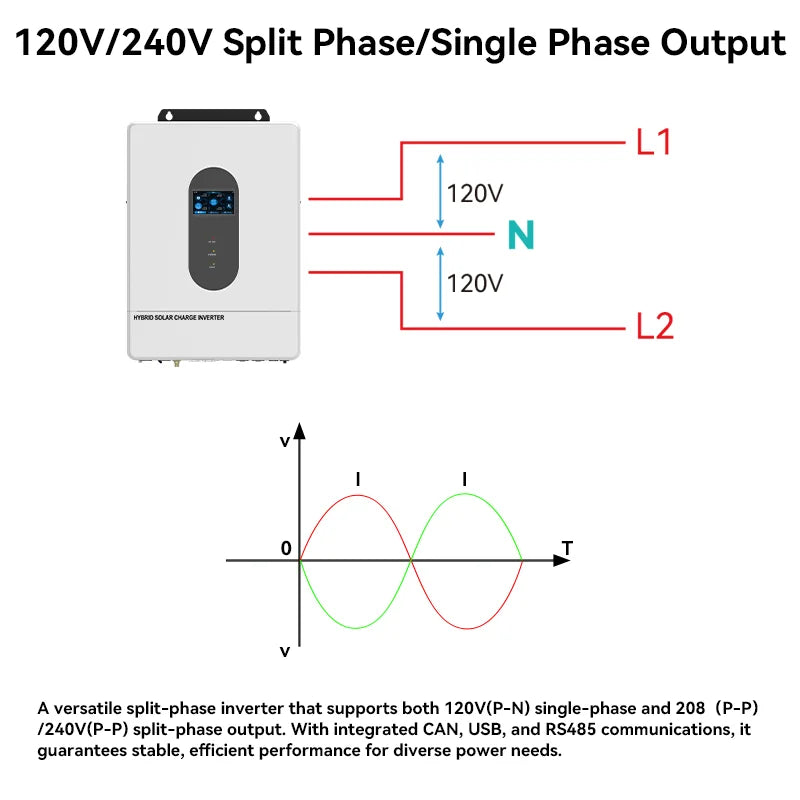

2.Output 120VAC (L1/N,L2/N) / 240VAC (L1/L2)

3.Power factor 1.0

4.Photovoltaic input voltage 90-500Vdc

5.Built-in MPPT Max 250A, Max Solar Panel 9000W*2 input

6.Works compatible with LifePO4 batteries

7.Dual PV input

8.WiFi remote monitoring

9.Supports multiple output priorities to optimize battery performance and extend life cycle

10.Supports RS485 communication protocol with dry node interface

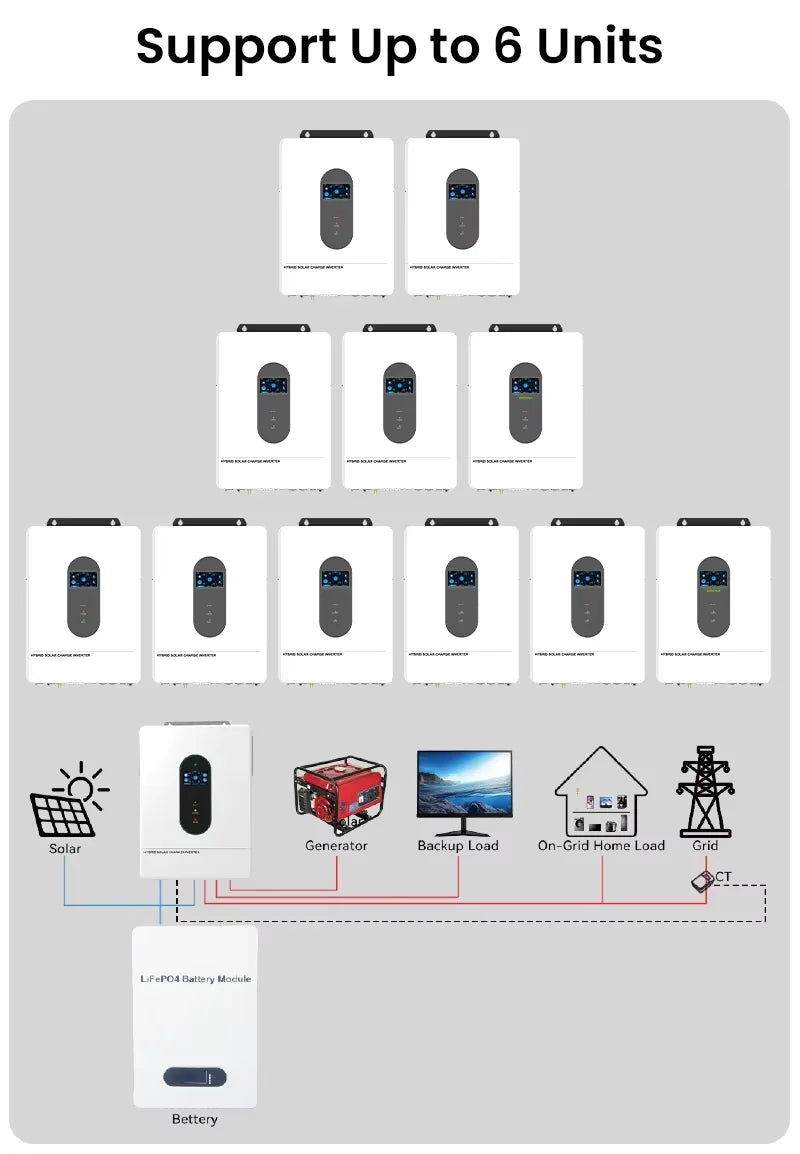

11.Parallel function (optional)

12.Supports working without battery

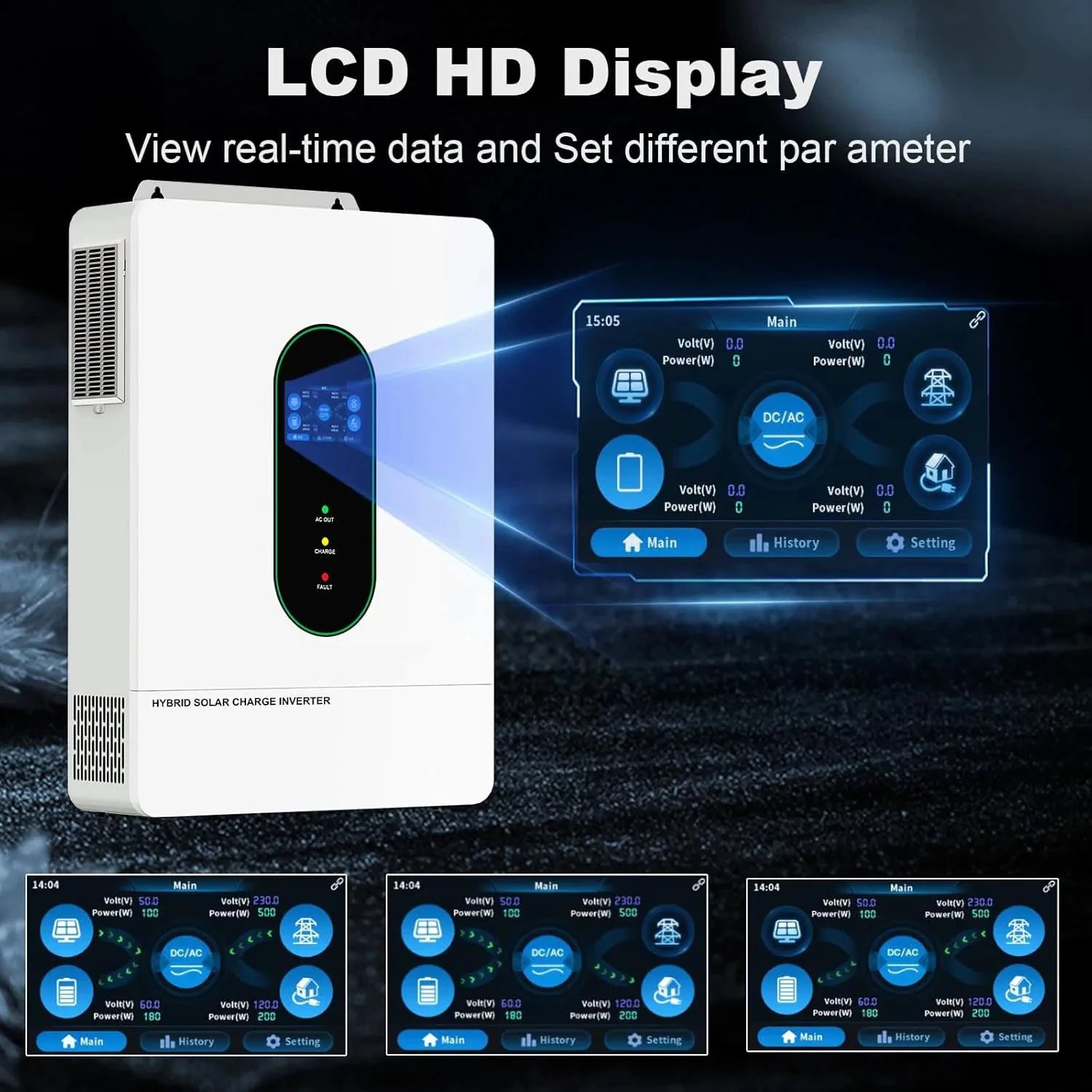

13.LCD touch display

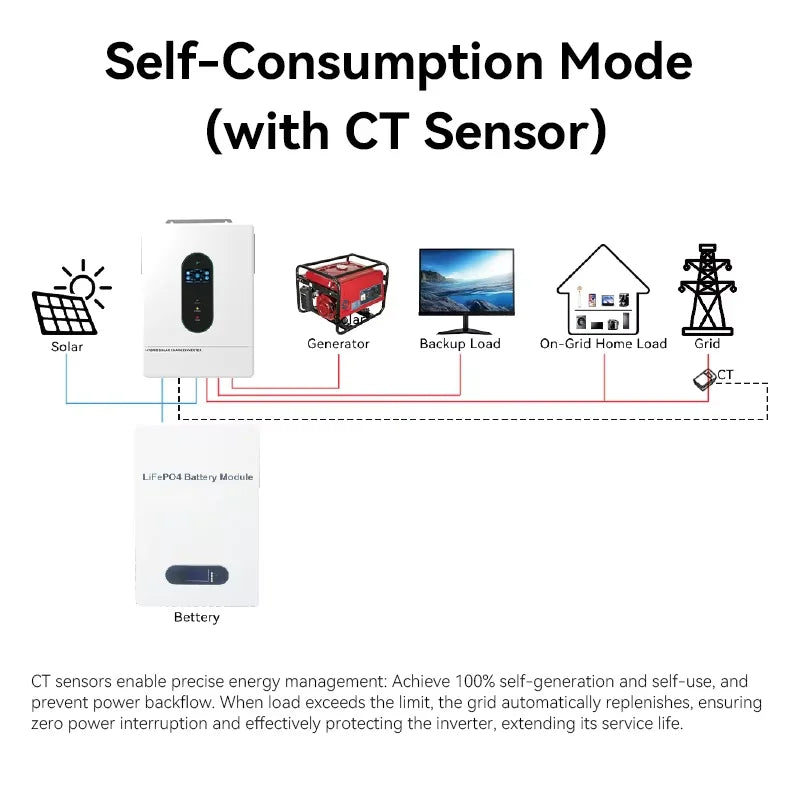

14.Supports feeding power to the grid function

15.Bring PC software to set all functions of the inverter

16.Dual PV input and output

17.The maximum charging current of the mains power is 160A;











Specification:



Models

GES48120M250 -500P

Parallel mode

Yes

Permitted parallel number

1~6

AC mode



Rated input voltage

120(L1/N, L2/N)/240Vac(L1/L2)

Input phase voltage range

(85Vac~140Vac)±2%

Frequency

50Hz/60Hz (Auto detection)

Frequency Range

47±0.3Hz~55±0.3Hz (50Hz)
57±0.3Hz~65±0.3Hz (60Hz)

Overload/ short circuit
protection

Circuit breaker

Efficiency

>95%

Conversion time (bypass
and inverter)

10ms (typical)

AC reverse protection

Yes

Maximum bypass phase
overload current

2pole, 60A/60A(L1/L2)

Inverter mode



Output voltage
waveform

Pure sine wave

Rated output power (VA/W)

Split phase: 12000

Single phase: 7200 (limited by
the wiring terminals)

Rated output voltage (Vac)

120Vac (L1/N,
L2/N)/240Vac(L1/L2)

Output voltage error

±5%

Maximum Efficiency

>91%

Overload
protection

(105% < load <110%) ±5%:
report error and turn off the output after 5 minutes;
(110% < load < 125%) ± 5%: report error and turn off the output after
10 seconds;
Load >125% ±5%: report error and turn off the output after 5 seconds;

Output short circuit
protection

Can protect, after continuous
short circuit for 1 second

Peak power

Split phase: 18000VA

Single phase: 18000VA

AC charging



Battery type

Lead acid or lithium battery

Maximum charge current(can
be set)

160A

Charge current error

±5Adc

Charge voltage range

40-58.6Vdc

Short circuit protection

Circuit breaker and blown fuse

Circuit breaker phase
specifications

2pole, 60A/60A(L1/L2)

PV charging



Number of MPPT groups

2

Maximum PV open circuit
voltage

500Vdc

PV operating voltage range

90Vdc~485Vdc

MPPT voltage range

90Vdc~450Vdc

Maximum PV input power

9000W+9000W

Maximum PV input current

27A+27A

PV charge current(can be set)

250A

Charging short circuit
protection

Blown fuse

Wiring protection

Reverse polarity protection

Hybrid charging Max
charger current specifications (AC charger+PV charger)

Max charger
current(can be set)

0-250A

Certified
specifications



Certification

UL1741 / CSA C22.2#107.1

EMC certification level

FCC part15, CLASS B

Operating temperature range

-10°C to 55°C(>45°C derating)

Storage temperature range

-25°C ~ 60°C

Humidity range

5% to 95%（Conformal
coating protection）

Noise

≤60dB

Heat dissipation

Forced air cooling, variable
speed of fan

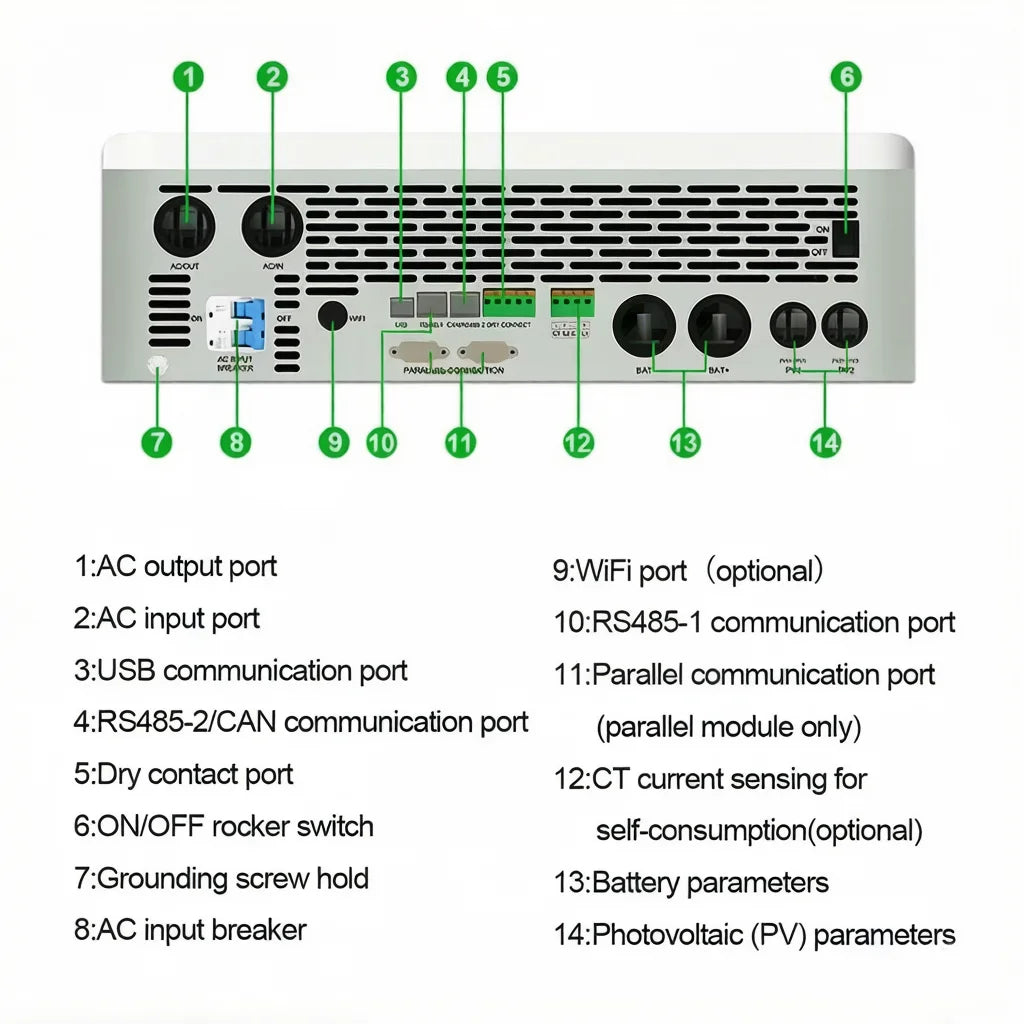

Communication interface

USB/RS485(/WiFi/GPRS)/Dry node
control








WiFi Integration

The inclusion of WiFi allows for remote monitoring and management of the inverter, providing convenience and ease of use for the user.

UL Certified

UL certification ensures the inverter meets strict safety standards, giving users peace of mind regarding its reliability and safety.

Versatile Voltage Compatibility

Capable of operating DC 48V input to AC Slipt 120V/240V, this inverter offers flexibility in voltage selection, making it suitable for various electrical systems.

High Power Output

With a power output of 12KW, this solar inverter is designed to handle large-scale solar energy systems, ensuring efficient conversion of solar power.

MPPT Technology

Equipped with MPPT technology, this inverter maximizes energy capture from solar panels, enhancing system performance and efficiency.
