Specification

Color: White and Black

Shape: Rectangular

Material: ABS

Mounting Type: Wall-mounted and Rail Mount

Conversion Time: ≤50ms

Use Category: AC-33iB

Switching Mode: Self-activation and Self-recovery

Number of Poles: 4P

Rated Working Current: 100A

Rated Operational Voltage: AC110V

Rated Impulse Withstand Voltage: 6KV

Rated Short Time Withstand Voltage: 5KV

Insulation Voltage: 500V

3C Rated Voltage Range: 37V-440V

Level: PC

Gross Weight: 3.75kg/8.27 lbs

Net Weight: 3.56kg/7.85lbs

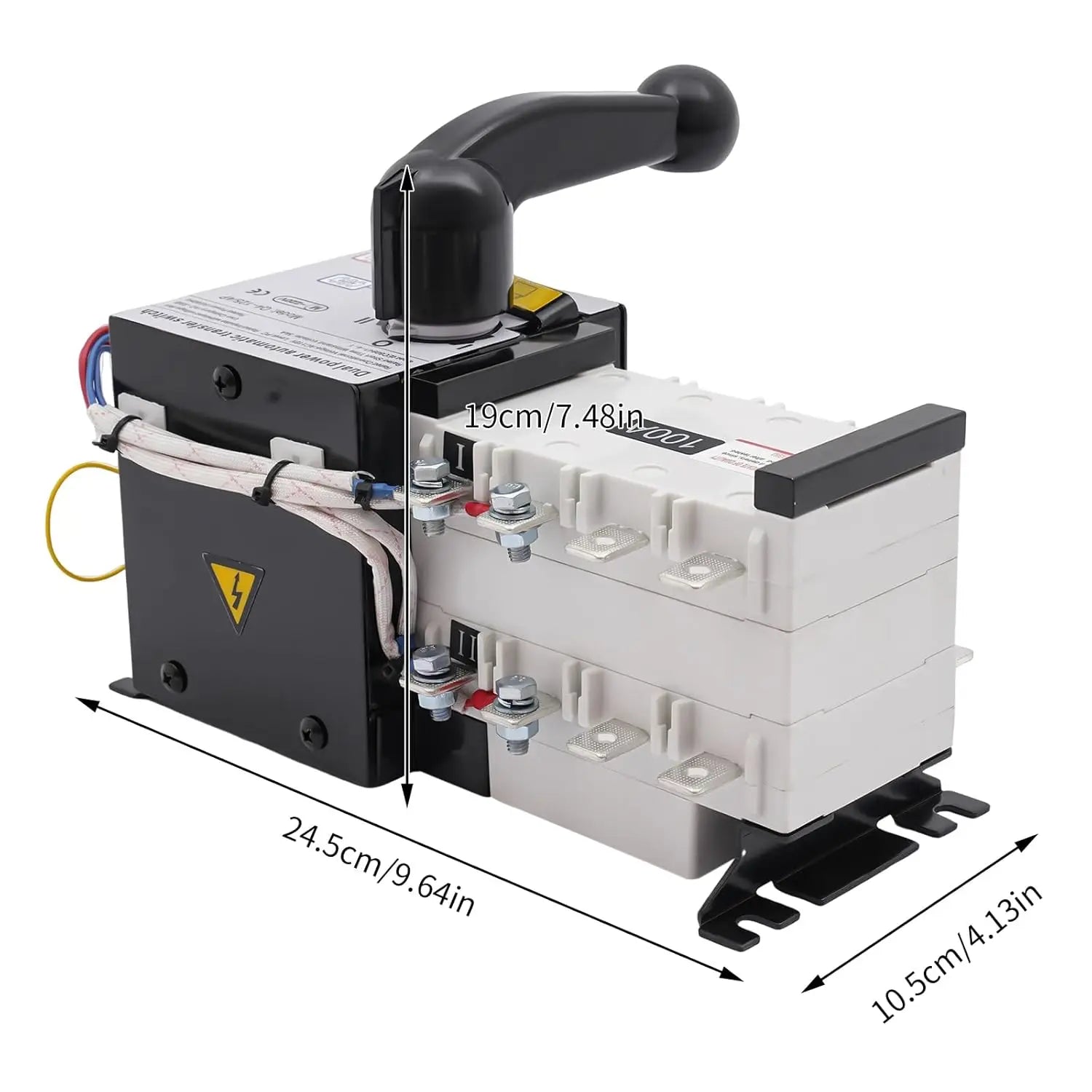

Product Size: 24.5*10.5*19cm/9.64*4.13*7.48 in

Package Size: 25*15*13cm/9.84*5.91*5.12in


Dedicated Key Lock: It comes with two keys, allowing easy switching between manual and automatic modes while preventing accidental contact.

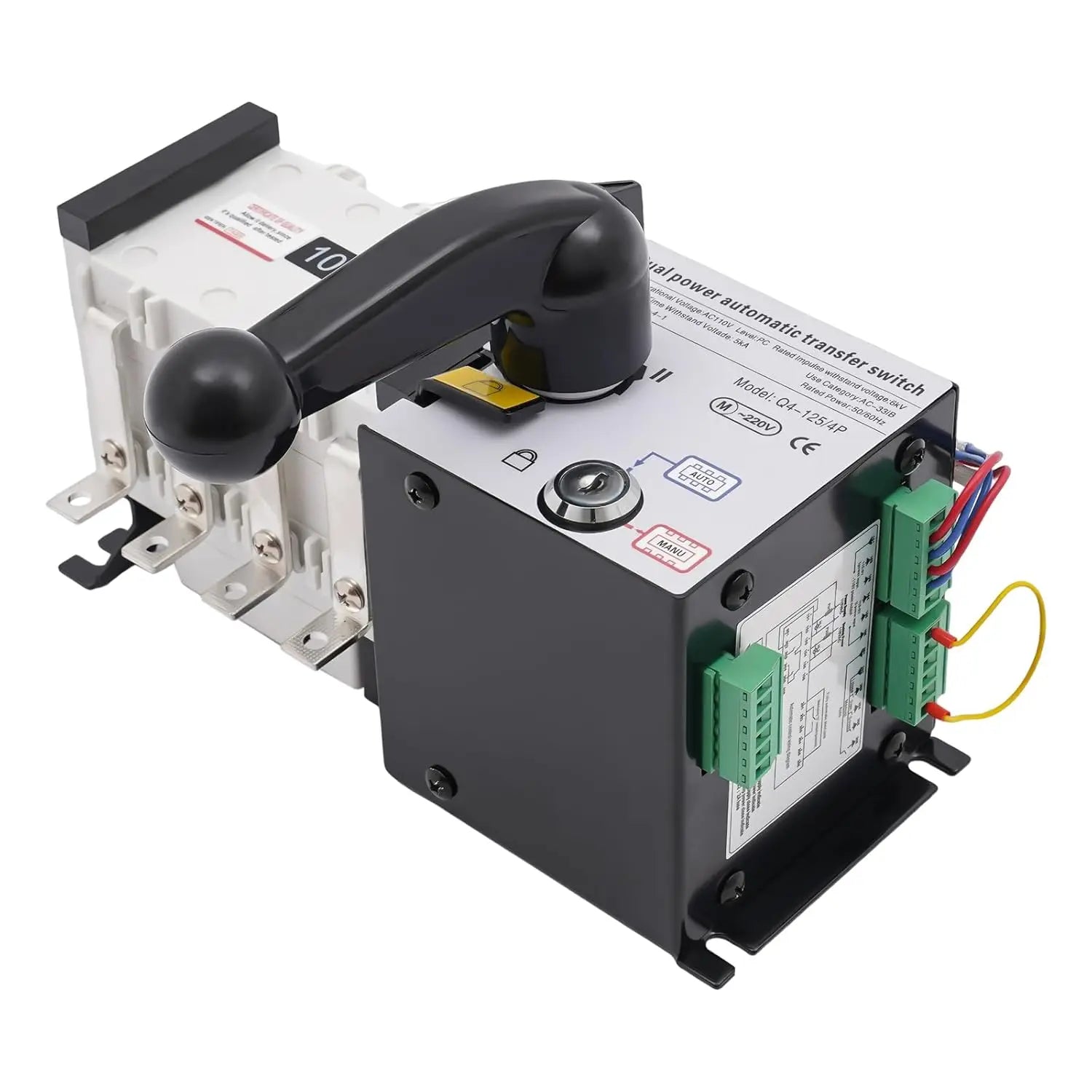

Easy-Grip Handle: It reduces the effort needed when you switch the device manually.

Wiring Terminals: They are treated with tin plating, which has good conductivity and antioxidant properties, and are very easy to wire.

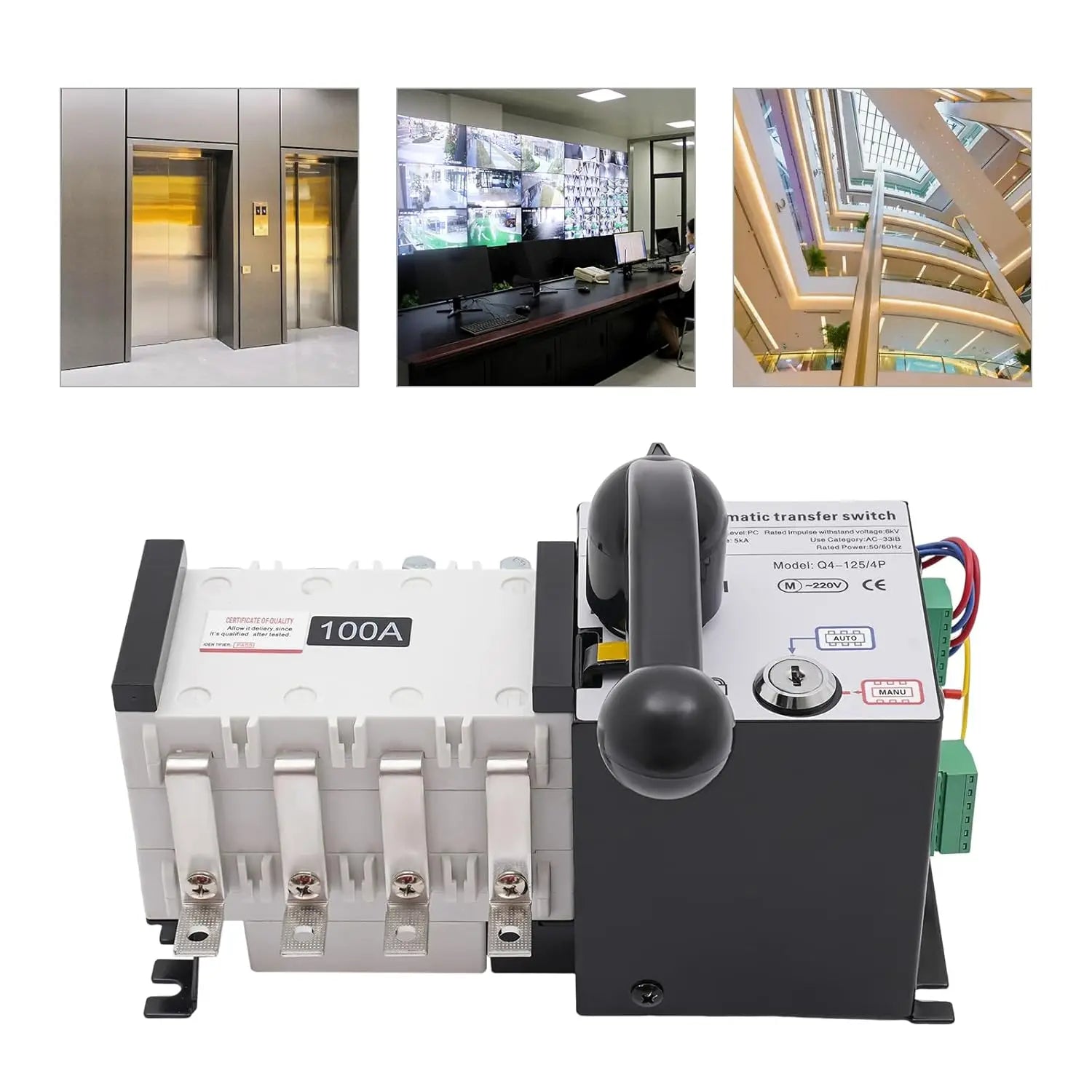

Application

It can be used in elevators, firefighting, monitoring, banking, industrial automation, meters, national defense engineering, news broadcasting centers, street lights, solar energy, inverters, and UPS.

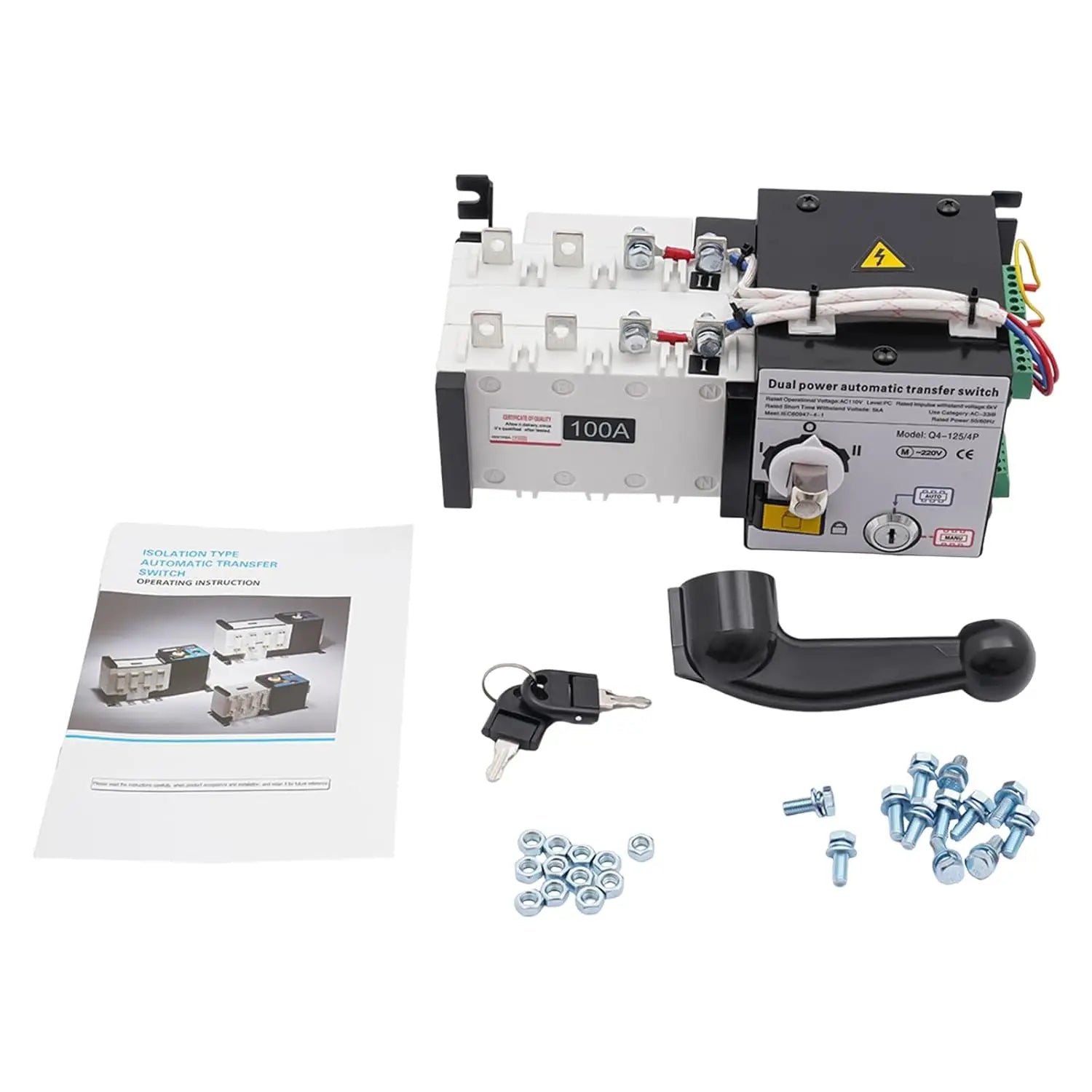

Package Included

1* Dual Power Transfer Switch

2* Keys

1* Handle

1* English User Manual

Other Accessories for Use

Notes

1. Please do not install a switch with earth leakage protection above the product. If required, mount it below.

2. Please read the English manual and labels on the product carefully before use and pay particular attention to the safety instructions contained therein.

3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
